NetPolicy

Overview

NetPolicy is a new adapter CRD created using the policy attachment pattern. When the NetPolicy CR is applied, it creates the policy object by linking the specified BNK custom resources (such as F5BigCneIrule or F5BigPersistenceProfile) with the Kubernetes Gateway API CRDs.

The specification section in the YAML file of NetPolicy CR must include these two arrays:

• extensionRefs: Represents external resource configurations (For example, F5BigCneIrule) that apply to a Gateway or specific listener.

• targetRefs: Specifies Gateway that will receive the configurations from the extensionRefs.

Note

You cannot modify the targetRefs field after you create the custom resource (CR). To change the target Gateway, delete the existing NetPolicy CR and create a new one with the updated target.

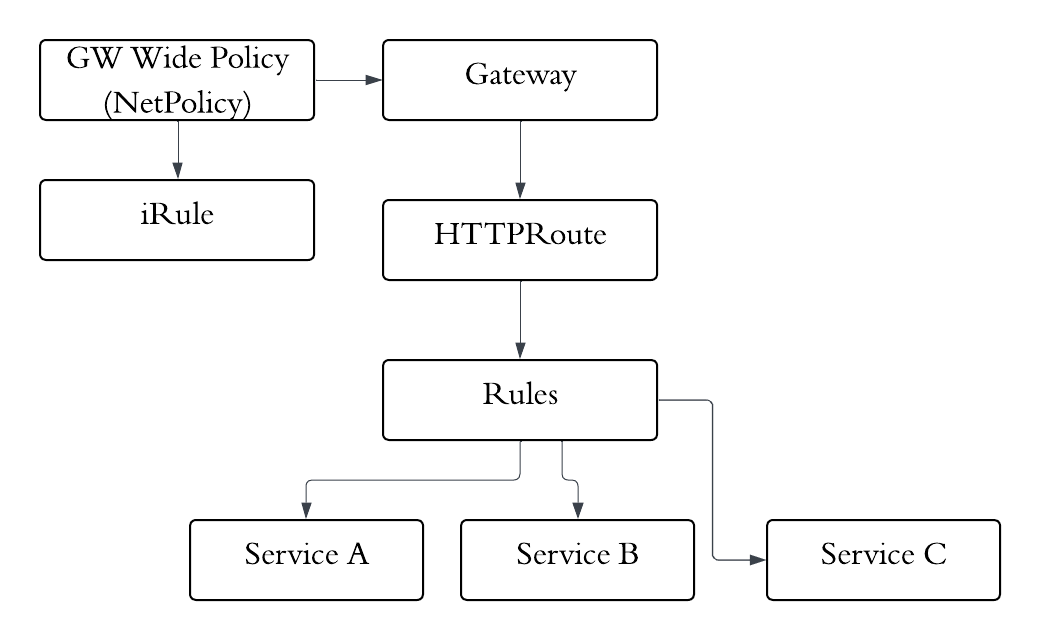

This diagram shows the flow of traffic and the role of policies, iRules, and Gateway API components within the system.

CR Parameters

The sections and the list of parameters to define the NetPolicy CR.

metadata

Parameter	Description
name	The unique name identifying the resource. For example, my-test-netpolicy
namespace	The namespace of Kubernetes in which the policy is applied. Refers to Gateway API policy attachment. For example, "gateway.networking.k8s.io/policy": "direct"

spec

Parameter	Description	Default
extensionRefs string	Specifies the kind of custom resource to attach. Supported values include F5BigCneIrule and F5BigPersistenceProfile. The maximum length of the string is 63 characters.	F5BigCneIrule
extensionRefs.items object	Includes name, group and kind of the resources.
extensionRefs.items.group string	Specifies a string value of a maximum of 255 characters that refers to an API group.	k8s.f5net.com
extensionRefs.items.name string	Specifies a string value of a maximum of 255 characters that refers to the name of the resource.
extensionRefs.items.kind string	Specifies the kind of resource. The maximum length of the string is 63. Options are Irule or PersistenceProfile.”	F5BigCneIrule
targetRefs array	TargetRefs is a range of references to resources that the extensionRef resources should be applied to. These references are limited to Gateways, and the extensionRef is applied only to the specified Gateways. Each targetRef must specify a name, kind, and group and can optionally include a sectionName. Note: Currently, you can have only one targetRef object.
targetRefs.items.group string	Specifies the API group referencing ‌the Kubernetes Networking Gateway API. It can have a maximum of 255 characters.	gateway.networking.k8s.io
targetRefs.items.name string	Specifies the name of the resource. It can have a maximum of 255 characters.
targetRefs.items.kind string	Specifies the kind of ‌resource.	Gateway
targetRefs.items.sectionName string	Specifies the string value of a maximum of 253 characters that indicates the specific listeners in the gateway.	“”

status

The status section in NetPolicy defines the current status of ancestors and descendants.

Parameter	Description
ancestors	Ancestors is a list of ancestor resources (usually Gateways) that are linked to the policy. It shows the policy’s status with respect to each ancestor.
descendants	Descendants is a list of descendant resources (extensionRefs) that are linked to the policy. It shows the policy’s status with respect to each descendant.

Design rules

Multiple Netpolicies

How to apply:

You can apply multiple BIG-IP Next for Kubernetes Net Policies to a single gateway only when

• A policy is applied at the gateway level to define global network behavior for the gateway.

• A policy is applied at the listener level by specifying the targetRefs.sectionName in the NetPolicy CR to target specific listeners in Gateway configuration.

For example:

When there are three policies (NetPolicy1, NetPolicy2, and NetPolicy3) you can

• Apply NetPolicy1 to gateway.

• Apply NetPolicy2 to listener1 (http_service).

• Apply NetPolicy3 to listener2 (dns_service).

How not to apply:

Multiple NetPolicies cannot be applied when,

• Multiple policies are applied at the same listener level. This results in conflicting behavior at the specific listener.

• Multiple policies are applied at the gateway level. A gateway cannot have conflicting global configurations.

For example:

When there are three policies (NetPolicy1, NetPolicy2, and NetPolicy3) you cannot apply two policies (NetPolicy1 and NetPolicy2) to a gateway.

Execution Order:

When multiple policies are applied, and traffic passes through the gateway, the gateway-level iRule is executed first, followed by the listener-level iRule.

For example

• When ‌traffic flows through listener1, an iRule applied at the Gateway level is executed first, followed by an iRule applied to listener1.

• When ‌traffic flows through listener2, an iRule applied at the Gateway level is executed first, followed by an iRule applied to listener2.

The NetPolicy CR supports general extensions. This CR can reference resources such as iRules.

For details on iRule application in NetPolicy, see F5 iRule in NetPolicy

Configure NetPolicy

Prerequisites

Make sure,

• The product BNK (DPU) is installed and the F5 controller is running.

• The GatewayClass CR is configured.

• The Gateway CR is configured.

• The F5BigCneIrule CR is created.

NetPolicy with F5BigCneIrule attached to Gateway

1. Apply F5BigCneIrule CR

  apiVersion: k8s.f5net.com/v1
  kind: F5BigPersistenceProfile
  metadata:
    name: persistence-profile-one
    namespace: gatewayns
  spec:
    persistenceType: MODEL_CONTEXT_PROTOCOL
    timeout: 300

kubectl create -f irule.yaml
f5bigcneirule.k8s.f5net.com/irule-one created

kubectl get -f irule.yaml
NAME        READY   MESSAGE                                AGE
irule-one   True    CR config sent to all grpc endpoints   3m37s

2. Apply NetPolicy CR

apiVersion: "gateway.k8s.f5.com/v1alpha1"
kind: NetPolicy
metadata:
  name: my-test-netpolicy
  namespace: gatewayns
spec:
  extensionRefs:
  - kind: F5BigCneIrule
    name: irule-one
    group: k8s.f5net.com
  targetRefs:
  - kind: Gateway
    name: my-l4route-tcp-gateway
    group: gateway.networking.k8s.io
    sectionName: "l4-nginx-tcp"

kubectl create -f NetPolicy.yaml
NetPolicy.gateway.k8s.f5.com/my-test-netpolicy created

kubectl get -f NetPolicy.yaml
NAME                AGE
my-test-netpolicy   6s

Note

NetPolicy, Gateway, F5BigCneIrule CRs should be in the same namespace when attached to Gateway or Gateway Listener.

NetPolicy with F5BigPersistenceProfile attached to Gateway

1. Apply F5BigPersistenceProfile CR

apiVersion: k8s.f5net.com/v1
kind: F5BigPersistenceProfile
metadata:
  name: cnf-mcp-persistence
  namespace: gatewayns
spec:
  persistenceType: MODEL_CONTEXT_PROTOCOL
  mcpEncryptionPassphrase:
    secretRef:
      name: mcp-crypto-vault
      passphraseField: primary-passphrase

kubectl create -f persistence-profile.yaml
f5bigpersistenceprofile.k8s.f5net.com/cnf-mcp-persistence created

kubectl get -f persistence-profile.yaml
NAME                   READY   MESSAGE                                AGE
cnf-mcp-persistence    True    CR config sent to all grpc endpoints   1m15s

2. Apply NetPolicy CR

apiVersion: "gateway.k8s.f5.com/v1alpha1"
kind: NetPolicy
metadata:
  name: my-test-netpolicy
  namespace: gatewayns
spec:
  extensionRefs:
  - kind: F5BigCneIrule
    name: irule-one
    group: k8s.f5net.com
  targetRefs:
  - kind: Gateway
    name: my-l4route-tcp-gateway
    group: gateway.networking.k8s.io
    sectionName: "l4-nginx-tcp"

kubectl create -f NetPolicy-persistence.yaml
NetPolicy.gateway.k8s.f5.com/persistence-netpolicy created

kubectl get -f NetPolicy-persistence.yaml
NAME                    AGE
persistence-netpolicy   8s
