Lab 1.4 - F5 Container Connector Usage¶

This class and following labs need these namespaces/projects created.
```
oc create namespace f5demo
oc create namespace demoproj
```
For the following yaml files to work you need to be in the “f5demo” project.

Attention

In the previous lab, upon OpenShift login, you were placed in the “default” project.
```
oc project f5demo
```

Create the f5demo deployment

oc create -f f5demo.yaml

Tip

This file can be found at /home/centos/agilitydocs/openshift/advanced/apps/f5demo

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: f5demo
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: f5demo
        tier: frontend
    spec:
      containers:
      - name: f5demo
        image: kmunson1973/f5demo:1.0.0
        ports:
        - containerPort: 8080

Create the f5demo service

oc create -f f5service.yaml

Tip

This file can be found at /home/centos/agilitydocs/openshift/advanced/apps/f5demo

apiVersion: v1
kind: Service
metadata:
  name: f5demo
  labels:
    app: f5demo
    tier: frontend
spec:
  # if your cluster supports it, uncomment the following to automatically create
  # an external load-balanced IP for the frontend service.
  # type: LoadBalancer
  ports:
  - port: 8080
  selector:
    app: f5demo
    tier: frontend

Upload the Deployments to the OpenShift API server. Use the pool-only configmap to configuration project namespace: f5demo on the bigip

oc create -f pool-only.yaml

Tip

This file can be found at /home/centos/agilitydocs/openshift/advanced/ocp/

kind: ConfigMap
apiVersion: v1
metadata:
  # name of the resource to create on the BIG-IP
  name: k8s.poolonly
  # the namespace to create the object in
  # As of v1.1, the k8s-bigip-ctlr watches all namespaces by default
  # If the k8s-bigip-ctlr is watching a specific namespace(s),
  # this setting must match the namespace of the Service you want to proxy
  # -AND- the namespace(s) the k8s-bigip-ctlr watches
  namespace: f5demo
  labels:
    # the type of resource you want to create on the BIG-IP
    f5type: virtual-server
data:
  schema: "f5schemadb://bigip-virtual-server_v0.1.7.json"
  data: |
    {
      "virtualServer": {
        "backend": {
          "servicePort": 8080,
          "serviceName": "f5demo",
          "healthMonitors": [{
            "interval": 3,
            "protocol": "http",
            "send": "GET /\r\n",
            "timeout": 10
          }]
        },
        "frontend": {
          "virtualAddress": {
            "port": 80
          },
          "partition": "ocp",
          "balance": "round-robin",
          "mode": "http"
        }
      }
    }

Check bigip1 and bigip2 to make sure the pool got created. Validate the pools are marked green.

Attention

Make sure you are looking at the “ocp” partition
Increase the replicas of the f5demo project pods. Replicas specified the required number of instances to run
```
oc scale --replicas=10 deployment/f5demo -n f5demo
```
Note

It may take time to have your replicas up and running.
Don’t hesitate to track this by using the following command. To check the number of AVAILABLE instances:
```
oc get deployment f5demo -n f5demo
```
Validate that bigip1 and bigip2 are updated with the additional pool members and their health monitor works. If the monitor is failing check the tunnel and selfIP.

Validation and Troubleshooting¶

Now that you have HA configured and uploaded the deployment, it is time to generate traffic through our BIG-IPs.

Add a virtual IP to the the configmap. You can edit the pool-only.yaml configmap. There are multiple ways to edit the configmap which will be covered in module 3. In this task remove the deployment, edit the yaml file and re-apply the deployment

Remove the “pool-only” configmap.
```
oc delete -f pool-only.yaml
```
Edit the pool-only.yaml and add the bindAddr

vi pool-only.yaml
```
"frontend": {
   "virtualAddress": {
      "port": 80,
      "bindAddr": "10.3.10.220"
```
Tip

Do not use TAB in the file, only spaces. Don’t forget the “,” at the end of the “”port”: 80,” line.
Create the modified pool-only deployment
```
oc create -f pool-only.yaml
```
From the jumpbox open a browser and try to connect to the virtual server at http://10.3.10.220. Does the connection work? If not, try the following troubleshooting options:
1. Capture the http request to see if the connection is established with the BIG-IP.
2. Follow the following network troubleshooting section.

Network Troubleshooting¶

How do I verify connectivity between the BIG-IP VTEP and the OSE Node?

Ping the Node’s VTEP IP address. Use the -s flag to set the MTU of the packets to allow for VxLAN encapsulation.
```
ping -s 1600 -c 4 10.3.10.21 #(or .22 or .23)
```
Ping the Pod’s IP address (use the output from looking at the pool members in the previous steps). Use the -s flag to set the MTU of the packets to allow for VxLAN encapsulation.
```
ping -s 1600 -c 4 10.130.0.8
```
Now change the MTU to 1400
```
ping -s 1400 -c 4 10.130.0.8
```
Note

When pinging the VTEP IP directly the BIG-IP was L2 adjacent to the device and could send a large MTU.

In the second example, the packet is dropped across the VxLAN tunnel.

In the third example, the packet is able to traverse the VxLAN tunnel.
In a TMOS shell, do a tcpdump of the underlay network.
```
tcpdump -i ocp-tunnel -c 10 -nnn
```
In a TMOS shell, view the MAC address entries for the OSE tunnel. This will show the mac address and IP addresses of all of the OpenShift endpoints.
```
tmsh show /net fdb tunnel ocp-tunnel
```

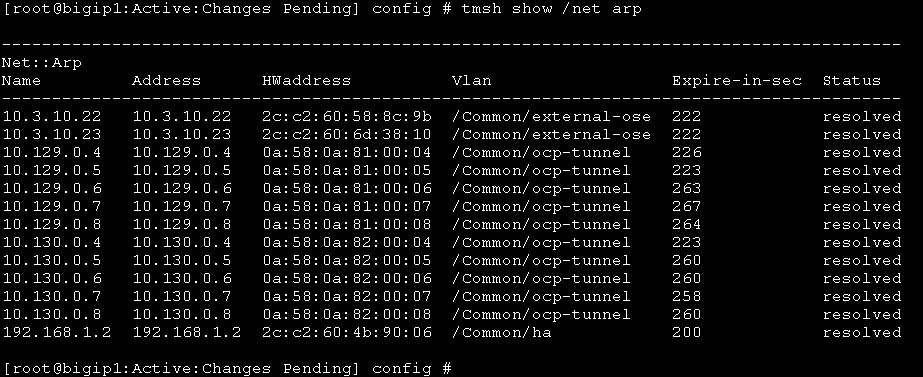

In a TMOS shell, view the ARP entries.

This will show all of the ARP entries; you should see the VTEP entries on the ocpvlan and the Pod IP addresses on ose-tunnel.
```
tmsh show /net arp
```
Validate floating IP address for ocp-tunnel. Check to validate if the configuration is correct from the earlier config step. Make sure the self-IP is a floating IP. Traffic Group should be set to traffic-group-1 floating. If the traffic is local non-floating change to floating.
Connect to the viutal IP address.
Test failover and make sure you can connect to the virtual.

Attention

Congratulations for completing the HA clustering setup. Before moving to the next module cleanup the deployed resource:

oc delete -f pool-only.yaml
