Lab 1.1 - NGINX Ingress Controller Scaling

In this lab you will scale up and down the NGINX Ingress Controller (NIC) deployment and verify the F5 IngressLink configuration updates the BIG-IP’s pool members.

Open BIG-IP Network Map

  1. Open the TMUI window from the previous exercise (or open it by clicking TMUI in the Access dropdown for the F5 BIG-IP).

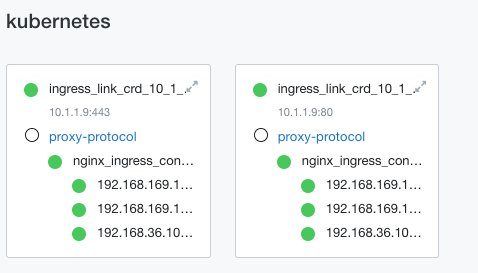

2. Navigate to Local Traffic >> Network Map. A new tab will open. You should see two pools for the ingress controller. If you don’t, select the kubernetes partition from the dropdown near the upper-left corner below the F5 logo.

../../_images/network-map.png

Scale Up NGINX Ingress Controller Deployment

  1. Access the shell for the Ubuntu server. It should be open from the previous lab.
  2. Set the default namespace to nginx-ingress.
kubectl config set-context --current --namespace nginx-ingress
  1. Verify the current number of NIC Pods. It should be three.
kubectl get pods -o wide

Output

ubuntu@ubuntu:~$ kubectl get pods -o wide
NAME                                        READY   STATUS    RESTARTS      AGE   IP                NODE        NOMINATED NODE   READINESS GATES
nginx-ingress-controller-8649794698-frz8k   1/1     Running   2 (23h ago)   23h   192.168.169.157   k8s-node2   <none>           <none>
nginx-ingress-controller-8649794698-g5cfs   1/1     Running   2 (23h ago)   23h   192.168.36.100    k8s-node1   <none>           <none>
nginx-ingress-controller-8649794698-w4xd9   1/1     Running   2 (23h ago)   23h   192.168.169.160   k8s-node2   <none>           <none>
  1. Scale the NIC deployment to six pods.
kubectl scale deployment --replicas=6 nginx-ingress-controller
  1. Verify the pods are scaled.
kubectl get pods -o wide

Output

ubuntu@ubuntu:~$ kubectl get pods -o wide
NAME                                        READY   STATUS    RESTARTS      AGE   IP                NODE        NOMINATED NODE   READINESS GATES
nginx-ingress-controller-8649794698-frz8k   1/1     Running   2 (23h ago)   24h   192.168.169.157   k8s-node2   <none>           <none>
nginx-ingress-controller-8649794698-g5cfs   1/1     Running   2 (23h ago)   24h   192.168.36.100    k8s-node1   <none>           <none>
nginx-ingress-controller-8649794698-g6l6j   1/1     Running   0             94s   192.168.169.164   k8s-node2   <none>           <none>
nginx-ingress-controller-8649794698-m8pxk   1/1     Running   0             94s   192.168.36.118    k8s-node1   <none>           <none>
nginx-ingress-controller-8649794698-w4xd9   1/1     Running   2 (23h ago)   24h   192.168.169.160   k8s-node2   <none>           <none>
nginx-ingress-controller-8649794698-xzh2l   1/1     Running   0             94s   192.168.36.114    k8s-node1   <none>           <none>

Verify BIG-IP Pools

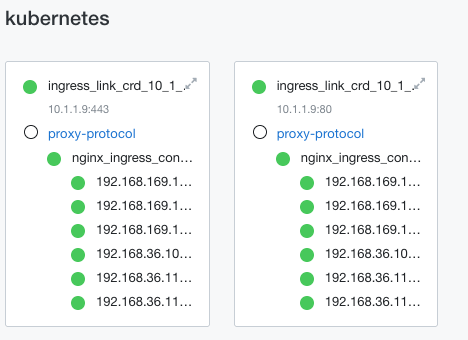

1. Switch back to the Network Map tab and refresh it. You should see additional pool members for the new NIC pods. Keep refreshing until you see all the new pool members.

../../_images/network-map-scaled.png

Scale Down NGINX Ingress Controller Deployment

  1. Open the shell for the Ubuntu server and scale down the NIC deployment back to 3 replicas.
kubectl scale deployment --replicas=3 nginx-ingress-controller
  1. Verify the pods are scaled down.
kubectl get pods -o wide

Output

ubuntu@ubuntu:~$ kubectl get pods -o
NAME                                        READY   STATUS    RESTARTS      AGE   IP                NODE        NOMINATED NODE   READINESS GATES
nginx-ingress-controller-8649794698-frz8k   1/1     Running   2 (23h ago)   24h   192.168.169.157   k8s-node2   <none>           <none>
nginx-ingress-controller-8649794698-g5cfs   1/1     Running   2 (23h ago)   24h   192.168.36.100    k8s-node1   <none>           <none>
nginx-ingress-controller-8649794698-w4xd9   1/1     Running   2 (23h ago)   24h   192.168.169.160   k8s-node2   <none>           <none>

Verify BIG-IP Pools

  1. Switch back to the Network Map tab and refresh it. You should see the additional pool members disappear as they are scaled down by Kubernetes.
