Exercise 2.1: Using a combination of modules to delete configuration on the BIG-IP

Objective

Demonstrate use of the different modules to delete the configuration (Nodes/Pool/Virtual Server) on the BIG-IP.

Guide

Step 1:

Examine the bigip-delete-configuration.yml in the VSCode editor. Expand in the Explorer (f5-bd-ansible-labs –> 101-F5-Basics –> 2.1-delete-configuration):

Examine the Code

  • The variable irules is a list (array) defined with two irules => ‘irule1’ and irule2’

  • The bigip_virtual_server: is the module for adding/modifying/deleting virtual servers on the BIG-IP.

  • The bigip_pool: is the module for adding/modifying/deleting pools on the BIG-IP.

  • The bigip_node: is the module for adding/modifying/deleting nodes on the BIG-IP.

  • The bigip_irule: is the module for adding/modifying/deleting irules on the BIG-IP.

  • The state: defines wether a object is created, modified or deleted. In this usecase objects will be deleted.

  • The set_fact: module is used to create variables used within the playbook.

  • The provider: parameter is a group of connection details for the BIG-IP.

  • The server: "{{ ansible_host }}" parameter tells the module to connect to the F5 BIG-IP IP address, which is stored as a variable ansible_host in inventory

  • The user: "{{ ansible_user }}" parameter tells the module the username to login to the F5 BIG-IP device with

  • The password: "{{ ansible_password }}" parameter tells the module the password to login to the F5 BIG-IP device with

  • The server_port: "{{ server_port }} parameter tells the module the port to connect to the F5 BIG-IP device with

  • The validate_certs: false parameter tells the module to not validate SSL certificates. This is just used for demonstration purposes since this is a lab.

Step 2:

Change directories to the exercise 2.1 folder to examine and execute the code in the Terminal

cd ~/f5-bd-ansible-labs/101-F5-Basics/2.1-delete-configuration

Step 3:

Run the playbook - Go back to the Terminal on VS Code server on the control host and execute the following:

ansible-navigator run bigip-delete-configuration.yml --mode stdout

Playbook Output

[rhel-user@ede7a345-c0f1-47f9-a73b-74fded8ec113 2.1-delete-configuration]$ ansible-navigator run bigip-delete-configuration.yml --mode stdout

PLAY [BIG-IP TEARDOWN] *********************************************************

TASK [Setup provider] **********************************************************
ok: [f5]

TASK [DELETE VIRTUAL SERVER] ***************************************************
changed: [f5]

TASK [DELETE POOL] *************************************************************
changed: [f5]

TASK [DELETE NODES] ************************************************************
changed: [f5] => (item=node1)
changed: [f5] => (item=node2)

TASK [Delete iRules] ***********************************************************
changed: [f5] => (item=irule1)
changed: [f5] => (item=irule2)

PLAY RECAP *********************************************************************
f5                         : ok=5    changed=4    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Solution

The finished Ansible Playbook is provided here. Click here bigip-delete-configuration.yml.

Verifying the Solution

To see the deleted configuration, login to the F5 load balancer with your web browser.

  • BIG-IP - (In UDF Console –> Components –> BIG-IP –> Access –> TMUI) - This will popup a webpage to access the F5 Login Page

    • Login to the BIG-IP instance

      • username: admin

      • password: found in the inventory hosts file

  • Navigate the menu on the left and view that the configuration has been deleted

    • Local Traffic Manager -> Virtual Servers

    • Local Traffic Manager -> Pools

    • Local Traffic Manager -> Nodes

    • Local Traffic Manager -> iRules

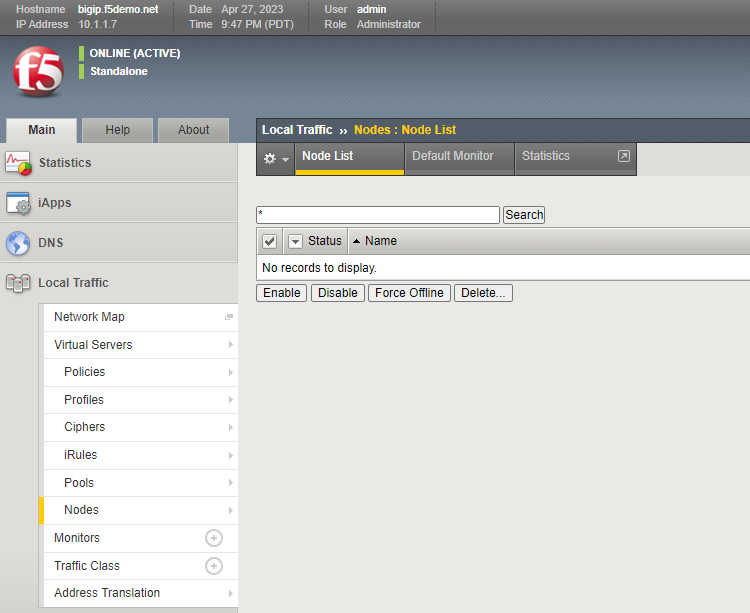

    f5deleted1

    f5deleted2

    f5deleted3

    f5deleted4

You have finished this exercise.
