Exercise 3.1 - Operational Change with AS3¶

Objective¶

Demonstrate changing an existing Web Application AS3 template. There is a problem with the existing template, the serviceMain is showing red. What is wrong?

|serviceMain-offline.png|

Guide¶

Step 1:¶

Figure out what is wrong. Login to the F5 with your web browser to see what was configured.

Click on service_Main to see why its down.

Look at the Availability field in the table.

Click on the Pools under Local Traffic

Click on app_pool

Click on the Members button

The port 443 is incorrect. The two RHEL web servers are only running on port 80. This is why they are showing down.

Step 2:¶

Now we are going to look at what changed in the https.j2 file as we have modified the service port from 443 to 80 and this is the only change made to the AS3 template

examine the https.j2 located in the j2 folder

{
"class": "AS3",
"action": "deploy",
"persist": true,
"declaration": {
   "class": "ADC",
   "schemaVersion": "3.0.0",
   "id": "usecase1",
   "label": "Ansible Workshops",
   "remark": "HTTPS with pool",
   "{{ as3_tenant_name }}": {
      "class": "Tenant",
      "AS3-UseCase-1": {
      "class": "Application",
      "service_Main": {
         "class": "Service_HTTPS",
         "virtualAddresses": [
            "{{ private_ip }}"
         ],
         "profileMultiplex": {
            "bigip": "/Common/oneconnect"
         },
         "pool": "app_pool",
         "serverTLS": {
                  "bigip": "/Common/clientssl"
               },
         "persistenceMethods": []
      },
      "app_pool": {
         "class": "Pool",
               "minimumMembersActive": 0,
               "minimumMonitors": "all",
         "monitors": [
            "http"
         ],
         "members": [{
            "servicePort": 80,
            "serverAddresses": [
                  {% set comma = joiner(",") %}
                  {% for mem in pool_members %}
                        {{comma()}} "{{  hostvars[mem]['private_ip']  }}"
                  {% endfor %}
            ]
         }]
      }
      }
   }
}
}

Step 3:¶

Change directories to the exercise 3.1 folder to examine and execute the code in the Terminal
cd ~/f5-bd-ansible-labs/101-F5-Basics/3.1-as3-change/

Step 4:¶

Run the playbook - Go back to the Terminal on VS Code server on the control host and execute the following:

ansible-navigator run as3.yml --mode stdout

Playbook Output

[rhel-user@ede... 3.1-as3-change]$ ansible-navigator run as3.yml --mode stdout

PLAY [AS3 Tenant Change] *******************************************************

TASK [PUSH AS3 Template] *******************************************************
changed: [f5]

PLAY RECAP *********************************************************************
f5                         : ok=1    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Solution¶

The finished Ansible Playbook is provided here. Click here: as3_template.j2.

Verifying the Solution¶

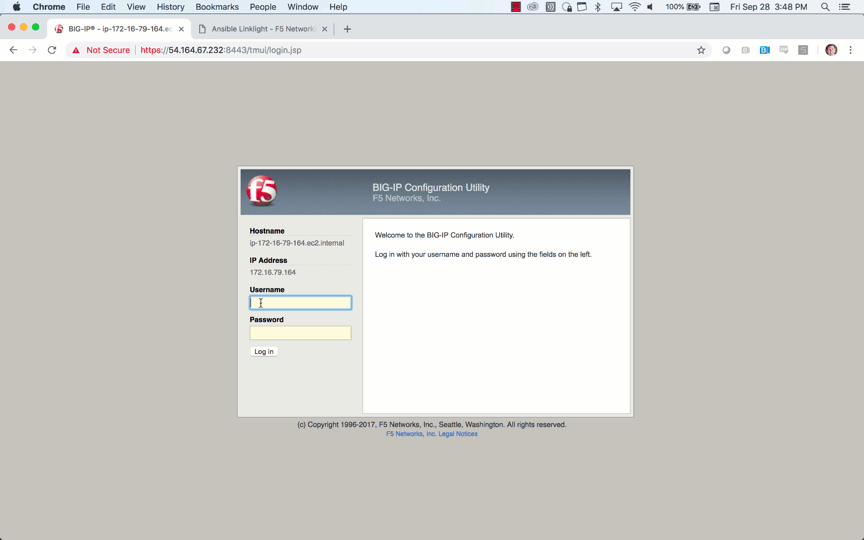

To see the configured Tenant Partition, login to the F5 load balancer with your web browser.

BIG-IP - (In UDF Console –> Components –> BIG-IP –> Access –> TMUI) - This will popup a webpage to access the F5 Login Page

Login to the BIG-IP instance

username: admin

password: found in the inventory hosts file

Now your application will be fully fuctional and the (Pools members) fixed to utilize port 80 instead of port 443 within the partition WorkshopExample

You have finished this exercise.
