API Access Control – Role-Based Enforcement (AS3 & Declarative Onboarding)

The Middle Layer enforces authentication and authorization controls over the BIG-IP control plane. This lab validates secure access to service extensions (AS3 and Declarative Onboarding) using role-based authorization and deterministic REST validation.

This lab assumes:

• Network-layer segmentation (Outer Layer) is enforced.

• Administrative authentication (MFA) is in place or delegated to centralized AAA.

This lab focuses on authorization enforcement at the REST framework layer.

Authentication answers:

• Who are you?

Authorization answers:

• What are you allowed to do?

---

Executive Summary

This lab demonstrates secure API access enforcement for BIG-IP service extensions through layered controls:

• Network segmentation (Outer Layer)

• REST authentication

• Role-based authorization

• Device-scoped extension protection

• Deterministic authorization failure behavior

Together, these controls enforce least privilege and protect declarative service extensions from unauthorized invocation.

---

API Exposure Surface

Endpoint Family	Port	Purpose
/mgmt/shared/appsvcs/*	TCP 443	AS3 service extension (device-scoped)
/mgmt/shared/declarative-*	TCP 443	Declarative Onboarding (device-scoped)

These endpoints are exposed on the BIG-IP management interface and are protected by the REST framework’s authentication and role-based authorization.

Objective

Validate secure, deterministic API access to BIG-IP service extensions while enforcing:

• Role-based authorization

• Least privilege validation

• Device-scoped extension protection

• Management-plane isolation

• Deterministic authorization failure behavior

---

Threat Model

This lab assumes an adversary may attempt to:

• Use valid credentials with insufficient privileges to invoke device-scoped APIs.

• Access the BIG-IP management API from an authorized network without sufficient privileges.

• Abuse overly privileged accounts to deploy unauthorized configurations.

• Invoke device-scoped service extensions (AS3/DO) using partition-scoped roles.

• Submit unauthorized declarative configurations.

Controls validated in this lab mitigate these threats via:

• Management-plane segmentation.

• Strict REST authentication enforcement.

• Role-based authorization at the REST framework layer.

• Explicit denial of device-scoped extension access to non-administrative roles.

---

Architecture Overview

AS3 and Declarative Onboarding operate under:

/mgmt/shared/*

These endpoints are:

• Device-scoped

• Not partition-scoped

• Protected by REST framework authorization

• Not configurable for partition-level delegation

Authorization Flow:

1. Client authenticates using REST Basic Authentication.

2. REST framework validates credentials.

3. Authorization policy evaluates assigned role.

4. Service extension executes only if role permits.

---

Lab Environment Reference

Management IP of BIG-IP:

10.1.1.5

All API testing in this lab will target:

https://10.1.1.5

---

Phase 1 – Baseline Validation

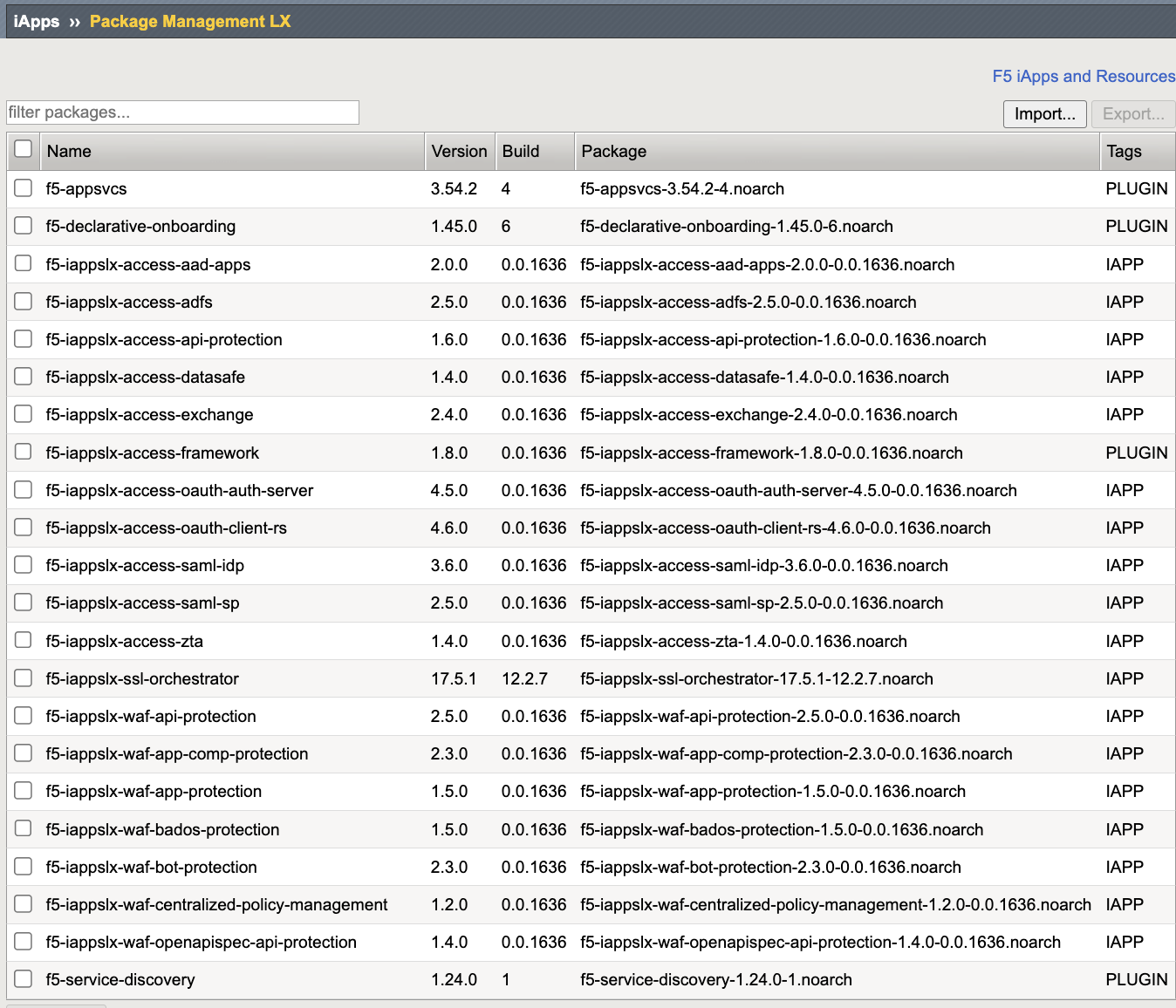

Verify AS3 and DO Installed

Navigate to:

iApps → Package Management LX

Confirm the following packages are installed:

• f5-appsvcs

• f5-declarative-onboarding

---

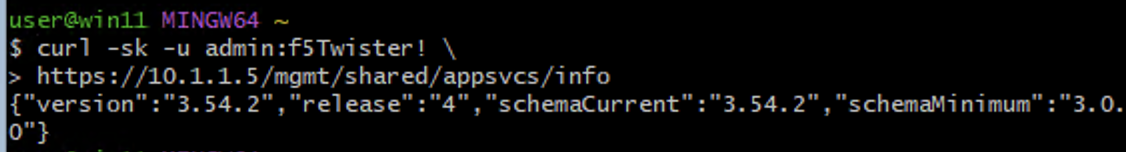

Baseline API Reachability (Administrator)

Execution Context:

• Host: Windows Jump Host (10.1.1.4)

• Tool: Git Bash (curl client)

• Network Interface: Management Network (10.1.1.0/24)

Run the following command:

curl -sk -u 'admin:f5Twister!' \
https://10.1.1.5/mgmt/shared/appsvcs/info \
-w "\nHTTP Status: %{http_code}\n"

Expected:

• HTTP Status: 200

• JSON response containing AS3 version information

---

Phase 2 – Least Privilege Enforcement (Operator Denied)

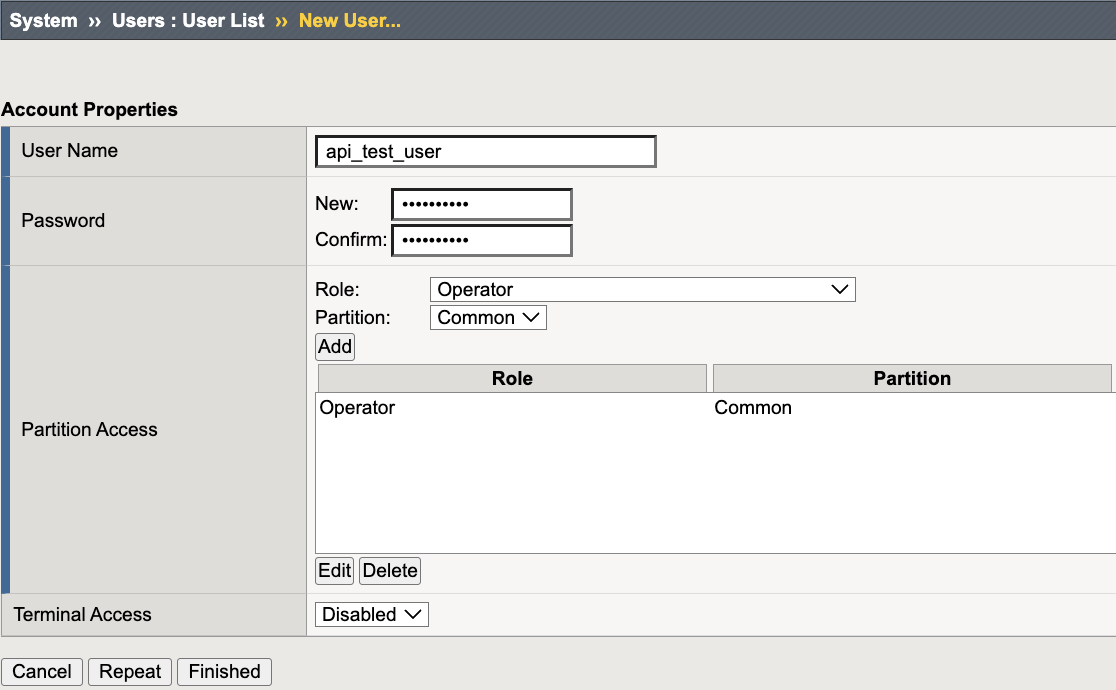

Create Restricted User

Note

When a new local user logs in for the first time, BIG-IP may require a password change. REST API authentication cannot complete this step.

Log in once through TMUI as api_test_user and change the password before performing the API tests.

Create a local user with limited privileges:

• Username: api_test_user

• Role: Operator

• Partition: Common

• Terminal Access: Disabled

---

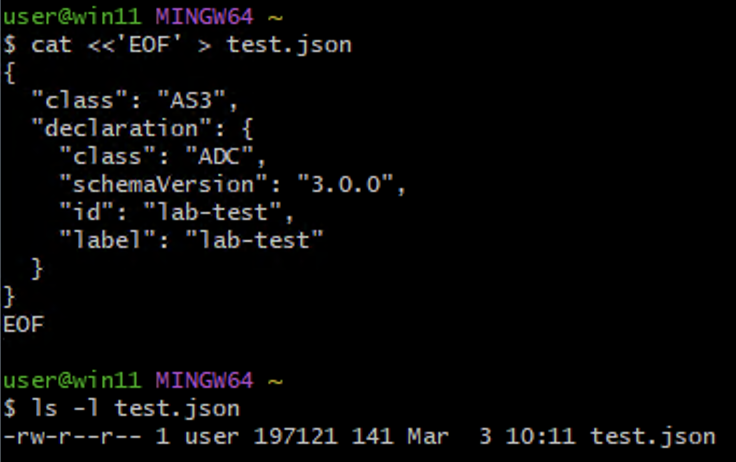

Create AS3 Test Declaration (Git Bash)

Execution Context:

• Host: Windows Jump Host (10.1.1.4)

• Tool: Git Bash (local shell)

• Network Interface: Management Network (10.1.1.0/24)

Create a minimal AS3 declaration payload locally on the jumphost. This payload is intentionally minimal and used only to validate authorization behavior.

Run the following command:

cat <<'EOF' > test.json
{
  "class": "AS3",
  "declaration": {
    "class": "ADC",
    "schemaVersion": "3.0.0",
    "id": "lab-test",
    "label": "lab-test"
  }
}
EOF

Verify file creation:

ls -l test.json

Expected:

• test.json exists and has a non-zero size

---

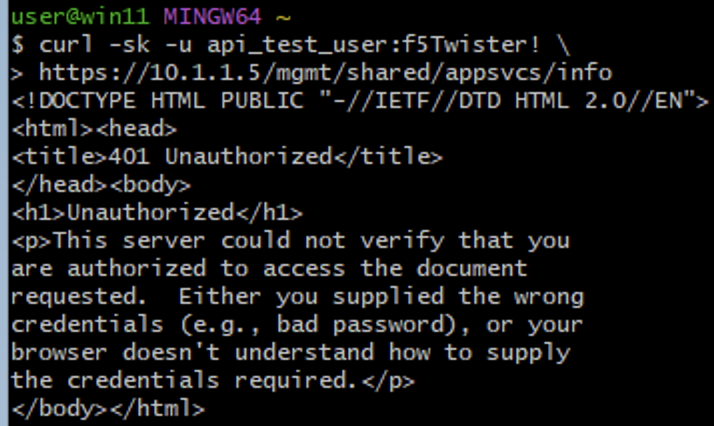

Test AS3 Access (GET)

Execution Context:

• Host: Windows Jump Host (10.1.1.4)

• Tool: Git Bash (curl client)

• Network Interface: Management Network (10.1.1.0/24)

Run the following command:

curl -sk -u 'api_test_user:f5Twister!' \
https://10.1.1.5/mgmt/shared/appsvcs/info \
-w "\nHTTP Status: %{http_code}\n"

Expected:

• HTTP Status: 401

---

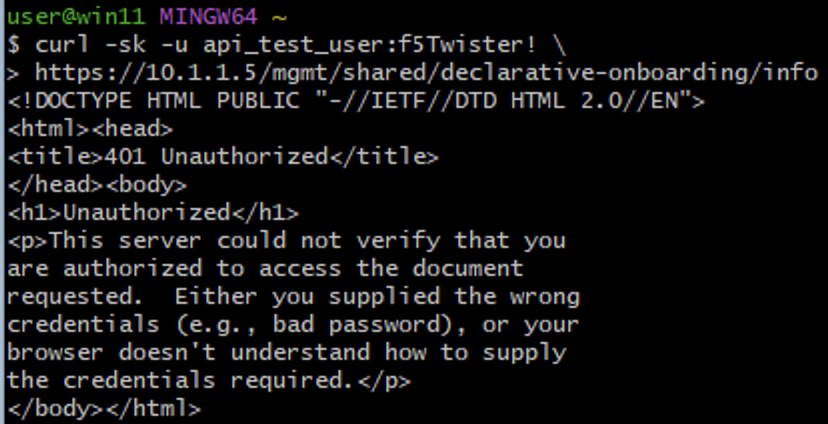

Test Declarative Onboarding Access (GET)

curl -sk -u 'api_test_user:f5Twister!' \
https://10.1.1.5/mgmt/shared/declarative-onboarding/info \
-w "\nHTTP Status: %{http_code}\n"

Expected:

• HTTP Status: 401

---

Test AS3 Declaration Attempt (POST)

curl -sk -u 'api_test_user:f5Twister!' \
  -H "Content-Type: application/json" \
  -X POST \
  https://10.1.1.5/mgmt/shared/appsvcs/declare \
  --data-binary @test.json \
  -w "\nHTTP Status: %{http_code}\n"

Expected:

• HTTP Status: 401

---

Why This Fails

AS3 and Declarative Onboarding operate under:

/mgmt/shared/*

These are device-scoped service extensions.

Partition-scoped roles (Operator, Application Editor) cannot invoke shared extension endpoints.

This confirms proper REST authorization enforcement.

---

Phase 3 – Administrative Authorization (Allowed)

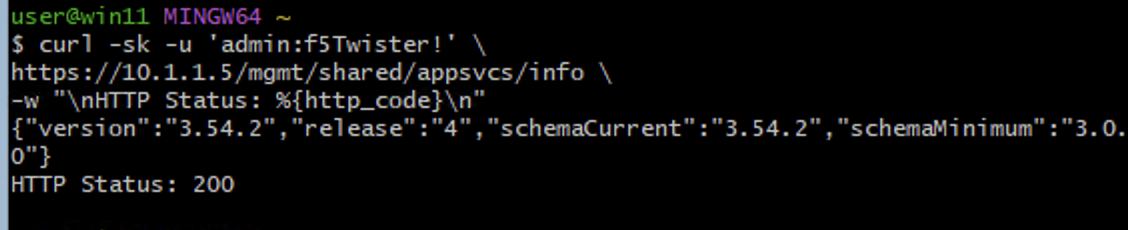

Test Administrative Access

Execution Context:

• Host: Windows Jump Host (10.1.1.4)

• Tool: Git Bash (curl client)

• Network Interface: Management Network (10.1.1.0/24)

Run the following command:

curl -sk -u 'admin:f5Twister!' \
https://10.1.1.5/mgmt/shared/appsvcs/info \
-w "\nHTTP Status: %{http_code}\n"

Expected:

• HTTP Status: 200

• JSON response returned

---

Authorization Enforcement Validation Matrix

Test Case	Expected Result
Operator GET AS3 info	HTTP 401
Operator GET DO info	HTTP 401
Operator POST AS3 declare	HTTP 401
Administrator GET AS3 info	HTTP 200

---

Security Controls Validated

Control	Validated
REST authentication enforcement	✔
Role-based authorization enforcement	✔
Device-scoped extension protection	✔
Least privilege validation	✔
Deterministic failure behavior	✔

---

Middle Layer Cohesion

Within the Middle Layer:

• MFA validates administrative identity.

• TLS enforces secure transport.

• API Access Control enforces privilege boundaries.

Together, these controls prevent credential abuse, transport downgrade, and unauthorized configuration deployment.

---

Success Criteria

• Operator role denied access to device-scoped endpoints

• Administrator role permitted access

• HTTP 401 returned for unauthorized requests

• No configuration changes occur for denied attempts

• Deterministic privilege boundary confirmed
