Lab 4.1: Move Application Services in BIG-IQ¶
Note
Estimated time to complete: 5 minutes
Lab environment access¶
If you have not yet visited the page Getting Started, please do so.
Tasks¶
- Login as paula.
3 Applications are showing on the dashboard: IT_apps
, airport_security
and Unknown Applications
.
Warning
Starting 7.0, BIG-IQ displays AS3 application services created using the AS3 Declare API as Unknown Applications. You can move those application services using the GUI, the Move/Merge API, bigiq_move_app_dashboard F5 Ansible Galaxy role or create it directly into Application in BIG-IQ using the Deploy API to define the BIG-IQ Application name.

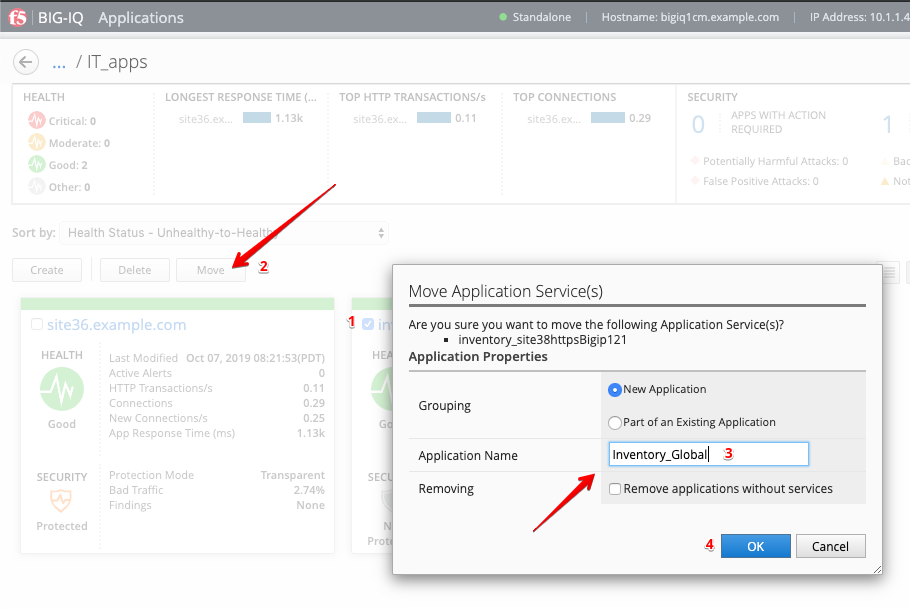

- Navigate into the
IT_apps
Application, selectinventory_site38httpsBigip121
Application Service and click on Move. A windwo opens. Select New Application, setInventory_Global
for the Application Name, then click OK.
Note
If inventory_site38httpsBigip121
does not exist, pick a different application service.

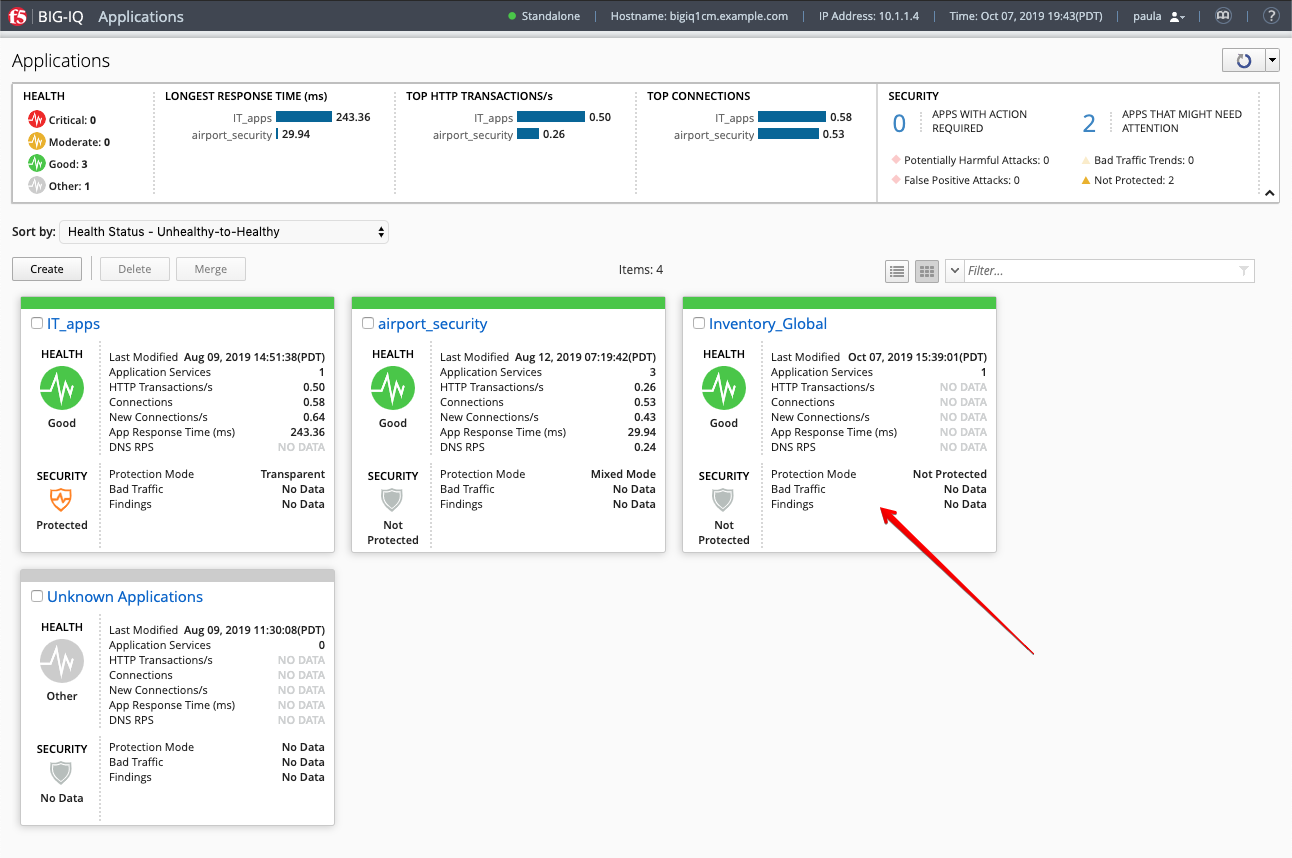

- The application service
inventory_site38httpsBigip121
is now under ApplicationInventory_Global
.
Note
This operation did not deployed or changed anything on the BIG-IP but only on the BIG-IQ.
