Module 2: Advanced Traffic Management with NGINX for Azure

Overview

Welcome to Lab 2. In this session of “Mastering cloud-native app delivery: Unlocking advanced capabilities and use cases with F5’s ADCaaS,” we move beyond basic connectivity to functional load balancing.

In this module, you will configure your NGINX for Azure instance to route traffic to a backend application running on a pre-provisioned Linux workload using the Azure Portal.

🏗️ Pre-provisioned Infrastructure

To focus specifically on NGINX configuration, the following backend resources have been pre-deployed for you:

  • Ubuntu VM: A Linux virtual machine running a Dockerized “Cafe” application.

🚀 Lab Exercises

Configure NGINX for Azure to Load Balance Docker Containers

In this section, we will configure NGINX for Azure to load balance traffic to the Docker containers running on your Ubuntu VM.

NGINX aaS Docker Cafe Demo
NGINX aaS Docker Nginx Cafe

1. Access the Configuration Editor

  1. Open the Azure Portal and navigate to your NGINXaaS.
  2. Click on your NGINX for Azure resource (usually named nginx4a), which will open the Overview section.
  3. From the left pane, click on NGINX Configuration under the Settings section.

2. Create the Upstream Configuration

  1. Click on + New File to create a new NGINX config file.
  2. Name the new file: /etc/nginx/conf.d/cafe-docker-upstreams.conf.
Important: You must use the full Linux /directory/filename path for every config file. The Azure Portal does not support drag-and-drop.
  1. Copy and paste the following contents into the editor:
# Nginx 4 Azure, Cafe Nginx Demo Upstreams
# cafe-nginx servers
#
upstream cafe_nginx {
    zone cafe_nginx 256k;

    # These correspond to the ports exposed by the Docker containers
    server n4a-ubuntuvm:81;
    server n4a-ubuntuvm:82;
    server n4a-ubuntuvm:83;

    keepalive 32;
}
  1. Click Submit to save this part of the configuration.

3. Create the Virtual Server Configuration

  1. Click + New File again.
  2. Name the second file: /etc/nginx/conf.d/cafe.example.com.conf.
  3. Copy and paste the following contents into the editor:
 # Nginx 4 Azure - Cafe Nginx HTTP
server {

  listen 80;      # Listening on port 80

  server_name cafe.example.com;   # Set hostname to match in request
  status_zone cafe.example.com;   # Metrics zone name

  access_log  /var/log/nginx/cafe.example.com.log main;
  error_log   /var/log/nginx/cafe.example.com_error.log info;

  location / {
      proxy_pass http://cafe_nginx;        # Proxy and load balance to the upstream group
      add_header X-Proxy-Pass cafe_nginx;  # Custom verification header
  }
}
  1. Click Submit to save.

4. Create a Mime Types file

  1. A mime.types file is required for the NGINX server configuration
  2. Click + New File again.
  3. Name the new file: /etc/nginx/mime.types.
  4. Copy and paste the following contents into the editor:
types {
    text/html                             html htm shtml;
    text/css                              css;
    text/xml                              xml;
    image/gif                             gif;
    image/jpeg                            jpeg jpg;
    application/x-javascript              js;
    application/atom+xml                  atom;
    application/rss+xml                   rss;

    text/mathml                           mml;
    text/plain                            txt;
    text/vnd.sun.j2me.app-descriptor      jad;
    text/vnd.wap.wml                      wml;
    text/x-component                      htc;

    image/png                             png;
    image/tiff                            tif tiff;
    image/vnd.wap.wbmp                    wbmp;
    image/x-icon                          ico;
    image/x-jng                           jng;
    image/x-ms-bmp                        bmp;
    image/svg+xml                         svg svgz;
    image/webp                            webp;

    application/java-archive              jar war ear;
    application/mac-binhex40              hqx;
    application/msword                    doc;
    application/pdf                       pdf;
    application/postscript                ps eps ai;
    application/rtf                       rtf;
    application/vnd.ms-excel              xls;
    application/vnd.ms-powerpoint         ppt;
    application/vnd.wap.wmlc              wmlc;
    application/vnd.google-earth.kml+xml  kml;
    application/vnd.google-earth.kmz      kmz;
    application/x-7z-compressed           7z;
    application/x-cocoa                   cco;
    application/x-java-archive-diff       jardiff;
    application/x-java-jnlp-file          jnlp;
    application/x-makeself                run;
    application/x-perl                    pl pm;
    application/x-pilot                   prc pdb;
    application/x-rar-compressed          rar;
    application/x-redhat-package-manager  rpm;
    application/x-sea                     sea;
    application/x-shockwave-flash         swf;
    application/x-stuffit                 sit;
    application/x-tcl                     tcl tk;
    application/x-x509-ca-cert            der pem crt;
    application/x-xpinstall               xpi;
    application/xhtml+xml                 xhtml;
    application/zip                       zip;

    application/octet-stream              bin exe dll;
    application/octet-stream              deb;
    application/octet-stream              dmg;
    application/octet-stream              eot;
    application/octet-stream              iso img;
    application/octet-stream              msi msp msm;

    audio/midi                            mid midi kar;
    audio/mpeg                            mp3;
    audio/ogg                             ogg;
    audio/x-m4a                           m4a;
    audio/x-realaudio                     ra;

    video/3gpp                            3gpp 3gp;
    video/mp4                             mp4;
    video/mpeg                            mpeg mpg;
    video/quicktime                       mov;
    video/webm                            webm;
    video/x-flv                           flv;
    video/x-m4v                           m4v;
    video/x-mng                           mng;
    video/x-ms-asf                        asx asf;
    video/x-ms-wmv                        wmv;
    video/x-msvideo                       avi;
}

5. Update the Main NGINX Configuration

  1. You must now include these new files into your main nginx.conf.
  2. Select the nginx.conf file in the editor file tree.
  3. Replace the existing content with the following:
# Nginx 4 Azure - Default - Updated Nginx.conf
user nginx;
worker_processes auto;
worker_rlimit_nofile 8192;
pid /run/nginx/nginx.pid;

events {
    worker_connections 4000;
}

error_log /var/log/nginx/error.log error;

http {
    include /etc/nginx/mime.types;
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log off;
    server_tokens "";

    server {
        listen 80 default_server;
        server_name localhost;
        location / {
            root /var/www;
            index index.html;
        }
    }

    # Load the modular files created in previous steps
    include /etc/nginx/conf.d/*.conf;
    include /etc/nginx/includes/*.conf;
}
  1. Click the Submit button. NGINX will validate your configuration. If successful, it will reload with your new settings.

Test your Nginx for Azure configuration

  1. For easy access your new website, update your local system’s DNS /etc/hosts file. You will add the hostname cafe.example.com and the Nginx for Azure Public IP address, to your local system DNS hosts file for name resolution. Your Nginx for Azure Public IP address can be found in your Azure Portal, under n4a-publicIP. Use vi tool or any other text editor to add an entry to /etc/hosts as shown below:

    cat /etc/hosts

127.0.0.1 localhost
...

# Nginx for Azure testing
11.22.33.44 cafe.example.com

...

    where

    • 11.22.33.44 replace with your n4a-publicIP resource IP address.

  2. Once you have updated the host your /etc/hosts file, save it and quit vi tool.

  3. Using a new Terminal, send a curl command to http://cafe.example.com, what do you see ?

    curl -I http://cafe.example.com

    ##Sample Output##
HTTP/1.1 200 OK
Date: Thu, 04 Apr 2024 21:36:30 GMT
Content-Type: text/html; charset=utf-8
Connection: keep-alive
Expires: Thu, 04 Apr 2024 21:36:29 GMT
Cache-Control: no-cache
X-Proxy-Pass: cafe_nginx

    You should see a 200 OK Response. Did you see the X-Proxy-Pass header - set to the Upstream block name?

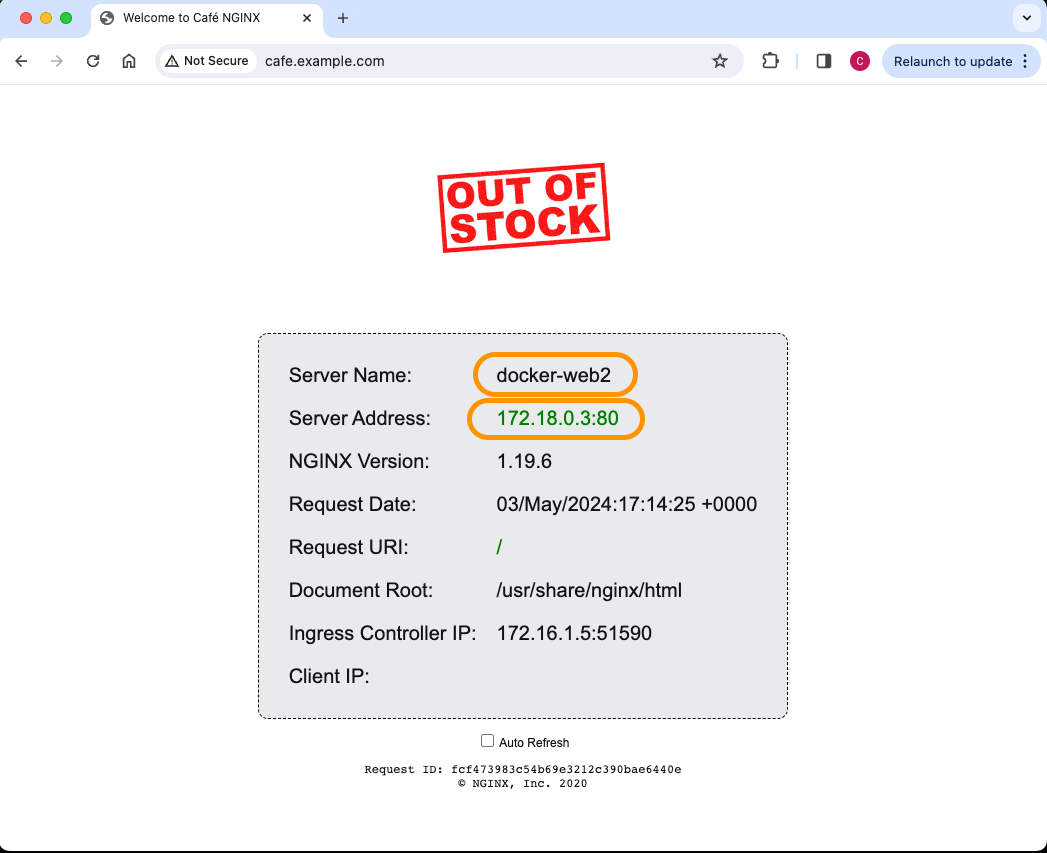

  4. Now try access to your cafe application with a Browser. Open Chrome, and nagivate to http://cafe.example.com. You should see an Out of Stock image, with a gray metadata panel, filled with names, IP addresses, URLs, etc. This panel comes from the Docker container, using Nginx $variables to populate the gray panel fields. If you Right+Click, and Inspect to open Chrome Developer Tools, and look at the Response Headers, you should be able to see the [STRIKEOUT:Server and] X-Proxy-Pass Headers set [STRIKEOUT:respectively].

Cafe Out of Stock

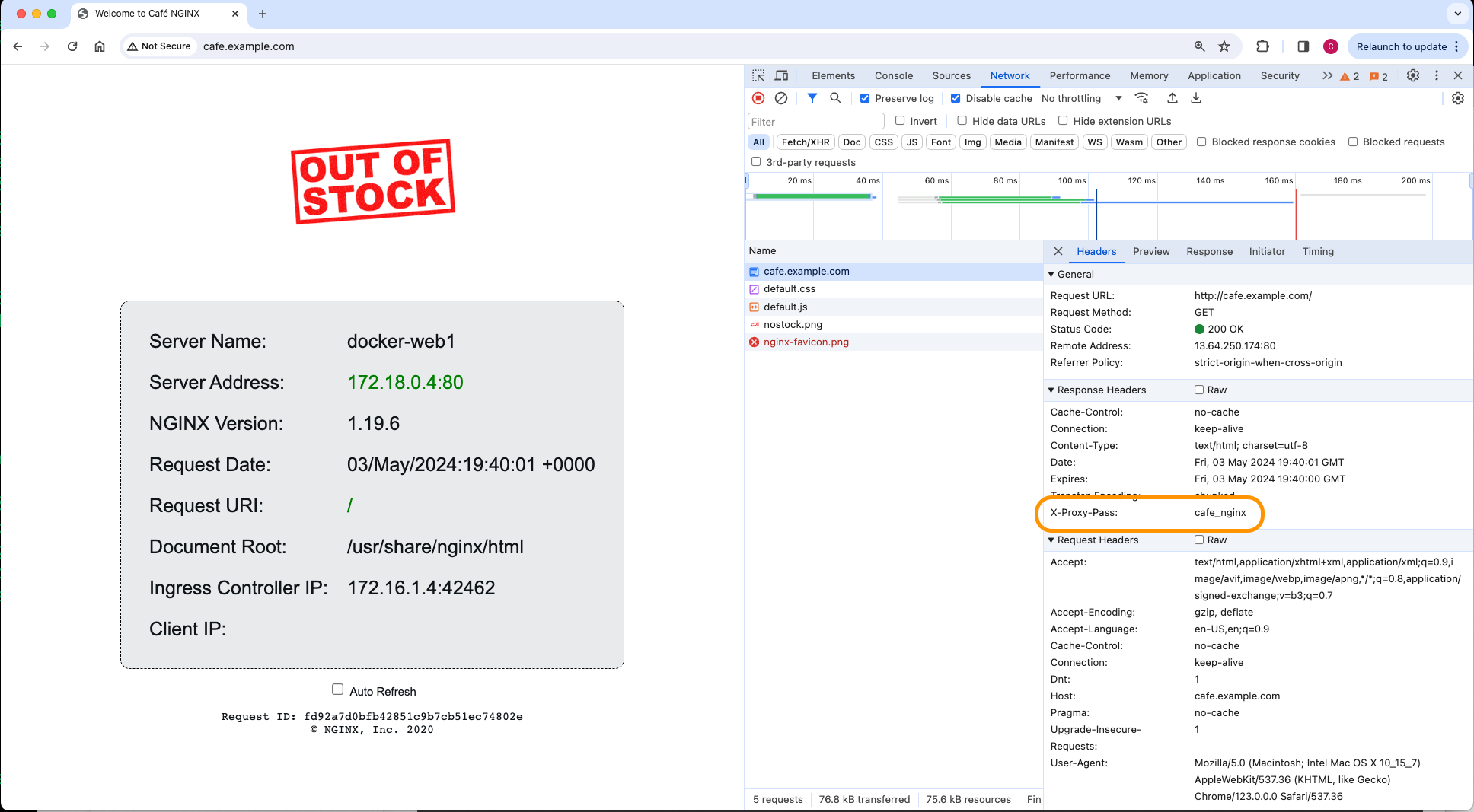

Click Refresh serveral times. You will notice the Server Name and Server Ip fields changing, as N4A is round-robin load balancing the three Docker containers - docker-web1, 2, and 3 respectively. If you open Chrome Developer Tools, and look at the Response Headers, you should be able to see the Server and X-Proxy-Pass Headers set respectively.

Cafe Inspect

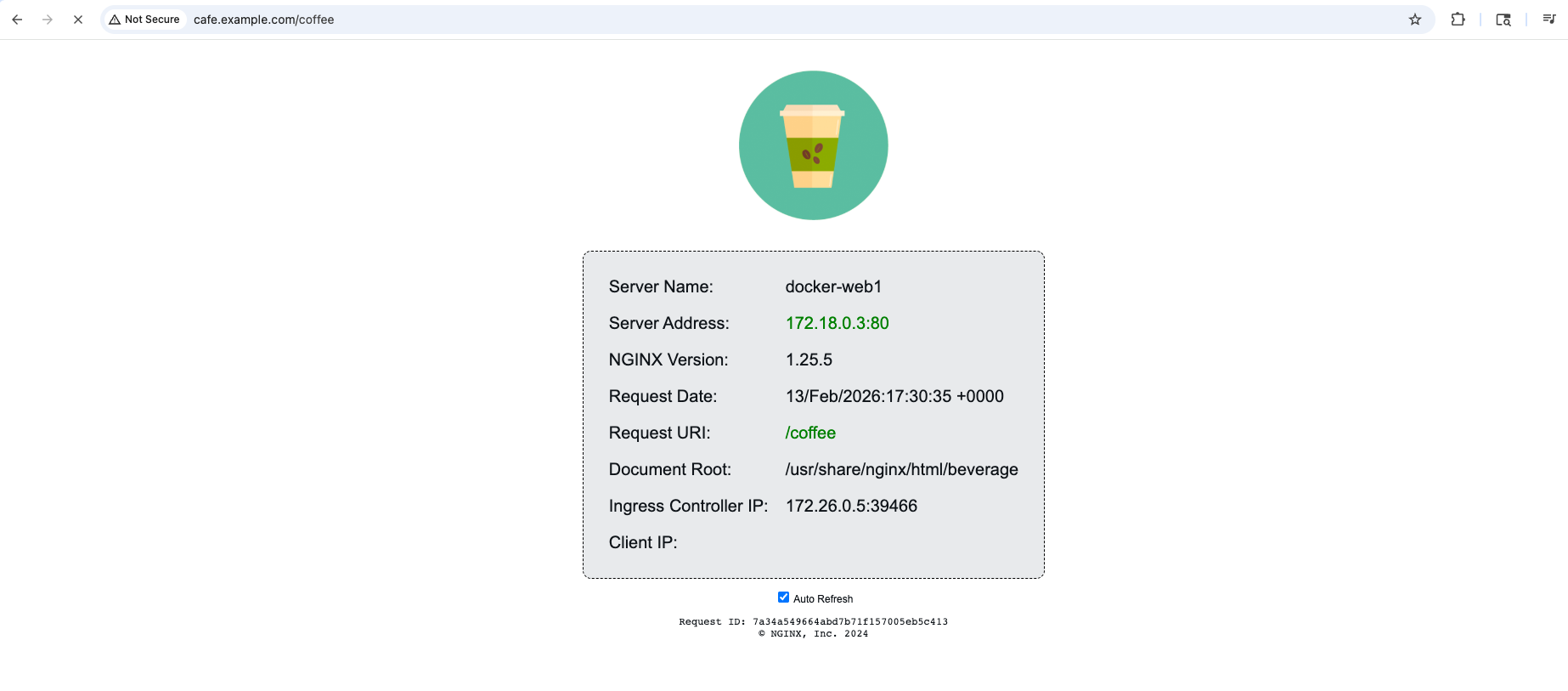

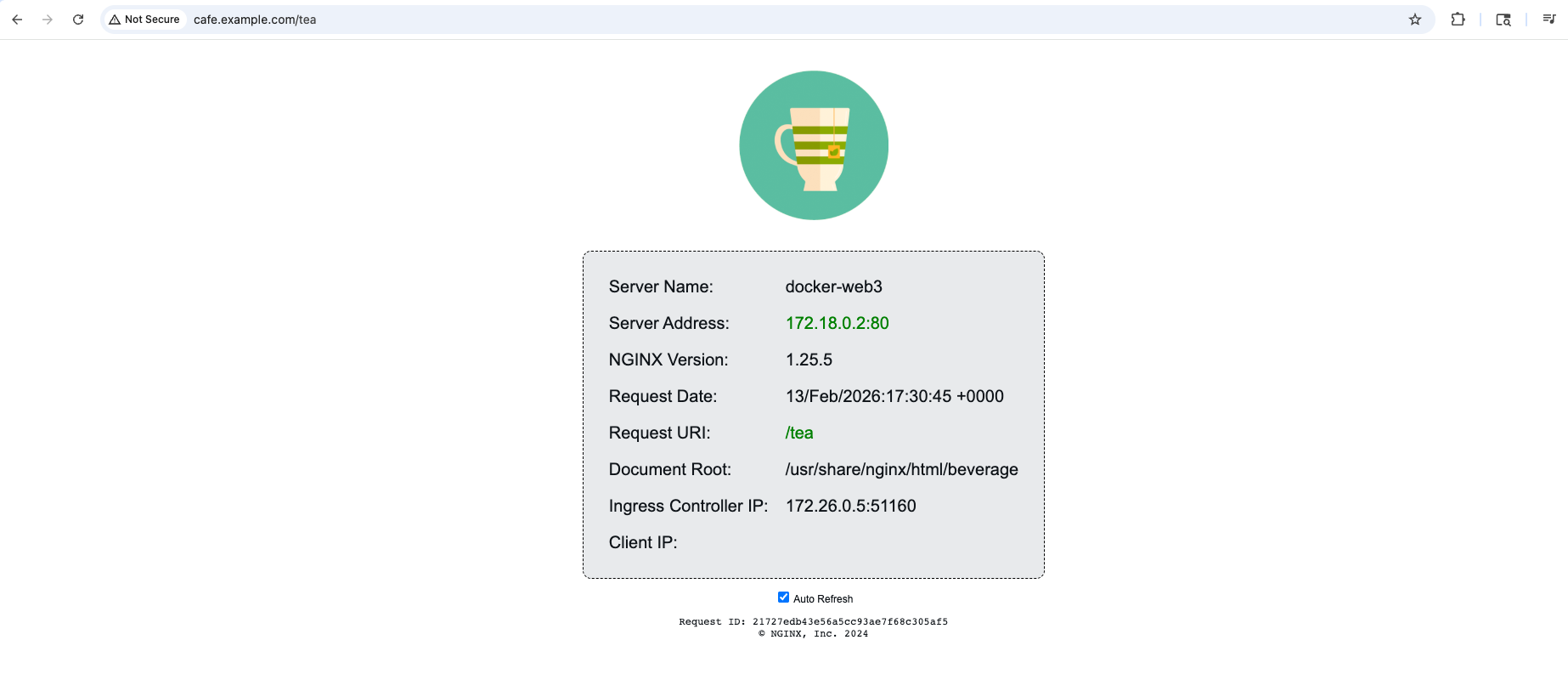

Try http://cafe.example.com/coffee and http://cafe.example.com/tea in Chrome, refreshing several times. You should find Nginx for Azure is load balancing these Docker web containers as expected.

Cafe_coffee

Cafe tea

Congratulations!! You have just completed launching a simple web application with Nginx for Azure, running on the Internet, with just a VM, Docker, and 2 config files for Nginx for Azure. That pretty easy, not so hard now, was it?
