Initial Setup of rSeries F5OS Platform Layer¶
Connect a console or terminal server to the console port of the rSeries appliance. Follow the guidance in the link below:
Login as admin/admin and access the F5OS CLI. F5OS utilizes ConfD for configuration management of F5OS and will be a familiar navigation experience if you have used it on other products. The CLI supports command completion and online help and is easy to navigate. There are show commands to display current configurations and status, and a config mode to alter current configuration.
Once logged in you can display the current running configuration by issuing the command show running-config.
Boston-r10900-1# show running-config
cluster disk-usage-threshold config warning-limit 85
cluster disk-usage-threshold config error-limit 90
cluster disk-usage-threshold config critical-limit 97
cluster disk-usage-threshold config growth-rate-limit 10
cluster disk-usage-threshold config interval 60
cluster nodes node node-1
config name node-1
config enabled
!
fpga-tables xbar-ports xbar-port port0_mod0
!
fpga-tables xbar-ports xbar-port port1_mod0
!
fpga-tables xbar-ports xbar-port port2_mod3
!
fpga-tables xbar-ports xbar-port port3_mod3
!
fpga-tables xbar-ports xbar-port port4_mod4
!
fpga-tables xbar-ports xbar-port port5_mod5
!
fpga-tables xbar-ports xbar-port port6_mod1
!
cluster disk-usage-threshold config warning-limit 85
cluster disk-usage-threshold config error-limit 90
cluster disk-usage-threshold config critical-limit 97
cluster disk-usage-threshold config growth-rate-limit 10
cluster disk-usage-threshold config interval 60
cluster nodes node node-1
config name node-1
config enabled
!
To alter any configuration, you must enter config mode:
syscon-2-active# config
Entering configuration mode terminal
syscon-2-active(config)#
To save any configuration you must enter commit.
Boston-r10900-1(config)# commit
Internal Appliance IP Ranges¶
The rSeries appliances ship with a default internal RFC6598 address space of 100.64.0.0/12. This should be sufficient for most production environments. You can verify this with the following command.
Boston-r10900-1# show system network
system network state configured-network-range-type RFC6598
system network state configured-network-range 100.64.0.0/12
system network state active-network-range-type RFC6598
system network state active-network-range 100.64.0.0/12
Boston-r10900-1#
This address range never leaves the inside of the appliance and will not interfere with any communication outside the rSeries device. There can however be address collisions if a device trying to manage rSeries via the out-of-band management port falls within this range, or an external management device or service falls within this range and attempts to communicate with rSeries over its out-of-band networking. This may result in rSeries control plane being unable to communicate with those devices. In-band traffic is not affected by these internal addresses, and they can overlap.
Some examples would be any client trying to access the F5OS layer or tenant out-of-band interfaces to reach it’s CLI, webUI, or API. Other examples would be external services such as SNMP, DNS, NTP, SNMP, or Authentication that have addresses that fall within the RFC6598 address space. You may experience connectivity problems with these types of clients/services if there is an overlap. Note that this does not affect the data plane/in-band interfaces, it only affects communication to the out-of-band interfaces.
If there is the potential for conflict with external devices that fall within this range that need to communicate with rSeries, then there are options to change the configured-network-range-type to one of sixteen different blocks within the RFC1918 address space. Changing this will require a complete appliance power-cycle; rebooting is not sufficient. Please consult with F5 prior to making any changes to the internal addresses.
Boston-r10900-1(config)# system network config network-range-type RFC < Hit TAB>
Possible completions:
RFC1918 System uses 10.[0-15]/12 as specified by RFC1918
RFC6598 System uses 100.64/10 as specified by RFC6598
Boston-r10900-1(config)# system network config network-range-type RFC
If changing to one of the RFC1918 address spaces, you will need to choose from one of 16 prefix ranges as seen below. You should ensure that this will not overlap with current address space deployed within the environment:
Boston-r10900-1(config)# system network config network-range-type RFC1918 prefix ?
Description:
The network prefix index is used to select the range of IP addresses
used internally within the appliance. The network prefix should be
selected such that internal appliance addresses do not overlap with
site-local addresses that are accessible to the appliance.
Network Prefix Index Appliance Network Range
0 10.[0-15].0.0/16
1 10.[16-31].0.0/16
2 10.[32-47].0.0/16
3 10.[48-63].0.0/16
4 10.[64-79].0.0/16
5 10.[80-95].0.0/16
6 10.[96-111].0.0/16
7 10.[112-127].0.0/16
8 10.[128-143].0.0/16
9 10.[144-159].0.0/16
10 10.[160-175].0.0/16
11 10.[176-191].0.0/16
12 10.[192-207].0.0/16
13 10.[208-223].0.0/16
14 10.[224-239].0.0/16
15 10.[240-255].0.0/16
Possible completions:
<unsignedByte, 0 .. 15>[0]
Boston-r10900-1(config)# system network config network-range-type RFC1918 prefix 15
Boston-r10900-1(config)# commit
Commit complete.
Note: This change will not take effect until the appliance is power cycled. A complete power cycle is required to convert existing internal address space to the new address space; a reboot is not sufficient. You will need to remove power from all power supplies so the unit is powered off, using the AOM menus is not sufficient.
IP Address Assignment & Routing¶
The rSeries appliance requires its own unique out-of-band IP address for the F5OS layer. The IP addresses can be statically defined or acquired via DHCP. In addition to the IP address, a default route and subnet mask/prefix length is defined.
Once logged in you will configure the static IP addresses (unless DHCP is preferred).
Boston-r10900-1(config)# system mgmt-ip config ipv4 system address 10.255.0.132
Boston-r10900-1(config)# system mgmt-ip config ipv4 prefix-length 24
Boston-r10900-1(config)# system mgmt-ip config ipv4 gateway 10.255.0.1
To make these changes active you must commit the changes. No configuration changes are executed until the commit command is issued.
Boston-r10900-1(config)# commit

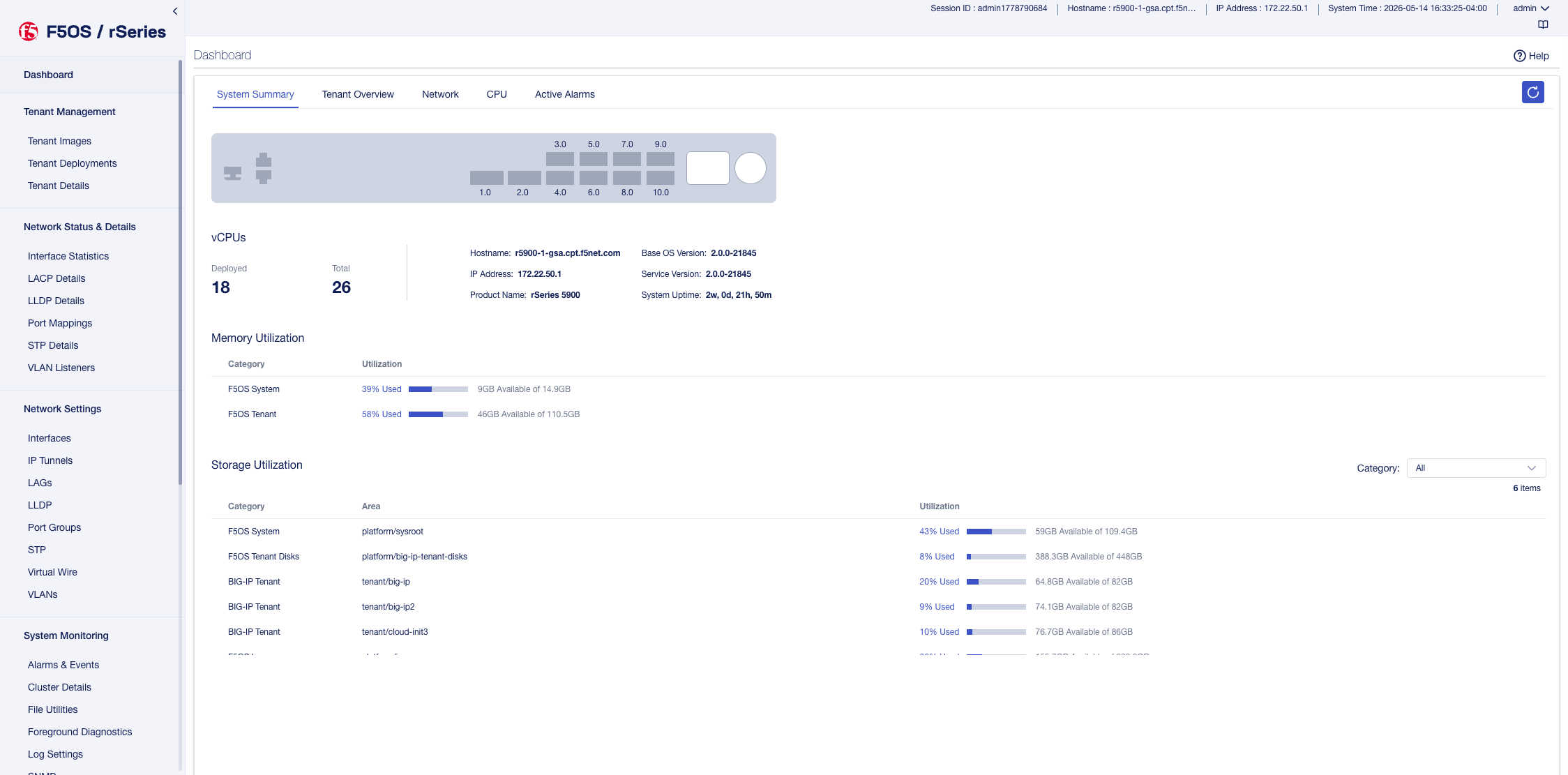

Now that the out-of-band address and routing are configured, you can attempt to access the F5OS webUI via the IP address that has been defined. You should see a screen like the one below, and you can verify your management interface settings by going to the System Settings -> Management Interface page.
Here you can switch from static to DHCP address assignment, configure optional IPv6 addresses, and configure interface state, speed, and duplex. You can also view the management interface stats on the bottom of this page.
System Settings¶
Once the IP address has been defined, system settings such as DNS servers, NTP, and external logging should be defined. This can be done from the CLI, webUI, or API.
System Settings via the CLI¶
Boston-r10900-1# config
Entering configuration mode terminal
Boston-r10900-1(config)# system dns servers server 192.168.10.1 config address 192.168.10.1
Boston-r10900-1(config-server-192.168.19.1)# exit
Boston-r10900-1(config)# system dns config search olympus.f5net.com
Boston-r10900-1(config)# system ntp config enabled
Boston-r10900-1(config)# system ntp servers server time.olympus.f5net.com
Boston-r10900-1(config-server-time.f5net.com)# exit
Boston-r10900-1(config)# system logging remote-servers remote-server 10.255.0.142 selectors selector LOCAL0 WARNING
Boston-r10900-1(config-remote-server-10.255.0.142)# exit
Boston-r10900-1(config)# commit
System Settings via the webUI¶
You can configure the DNS and Time settings from the webUI if preferred. DNS is configured under System Settings > DNS. Here you can add DNS lookup servers and optional search domains. This will be needed for the rSeries appliance to resolve hostnames that may be used for external services like NTP, authentication servers, licensing, or to reach iHealth for qkview uploads.
Configuring Network Time Protocol is highly recommended so that the rSeries systems clock is synchronized and accurate. In addition to configuring NTP time sources, you can set the local time zone for this appliance’s location.
It’s also a good idea to have the rSeries appliance send logs for the F5OS platform layer to an external syslog server. This can be configured in the System Settings > Log Settings screen. Here you can configure remote servers, the logging facility, and severity levels. You can also configure the logging subsystem level individually. The remote logging severity level will override the component logging levels if they are higher, but only for logs sent remotely. Local logging levels will follow however the component levels are configured here.
System Settings via the API¶
If you would prefer to automate the setup of the rSeries appliance, there are F5OS-A API calls for all of the examples above. rSeries supports token-based authentication for the F5OS API’s. You may send API calls to either port 8888 or port 443. The URI path will change slightly depending on which TCP port you choose to use. For API calls sent to port 443, the initial path will be /api, while API calls to port 8888 will start with /restconf. F5OS also listens on port 80 and will redirect to TCP port 443.
Example of API call using port 8888.
https://{{rseries_rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/aaa
Example of API call using port 443. Replace /restconf with /api.
https://{{rseries_rseries_appliance1_ip}}/api/data/openconfig-system:system/aaa
You can send a standard API call with user/password-based authentication (basic auth), and then store the token for subsequent API calls. The X-Auth-Token has a lifetime of fifteen minutes and can be renewed a maximum of five times before you need to authenticate again using basic auth. The renewal period begins at the ten-minute point, where the API will start sending a new X-Auth-Token in the response for the next five minutes. If your API calls fail to start using the new token by the 15-minute point, API calls will start returning 401 Not Authorized. All the API examples in this guide were generated using the Postman utility. Below is an example of using password-based authentication to the rSeries F5OS management IP address. Be sure to go to the Auth tab and set the Type* to Basic Auth and enter the username and password to log into your rSeries appliance.
To capture the token and save it for use in subsequent API calls, go to the Test option in the API call and enter the following:
var headerValue = pm.response.headers.get("x-auth-token");
pm.environment.set("x-auth-token_rseries_appliance1", headerValue);
This will capture the auth token and store it in a variable called x-auth-token_rseries_appliance1.
This will be stored as a variable in the Postman Environment as seen below.
Once the variable is stored with the auth token, it can be used instead of using basic auth on all subsequent API calls. On any subsequent API call under the Auth option, set the Type to Bearer Token, and set the Token to the variable name. Note, Postman references variables by encasing the variable name in these types of parentheses {{Variable-Name}}. In this case the Token is set to {{x-auth-token_rseries_appliance1}}.
You must also add some required headers to any API calls sent to F5OS. It is important to include the header Content-Type application/yang-data+json and the Token header X-Auth-Token with a value of {{x-auth-token_rseries_appliance1}}. The variable and header will change depending on the destination of the API call. It can be sent to a second appliance if desired.
If you would prefer to automate the setup of the rSeries appliance, there are API calls for all the examples above. To set the DNS configuration (servers and search domains) for the appliance, use the following API call. For any API calls to the rSeries F5OS layer it is important to include the header Content-Type application/yang-data+json and use port 8888 as seen below:
PATCH https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/dns
Below is the body of the API call which contains the desired configuration:
{
"openconfig-system:dns": {
"config": {
"search": [
"olympus.f5net.com"
]
},
"servers": {
"server": [
{
"address": "192.168.11.0",
"config": {
"address": "192.168.11.0"
}
}
]
}
}
}
You may then view the current DNS configuration with the following API call:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/dns
Below is the output from the API query above:
{
"openconfig-system:dns": {
"config": {
"search": [
"olympus.f5net.com"
]
},
"state": {
"search": [
"olympus.f5net.com"
]
},
"servers": {
"server": [
{
"address": "192.168.11.0",
"config": {
"address": "192.168.11.0",
"port": 53
},
"state": {
"port": 53
}
}
]
}
}
}
To set System Time settings, use the following API call as an example. This will set the time zone, enable NTP, and configure NTP servers.
PATCH https://{{rseries_appliance1_ip}}:8888/restconf/data/
Below is the body of the API call contianing the desired configuration:
{
"openconfig-system:system": {
"clock": {
"config": {
"timezone-name": "America/New_York"
}
},
"ntp": {
"config": {
"enabled": "true"
},
"servers": {
"server": [
{
"address": "time.f5net.com",
"config": {
"address": "time.f5net.com"
}
}
]
}
}
}
}
To confirm the clock and NTP settings, use the following API commands. First query NTP configuration:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/ntp
{
"openconfig-system:ntp": {
"config": {
"enabled": true
},
"state": {
"enabled": true
},
"servers": {
"server": [
{
"address": "time.f5net.com",
"config": {
"address": "time.f5net.com",
"port": 123,
"version": 4,
"association-type": "SERVER",
"iburst": false,
"prefer": false
},
"state": {
"address": "time.f5net.com",
"port": 123,
"version": 4,
"association-type": "SERVER",
"iburst": false,
"prefer": false
}
}
]
}
}
}
Next query the clock configuration:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/clock
Below is the output showing the date/time and time zone:
{
"openconfig-system:clock": {
"config": {
"timezone-name": "America/New_York"
},
"state": {
"timezone-name": "America/New_York",
"f5-system-clock:appliance": {
"date-time": "2022-01-12 14:32:49 America/New_York"
}
}
}
}
Next a remote logging destination will be set up for the F5OS logging. To set a Remote Logging destination:
PATCH https://{{rseries_appliance1_ip}}:8888/restconf/data/
{
"openconfig-system:system": {
"logging": {
"remote-servers": {
"remote-server": [
{
"host": "10.255.0.142",
"config": {
"host": "10.255.0.142",
"remote-port": "514"
},
"selectors": {
"selector": [
{
"facility": "LOCAL0",
"severity": "INFORMATIONAL",
"config": {
"facility": "LOCAL0",
"severity": "INFORMATIONAL"
}
}
]
}
}
]
}
}
}
}
To query the remote logging:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/logging

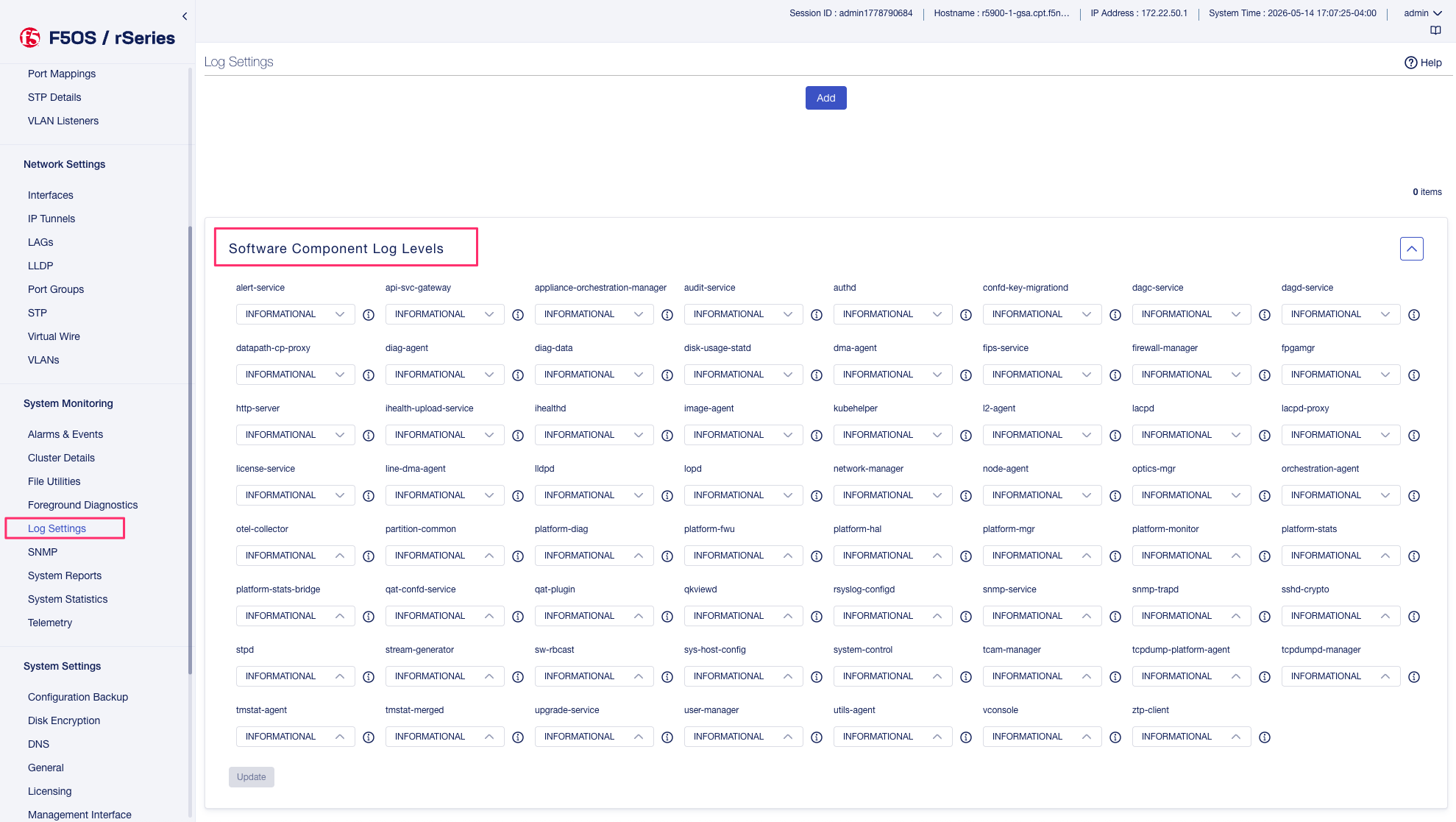

The output will show the logging level of all the software subsystems.
{
"openconfig-system:logging": {
"remote-servers": {
"remote-server": [
{
"host": "10.255.0.142",
"config": {
"host": "10.255.0.142",
"remote-port": 514,
"f5-openconfig-system-logging:proto": "udp"
},
"selectors": {
"selector": [
{
"facility": "f5-system-logging-types:LOCAL0",
"severity": "WARNING",
"config": {
"facility": "f5-system-logging-types:LOCAL0",
"severity": "WARNING"
}
}
]
}
}
]
},
"f5-openconfig-system-logging:sw-components": {
"sw-component": [
{
"name": "alert-service",
"config": {
"name": "alert-service",
"description": "Alert service",
"severity": "INFORMATIONAL"
}
},
{
"name": "api-svc-gateway",
"config": {
"name": "api-svc-gateway",
"description": "API service gateway",
"severity": "INFORMATIONAL"
}
},
{
"name": "appliance-orchestration-agent",
"config": {
"name": "appliance-orchestration-agent",
"description": "Tenant orchestration agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "appliance-orchestration-manager",
"config": {
"name": "appliance-orchestration-manager",
"description": "Appliance orchestration manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "authd",
"config": {
"name": "authd",
"description": "Authentication configuration",
"severity": "INFORMATIONAL"
}
},
{
"name": "confd-key-migrationd",
"config": {
"name": "confd-key-migrationd",
"description": "Confd Primary Key Migration Service",
"severity": "INFORMATIONAL"
}
},
{
"name": "dagd-service",
"config": {
"name": "dagd-service",
"description": "DAG daemon",
"severity": "INFORMATIONAL"
}
},
{
"name": "datapath-cp-proxy",
"config": {
"name": "datapath-cp-proxy",
"description": "Data path CP proxy",
"severity": "INFORMATIONAL"
}
},
{
"name": "diag-agent",
"config": {
"name": "diag-agent",
"description": "Diag agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "disk-usage-statd",
"config": {
"name": "disk-usage-statd",
"description": "Disk usage agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "dma-agent",
"config": {
"name": "dma-agent",
"description": "DMA agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "fips-service",
"config": {
"name": "fips-service",
"description": "FIPS Service",
"severity": "INFORMATIONAL"
}
},
{
"name": "fpgamgr",
"config": {
"name": "fpgamgr",
"description": "FPGA manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "ihealth-upload-service",
"config": {
"name": "ihealth-upload-service",
"description": "Upload diagnostics data service",
"severity": "INFORMATIONAL"
}
},
{
"name": "ihealthd",
"config": {
"name": "ihealthd",
"description": "Communication proxy for ihealth-upload-service",
"severity": "INFORMATIONAL"
}
},
{
"name": "image-agent",
"config": {
"name": "image-agent",
"description": "Tenant image handling",
"severity": "INFORMATIONAL"
}
},
{
"name": "kubehelper",
"config": {
"name": "kubehelper",
"description": "Application that will handle specific tasks for deploying tenants",
"severity": "INFORMATIONAL"
}
},
{
"name": "l2-agent",
"config": {
"name": "l2-agent",
"description": "L2 agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "lacpd",
"config": {
"name": "lacpd",
"description": "Link aggregation control protocol",
"severity": "INFORMATIONAL"
}
},
{
"name": "license-service",
"config": {
"name": "license-service",
"description": "License service",
"severity": "INFORMATIONAL"
}
},
{
"name": "line-dma-agent",
"config": {
"name": "line-dma-agent",
"description": "Line DMA agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "lldpd",
"config": {
"name": "lldpd",
"description": "Link layer discovery protocol",
"severity": "INFORMATIONAL"
}
},
{
"name": "lopd",
"config": {
"name": "lopd",
"description": "Communication proxy for the Lights Out Processor",
"severity": "INFORMATIONAL"
}
},
{
"name": "network-manager",
"config": {
"name": "network-manager",
"description": "Network manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "nic-manager",
"config": {
"name": "nic-manager",
"description": "NIC manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "optics-mgr",
"config": {
"name": "optics-mgr",
"description": "Optics tunning manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-diag",
"config": {
"name": "platform-diag",
"description": "Platform diag service",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-fwu",
"config": {
"name": "platform-fwu",
"description": "Platform firmware upgrade",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-hal",
"config": {
"name": "platform-hal",
"description": "Platform hardware abstraction layer",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-mgr",
"config": {
"name": "platform-mgr",
"description": "Appliance platform manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-monitor",
"config": {
"name": "platform-monitor",
"description": "Platform monitor",
"severity": "INFORMATIONAL"
}
},
{
"name": "platform-stats-bridge",
"config": {
"name": "platform-stats-bridge",
"description": "Platform stats bridge",
"severity": "INFORMATIONAL"
}
},
{
"name": "qkviewd",
"config": {
"name": "qkviewd",
"description": "Diagnostic information",
"severity": "INFORMATIONAL"
}
},
{
"name": "rsyslog-configd",
"config": {
"name": "rsyslog-configd",
"description": "Logging configuration",
"severity": "INFORMATIONAL"
}
},
{
"name": "snmp-trapd",
"config": {
"name": "snmp-trapd",
"description": "SNMP trap",
"severity": "INFORMATIONAL"
}
},
{
"name": "stpd",
"config": {
"name": "stpd",
"description": "Spanning tree protocol (STP)",
"severity": "INFORMATIONAL"
}
},
{
"name": "sw-rbcast",
"config": {
"name": "sw-rbcast",
"description": "Software Rebroadcast Service",
"severity": "INFORMATIONAL"
}
},
{
"name": "sys-host-config",
"config": {
"name": "sys-host-config",
"description": "System host config service",
"severity": "INFORMATIONAL"
}
},
{
"name": "system-control",
"config": {
"name": "system-control",
"description": "Appliance System control framework",
"severity": "INFORMATIONAL"
}
},
{
"name": "tcpdumpd-manager",
"config": {
"name": "tcpdumpd-manager",
"description": "Tcpdump daemon",
"severity": "INFORMATIONAL"
}
},
{
"name": "tmstat-agent",
"config": {
"name": "tmstat-agent",
"description": "Appliance stats agent",
"severity": "INFORMATIONAL"
}
},
{
"name": "tmstat-merged",
"config": {
"name": "tmstat-merged",
"description": "Stats rollup",
"severity": "INFORMATIONAL"
}
},
{
"name": "upgrade-service",
"config": {
"name": "upgrade-service",
"description": "Software upgrade service",
"severity": "INFORMATIONAL"
}
},
{
"name": "user-manager",
"config": {
"name": "user-manager",
"description": "User manager",
"severity": "INFORMATIONAL"
}
},
{
"name": "vconsole",
"config": {
"name": "vconsole",
"description": "Tenant virtual console",
"severity": "INFORMATIONAL"
}
}
]
},
"f5-openconfig-system-logging:host-logs": {
"config": {
"remote-forwarding": {
"enabled": false
}
}
}
}
}
If you would like to change the severity of any of the logging, below is an example. The API call below will change the software subsystem logging for l2-agent to DEBUG.
PATCH https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/logging
Below is the configuration in the body of the API call above to set the DEBUG logging level:
{
"openconfig-system:logging": {
"f5-openconfig-system-logging:sw-components": {
"sw-component": {
"name": "l2-agent",
"config": {
"name": "l2-agent",
"description": "L2 agent",
"severity": "DEBUG"
}
}
}
}
}
When done examining the logs, you can run the same API call, but the body will be modified to set the logging level back to INFORMATIONAL.
{
"openconfig-system:logging": {
"f5-openconfig-system-logging:sw-components": {
"sw-component": {
"name": "l2-agent",
"config": {
"name": "l2-agent",
"description": "L2 agent",
"severity": "INFORMATIONAL"
}
}
}
}
}
Licensing the rSeries Appliance¶
Licensing for the rSeries device is handled at the F5OS level. This is like how vCMP licensing is implemented where the system is licensed once, and all subsystems inherit their licensing from the appliance or chassis. With rSeries, licensing is applied at the F5OS platform layer, and all tenants will inherit their licenses from the base system. There is no need to procure add-on licenses for tenancy/vCMP. This is different from iSeries where only certain models supported virtualization/vCMP. For rSeries this is included in the base license at no extra cost; however, there are different levels of performance based on the Pay-as-you-Grow licensing. rSeries does not run vCMP, and instead runs tenancy on top of F5OS.
Licenses can be applied via CLI, webUI, or API. A base registration key and optional add-on keys are needed, and it follows the same manual or automatic licensing capabilities of other BIG-IP systems.
Licensing via webUI¶
Licensing is accessible under the System Settings > Licensing page. Automatic will require proper routing and DNS connectivity to the Internet to reach F5’s licensing server. If this is not possible to reach the licensing server, use the Manual method.
Licensing via CLI¶
You can activate and display the current license in the webUI, CLI or API. To license the rSeries appliance automatically from the CLI:
Boston-r10900-1(config)# system licensing install registration-key 12345-67891-12345-12345-8207880
result License installed successfully.
Boston-r10900-1(config)#
To license the rSeries appliance manually you’ll need to get the dossier first:
Boston-r10900-1(config)# system licensing get-dossier
b9a9936886bada077d93843a281ce4c34bf78db0d6c32c40adea3a5329db15edd413fe7d7f8143fd128ebe2d97642b4ed9192b530788fe3965593e3b42131c66220401b16843476159414ceeba8af5fb67a39fe2a2f408b9…
You can then access the F5 licensing server (license.f5.com) and paste in the dossier when prompted:
This should generate a license that can be saved or pasted into the rSeries appliance using the command system licensing manual-install license:
Boston-r10900-1(config)# system licensing manual-install license
Value for 'license' (<string>):
[Multiline mode, exit with ctrl-D.]
>
You should paste in the license and when finished press <CTRL> D.
#
> #-----------------------------------------
> # Copyright 1996-2021, F5 Networks, Inc.
> # All rights reserved.
> #-----------------------------------------
>
result License installed successfully.
Boston-r10900-1(config)#
You can also view the EULA via the CLI:
Boston-r10900-1(config)# system licensing get-eula
eula-text END USER LICENSE AGREEMENT
DOC-0355-16
IMPORTANT " READ BEFORE INSTALLING OR OPERATING THIS PRODUCT
YOU AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE BY INSTALLING,
HAVING INSTALLED, COPYING, OR OTHERWISE USING THE SOFTWARE. IF YOU
DO NOT AGREE, DO NOT INSTALL OR USE THE SOFTWARE.
This End User License Agreement ("License") applies to the software
product(s) ("Software") you have licensed from us whether on
a stand-alone basis or as part of any hardware ("Hardware") you
purchase from us, (the Hardware and Software together, the "Product").
This License is a legal agreement between us and the single entity
that has licensed the Software from us ("you"). All references to
"F5," "we" or "us" in this License will be deemed to be a reference
to the applicable F5 entity as follows: (a) if your primary place of
business is located in the European Economic Area, the Middle East
or Africa ("EMEA"), the F5 entity is F5 Networks Ltd.; (b) if your
primary place of business is located in the Asia- Pacific region
("APAC"), the F5 entity is F5 Networks Singapore Pte Ltd; and (c)
if your primary place of business is located in a region outside of
EMEA or APAC, the F5 entity is F5 Networks, Inc.
1. Grant of Rights.
(a) License. Subject to your compliance with the terms of this
License, we grant to you a limited, non- exclusive, non-transferable,
The CLI command show system licensing will display the appliance level licensing:
Boston-r10900-1# show system licensing
system licensing license
Licensed version 1.0.0
Registration Key XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX
Licensed date 2022/01/01
License start 2021/09/27
License end 2022/02/12
Service check date 2022/01/13
Platform ID C129
Appliance SN f5-xxxx-xxxx
Active Modules
Local Traffic Manager, r5900 (XXXXXXX-XXXXXXX)
Rate Shaping
Anti-Virus Checks
Base Endpoint Security Checks
Firewall Checks
Machine Certificate Checks
Network Access
Protected Workspace
Secure Virtual Keyboard
APM, Web Application
App Tunnel
Remote Desktop
APM, Limited
Max Compression, r5900
Max SSL, r5900
Note: rSeries supports AWAF versus ASM licensing, and modules like AAM are not supported on the rSeries platform since it has reached End-of-Life.
Manual Licensing via API¶
Sometimes a manual licensing operation may need to be performed. This is common in environments where the rSeries appliance doesn’t have access to the Internet to reach the licensing server. In this case, you may perform a manual licensing operation via the API. First, obtain the Base Registration Key that is tied to your system. Below is an example for a temporary evaluation license but the process would be similar for a production license. In the example below, the actual Registration Key has been obfuscated with XXXX’s.
---------------------------------------------------------
Contact : Jim@F5.com
---------------------------------------------------------
Registration Key : XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX
F5 Product : F5-BIG-BT-R10900-LIC-DEV
Evaluation Duration : 30 days
Requested Registration Key Configuration
---------------------------------------------------------
Then send the Base Reg Key in the body of the get-dossier API call below:
POST https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing/f5-system-licensing-install:get-dossier
Within the body of API call, enter your registation-key. Note, in the example below the actual Registration Key has been obfuscated with XXXX’s.
{
"registration-key": "XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX"
}
If the API call is successful, then the output will give you a system-dossier as seen below. Note, in the example below the actual system-dossier has been obfuscated with random characters. You’ll need to copy and save the dossier, as you’ll need to input it into F5’s licensing server, to get the license for your system.
{
"f5-system-licensing-install:output": {
"system-dossier": "42bd1c9c5c1e9081522beea5ceab5c3e7726f9b5a90dd9d5a8d73d9dba80094317c6aeab2b75219226d9a2f8b335651d395ade0384debe1086ee0f46d0d7043c90b03f08a7fcdc28db75984892f1e28f394d07d569b45a1868ceeb264a272243e4c842c41fbd043fd4bcx19c6f1e3a274589d4f06253c49d31f1ed48731ddda10a5a68eb78d8473c06c38c3ea2cb6db0ae2902c5a9323dccf5e00212a9f541a58cd85fe191b12daa4a6975cee14fe33242cb8183fea43xa21c2a8c1944f14583895eb920306b4f9e0fd7834561026b0c669f736081e9da80bf536874d9a3737bacff59e6240381ddc2b821c380c81d963c95beedc6a940a4db97a527922383096c54d8028f3f3f6dccfe213fdad4a1316b772317cae0d45911469972bd3f761636f3f397467cf8a2e7ae1d22e1ea30d6b21d47ff4d8ab112ebc5d7eaab3819f0ed18b0830bc4250069a80de428ef28a9c4dba725a3623887019b7c31dc210997104140a58b8f172e8c4d0c4ea819b6743df711d0b65eb2c235e79313b1e9ff2dcd1768770e7f23dc626d2e44d0a394916a8b8debaf73971b91cbf3d96f7be6e1afcf18b42f84fd1b2ba7fe021e95417bbe2cf1bdb42077b8aefb350d865ae7db13073781212c8534d204a0e4023023de8b5380463b67b935fce2e4474f8f607130ee01c961cf978ccdb6211d9bc6f8axx4aab784f50c7e71a5bc1297f3453c9d0feb62e809315b7421f598275a2e8435aee8b2658f6a355706259820fde8702cb8940bf324494c4511d62964be657cc570a0947731e8ef025d6d7ea4038d91fe0084f11dda9a4713ae056bb21733958f4963a6051259a78d3336b368c345cc24da99a9ebf10e5f5b7c376484d60fd8d80ed2f6fbc9ef3bdf7b737af9780e7f4f72ea6a79b32a24da84fae44fdc0fd30761b3dd62d6660x462d90c843f1916eb2c01fd5efd25f05c196e6a6eb0ba93db3e549ee4fb2f79b08ed1edaae9aaf01d83fe87b473852b97fa89573ff85247e1c5be23a599b3f8c65d1d7f6d2c4f56d13217bb2ba07d383d038b29ab407e4cf40986a83d0b18933d53078e80b7cd7550"
}
}
Go to F5 license server:
Paste in the dossier from your system.
Next, you’ll be prompted to accept the End User License Agreement (EULA). Click on the check box to acknowledge that you have read and agree to the terms in the EULA. Then click Next.
A license will be displayed. You can either copy the output or download the License File. It is recommended you download the file if possible.
You’ll need to edit the license file to escape any double quotes within the license body. In the body of the API call you have to escape any double quotes (inside the license) with slashes ( ), as seen below.
Send the following API call to install the new license:
POST https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing/f5-system-licensing-install:manual-install
In the body of the API call enter the edited license in the proper area. Below is the full body with the escaped double quotes in the license. Note the file has been obfuscated from its original:
{
"input":
[
{"license":"#
Auth vers : 5b
#
#
# BIG-IP System License Key File
# DO NOT EDIT THIS FILE!!
#
# Install this file as \"/config/bigip.license\".
#
# Contact information in file /CONTACTS
#
#
# Warning: Changing the system time while this system is running
# with a time-limited license may make the system unusable.
#
Usage : Evaluation
#
#
# Only the specific use referenced above is allowed. Any other uses are prohibited.
#
Vendor : F5 Networks, Inc.
#
# Module List
#
active module : Best Bundle, r10900|E135699-1129899|Rate Shaping|DNS Services|BIG-IP, DNS (Max)|Routing Bundle|Access Policy Manager, Base, r109XX|Advanced Web Application Firewall, r10XXX|Max Compression, r10900|Max SSL, r10900|Advanced Firewall Manager, r10XXX|DNSSEC|Anti-Virus Checks|Base Endpoint Security Checks|Firewall Checks|Machine Certificate Checks|Network Access|Protected Workspace|Secure Virtual Keyboard|APM, Web Application|App Tunnel|Remote Desktop|DNS Rate Fallback, Unlimited|DNS Licensed Objects, Unlimited|DNS Rate Limit, Unlimited QPS|GTM Rate Fallback, (UNLIMITED)|GTM Licensed Objects, Unlimited|GTM Rate, Unlimited|DNS RATE LIMITED, MAX|Carrier Grade NAT (AFM ONLY)|Protocol Security Manager
optional module : Advanced Protocols
optional module : APM, Max Access Sessions, i108XX
optional module : Basic Policy Enforcement Manager, r10XXX
optional module : BIG-IP, Multicast Routing
optional module : BIG-IP, Privileged User Access, 100 Endpoints
optional module : BIG-IP, Privileged User Access, 1000 Endpoints
optional module : BIG-IP, Privileged User Access, 250 Endpoints
optional module : BIG-IP, Privileged User Access, 50 Endpoints
optional module : BIG-IP, Privileged User Access, 500 Endpoints
optional module : Carrier-Grade NAT, r10XXX
optional module : Concurrent Users
optional module : DDOS, r10XXX
optional module : Dynamic Policy Provisioning, r10XXX
optional module : External Interface and Network HSM
optional module : FIPS 140 License, r10XXX
optional module : FIX Low Latency
optional module : Intrusion Prevention System, r10XXX
optional module : IP Intelligence, 1Yr
optional module : IP Intelligence, 3Yr
optional module : IPS, 1Yr
optional module : IPS, 3Yr
optional module : Link Controller
optional module : Policy Enforcement Manager, r10XXX
optional module : SM2_SM3_SM4
optional module : SSL Orchestrator, r10XXX
optional module : Subscriber Discovery, r10XXX
optional module : SWG Max, 1Yr, 10XXX/i10XXX/12250v/r10XXX
optional module : SWG Max, 3Yr, 10XXX/i10XXX/12250v/r10XXX
optional module : SWG, 1Yr, 10XXX/i10XXX/12250v/r10XXX
optional module : SWG, 3Yr, 10XXX/i10XXX/12250v/r10XXX
optional module : Threat Campaigns, 1Yr
optional module : Threat Campaigns, 3Yr
optional module : Traffic Classification, r10XXX
optional module : URL Filtering, 1Yr
optional module : URL Filtering, 1Yr, Max
optional module : URL Filtering, 3Yr
optional module : URL Filtering, 3Yr, Max
optional module : VPN Users
#
# Accumulated Tokens for Module
# Max SSL, r10900 perf_SSL_Mbps 1 key XXXXXXX-XXXXXXX
#
perf_SSL_Mbps : 1
#
# Accumulated Tokens for Module
# Access Policy Manager, Base, r109XX apm_access_sessions 100000000 key XXXXXXX-XXXXXXX
#
# Accumulated Tokens for Module
# Access Policy Manager, Base, r109XX apm_sessions 500 key XXXXXXX-XXXXXXX
#
# Accumulated Tokens for Module
# Access Policy Manager, Base, r109XX apm_urlf_limited_sessions 100000000 key XXXXXXX-XXXXXXX
#
apm_access_sessions : 100000000
apm_sessions : 500
apm_urlf_limited_sessions : 100000000
#
# License Tokens for Module Advanced Web Application Firewall, r10XXX key XXXXXXX-XXXXXXX
#
waf_gc : enabled
mod_waf : enabled
mod_datasafe : enabled
mod_asm : enabled
ltm_persist_cookie : enabled
ltm_persist : enabled
ltm_lb_rr : enabled
ltm_lb_ratio : enabled
ltm_lb_priority : enabled
ltm_lb_pool_member_limit : UNLIMITED
ltm_lb_least_conn : enabled
ltm_lb_l3_addr : enabled
ltm_lb : enabled
asm_apps : unlimited
#
# License Tokens for Module Best Bundle, r10900 key XXXXXXX-XXXXXXX
#
throttle_level : 900
perf_vcmp_max_guests : UNLIMITED
perf_PVA_dram_limit : enabled
perf_CPU_cores : UNLIMITED
nw_vlan_groups : enabled
mod_ltm : enabled
mod_lbl : enabled
mod_ilx : enabled
ltm_network_virtualization : enabled
#
# License Tokens for Module Max SSL, r10900 key XXXXXXX-XXXXXXX
#
perf_SSL_total_TPS : UNLIMITED
perf_SSL_per_core : enabled
perf_SSL_cmp : enabled
#
# License Tokens for Module Max Compression, r10900 key XXXXXXX-XXXXXXX
#
perf_http_compression_Mbps : UNLIMITED
perf_http_compression_hw : enabled
#
# License Tokens for Module Routing Bundle key XXXXXXX-XXXXXXX
#
nw_routing_rip : enabled
nw_routing_ospf : enabled
nw_routing_isis : enabled
nw_routing_bgp : enabled
nw_routing_bfd : enabled
#
# License Tokens for Module Advanced Firewall Manager, r10XXX key XXXXXXX-XXXXXXX
#
nw_l2_transparent : enabled
mod_afm : enabled
ltm_netflow_switching : enabled
ltm_monitor_rule : enabled
#
# License Tokens for Module BIG-IP, DNS (Max) key XXXXXXX-XXXXXXX
#
mod_dnsgtm : enabled
ltm_dns_v13 : enabled
ltm_dns_lite : enabled
#
# License Tokens for Module Carrier Grade NAT (AFM ONLY) key XXXXXXX-XXXXXXX
#
mod_cgnat : enabled
ltm_network_map : enabled
ltm_monitor_udp : enabled
ltm_monitor_tcp_ho : enabled
ltm_monitor_tcp : enabled
ltm_monitor_radius : enabled
ltm_monitor_icmp : enabled
ltm_monitor_gateway_icmp : enabled
dslite : enabled
cgnat : enabled
#
# License Tokens for Module Access Policy Manager, Base, r109XX key XXXXXXX-XXXXXXX
#
mod_apm : enabled
apm_pingaccess : enabled
apm_logon_page_fraud_protection : enabled
apm_api_protection : enabled
api_protection_infra : enabled
#
# License Tokens for Module Protocol Security Manager key XXXXXXX-XXXXXXX
#
mod_afw : enabled
#
# License Tokens for Module DNS Services key XXXXXXX-XXXXXXX
#
ltm_rule_dns_write : enabled
ltm_dnsexpress : enabled
ltm_dns64 : enabled
ltm_dns_switching : enabled
ltm_dns_mgmt : enabled
ltm_dns_cache_resolver : enabled
admin_dns_mgmt : enabled
#
# License Tokens for Module DNSSEC key XXXXXXX-XXXXXXX
#
ltm_dnssec : enabled
#
# License Tokens for Module DNS Rate Limit, Unlimited QPS key XXXXXXX-XXXXXXX
#
ltm_dns_rate_limit : UNLIMITED
#
# License Tokens for Module DNS Rate Fallback, Unlimited key XXXXXXX-XXXXXXX
#
ltm_dns_rate_fallback : UNLIMITED
#
# License Tokens for Module DNS Licensed Objects, Unlimited key XXXXXXX-XXXXXXX
#
ltm_dns_licensed_objects : UNLIMITED
#
# License Tokens for Module Rate Shaping key XXXXXXX-XXXXXXX
#
ltm_bandw_rate_tosque : enabled
ltm_bandw_rate_fairque : enabled
ltm_bandw_rate_classl7 : enabled
ltm_bandw_rate_classl4 : enabled
ltm_bandw_rate_classes : enabled
#
# License Tokens for Module GTM Rate, Unlimited key XXXXXXX-XXXXXXX
#
gtm_rate_limit : UNLIMITED
#
# License Tokens for Module GTM Rate Fallback, (UNLIMITED) key XXXXXXX-XXXXXXX
#
gtm_rate_fallback : UNLIMITED
#
# License Tokens for Module GTM Licensed Objects, Unlimited key XXXXXXX-XXXXXXX
#
gtm_licensed_objects : UNLIMITED
#
# License Tokens for Module APM, Web Application key XXXXXXX-XXXXXXX
#
apm_web_applications : enabled
#
# License Tokens for Module Remote Desktop key XXXXXXX-XXXXXXX
#
apm_remote_desktop : enabled
#
# License Tokens for Module Network Access key XXXXXXX-XXXXXXX
#
apm_na : enabled
#
# License Tokens for Module Secure Virtual Keyboard key XXXXXXX-XXXXXXX
#
apm_ep_svk : enabled
#
# License Tokens for Module Protected Workspace key XXXXXXX-XXXXXXX
#
apm_ep_pws : enabled
#
# License Tokens for Module Machine Certificate Checks key XXXXXXX-XXXXXXX
#
apm_ep_machinecert : enabled
#
# License Tokens for Module Firewall Checks key XXXXXXX-XXXXXXX
#
apm_ep_fwcheck : enabled
#
# License Tokens for Module Anti-Virus Checks key XXXXXXX-XXXXXXX
#
apm_ep_avcheck : enabled
#
# License Tokens for Module Base Endpoint Security Checks key XXXXXXX-XXXXXXX
#
apm_ep : enabled
#
# License Tokens for Module App Tunnel key XXXXXXX-XXXXXXX
#
apm_app_tunnel : enabled
#
#
# Licensing Information
#
Licensed date : 20231115
License start : 20231114
License end : 20231216
Service check date : 20231115
#
# Platform Information
#
Registration Key : XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX
Licensed version : 1.7.0
Platform ID : C128
Appliance SN : f5-xxxx-xxxx
#
# Outbound License Dossier Validation
#
Dossier : 01ac66f1c5a13fad15f3a0eca6428220df12b8e94506a852dae2c13fbbb67556e48f1x73b849d7cd3962e270e73y23218e85871670e84e9485e774357250f8f7299a176f
#
# Outbound License Authorization Signature
#
Authorization : 185b003ad1b2b9c9e4365ef7315e17cee59c96d958354ba4931bd5c934600acbdf2ecc0f7093db5ded3a5e800038051960d9ab95a45a171d1c0d9f9c0480e2a2e43939c79cecb216bd6bc592b630b9a8787e3847d2bb731915258ef96c921bc6b1e7bd08c0e86bc6476e5ax3bb942e9964d61de662b3e370994335c84193cc03b7adb7f4ef9d1df7d5eb74f53bb1d801604e3d0d4eab875585c88ba708e5832bf5b666aaad894a2218c627666ce6a97f12cf7c9de65c72b6187756008fd8c23cf6475e4c1bd082423ce90f4f0b83455d3c5b1d3ac76b5d5932c9cf506f059d3802a2ba954d4d2ma86d16db40ceeccc59106051fe7d69ab8df5es713914e81f91
#
#-----------------------------------------
# Copyright 1996-2023, F5 Networks, Inc.
# All rights reserved.
#-----------------------------------------
"
}
]
}
You’ll get the following confirmation that the license has been installed successfully:
{
"f5-system-licensing-install:output": {
"result": "License installed successfully."
}
}
Automatic Licensing via API¶
You can very easily apply a license automatically with the following API call. This assumes the rSeries appliance is on the network, has Internet access and DNS has been configured. This will allow the system to resolve the domain name for the F5 licensing server to apply the license.
POST https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing/f5-system-licensing-install:install
In the body of the API call add your Base Registration Key:
{
"f5-system-licensing-install:input": [
{
"registration-key": "{{velos_license_registration_key_chassis1}}"
}
]
}
You should receive a success message indicating the License installed successfully.
{
"f5-system-licensing-install:output": {
"result": "License installed successfully."
}
}
To get the current licensing status via API use the following API call. Issue a GET to the out-of-band management IP address of the F5OS layer:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing
{
"f5-system-licensing:licensing": {
"config": {
"registration-key": {
"base": "XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX"
},
"dossier": "01ac66f1c5a13fad15f3a0eca6528220df04f42baa4c48f1c35682c6691dde0e306406407cec3f6b9c3cfa93751421360bfcf7085585d79b4feb7170a314637e8f99f22b09fcd4a4c54b27def300a8f9c83420b9cc0a6bd097a8f7e958fc2b8c4e93d685f6b70bc415e7999b869eba07d5976183ee31e612b8e94506a852dae2c13fbbb67556e48f1475b849d7xd396be270e73123258e85871670e81e9485e774a57250f8f7299a876f17106158c62efb579aad689ebfc629b31e2175c4485b59a4bed33bd3e2dd31e7fb83",
"license": "#\nAuth vers : 5b\n#\n#\n# BIG-IP System License Key File\n# DO NOT EDIT THIS FILE!!\n#\n# Install this file as \"/config/bigip.license\".\n#\n# Contact information in file /CONTACTS\n#\n#\n# Warning: Changing the system time while this system is running\n# with a time-limited license may make the system unusable.\n#\nUsage : F5 Internal Product Development\n#\n#\n# Only the specific use referenced above is allowed. Any other uses are prohibited.\n#\nVendor : F5 Networks, Inc.\n#\n# Module List \n#\nactive module : Local Traffic Manager, r10900|XXXXXX-XXXXXX|Rate Shaping|Anti-Virus Checks|Base Endpoint Security Checks|Firewall Checks|Machine Certificate Checks|Network Access|Protected Workspace|Secure Virtual Keyboard|APM, Web Application|App Tunnel|Remote Desktop|APM, Limited|Max SSL, r10900|Max Compression, r10900\noptional module : Access Policy Manager, Base, r109XX\noptional module : Access Policy Manager, Max, r109XX\noptional module : Advanced Firewall Manager, r10XXX\noptional module : Advanced Protocols\noptional module : Advanced Web Application Firewall, r10XXX\noptional module : App Mode (TMSH Only, No Root/Bash)\noptional module : Basic Policy Enforcement Manager, i10XXX\noptional module : BIG-IP, Multicast Routing\noptional module : BIG-IP, Privileged User Access, 100 Endpoints\noptional module : BIG-IP, Privileged User Access, 1000 Endpoints\noptional module : BIG-IP, Privileged User Access, 250 Endpoints\noptional module : BIG-IP, Privileged User Access, 50 Endpoints\noptional module : BIG-IP, Privileged User Access, 500 Endpoints\noptional module : Carrier-Grade NAT, r10XXX\noptional module : DataSafe, r10XXX\noptional module : DDOS, r10XXX\noptional module : DNS 1K, rSeries\noptional module : DNS Max, rSeries\noptional module : Dynamic Policy Provisioning, r10XXX\noptional module : External Interface and Network HSM\noptional module : FIPS 140-2\noptional module : FIX Low Latency\noptional module : Intrusion Prevention System, r10XXX\noptional module : IP Intelligence, 1Yr\noptional module : IP Intelligence, 3Yr\noptional module : IPS, 1Yr\noptional module : IPS, 3Yr\noptional module : Link Controller\noptional module : LTM to Best Upgrade, r109XX\noptional module : LTM to Better Upgrade, r109XX\noptional module : Policy Enforcement Manager, r10XXX\noptional module : Routing Bundle\noptional module : SM2_SM3_SM4\noptional module : SSL Orchestrator, r10XXX\noptional module : Subscriber Discovery, r10XXX\noptional module : Threat Campaigns, 1Yr\noptional module : Threat Campaigns, 3Yr\noptional module : Traffic Classification, r10XXX\noptional module : URL Filtering, 1Yr\noptional module : URL Filtering, 1Yr, Max\noptional module : URL Filtering, 3Yr\noptional module : URL Filtering, 3Yr, Max\noptional module : VPN Users\n#\n# Accumulated Tokens for Module\n# Max SSL, r10900 perf_SSL_Mbps 1 key XXXXXX-XXXXXX\n#\nperf_SSL_Mbps : 1\n#\n# Accumulated Tokens for Module\n# APM, Limited apm_urlf_limited_sessions 10 key XXXXXX-XXXXXX\n#\n# Accumulated Tokens for Module\n# APM, Limited apml_sessions 10 key XXXXXX-XXXXXX\n#\napm_urlf_limited_sessions : 10\napml_sessions : 10\n#\n# License Tokens for Module Local Traffic Manager, r10900 key XXXXXX-XXXXXX\n#\nthrottle_level : 900\nperf_vcmp_max_guests : UNLIMITED\nperf_PVA_dram_limit : enabled\nperf_CPU_cores : UNLIMITED\nnw_vlan_groups : enabled\nmod_ltm : enabled\nmod_lbl : enabled\nmod_ilx : enabled\nltm_network_virtualization : enabled\nfpga_performance : enabled\n#\n# License Tokens for Module Max SSL, r10900 key XXXXXX-XXXXXX\n#\nperf_SSL_total_TPS : UNLIMITED\nperf_SSL_per_core : enabled\nperf_SSL_cmp : enabled\n#\n# License Tokens for Module Max Compression, r10900 key XXXXXX-XXXXXX\n#\nperf_http_compression_Mbps : UNLIMITED\nperf_http_compression_hw : enabled\n#\n# License Tokens for Module APM, Limited key XXXXXX-XXXXXX\n#\nmod_apml : enabled\n#\n# License Tokens for Module Rate Shaping key XXXXXX-XXXXXX\n#\nltm_bandw_rate_tosque : enabled\nltm_bandw_rate_fairque : enabled\nltm_bandw_rate_classl7 : enabled\nltm_bandw_rate_classl4 : enabled\nltm_bandw_rate_classes : enabled\n#\n# License Tokens for Module APM, Web Application key XXXXXX-XXXXXX\n#\napm_web_applications : enabled\n#\n# License Tokens for Module Remote Desktop key XXXXXX-XXXXXX\n#\napm_remote_desktop : enabled\n#\n# License Tokens for Module Network Access key XXXXXX-XXXXXX\n#\napm_na : enabled\n#\n# License Tokens for Module Secure Virtual Keyboard key XXXXXX-XXXXXX\n#\napm_ep_svk : enabled\n#\n# License Tokens for Module Protected Workspace key XXXXXX-XXXXXX\n#\napm_ep_pws : enabled\n#\n# License Tokens for Module Machine Certificate Checks key XXXXXX-XXXXXX\n#\napm_ep_machinecert : enabled\n#\n# License Tokens for Module Firewall Checks key XXXXXX-XXXXXX\n#\napm_ep_fwcheck : enabled\n#\n# License Tokens for Module Anti-Virus Checks key XXXXXX-XXXXXX\n#\napm_ep_avcheck : enabled\n#\n# License Tokens for Module Base Endpoint Security Checks key XXXXXX-XXXXXX\n#\napm_ep : enabled\n#\n# License Tokens for Module App Tunnel key XXXXXX-XXXXXX\n#\napm_app_tunnel : enabled\n#\n# Debug Msg - Is sol18346625 affected; Usage, \"2021-09-28 00.00.00\", started after requirement date \"2016-04-15 00.00.00\"\n#\n# LC disabled in accordance with https://support.f5.com/kb/en-us/solutions/public/k/18/sol18346625.html\n#\ngtm_lc : disabled\n#\n# Licensing Information \n#\nLicensed date : 20211129\nLicense start : 20210927\nLicense end : 20220121\nService check date : 20211222\n#\n# Platform Information \n#\nRegistration Key : B1249-45920-70635-24344-7350724\nLicensed version : 1.0.0\nPlatform ID : C128\nAppliance SN : f5-xpdn-ngmu\n#\n# Outbound License Dossier Validation\n#\nDossier : 01ac66f1c5a13fad15f3a0eca6528220df12b8e94506a852dae2c13fbbb67556e48f1473b849d7cd396be270e73123218e85871670e84e9485e774a57250f8f7299a876f\n#\n# Outbound License Authorization Signature\n#\nAuthorization : 9f41c2f3f96ed6fc9c8112934fab434ba63bce96f73cd24d61b49fa7c9dc8e5d662e27f837ba734c6c8a3c52577b8b9e1a63aefc46aed07441eff37a52575d7341d701597b2ef59d27230cf1b3d41524978f522f23386bc2ab7c1b34756d9be36d433f34d0339227e8ec5f37af432614141f3c749df1e26d3d069ad9a043c2ebedd4bc6xf81ff155ade7b172714075786a7916f32b06830787c3da3ee1281e1965042df766ac31c5690b802257685b87d1ff980a83a5ac9e14cc7e5b73045b4a7c34fea60e4a8dd3b7c460cca83d3805006afc4a82071b3cc502e3dc7c2c40958046bfc835eb0386017352b90175b1cb37a4e3e1bc51467d08cd360a957998a4\n#\n#-----------------------------------------\n# Copyright 1996-2021, F5 Networks, Inc.\n# All rights reserved. \n#-----------------------------------------\n"
},
"state": {
"license": "\nLicensed version 1.0.0\nRegistration Key B1249-45920-70635-24344-7350724\nLicensed date 2021/11/29\nLicense start 2021/09/27\nLicense end 2022/01/21\nService check date 2021/12/22\nPlatform ID C128\nAppliance SN f5-xpdn-ngmu\n\nActive Modules\n Local Traffic Manager, r10900 (XXXXXX-XXXXXX)\n Rate Shaping\n Anti-Virus Checks\n Base Endpoint Security Checks\n Firewall Checks\n Machine Certificate Checks\n Network Access\n Protected Workspace\n Secure Virtual Keyboard\n APM, Web Application\n App Tunnel\n Remote Desktop\n APM, Limited\n Max SSL, r10900\n Max Compression, r10900\n"
}
}
}
Additional F5OS System Settings¶
You can go back and review or edit various settings for the F5OS layer System Settings.
Alarms and Events¶
Alarms and Events can be viewed via the System Settings > Alarms & Events webUI page. You may optionally choose different severity levels to see more or fewer events.
You may also change timeframe to see historical events, and optionally refresh the screen via the controls on the right-hand side of the page:
Management Interface¶
Under System Settings -> Management Interface you can view/edit the IP address and port settings for the F5OS out-of-band management interface. If you would prefer to use DHCP for automatic assignment of these addresses, this may also be configured. IPv4/IPv6 dual stack support can also be configured. At the bottom of the page, stats for the out-of-band port can be displayed.
Software Management¶

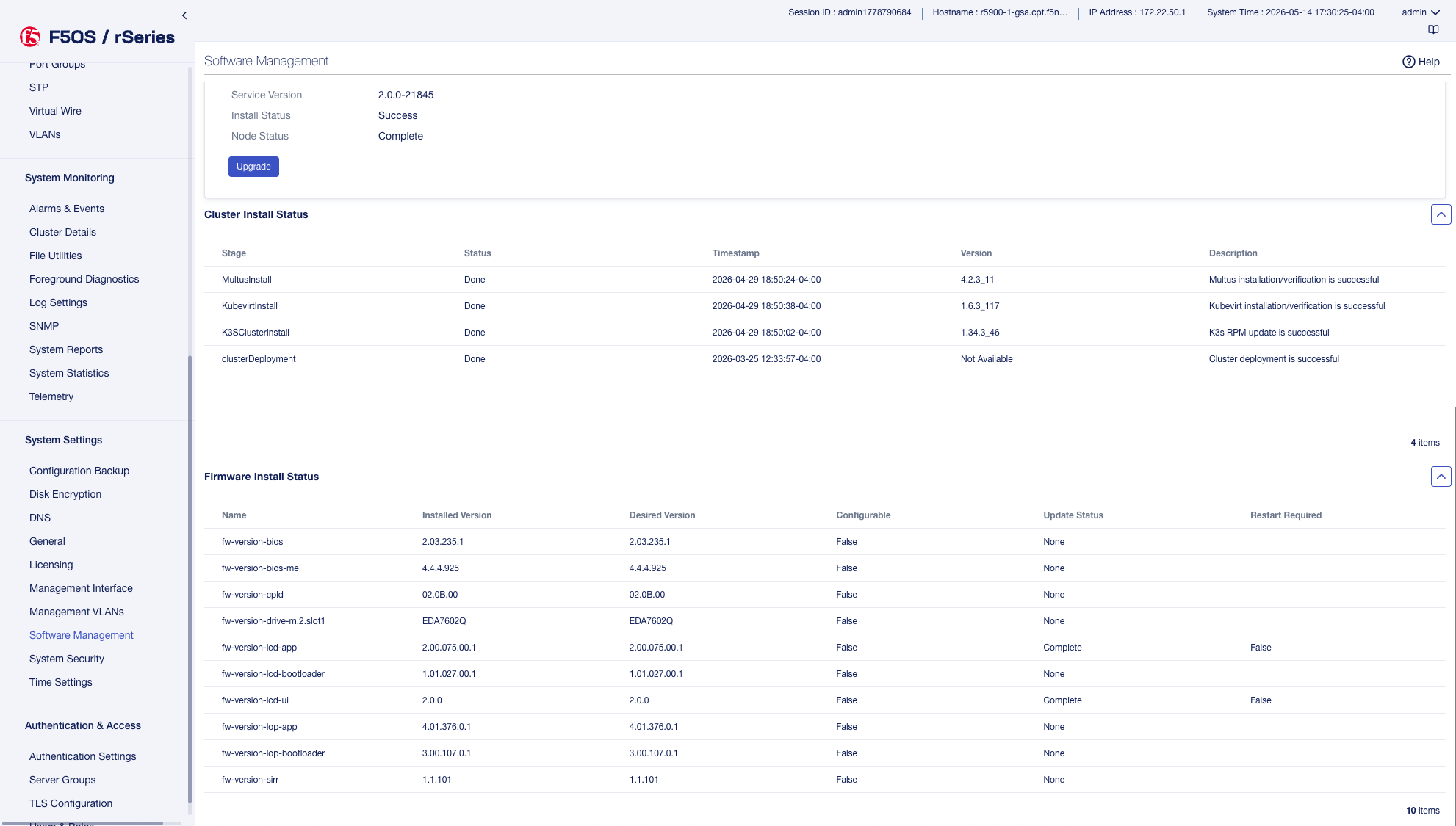

The F5OS-A platform software can be managed under the System Settings -> Software Management page. Here you can Upload or Import approved F5OS-A (for Appliance) images and upgrade the F5OS-A to a new release. The system can support Bundled (ISO) based upgrades, or Unbundled (Separate Service & OS) based upgrades. For now F5 recommends using ISO based upgrades but in the future partial/incremental upgrades of either Service or OS may be utilized.
DNS¶
External DNS Lookup Servers and Search Domains can be configured in the System Settings -> DNS page. This will be required for things like automatic license activation, NTP server domain resolution, and iHealth integration and it is recommended to be configured.
Log Settings¶
Under System Settings > Log Settings you may add remote log servers for the F5OS platform layer. You can also specify the Software Component Log Levels which may be useful when troubleshooting specific issues.
File Utilities¶
The System Settings > File Utilities page allows for importing or exporting specific types of files to and from the F5OS platform layer. Logs from the various log directories can be exported, cores and qkviews and system backups can be imported/exported, and F5OS-A software images can be imported into import/staging.
The Import/Export utility requires an external HTTPS server to copy to/from or you may Upload/Download directly to your browser. For Import/Export, a pop-up will be displayed asking for remote HTTPS server information.
Time Settings¶
Under the System Settings > Time Settings page Network Time Protocol servers can be added so that F5OS time sources are synchronized to a reliable time source. The Time can be set manually, and a Time Zone may also be set.
Certificate Management¶
Device certificates and keys used for device management can be created via the Authentication & Access > TLS Configuration page.
System Reports¶
The Diagnostics > System Reports page allows an admin to generate qkviews and optionally upload them to iHealth. To generate a qkview click on the button in the upper right-hand corner. It will take some time for the qkview to be generated.
Once the qkview is generated, you can click the checkbox next to it, and then select Upload to iHealth.
If you would like to store iHealth credentials within the configuration you may do so via the CLI. Enter config mode, and then use the system diagnostics ihealth config command to configure a username and password.
Boston-r10900-1(config)# system diagnostics ihealth config ?
Possible completions:
authserver Server for Authentication server of iHealth ex:-
https://api.f5.com/auth/pub/sso/login/ihealth-api
password password to login to iHealth
server Server for iHealth ex:-
https://ihealth-api.f5.com/qkview-analyzer/api/qkviews?visible_i
n_webUI=True
username username to login to iHealth
Boston-r10900-1(config)# system diagnostics ihealth config
Configuration Backup¶
You may back up the confd configuration database for the F5OS platform layer via the webUI. The backups can then be copied off-box using the File Utilities webUI option.
Licensing¶
Licensing for the rSeries appliance is handled at the F5OS level. This is similar to how iSeries licensing is handled with vCMP enabled, where the system is licensed once, and all subsystems inherit their licensing from the lower layer. With rSeries, licensing is applied at the F5OS platform layer and tenants will inherit their licenses from the base system. There is no need to add on licenses for MAX SSL/Compression or for tenancy. This is different from iSeries where there was an extra charge for virtualization/vCMP and only certain models supported multitenancy (the r2000 series will only support a single tenant). For rSeries these are included in the base license at no extra cost.
Licenses can be applied via CLI, webUI, or API. A base registration key and optional add-on keys are needed, and it follows the same manual or automatic licensing capabilities of other BIG-IP systems.
General¶
The System Settings > General page allows you to configure Appliance mode for the F5OS layer. Appliance mode is a security feature where all root and bash shell access are disabled. A user will only be able to utilize the F5OS CLI and not the bash shell when Appliance mode is enabled. The page also displays the Systems Properties which includes the Base OS and Service Versions currently running on the appliance. Here you can also configure the Hostname of the system and configure a Message of the Day (MOTD) which is displayed on login.
User Management¶
Auth Settings¶

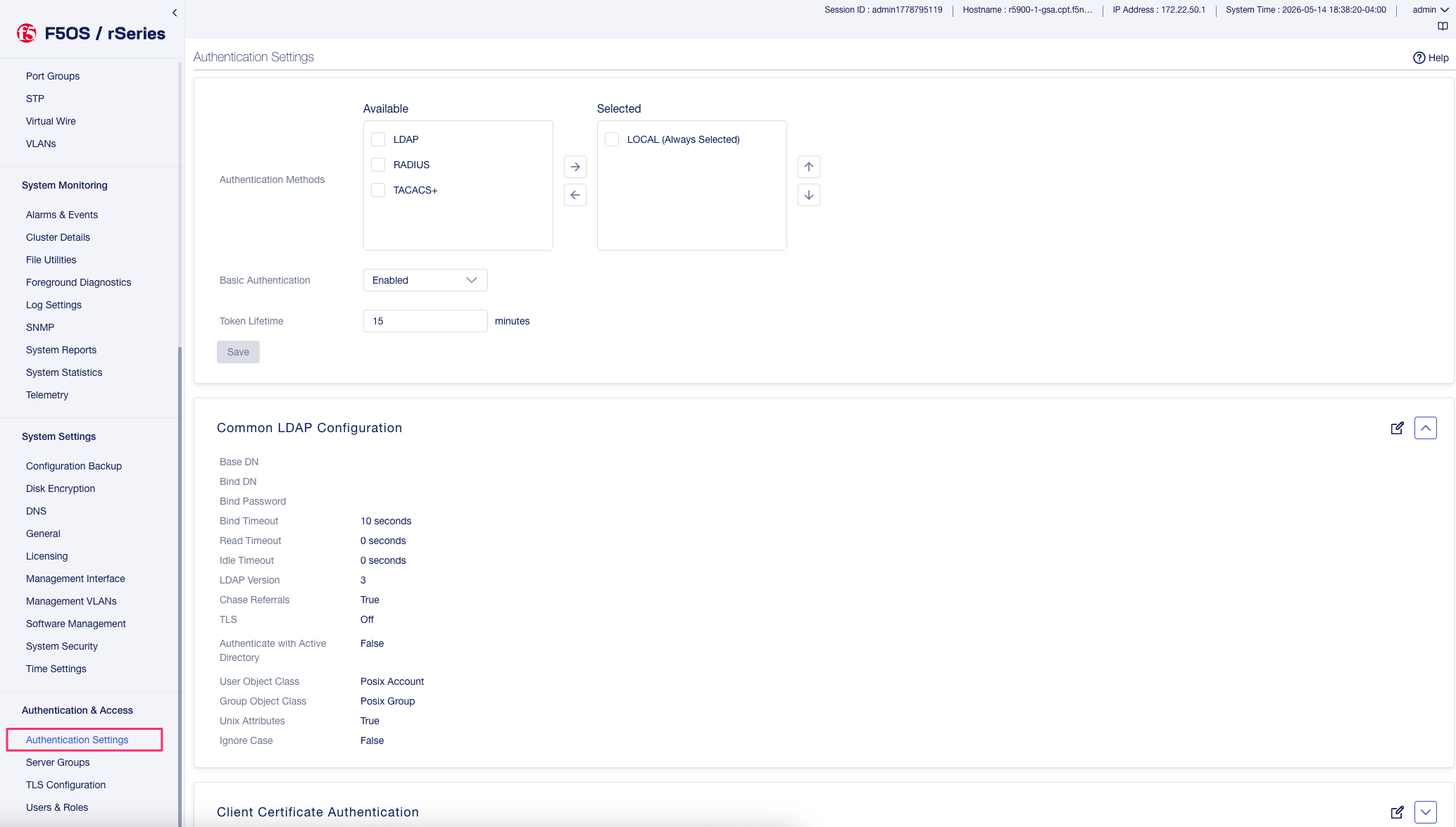

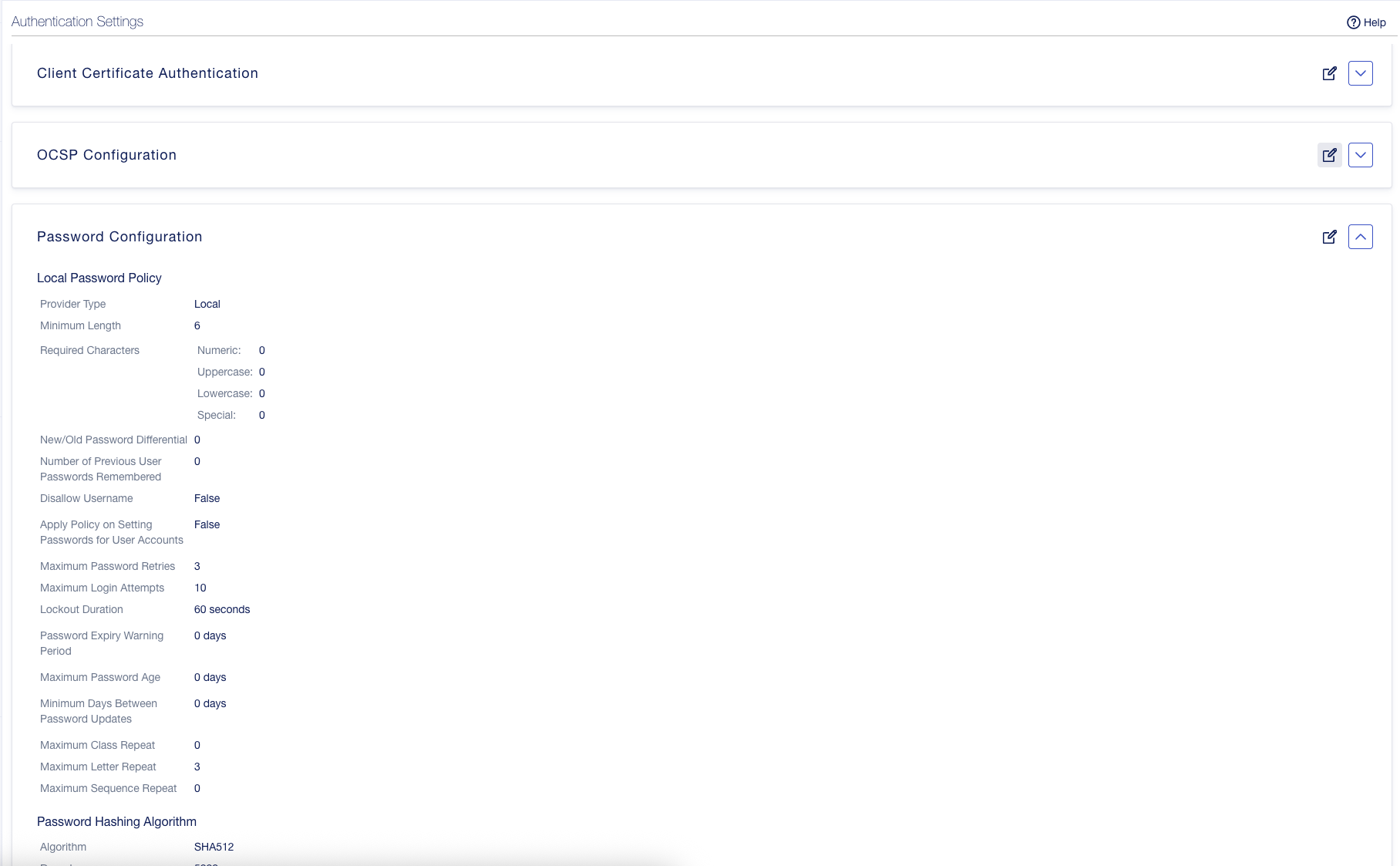

The F5OS platform has its own user and authentication management configured under the User Management section of the webUI. This allows for a separate set of users that have access to the F5OS layer, which is configured separately from tenant authentication. You may define local users and/or remote authentication via LDAP, RADIUS, or TACACS+.
Server Groups¶
Under the User Management -> Server Groups* page you may define Server Groups, which are collections of remote authentication servers that the F5OS platform layer will use to authenticate against. LDAP, RADIUS, and TACACS+ are supported. For LDAP you may choose to authenticate of TCP or SSL. You can configure the remote host’s IP address and port.
Users¶
Under the User Management -> Users* page Local Users may be defined, and passwords set or changed, and then assigned to specific roles (Admin or Operator). An account may also be locked, and that may be changed here.
