Initial Setup of VELOS System Controllers

System Controller Setup

Connect a console or terminal server to each of the system controllers console ports. Login as admin/admin (you’ll be prompted to change the password) and access the F5OS CLI. F5OS utilizes ConfD for configuration management of F5OS and will be a familiar navigation experience if you have used it on other products. The CLI supports <TAB> command completion and online help via ? and is easy to navigate. There are show commands to display current configurations and status, and a config mode to alter current configuration.

Once logged in you can display the current running configuration by issuing the command show running-config.

syscon-2-active# show running-config
image controller config os os 1.2.0-0333
!
image controller config services service 1.2.0-0333
!
image controller config iso iso 1.2.0-0333
    service 1.2.0-0333
    os      1.2.0-0333
!
image partition config os os 1.2.0-0333
!
image partition config services service 1.2.0-0333
!
image partition config iso iso 1.2.0-0333
    service 1.2.0-0333
    os      1.2.0-0333
!
partitions partition bigpart
config enabled
…

Configuration is automatically synchronized between the primary and standby system controllers. The configuration of both controllers can be defined from the primary system controller, there is no need to login to the secondary system controller to configure an IP address. You’ll know which system controller is primary by the prompt:

An example of the Active/Primary system controller:

syscon-2-active#

An example of the Secondary/Standby system controller:

syscon-1-standby#

If you are logged into the standby system controller then you will not be able to enter config mode. You must be on the primary/active system controller to make configuration changes.

syscon-1-standby# config
Aborted: node is in readonly mode

Interface Configuration

The out-of-band Ethernet interfaces on each system controller can be configured to run independently, or they may be put into a common Link Aggregation Group to provide added redundancy. To alter any configuration, you must enter config mode:

syscon-2-active# config
Entering configuration mode terminal
syscon-2-active(config)#

Internal Chassis IP Ranges

The VELOS systems ship with a default internal RFC6598 address space of 100.64.0.0/12. This should be sufficient for most production environments. You can verify this with the following command.

syscon-2-active# show system network
system network state configured-network-range-type RFC6598
system network state configured-network-range 100.64.0.0/12
system network state configured-chassis-id 1
system network state active-network-range-type RFC6598
system network state active-network-range 100.64.0.0/12
system network state active-chassis-id 1
syscon-2-active#

This address range never leaves the inside of the chassis and will not interfere with any communication outside the VELOS chassis. There can however be address collisions if a device trying to manage VELOS via the out-of-band management port falls within this range, or an external management device or service falls within this range and communicates with VELOS over its out-of-band networking. This may result in VELOS not able to communicate with those devices.

Some examples would be any client trying to access the F5OS-C platform layer (system controller or chassis partition) or tenant out-of-band interfaces to reach its’ CLI, webUI, or API. Other examples would be external services such as SNMP, DNS, NTP, SNMP, Authentication that have addresses that fall within the RFC6598 address space. You may experience connectivity problems with these types of clients/services if there is any overlap. Note that this does not affect the data plane / in-band interfaces, it only affects communication to the out-of-band interfaces.

If there is the potential for conflict with external devices that fall within this range that need to communicate with F5OS, then there are options to change the configured network-range-type to one of sixteen different blocks within the RFC1918 address space. Changing this will require a complete chassis power-cycle, rebooting is not sufficient, a commit must occur the reboot. Please consult with F5 prior to making any changes to the internal addresses.

syscon-2-active(config)# system network config network-range-type RFC <Hit Tab>
Possible completions:
  RFC1918   VELOS system uses 10.[0-15]/12 as specified by RFC1918
  RFC6598   VELOS system uses 100.64/10 as specified by RFC6598
syscon-2-active(config)# system network config network-range-type RFC1918

If changing to one of the RFC1918 address spaces, you will need to choose from one of 16 prefix ranges as seen below. You should ensure that this will not overlap with current address space deployed within the environment:

syscon-2-active(config)# system network config network-range-type RFC1918 prefix ?
Description:
The network prefix index is used to select the range of IP addresses
used internally within the chassis.  The network prefix should be
selected such that internal chassis addresses do not overlap with
site-local addresses that are accessible to the chassis.

Network Prefix Index       Chassis Network Range
0                          10.[0-15].0.0/12
1                          10.[16-31].0.0/12
2                          10.[32-47].0.0/12
3                          10.[48-63].0.0/12
4                          10.[64-79].0.0/12
5                          10.[80-95].0.0/12
6                          10.[96-111].0.0/12
7                          10.[112-127].0.0/12
8                          10.[128-143].0.0/12
9                          10.[144-159].0.0/12
10                         10.[160-175].0.0/12
11                         10.[176-191].0.0/12
12                         10.[192-207].0.0/12
13                         10.[208-223].0.0/12
14                         10.[224-239].0.0/12
15                         10.[240-255].0.0/12
Possible completions:
  <unsignedByte, 0 .. 15>[0]
syscon-2-active(config)# system network config network-range-type RFC1918 prefix 15
  syscon-2-active(config)# commit
Commit complete.

Note: This change will not take effect until the chassis is power cycled. A complete power cycle is required in order to convert existing internal address space to the new address space, a reboot of individual chassis components is not sufficient.

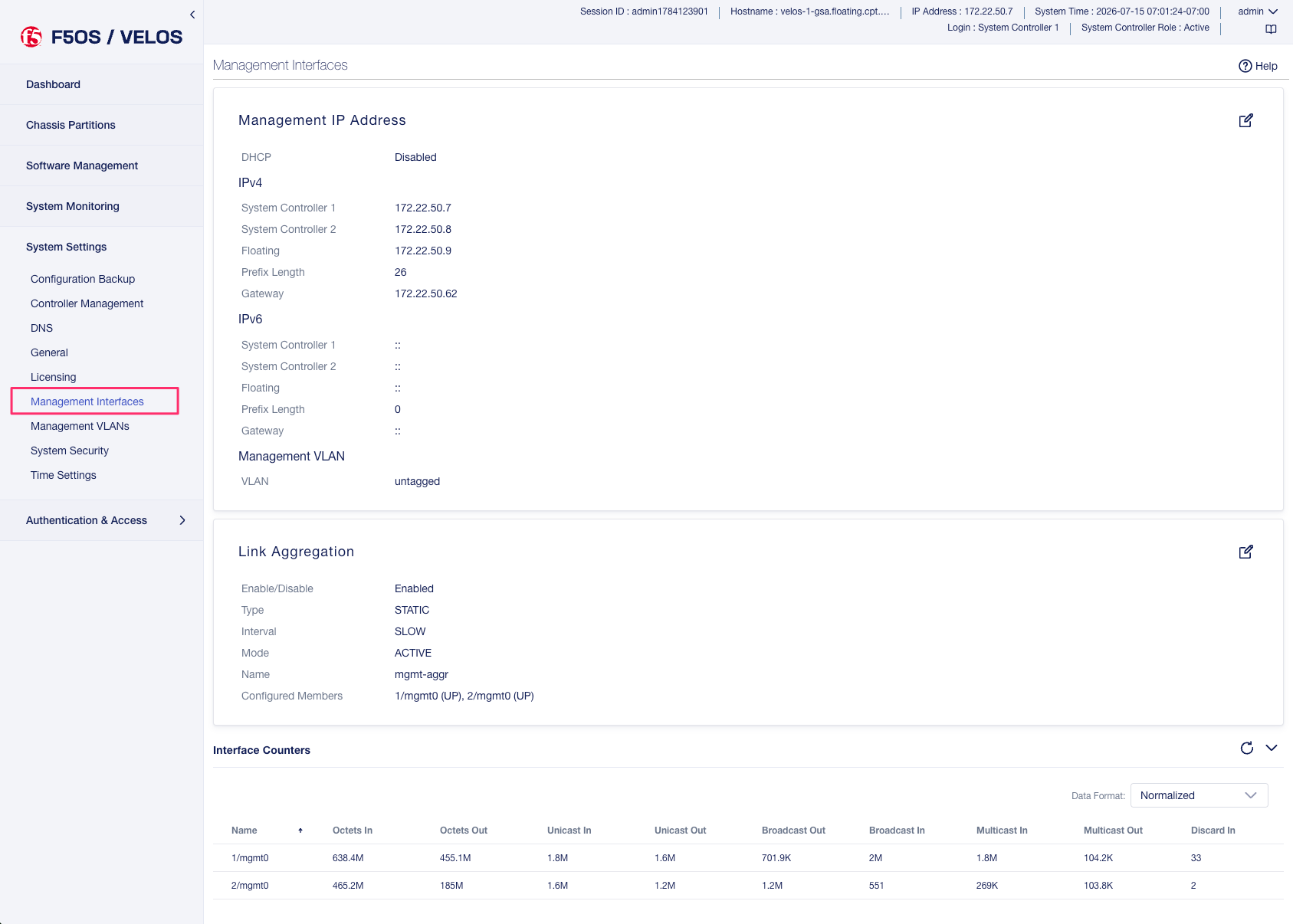

IP Address Assignment & Routing

Each system controller requires its own unique IP address, and a floating IP address also needs to be configured. The floating IP address will follow the primary system controller. The IP addresses can be statically defined, or acquired via DHCP. In addition to the IP addresses, a default route and subnet mask/prefix length is defined. For the initial 1.1.x versions of F5OS only IPv4 IP addresses are supported on the out-of-band interfaces of the system controllers. IPv6 and dual stack IPv4/v6 support requires F5OS be running 1.2.x or later. Note the tenants themselves support IPv4/IPv6 management reagrdless of F5OS version.

_images/image17.png

Once logged in you will configure the static IP addresses (unless DHCP is preferred).

syscon-2-active(config)# system mgmt-ip config ipv4 controller-1 address 10.255.0.212
syscon-2-active(config)# system mgmt-ip config ipv4 controller-2 address 10.255.0.213
syscon-2-active(config)# system mgmt-ip config ipv4 floating address 10.255.0.214
syscon-2-active(config)# system mgmt-ip config ipv4 prefix-length 24
syscon-2-active(config)# system mgmt-ip config ipv4 gateway 10.255.0.1

In order to make these changes active you must commit the changes. No configuration changes are executed until the commit command is issued.

syscon-2-active(config)# commit

Now that the out-of-band addresses and routing are configured you can attempt to access the system controller webUI via the floating IP address that has been defined. The floating IP address should always be used to onitor and configure the system as it will always follow the active controller. Using the static IP addresses is best saved for diagnosing a problem, as the secondary controller will not allow config changes to be made, and monitoring may be limited when in stnady state. After logging into the floating IP address, you should see a screen similar to the one below, and you can verify your management interface settings.

_images/image22.png

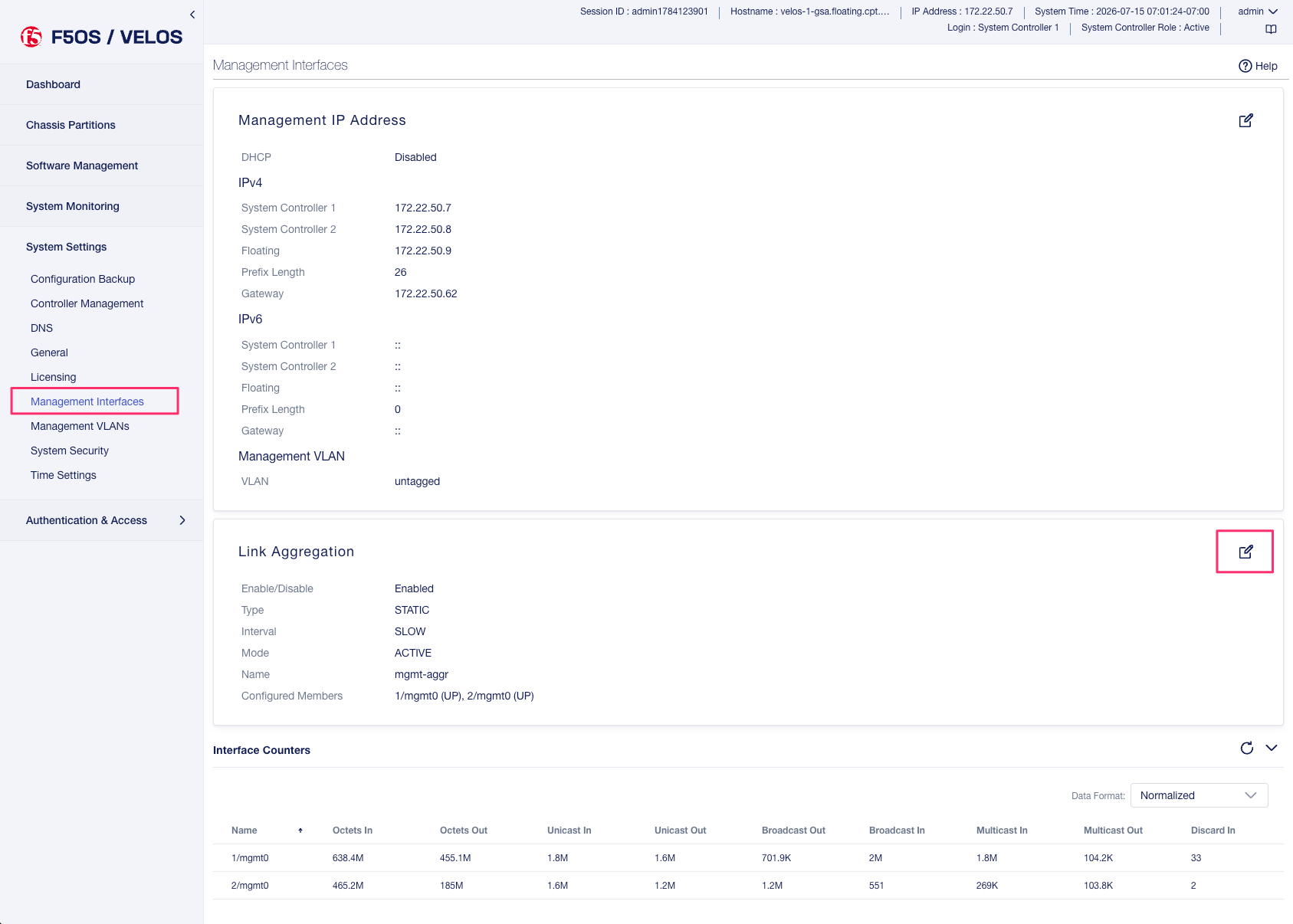

Interface Aggregation for System Controllers (Optional)

As seen in previous diagrams each system controller has its own independent out-of-band 10Gb ethernet connection. These can run independently of each other and should be connected to the same layer2 VLAN so that the floating IP address can move from primary to standby in the event of a failure. You may optionally configure these two interfaces into a single Link Aggregation Group (LAG) for added resiliency which is recommended. This would allow direct access to either static IP address on the system controllers in the event one link should fail. Below is a depiction of each system controllers OOB interface bonded together in a single LAG:

_images/image31.png

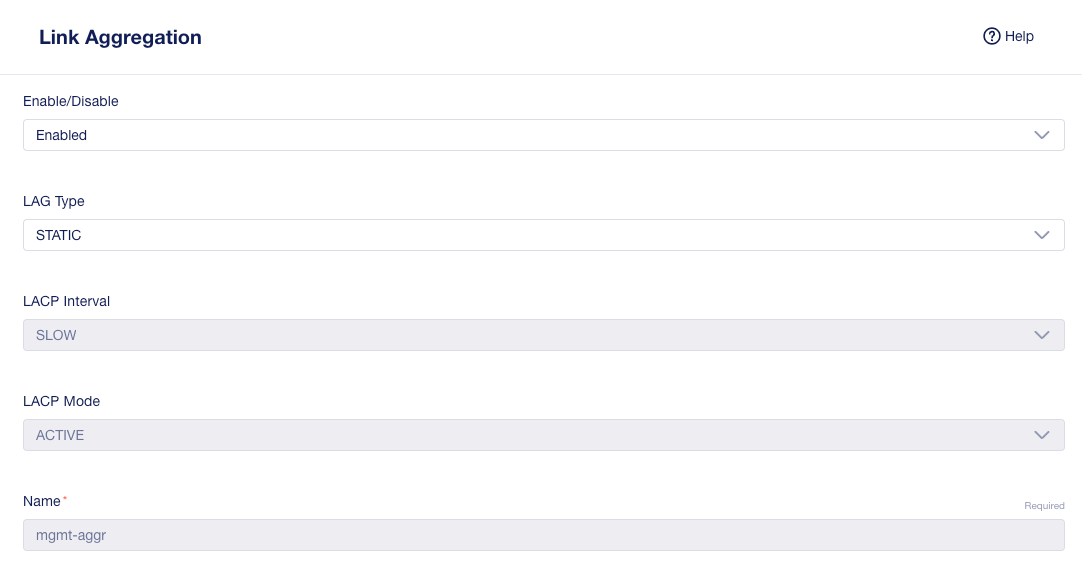

To enable this feature, you would need to enable link aggregation on the system controllers via the CLI, webUI or API, and then make changes to your upstream layer2 switching infrastructure to ensure the two ports are put into the same LAG. To configure the management ports of both system controllers to run in a LAG configure as follows:

On the active controller create a managment LACP interface:

lacp interfaces interface mgmt-aggr
config name mgmt-aggr
!

Next create a management aggregate interface and set the config type to ieee8023adLag and set the lag-type to LACP.

interfaces interface mgmt-aggr
config name mgmt-aggr
config type ieee8023adLag
aggregation config lag-type LACP
!

Finally add the aggregate that you created by name to each of the management interfaces on the two controllers:

!
interfaces interface 1/mgmt0
config name 1/mgmt0
config type ethernetCsmacd
ethernet config aggregate-id mgmt-aggr
!


interfaces interface 2/mgmt0
config name 2/mgmt0
config type ethernetCsmacd
ethernet config aggregate-id mgmt-aggr

System Settings

Once the IP addresses have been defined system settings such as DNS servers, NTP, and external logging should be defined. This can be done from the CLI, webUI, or API.

Configure System Settings From the CLI

In the system controller F5OS CLI enter config mode. DNS, logging, and NTP can be set as seen in the example below.

syscon-2-active# config
Entering configuration mode terminal
syscon-2-active(config)# system dns servers server 192.168.19.1 config address 192.168.10.1
syscon-2-active(config-server-192.168.19.1)# exit
syscon-2-active(config)# system ntp config enabled
syscon-2-active(config)# system ntp servers server time.f5net.com config address time.f5net.com
syscon-2-active(config-server-time.f5net.com)# exit
syscon-2-active(config)# system logging remote-servers remote-server 10.255.0.142 selectors selector LOCAL0 WARNING
syscon-2-active(config-remote-server-10.255.0.142)# exit
syscon-2-active(config)# commit

Configure System Settings From the WebUI

You can configure the DNS and Time settings from the webUI if preferred. DNS is configured under Network Settings > DNS. Here you can add DNS lookup servers, and optional search domains. This will be needed for the VELOS chassis to resolve hostnames that may be used for external services like licensing, ntp, authentication servers, or to reach iHealth for qkview uploads.

_images/image41.png

Configuring Network Time Protocol is highly recommended so that the VELOS systems clock is synchronized and accurate. In addition to configuring NTP time sources, you can set the local timezone for this chassis location.

_images/image51.png

It’s also a good idea to have the VELOS system controllers send logs to an external syslog server. This can be configured in the System Settings > Log Settings screen. Here you can configure remote servers, the logging facility, and severity levels. You can also configure logging subsystem levels individually. The remote logging severity level will override the component logging levels if they are configured higher, but only for logs sent remotely. Local logging levels will always follow the component levels that are configured here.

_images/image61.png

Configure System Settings From the API

If you would prefer to automate the setup of the VELOS chassis, there are F5OS API calls for all of the examples above. VELOS supports token based authentication for the F5OS API’s. You can send a standard API call with user/password based authentication (basic auth), and then store the token for subsequent API calls. The X-Auth-Token has a lifetime of fifteen minutes and can be renewed a maximum of five times before you need to authenticate again using basic auth. The renewal period begins at the ten-minute point, where the API will start sending a new X-Auth-Token in the response for the next five minutes. If your API calls fail to start using the new token by the 15-minute point, API calls will start returning 401 Not Authorized. All the API examples in this guide were generated using the Postman utility. Below is an example of using password based authentication to the system controller floating IP address. Be sure to go to the Auth tab and set the Type* to Basic Auth, and enter the username and password to log into your system controller.

_images/image6a.png

To capture the token and save it for use in subsequent API calls, go to the Test option in the API call and enter the following:

var headerValue = pm.response.headers.get("X-Auth-Token");
pm.environment.set("X-Auth-Token_Chassis1_System_Controller", headerValue);

This will capture the auth token and store it in a variable called X-Auth-Token_Chassis1_System_Controller.

_images/image6b.png

This will be stored as a variable in the Postman Environment as seen below.

_images/image6c.png

Once the variable is stored with the auth token, it can be used instead of using basic auth on all subsequent API calls. On any subsequent API call under the Auth option, set the Type to Bearer Token, and set the Token to the variable name. Note, postman references variables by encasing the variable name in these types of parentheses {{Variable-Name}}. In this case the Token is set to {{X-Auth-Token_Chassis1_System_Controller}}.

_images/image6d.png

You must also add some required headers to any API calls to F5OS. It is important to include the header Content-Type application/yang-data+json and the Token header X-Auth-Token with a value of {{X-Auth-Token_Chassis1_System_Controller}}.

_images/image6e.png

To set the DNS configuration for the system controllers, use the following API call with the headers and auth settings from above. Don’t forget to acquire the auth token first, otherwise the API call will fail.

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "openconfig-system:system": {
        "clock": {
            "config": {
                "timezone-name": "America/New_York"
            }
        },
        "dns": {
            "config": {
                "search": "olympus.f5net.com"
            },
            "servers": {
                "server": [
                    {
                        "address": "8.8.8.8",
                        "config": {
                            "address": "8.8.8.8"
                        }
                    },
                    {
                        "address": "192.168.10.1",
                        "config": {
                            "address": "192.168.10.1"
                        }
                    },
                    {
                        "address": "192.168.11.1",
                        "config": {
                            "address": "192.168.11.1"
                        }
                    }
                ]
            }
        }
    }
}

To set System Time settings, use the following API call as an example:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "openconfig-system:system": {
        "clock": {
            "config": {
                "timezone-name": "America/New_York"
            }
        },
        "ntp": {
            "config": {
                "enabled": "true"
            },
            "servers": {
                "server": [
                    {
                        "address": "time.f5net.com",
                        "config": {
                            "address": "time.f5net.com"
                        }
                    }
                ]
            }
        }
    }
}

To set a Remote Logging destination, use the following API call:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "openconfig-system:system": {
        "logging": {
            "remote-servers": {
                "remote-server": [
                    {
                        "host": "10.255.0.142",
                        "config": {
                            "host": "10.255.0.142",
                            "remote-port": "514"
                        },
                        "selectors": {
                            "selector": [
                                {
                                    "facility": "LOCAL0",
                                    "severity": "INFORMATIONAL",
                                    "config": {
                                        "facility": "LOCAL0",
                                        "severity": "INFORMATIONAL"
                                    }
                                }
                            ]
                        }
                    }
                ]
            }
        }
    }
}

Licensing the VELOS Chassis

Licensing for the VELOS system is handled at the chassis level. This is similar to how VIPRION licensing is implemented, where the system is licensed once, and all subsystems inherit their licensing from the chassis. With VELOS, licensing is applied at the system controller level, and all chassis partitions and tenants will inherit their licenses from the base system. There is no need to procure add-on licenses for MAX SSL/Compression, or for tenancy/vCMP. This is different than VIPRION, where there was an extra charge for virtualization/vCMP, and in some cases for MAX SSL/Compression. For VELOS, these are included in the base license at no extra cost. VELOS does not run vCMP, and instead runs tenancy.

Licenses can be applied via CLI, webUI, or API. A base registration key and optional add-on keys are needed, and it follows the same manual or automatic licensing capabilities of other BIG-IP systems.

Apply License via webUI

Licensing is accessible under the System Settings > Licensing page. Automatic will require proper routing and DNS connectivity to the Internet to reach F5’s licensing server. If this is not possible to reach the licensing server, use the Manual method.

_images/image71.png _images/image81.png

You can activate and display the current license in the webUI, CLI or API.

Apply License via CLI

You can license the VELOS system automatically if the F5’s licesing server is reachable from the VELOS system, and it can resolve the licensing servers name via DNS. If this is not possible, manual licesing may be used. To license the VELOS chassis automatically from the F5OS CLI:

syscon-1-active(config)# system licensing install registration-key I1234-12345-12345-12345-1234567
result License installed successfully.

To license the VELOS chassis manually, you’ll need to get the dossier first:

syscon-2-active(config)# system licensing get-dossier
b9a9936886bada077d93843a281ce4c34bf78db0d6c32c40adea3a5329db15edd413fe7d7f8143fd128ebe2d97642b4ed9192b530788fe3965593e3b42131c66220401b16843476159414ceeba8af5fb67a39fe2a2f408b9…

You can then access F5’s licensing server (license.f5.com) via another host that has internet access, and paste in the dossier when prompted:

_images/image91.png _images/image101.png

This should generate a license that can be saved or pasted into the VELOS system using the command system licensing manual-install license:

_images/image112.png
syscon-2-active(config)# system licensing manual-install license
Value for 'license' (<string>):
[Multiline mode, exit with ctrl-D.]
>

You should paste in the license, and when finished hit <CTRL> D.

#
> #-----------------------------------------
> # Copyright 1996-2021, F5 Networks, Inc.
> # All rights reserved.
> #-----------------------------------------
>
result License installed successfully.
syscon-2-active(config)#

You can also view the EULA via the CLI:

syscon-2-active(config)# system licensing get-eula
eula-text END USER LICENSE AGREEMENT

DOC-0355-16

IMPORTANT " READ BEFORE INSTALLING OR OPERATING THIS PRODUCT

YOU AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE BY INSTALLING,
HAVING INSTALLED, COPYING, OR OTHERWISE USING THE SOFTWARE.  IF YOU
DO NOT AGREE, DO NOT INSTALL OR USE THE SOFTWARE.

The CLI command show system licensing will display the chassis level licensing:

syscon-2-active# show system licensing
system licensing license
                        Licensed version    1.2.0
                        Registration Key    V0453-12345-12345-12345-1234567
                        Licensed date       2020/12/08
                        License start       2020/12/07
                        License end         2021/01/08
                        Service check date  2020/12/08
                        Platform ID         F101
                        Appliance SN        chs600148s

                        Active Modules
                          Local Traffic Manager, CX410 (E428722-4444383)
                          Best Bundle, CX410
                          APM-Lite
                          Carrier Grade NAT (AFM ONLY)
                          Max Compression, CX410
                          Rate Shaping
                          Max SSL, CX410
                          DNS, Max QPS, CX410
                          Advanced Routing, CX410
                          Advanced Firewall Manager, CX410
                          Advanced Web Application Firewall, CX410
                          Access Policy Manager, Base, CX410
                          Anti-Virus Checks
                          Base Endpoint Security Checks
                          Firewall Checks
                          Machine Certificate Checks
                          Network Access
                          Protected Workspace
                          Secure Virtual Keyboard
                          APM, Web Application
                          App Tunnel
                          Remote Desktop

Note: VELOS supports AWAF vs. ASM licensing, and modules like AAM are not supported on the VELOS platform since it has reached End-of-Life.

https://support.f5.com/csp/article/K70113407

Apply License via API

To get the current licensing status via API, use the following API call. Issue a GET to the floating IP address of the system controllers:

GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing
{
    "f5-system-licensing:licensing": {
        "config": {
            "registration-key": {
                "base": "L0747-54464-34113-50785-0819580"
            },
            "dossier": "0159d9644a6701c807e04ee146cdb9fcc604f42baa4c48f1c35682c6691dde0e30640626b90fbee83cda8384b1dbe4b92cbf3112426d441acff042617c6b8380e837698714159c6931cf874350f23c24fe1a783b0216ede8368626f9910e1908e0f6a541d8e61746d92f49ba897ca7579bf29de282767821465df467f409d8140bd928b103a1c621",
            "license": "#\nAuth vers :                        5b\n#\n#\n#       BIG-IP System License Key File\n#       DO NOT EDIT THIS FILE!!\n#\n#       Install this file as \"/config/bigip.license\".\n#\n#       Contact information in file /CONTACTS\n#\n#\n#       Warning: Changing the system time while this system is running\n#                with a time-limited license may make the system unusable.\n#\nUsage :                            F5 Internal Product Development\n#\n#\n#  Only the specific use referenced above is allowed. Any other uses are prohibited.\n#\nVendor :                           F5 Networks, Inc.\n#\n#       Module List \n#\nactive module :                    Best Bundle, CX410|Q163449-3930707|Max Compression, CX410|Rate Shaping|Max SSL, CX410|DNS, Max QPS, CX410|Advanced Firewall Manager, CX410|Advanced Web Application Firewall, CX410|Access Policy Manager, Base, CX410|Carrier Grade NAT (AFM ONLY)|Advanced Routing, CX410\noptional module :                  Advanced Protocols, CX410\noptional module :                  Anti-Bot Mobile, CX410\noptional module :                  APM, 1000 VPN Users\noptional module :                  APM, 10000 VPN Users\noptional module :                  APM, 25000 VPN Users\noptional module :                  APM, 500 VPN Users\noptional module :                  APM, 5000 VPN Users\noptional module :                  Basic Policy Enforcement Manager, CX410\noptional module :                  BPEM, Traffic Classification, CX410\noptional module :                  DataSafe, CX410\noptional module :                  Dynamic Policy Provisioning, CX410\noptional module :                  External Interface and Network HSM\noptional module :                  FIPS 140-2 Compliant Mode, CX410\noptional module :                  FIX Low Latency\noptional module :                  Intrusion Prevention System, CX410\noptional module :                  IP Intelligence, 1Yr, CX410\noptional module :                  IP Intelligence, 3Yr, CX410\noptional module :                  IPS Signatures, 1Yr, CX410\noptional module :                  IPS Signatures, 3Yr, CX410\noptional module :                  Multicast Routing, CX410\noptional module :                  PEM URL Filtering, 1Yr, CX410\noptional module :                  PEM URL Filtering, 3Yr, CX410\noptional module :                  PEM, Quota Management, CX410\noptional module :                  Policy Enforcement Manager, CX410\noptional module :                  Privileged User Access, 100 End-Points\noptional module :                  Privileged User Access, 1000 End-Points\noptional module :                  Privileged User Access, 250 End-Points\noptional module :                  Privileged User Access, 50 End-Points\noptional module :                  Privileged User Access, 500 End-Points\noptional module :                  Secure Web Gateway, 1Yr, 30K Sessions, CX410\noptional module :                  Secure Web Gateway, 1Yr, 60K Sessions, CX410\noptional module :                  Secure Web Gateway, 3Yr, 30K Sessions, CX410\noptional module :                  Secure Web Gateway, 3Yr, 60K Sessions, CX410\noptional module :                  SM2_SM3_SM4\noptional module :                  SSL Orchestrator, CX410\noptional module :                  Subscriber Discovery, CX410\noptional module :                  Threat Campaigns, 1Yr, CX410\noptional module :                  Threat Campaigns, 3Yr, CX410\noptional module :                  Traffic Classification, CX410\noptional module :                  URL Filtering, 1Yr, 30K Sessions, CX410\noptional module :                  URL Filtering, 1Yr, 60K Sessions, CX410\noptional module :                  URL Filtering, 3Yr, 30K Sessions, CX410\noptional module :                  URL Filtering, 3Yr, 60K Sessions, CX410\n#\n#       Accumulated Tokens for Module\n#       Max SSL, CX410  perf_SSL_Mbps 1  key Q163449-3930707\n#\nperf_SSL_Mbps :                    1\n#\n#       Accumulated Tokens for Module\n#       Access Policy Manager, Base, CX410  apm_access_sessions 100000000  key Q163449-3930707\n#\n#       Accumulated Tokens for Module\n#       Access Policy Manager, Base, CX410  apm_sessions 500  key Q163449-3930707\n#\n#       Accumulated Tokens for Module\n#       Access Policy Manager, Base, CX410  apm_urlf_limited_sessions 100000000  key Q163449-3930707\n#\napm_access_sessions :              100000000\napm_sessions :                     500\napm_urlf_limited_sessions :        100000000\n#\n#       License Tokens for Module Advanced Web Application Firewall, CX410 key Q163449-3930707\n#\nwaf_gc :                           enabled\nmod_waf :                          enabled\nmod_datasafe :                     enabled\nmod_asm :                          enabled\nltm_persist_cookie :               enabled\nltm_persist :                      enabled\nltm_lb_rr :                        enabled\nltm_lb_ratio :                     enabled\nltm_lb_priority :                  enabled\nltm_lb_pool_member_limit :         UNLIMITED\nltm_lb_least_conn :                enabled\nltm_lb_l3_addr :                   enabled\nltm_lb :                           enabled\nasm_apps :                         unlimited\n#\n#       License Tokens for Module Best Bundle, CX410 key Q163449-3930707\n#\nperf_vcmp_max_guests :             100000\nperf_PVA_dram_limit :              enabled\nnw_vlan_groups :                   enabled\nmod_ltm :                          enabled\nmod_lbl :                          enabled\nmod_ilx :                          enabled\nltm_network_virtualization :       enabled\nfpga_performance :                 enabled\n#\n#       License Tokens for Module Advanced Firewall Manager, CX410 key Q163449-3930707\n#\nperf_SSL_total_TPS :               UNLIMITED\nnw_l2_transparent :                enabled\nmod_afw :                          enabled\nmod_afm :                          enabled\nltm_netflow_switching :            enabled\nltm_monitor_rule :                 enabled\n#\n#       License Tokens for Module Max SSL, CX410 key Q163449-3930707\n#\nperf_SSL_per_core :                enabled\nperf_SSL_cmp :                     enabled\n#\n#       License Tokens for Module Max Compression, CX410 key Q163449-3930707\n#\nperf_http_compression_Mbps :       UNLIMITED\nperf_http_compression_hw :         enabled\n#\n#       License Tokens for Module Advanced Routing, CX410 key Q163449-3930707\n#\nnw_routing_rip :                   enabled\nnw_routing_ospf :                  enabled\nnw_routing_isis :                  enabled\nnw_routing_bgp :                   enabled\nnw_routing_bfd :                   enabled\n#\n#       License Tokens for Module DNS, Max QPS, CX410 key Q163449-3930707\n#\nmod_dnsgtm :                       enabled\nltm_dnssec :                       enabled\nltm_dns_v13 :                      enabled\nltm_dns_rate_limit :               UNLIMITED\nltm_dns_rate_fallback :            UNLIMITED\nltm_dns_lite :                     enabled\nltm_dns_licensed_objects :         UNLIMITED\ngtm_rate_limit :                   UNLIMITED\ngtm_rate_fallback :                UNLIMITED\ngtm_licensed_objects :             UNLIMITED\n#\n#       License Tokens for Module Carrier Grade NAT (AFM ONLY) key Q163449-3930707\n#\nmod_cgnat :                        enabled\nltm_network_map :                  enabled\nltm_monitor_udp :                  enabled\nltm_monitor_tcp_ho :               enabled\nltm_monitor_tcp :                  enabled\nltm_monitor_radius :               enabled\nltm_monitor_icmp :                 enabled\nltm_monitor_gateway_icmp :         enabled\ndslite :                           enabled\ncgnat :                            enabled\n#\n#       License Tokens for Module Access Policy Manager, Base, CX410 key Q163449-3930707\n#\nmod_apm :                          enabled\napm_web_applications :             enabled\napm_remote_desktop :               enabled\napm_pingaccess :                   enabled\napm_na :                           enabled\napm_logon_page_fraud_protection :  enabled\napm_ep_svk :                       enabled\napm_ep_pws :                       enabled\napm_ep_machinecert :               enabled\napm_ep_fwcheck :                   enabled\napm_ep_avcheck :                   enabled\napm_ep :                           enabled\napm_app_tunnel :                   enabled\napm_api_protection :               enabled\napi_protection_infra :             enabled\n#\n#       License Tokens for Module Rate Shaping key Q163449-3930707\n#\nltm_bandw_rate_tosque :            enabled\nltm_bandw_rate_fairque :           enabled\nltm_bandw_rate_classl7 :           enabled\nltm_bandw_rate_classl4 :           enabled\nltm_bandw_rate_classes :           enabled\n#\n# Debug Msg - Is sol18346625 affected; Usage, \"2021-02-09 00.00.00\", started after requirement date \"2016-04-15 00.00.00\"\n#\n# LC disabled in accordance with https://support.f5.com/kb/en-us/solutions/public/k/18/sol18346625.html\n#\ngtm_lc :                           disabled\n#\n#       Licensing Information \n#\nLicensed date :                    20210209\nLicense start :                    20210208\nLicense end :                      20210406\nService check date :               20210307\n#\n#       Platform Information \n#\nRegistration Key :                 L0747-54464-34113-50785-0819580\nLicensed version :                 1.0.0\nPlatform ID :                      F101\nAppliance SN :                     chs600032s\n#\n#       Outbound License Dossier Validation\n#\nDossier :                          0159d9644a6701c807e04ee146cdb9fcc612426d441acff042617c6b8380e837698714159c6931cf874350f23c24fe1a783b0216ede8368626f9910e1908e0f6a541d8e6\n#\n#       Outbound License Authorization Signature\n#\nAuthorization :                    b03537af28c9542b1d215b22e232c6f59bb75a52d84934d42f5004a02b1c90874774b57c4da87952a4db78091ab13ab1971acdcbbddf8c56532f7593bddc70718f24b04b8060c34e798e60c9a462db4b385a00ff50af956809f4754d3d21315899e7cefe9d484f5a2522c05c2ab4e4f6d55952a43abf16799075a25f1c98155a579b9f562ac6f6acc14035ebb522792ef2cc7c3d6f873d933f2940c904dfd2f8293644b4b962630cc6fa73633a3dd0b3b309d40f066bca9ba5503a0670c1be9170df2a05bdf6d99d882ae8ad5d8148d9f040e05694ed31ee708fe2db110b780d812fcf8ed7a9ce61d3283f3182b2447e4e92ca44ac15db2b0871583be66a7f7e\n#\n#-----------------------------------------\n# Copyright 1996-2021, F5 Networks, Inc.\n# All rights reserved. \n#-----------------------------------------\n"
        },
        "state": {
            "license": "\nLicensed version    1.0.0\nRegistration Key    L0747-54464-34113-50785-0819580\nLicensed date       2021/02/09\nLicense start       2021/02/08\nLicense end         2021/04/06\nService check date  2021/03/07\nPlatform ID         F101\nAppliance SN        chs600032s\n\nActive Modules\n Best Bundle, CX410 (Q163449-3930707)\n  Max Compression, CX410\n  Rate Shaping\n  Max SSL, CX410\n  DNS, Max QPS, CX410\n  Advanced Firewall Manager, CX410\n  Advanced Web Application Firewall, CX410\n  Access Policy Manager, Base, CX410\n  Carrier Grade NAT (AFM ONLY)\n  Advanced Routing, CX410\n"
        }
    }
}

To install a license via API, use the following API call:

POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-licensing:licensing/f5-system-licensing-install:install

In the body of the API call, add the following JSON payload which references the registration-key as a variable in postman:

{
    "f5-system-licensing-install:input": [
        {
            "registration-key": "{{License_Registration_Key_Chassis1}}"
        }
    ]
}

Chassis Partition Creation

Once the base level networking, licensing, and system settings are defined, the next step is to create the chassis partitions that will be used. The system ships with all 8 slots defined within the default chassis partition. If there is no need for more than one chassis partition, you can just utilize the default partition and any blades installed will automatically cluster together. Multiple tenants can be defined within the chassis partition, and they can be restricted to specific vCPUs as well as restricted to a single blade, or be allowed to span across multiple blades. Conceptually this is similar to how vCMP guests are defined, but the underlying technology in F5OS is different.

If you decide to utilize the default partition you will need to assign an out-of-band management IP address, prefix, and default route so that it can be managed. You must also define what release of F5OS software the chassis partition should run. It is recommended you check downloads.f5.com for the latest F5OS software, as the version that shipped on the system may not be the latest. Note, this is different than the software that the tenants will actually run. Once the management IP address is assigned, you would then connect directly to that chassis partition to manage its networking, users and authentication, and tenants.

You may want to leave the default partition, and create new partitions with names that make sense for your environment. You might want to create different chassis partitions for different environments like QA/Dev and Production, or for different business units or departments, or different security zones. If you want to utilize other chassis partitions so that you can isolate all the networking for use by different groups, or for specific use cases, you must first edit the default partition and remove any slots that you want to add to other partitions. Once a slot is removed from the default partition an option to create new chassis partitions is enabled, slots that are not currently tied to an existing chassis partition may be added to it.

Creating Chassis Partitions via the webUI

The term Slot and Blade may be used interchangably, in the F5OS configuration interfaces (CLI, webUI, API) the term slot is used as you may want to assign empty slots to a chassis partition. If the term blade were used this may lead to confusion, as a blade may not be installed yet. In the webUI screen below note that there is only the default partition, and all 8 slots are assigned to it. There are 3 blades installed in the chassis (in slots 1-3), and the rest show as Empty.

_images/image121.png

For this configuration, you will remove slots 1, 2, and 3 from the default chassis partition first. Once they are removed from the default partition, they can be assigned to a new partition. Select the checkbox next to the default partition and then click Edit.

_images/image131.png

You can then click on the slots in the graphic that you want to remove (slots 1, 2, and 3), and they will change from dark blue to light blue. Also note; the Selected Slots will remove these slots from the default partition as indicated by 4,5,6,7,8. Click Save to complete removing slots 1-3 from the default partition.

_images/image141.png

The slots will turn white indicating they are not currently assigned to any chassis partition.

_images/image151.png

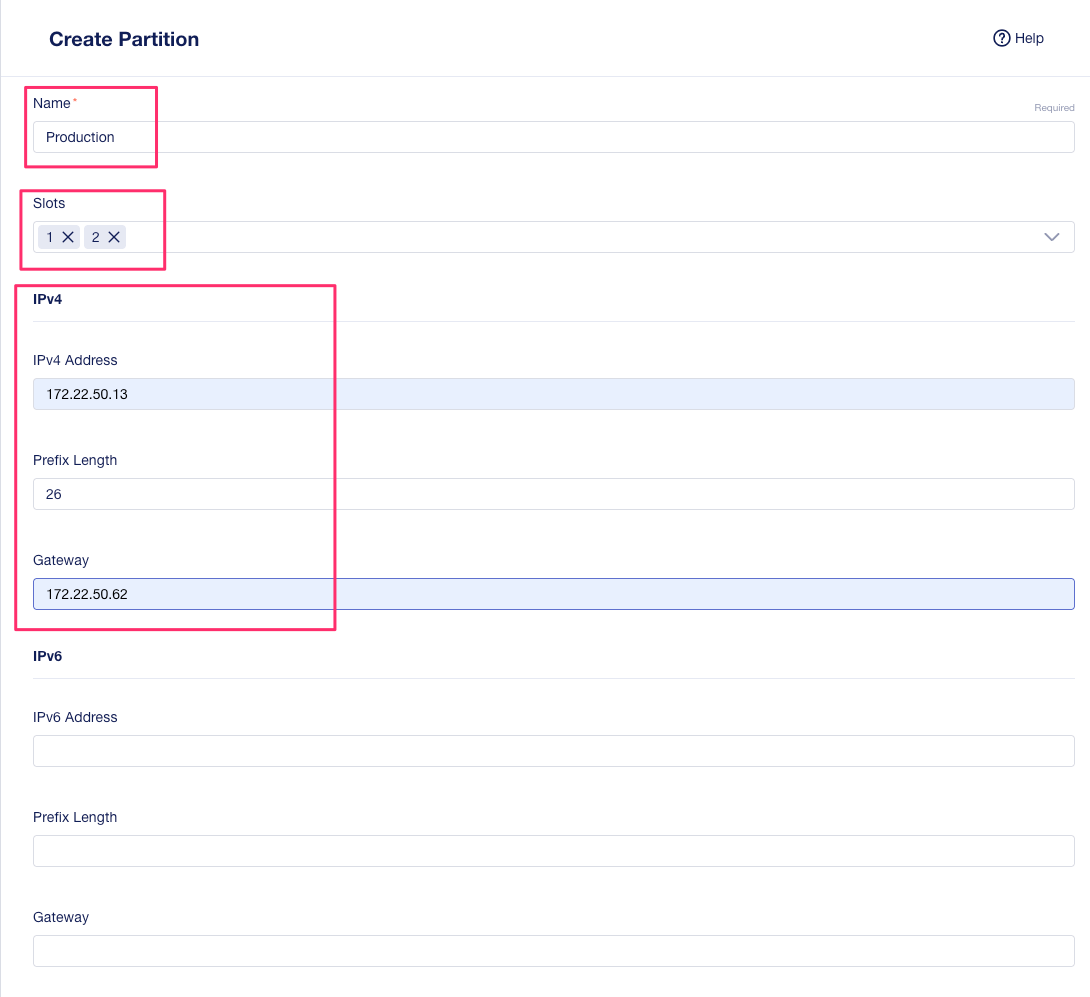

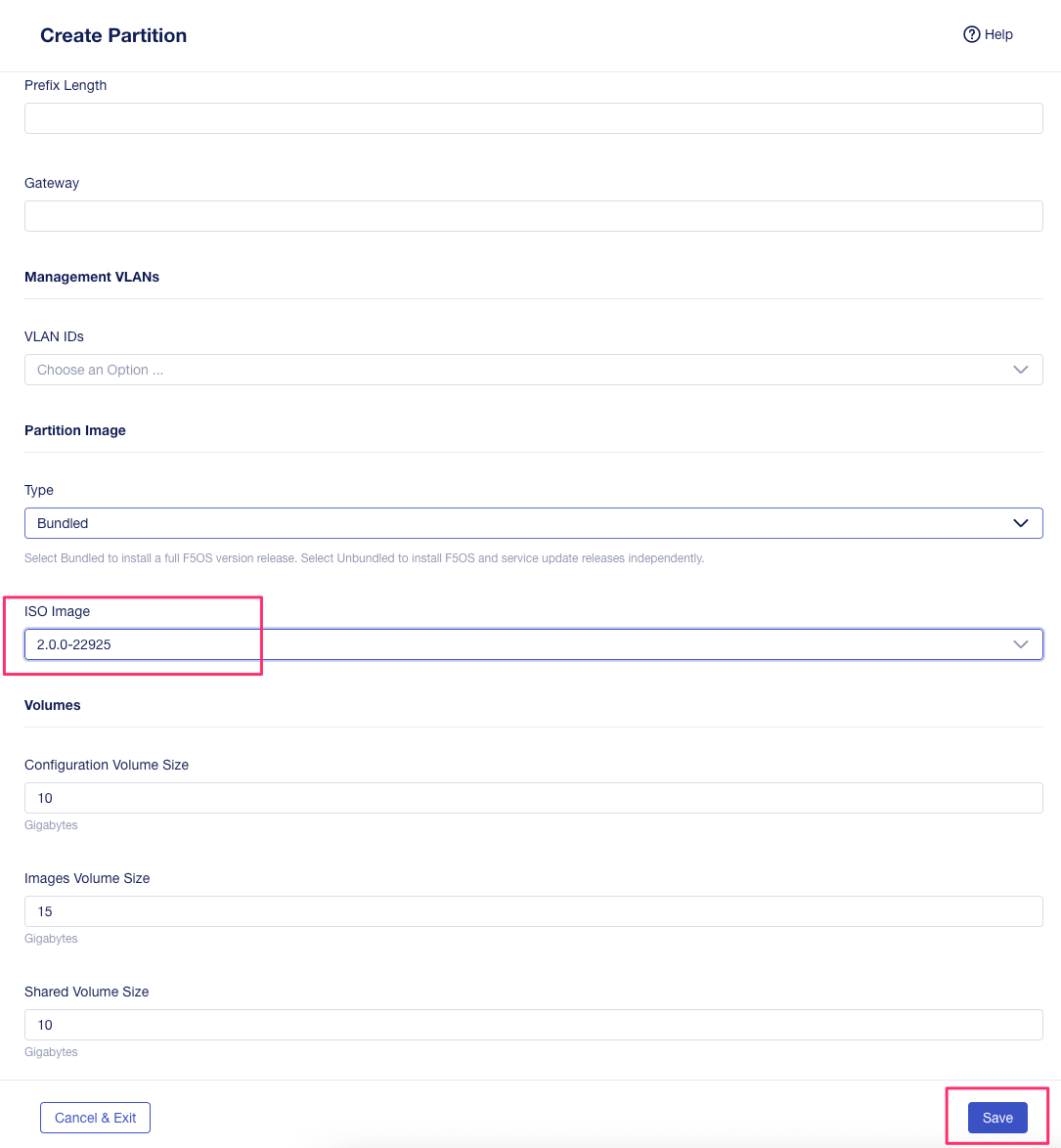

Next, create a new chassis partition that includes slots 1 & 2, and it will be named Production. In the graphic click on slots 1 & 2 and they should turn grey, then select Create. The partition name must start with a letter, and cannot contain any special characters, only alpha-numeric characters are allowed. Fill in the Name, IP Address, Prefix Length, and Gateway fields. Finally select a Partition Image which defines the F5OS-C software release for the chassis partition. If there are no releases to choose from you must upload a valid chassis partition image into the system controller. You may download F5OS-C images from downloads.f5.com. When done click Save to create the new chassis partition.

_images/image161.png

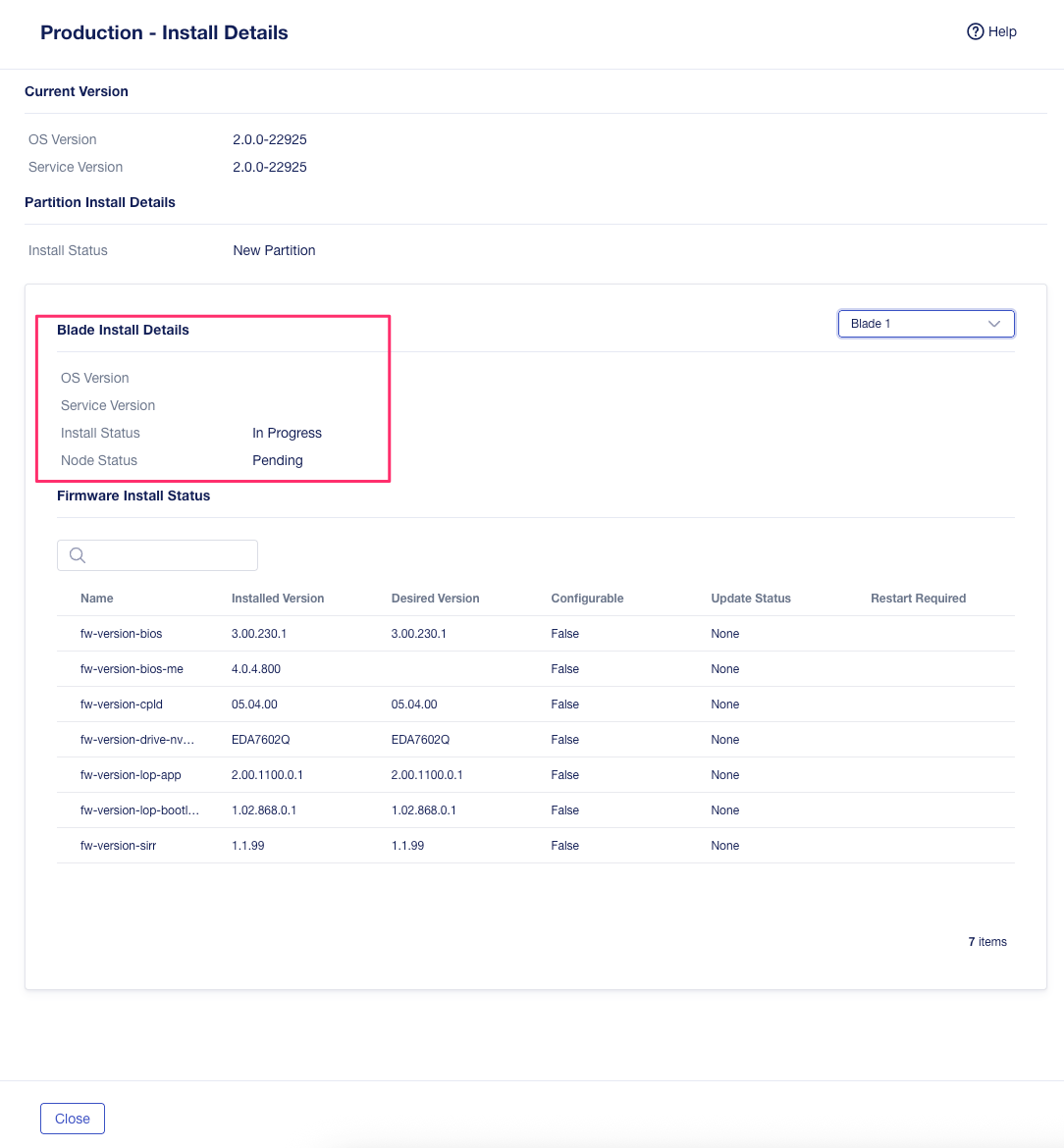

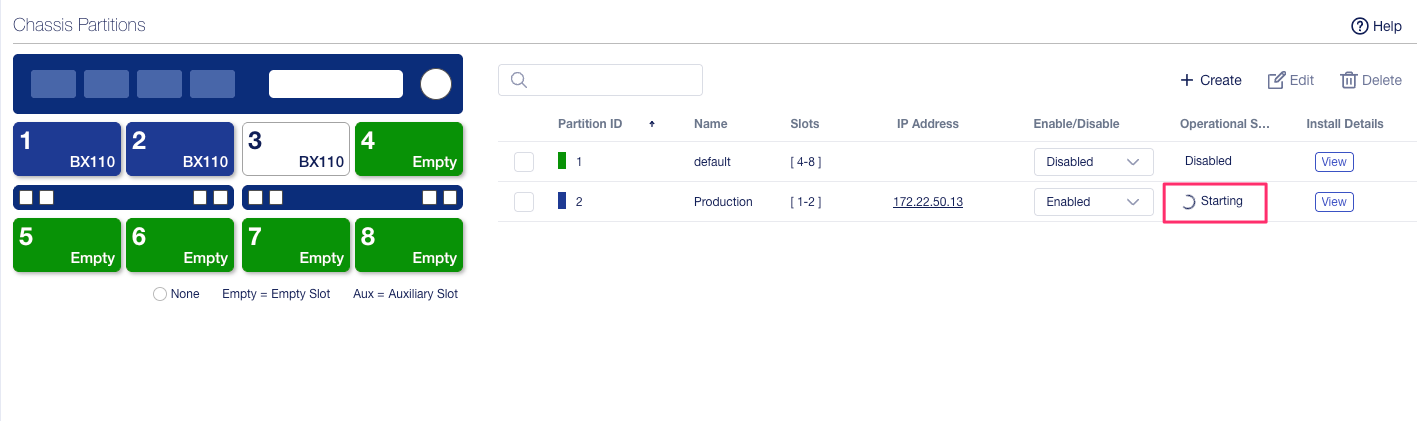

Change the partition state to Enabled. You can monitor the chassis partition status; it will go from Disabled, to Starting, to Running.

_images/image18.png

Next, repeat the process and create another chassis partition for slot3 naming it Development and supply and IP address, prefix, and gateway along with a partition image.

_images/image19.png

You’ll then see a summary of all 3 partitions each with a unique partition ID, along with their Operational State.

_images/image20.png

If you click on the Dashboard, you’ll see a graphical representation that has slots color coded based on the partition they are assigned to:

_images/image211.png

Once the partitions are started and operational, you can log into each one and change the default password. Each chassis partition will have a default username/password of admin/admin. When using the CLI or webUI you will be prompted on first login to change the password.

_images/image21a.png

Below is an example of the CLI prompting for a new password. You’ll then be disconnected and will have to log in with the new password.

FLD-ML-00054045:~ jmccarron$ ssh -l admin 10.255.0.148
The authenticity of host '10.255.0.148 (10.255.0.148)' can't be established.
RSA key fingerprint is SHA256:BhkFg220oTVsXfwU0aDM69Tp3KXfn8TOk/ysnCSb61g.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.255.0.148' (RSA) to the list of known hosts.
admin@10.255.0.148's password:
You are required to change your password immediately (root enforced)
WARNING: Your password has expired.
You must change your password now and login again!
Changing password for user admin.
Changing password for admin.
(current) UNIX password:
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
Connection to 10.255.0.148 closed.

Creating a Chassis Partition via the CLI

Before creating a chassis partition via the CLI, you must first ensure that there are available slots in order to create a partition. You can issue the command show running-config slots to see what slots are available. If all the slots are assigned to a partition like default, then you’ll need to move some of the slots to the partition none before they can be added to a new partition. The none chassis partition is a special hidden partition that is used to temporarily remove slots from an existing chassis partition. In the webUI the none partition is hidden and this process is handled automatically. In the CLI and API you must first move slots to the none partition, before they are eligible to be added to a new partition.

syscon-2-active# show running-config slots
slots slot 1
enabled
partition default
!
slots slot 2
enabled
partition default
!
slots slot 3
enabled
partition default
!
slots slot 4
enabled
partition default
!
slots slot 5
enabled
partition default
!
slots slot 6
enabled
partition default
!
slots slot 7
enabled
partition default
!
slots slot 8
enabled
partition default
!

In this case we will mimic the flow in the webUI section where there are 3 blades installed in slots 1-3. Enter config mode and configure each slot to be in the partition none and then commit the changes.

syscon-2-active(config)# slots slot 1 partition none
syscon-2-active(config-slot-1)# exit
syscon-2-active(config)# slots slot 2 partition none
syscon-2-active(config-slot-2)# exit
syscon-2-active(config)# slots slot 3 partition none
syscon-2-active(config-slot-3)# exit
syscon-2-active(config)# commit

Now these slots are available to be assigned to a new partition. Enter config mode and add the partition by defining a name, adding a management IP address, prefix, and gateway. Be sure to commit the change. Next you’ll set the version for the partition to run, and then enable it and commit. Note there are still no slots assigned to the chassis partition.

syscon-2-active# config
Entering configuration mode terminal
syscon-2-active(config)# partitions partition Production config mgmt-ip ipv4 address 10.255.0.148 prefix-length 24 gateway 10.255.0.1
syscon-2-active(config-partition-Production)# commit
Commit complete.
syscon-2-active(config-partition-Production)# set-version iso-version 1.4.0-3915 proceed
Value for 'proceed' [no,yes]: yes
Partition database compatibility check skipped: service-version is unchanged.
result Version update successful.
syscon-2-active(config-partition-Production)# config enable
syscon-2-active(config-partition-Production)# commit
Commit complete.

Next assign slots 1 and 2 to the Production chassis partition and commit.

syscon-2-active(config)# slots slot 1-2 partition Production enabled
syscon-2-active(config-slot-1-2)# commit
Commit complete.
syscon-2-active(config-slot-1-2)#

Next create a chassis partition for slot3 called Development.

syscon-2-active(config)# partitions partition Development config mgmt-ip ipv4 address 10.255.0.141 prefix-length 24 gateway 10.255.0.1
syscon-2-active(config-partition-Development)# commit
Commit complete.
syscon-2-active(config-partition-Development)# set-version iso-version 1.4.0-3915
Partition database compatibility check skipped: service-version is unchanged.
result Version update successful.
syscon-2-active(config-partition-Development)# config enable

Next assign slot 3 to the Development chassis partition and commit.

syscon-2-active(config)# slots slot 3 partition Development enable
syscon-2-active(config-slot-3)# commit
Commit complete.

You can use the command show running-config partitions to see how each partition is configured:

syscon-2-active# show running-config partitions
partitions partition Development
config enabled
config iso-version 1.4.0-3915
config mgmt-ip ipv4 address 10.255.0.141
config mgmt-ip ipv4 prefix-length 24
config mgmt-ip ipv4 gateway 10.255.0.1
!
partitions partition Production
config enabled
config iso-version 1.4.0-3915
config mgmt-ip ipv4 address 10.255.0.148
config mgmt-ip ipv4 prefix-length 24
config mgmt-ip ipv4 gateway 10.255.0.1
!
partitions partition default
config disabled
config mgmt-ip ipv4 address 0.0.0.0
config mgmt-ip ipv4 prefix-length 0
config mgmt-ip ipv4 gateway 0.0.0.0
config mgmt-ip ipv6 address ::
config mgmt-ip ipv6 prefix-length 0
config mgmt-ip ipv6 gateway ::
!
partitions partition none
config disabled
!
syscon-2-active#

The command show partitions will display the operation state and versions of the configured partitions:

syscon-2-active# show partitions
                                                                      RUNNING
                BLADE OS    SERVICE                 PARTITION        SERVICE     STATUS
NAME         ID  VERSION     VERSION     CONTROLLER  STATUS           VERSION     AGE
------------------------------------------------------------------------------------------
Development  3   1.4.0-3915  1.4.0-3915  1           running-active   1.4.0-3915  10m
                                        2           running-standby  1.4.0-3915  10m
Production   2   1.4.0-3915  1.4.0-3915  1           running-active   1.4.0-3915  17m
                                        2           running-standby  1.4.0-3915  17m
default      1   -           -           1           disabled         -           4h
                                        2           disabled         -           5h
none         0   -           -           1           disabled         -           -
                                        2           disabled         -           -

syscon-2-active#

Once the partitions are started and operational, you can log into each one and change the default password. The chassis partition will have a default username/password of admin/admin. When using the CLI or webUI you will be prompted on first login to change the password.

FLD-ML-00054045:~ jmccarron$ ssh -l admin 10.255.0.148
The authenticity of host '10.255.0.148 (10.255.0.148)' can't be established.
RSA key fingerprint is SHA256:BhkFg220oTVsXfwU0aDM69Tp3KXfn8TOk/ysnCSb61g.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.255.0.148' (RSA) to the list of known hosts.
admin@10.255.0.148's password:
You are required to change your password immediately (root enforced)
WARNING: Your password has expired.
You must change your password now and login again!
Changing password for user admin.
Changing password for admin.
(current) UNIX password:
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
Connection to 10.255.0.148 closed.

Creating a Chassis Partition via the API

Before creating any new chassis partitions you should ensure you have the proper F5OS partition images loaded onto the system controller. You can query the system controller to see what images are currently available on the system:

GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-image:image/partition/config
{
    "f5-system-image:partition": {
        "config": {
            "os": {
                "os": [
                    {
                        "version": "1.0.0-12251"
                    },
                    {
                        "version": "1.1.0-2954"
                    }
                ]
            },
            "services": {
                "service": [
                    {
                        "version": "1.0.0-12251"
                    },
                    {
                        "version": "1.1.0-2954"
                    }
                ]
            },
            "iso": {
                "iso": [
                    {
                        "version": "1.0.0-12251",
                        "service": "1.0.0-12251",
                        "os": "1.0.0-12251"
                    },
                    {
                        "version": "1.1.0-2954",
                        "service": "1.1.0-2954",
                        "os": "1.1.0-2954"
                    }
                ]
            }
        },
        "state": {
            "controllers": {
                "controller": [
                    {
                        "number": 1,
                        "os": {
                            "os": [
                                {
                                    "version-os-partition": "1.1.0-2954",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": false
                                },
                                {
                                    "version-os-partition": "1.0.0-12251",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        },
                        "services": {
                            "service": [
                                {
                                    "version-service-partition": "1.1.0-2954",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": false
                                },
                                {
                                    "version-service-partition": "1.0.0-12251",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        },
                        "iso": {
                            "iso": [
                                {
                                    "version-iso-partition": "1.1.0-2954",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": true,
                                    "partitions": {
                                        "partition": [
                                            {
                                                "name": "default",
                                                "id": 1
                                            },
                                            {
                                                "name": "Production",
                                                "id": 2
                                            },
                                            {
                                                "name": "smallpartition",
                                                "id": 3
                                            }
                                        ]
                                    }
                                },
                                {
                                    "version-iso-partition": "1.0.0-12251",
                                    "controller": 1,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        }
                    },
                    {
                        "number": 2,
                        "os": {
                            "os": [
                                {
                                    "version-os-partition": "1.1.0-2954",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": false
                                },
                                {
                                    "version-os-partition": "1.0.0-12251",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        },
                        "services": {
                            "service": [
                                {
                                    "version-service-partition": "1.1.0-2954",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": false
                                },
                                {
                                    "version-service-partition": "1.0.0-12251",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        },
                        "iso": {
                            "iso": [
                                {
                                    "version-iso-partition": "1.1.0-2954",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2021-02-06",
                                    "in-use": true,
                                    "partitions": {
                                        "partition": [
                                            {
                                                "name": "default",
                                                "id": 1
                                            },
                                            {
                                                "name": "Production",
                                                "id": 2
                                            },
                                            {
                                                "name": "smallpartition",
                                                "id": 3
                                            }
                                        ]
                                    }
                                },
                                {
                                    "version-iso-partition": "1.0.0-12251",
                                    "controller": 2,
                                    "status": "ready",
                                    "date": "2020-11-05",
                                    "in-use": false
                                }
                            ]
                        }
                    }
                ]
            }
        }
    }
}

Next import the desired image into the system controller floating IP address using the path images/staging. You will need to import from a remote HTTPS, SFTP, or SCP server if using the API. There are other options avialble in the GUI where images can be imported or uploaded from a client machine. There is an insecure option if you don’t want to use certificate-based authentication to the remote HTTPS server.

POST https://{{velos_chassis1_system_controller_ip}}:8888/api/data/f5-utils-file-transfer:file/import
{
    "input": [
        {
            "remote-host": "10.255.0.142",
            "remote-file": "/upload/{{Partition_ISO_Image_Full}}",
            "local-file": "images/staging/",
            "insecure": "",
            "f5-utils-file-transfer:username": "corpuser",
            "f5-utils-file-transfer:password": "Passw0rd!!"
        }
    ]
}

You should see confirmation similar to below:

{
    "f5-utils-file-transfer:output": {
        "result": "File transfer is initiated.(import/staging/F5OS-C-1.1.0-2391.PARTITION.CANDIDATE.iso)"
    }
}

You may also check the transfer status via the API:

POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/transfer-status

You will see a response similar to the one below showing status:

{
    "f5-utils-file-transfer:output": {
        "result": "\nS.No.|Operation  |Protocol|Local File Path                                             |Remote Host         |Remote File Path                                            |Status            \n1    |Import file|HTTPS   |/var/import/staging/F5OS-C-1.1.0-2391.PARTITION.CANDIDATE.iso|10.255.0.142        |F5OS-C-1.1.0-2391.PARTITION.CANDIDATE.iso                   |Peer certificate cannot be authenticated with given CA certificates\n"
    }
}

Before creating a chassis partition via the API, you must first ensure that there are available slots in order to create a partition. You can issue API commands to see what slots are available. If all the slots are assigned to a partition like default, then you’ll need to move some of the slots to the partition none before they can be added to a new partition. The none chassis partition is a special hidden partition that is used to temporarily remove slots from an existing chassis partition. In the webUI the none partition is hidden and this process is handled automatically. In the CLI and API you must first move slots to the none partition, before they are eligible to be added to a new partition.

The system ships with all slots configured in the default chassis partition. Before you can create a new chassis partition, you must remove any slots from the default partition so that they are eligible to be added to a new chassis partition. To view the current assignment of slots to partitions use the following API command:

GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-slot:slots
{
    "f5-system-slot:slots": {
        "slot": [
            {
                "slot-num": 1,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 2,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 3,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 4,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 5,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 6,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 7,
                "enabled": true,
                "partition": "default"
            },
            {
                "slot-num": 8,
                "enabled": true,
                "partition": "default"
            }
        ]
    }
}

Next remove the default partition from the slots you’d like to assign to any new chassis partitions. In this case we’ll assign the partition none to slots 1, 2, 3. Once the slots are unassigned (in the none partition), they can be added to a new chassis partition.

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "f5-system-slot:slots": {
        "slot": [
            {
                "slot-num": 1,
                "enabled": true,
                "partition": "none"
            },
            {
                "slot-num": 2,
                "enabled": true,
                "partition": "none"
            },
            {
                "slot-num": 3,
                "enabled": true,
                "partition": "none"
            }

        ]
    }
}

Next, a chassis partition called Production will be created. It will be assigned an out-of-band management IP address, mask and gateway, along with an F5OS ISO version that must be loaded before the partition can be created.

POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-partition:partitions
{
    "partition":
        {
    "name": "Production",
        "config": {
                "enabled": false,
                    "iso-version": "{{Partition_ISO_Image}}",
                    "mgmt-ip": {
                        "ipv4": {
                            "address": "{{velos_chassis1_chassis_partition1_ip}}",
                            "prefix-length": 24,
                            "gateway": "{{OutofBand_DFGW}}"
                        }
                    }
                }
        }
}

Next, slots 1 & 2 will be assigned to the chassis partition called Production:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "f5-system-slot:slots": {
        "slot": [
            {
                "slot-num": 1,
                "enabled": true,
                "partition": "Production"
            },
            {
                "slot-num": 2,
                "enabled": true,
                "partition": "Production"
            }

        ]
    }
}

Finally, the chassis partition Production containing slots 1 & 2 will be enabled:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-partition:partitions/partition=Production/config/enabled
{
    "enabled": true
}

Next, a chassis partition called Devlopment will be created. It will be assigned an out-of-band management IP address, mask and gateway, along with an F5OS ISO version that must be loaded before the partition can be created.

POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-partition:partitions
{
    "partition":
        {
    "name": "Development",
        "config": {
                "enabled": false,
                    "iso-version": "{{Partition_ISO_Image}}",
                    "mgmt-ip": {
                        "ipv4": {
                            "address": "{{velos_chassis1_chassis_partition2_ip}}",
                            "prefix-length": 24,
                            "gateway": "{{OutofBand_DFGW}}"
                        }
                    }
                }
        }
}

Next, slot 3 will be assigned to the chassis partition called Development:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
{
    "f5-system-slot:slots": {
        "slot": [
            {
                "slot-num": 3,
                "enabled": true,
                "partition": "Development"
            }
        ]
    }
}

Finally, the chassis partition Development containing slot 3 will be enabled:

PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-partition:partitions/partition=Development/config/enabled
{
    "enabled": true
}

The chassis partitions will have a default username/password of admin/admin. When using the webUI you would be prompted on first login to change the password. To do this via the API use the following API call. Note this API call is made to the IP address of the chassis partition and not the system controller. This API call is made using Basic Auth.

POST https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/operations/openconfig-system:system/aaa/authentication/users/user=admin/config/change-password
{
    "input": [
        {
            "old-password": "admin",
            "new-password": "{{Chassis_Partition_Password}}",
            "confirm-password": "{{Chassis_Partition_Password}}"
        }
    ]
}

Repeat the same proicess for the chassis partition Development:

POST https://{{Chassis1_Devlopment_IP}}:8888/restconf/operations/openconfig-system:system/aaa/authentication/users/user=admin/config/change-password
{
    "input": [
        {
            "old-password": "admin",
            "new-password": "{{Chassis_Partition_Password}}",
            "confirm-password": "{{Chassis_Partition_Password}}"
        }
    ]
}

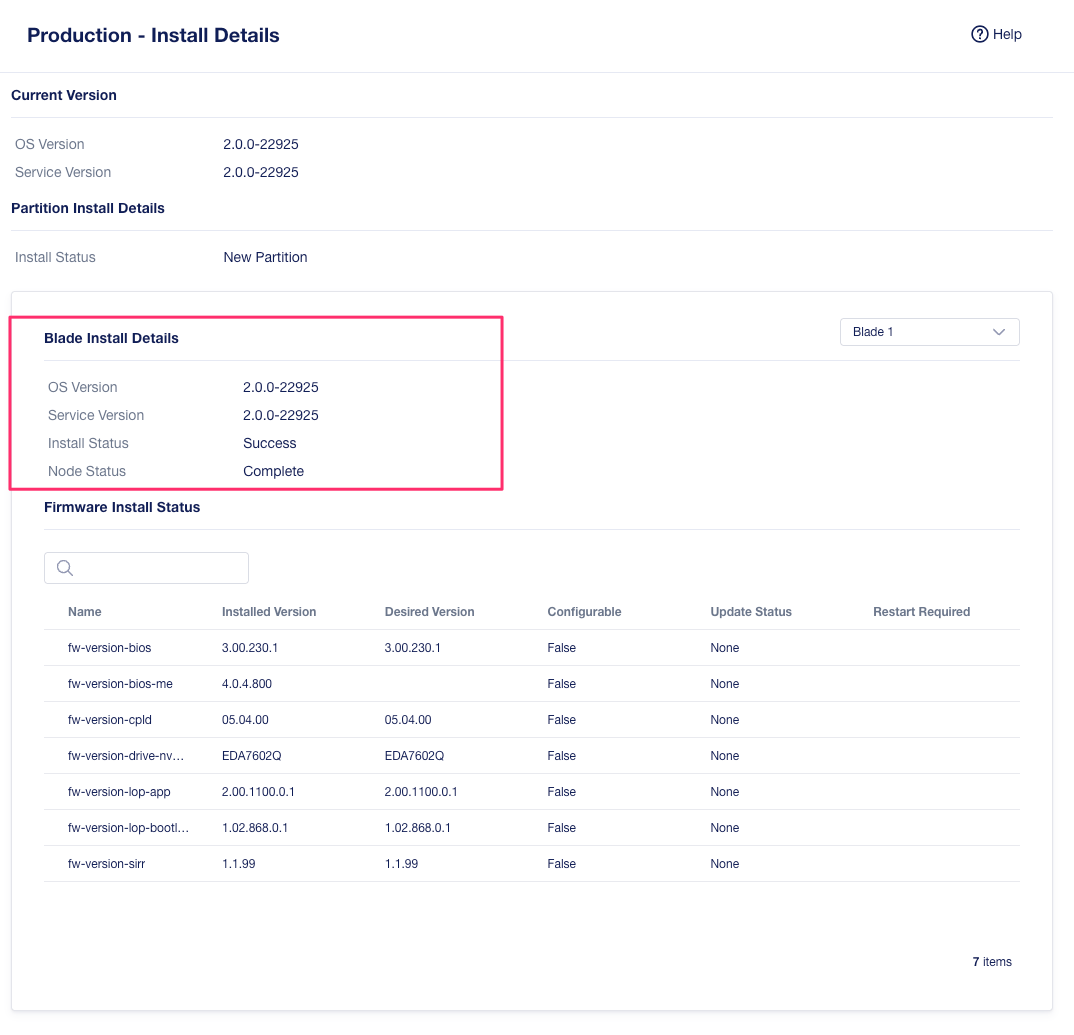

Once the chassis partitions have been created you can query their status using the following API command.

GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-system-partition:partitions
{
    "f5-system-partition:partitions": {
        "partition": [
            {
                "name": "Development",
                "config": {
                    "enabled": true,
                    "iso-version": "1.4.0-3915",
                    "mgmt-ip": {
                        "ipv4": {
                            "address": "10.255.0.141",
                            "prefix-length": 24,
                            "gateway": "10.255.0.1"
                        }
                    }
                },
                "state": {
                    "id": 3,
                    "os-version": "1.4.0-3915",
                    "service-version": "1.4.0-3915",
                    "install-os-version": "1.4.0-3915",
                    "install-service-version": "1.4.0-3915",
                    "install-status": "success",
                    "controllers": {
                        "controller": [
                            {
                                "controller": 1,
                                "partition-id": 3,
                                "partition-status": "running-active",
                                "running-service-version": "1.4.0-3915",
                                "status-seconds": "1054",
                                "status-age": "17m"
                            },
                            {
                                "controller": 2,
                                "partition-id": 3,
                                "partition-status": "running-standby",
                                "running-service-version": "1.4.0-3915",
                                "status-seconds": "1051",
                                "status-age": "17m"
                            }
                        ]
                    }
                }
            },
            {
                "name": "Production",
                "config": {
                    "enabled": true,
                    "iso-version": "1.4.0-3915",
                    "mgmt-ip": {
                        "ipv4": {
                            "address": "10.255.0.148",
                            "prefix-length": 24,
                            "gateway": "10.255.0.1"
                        }
                    }
                },
                "state": {
                    "id": 2,
                    "os-version": "1.4.0-3915",
                    "service-version": "1.4.0-3915",
                    "install-os-version": "1.4.0-3915",
                    "install-service-version": "1.4.0-3915",
                    "install-status": "success",
                    "controllers": {
                        "controller": [
                            {
                                "controller": 1,
                                "partition-id": 2,
                                "partition-status": "running-active",
                                "running-service-version": "1.4.0-3915",
                                "status-seconds": "1454",
                                "status-age": "24m"
                            },
                            {
                                "controller": 2,
                                "partition-id": 2,
                                "partition-status": "running-standby",
                                "running-service-version": "1.4.0-3915",
                                "status-seconds": "1453",
                                "status-age": "24m"
                            }
                        ]
                    }
                }
            },
            {
                "name": "default",
                "config": {
                    "enabled": false,
                    "mgmt-ip": {
                        "ipv4": {
                            "address": "0.0.0.0",
                            "prefix-length": 0,
                            "gateway": "0.0.0.0"
                        },
                        "ipv6": {
                            "address": "::",
                            "prefix-length": 0,
                            "gateway": "::"
                        }
                    }
                },
                "state": {
                    "id": 1,
                    "install-status": "none",
                    "controllers": {
                        "controller": [
                            {
                                "controller": 1,
                                "partition-id": 1,
                                "partition-status": "disabled",
                                "status-seconds": "18079",
                                "status-age": "5h"
                            },
                            {
                                "controller": 2,
                                "partition-id": 1,
                                "partition-status": "disabled",
                                "status-seconds": "18541",
                                "status-age": "5h"
                            }
                        ]
                    }
                }
            },
            {
                "name": "none",
                "config": {
                    "enabled": false
                },
                "state": {
                    "id": 0,
                    "install-status": "none",
                    "controllers": {
                        "controller": [
                            {
                                "controller": 1,
                                "partition-id": 0,
                                "partition-status": "disabled"
                            },
                            {
                                "controller": 2,
                                "partition-id": 0,
                                "partition-status": "disabled"
                            }
                        ]
                    }
                }
            }
        ]
    }
}

System Controller Configuration Options

Once the minimum parameters have been setup, you can go back and review or edit various settings for the system controllers. Below is a review of the current webUI options that are available with the system controller F5OS configuration. Other options are available within the F5OS chassis partition interfaces, and are covered in a later section.

Network Settings -> Management Interfaces

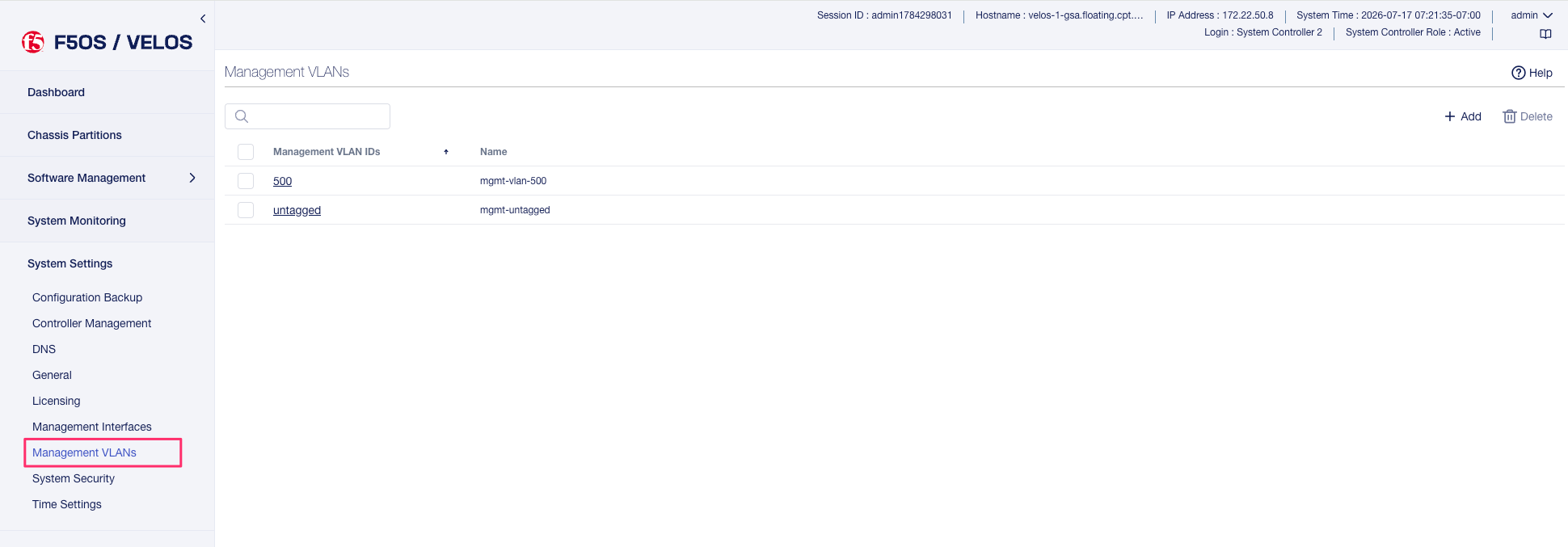

Under Network Settings, you can view/edit both the floating and static IP addresses for the system controllers. If you would prefer to use DHCP for automatic assignment of these addresses, this may also be configured. You may also choose to configure Link Aggregation for the two out-of-band management interfaces for added redundancy. The LAG will consist of the out-of-band management interface from each controller. The LAG on the system controllers have been designed to appear as a single device, so you can connect them to the same switch/LAG, or to a VPC where the LAG is across multiple switches that logically appear as one switch.

NOTE: For the initial 1.1.x versions of F5OS-C only IPv4 IP addressing was available for the F5OS platform layer. IPv4/IPv6 dual stack support has since been added in the F5OS 1.2.x release. This limitation was only for the F5OS-C platform layer v1.1.x versions, BIG-IP tenants are capable of IPv4/v6 dual stack management, even with older F5OS software.

_images/image221.png

Network Settings -> DNS

External DNS Lookup Servers and Search Domains can be configured. This will be required for things like automatic license activation, NTP server domain resolution, and iHealth integration and it is recommended to be configured.

_images/image23.png

Software Management -> Partition Images

Each chassis partition will require an F5OS-C software release to be specified when enabled. You may also upgrade chassis partitions as needed. Chassis partition releases are loaded into the system controllers via the Software Management > Partition Images webUI page. F5OS-C partition images are available on downloads.f5.com.

_images/image24.png

Software Management -> Controller Images

System controllers also run a unique F5OS-C software version and have a seprate ISO from the chassis partitions. Both system controllers will need to run the same SW version. You can upload or import new F5OS-C controller images via the Software Management > Controller Images webUI screen.

_images/image25.png

System Settings -> Alarms & Events

Alarms and Events can be viewed via the System Settings > Alarms & Events webUI page. You may optionally choose different severity levels to see more or less events. The Alarms section displays events that are currently active, while the Events section displays historical events including thoseß that have cleared. Each event should have different assertions to both Raise and Clear alarms.

_images/image26.png

You may also change timeframe to see historical events, and optionally refresh the screen via the controls on the right-hand side of the page:

_images/image27.png

System Settings -> Controller Management

System controller status, HA state, and software upgrades are managed via the System Settings > Controller Management webUI page. The High Availability Status refers to the Kubernetes control plane status which operates in an Active / Standby manner. Only one controller will be active from a kubernetes control plane perspective. This does not reflect the status of the layer2 switch fabric on the controllers which operates in an active/active mode.

An administrator can failover from one system controller to the other, and also perform software upgrades to the controllers as needed. You may perform a bundled upgrade which combines both the OS and F5 service components, or they can be upgraded independently. An upgrade which includes the OS, will be more disruptive timewise vs. an upgrade that only updates the F5 services. F5 support would recommend which type of upgrade may be needed for a particular fix, or feature. Ideally F5 expects to have to update the OS less frequently in the long term than the F5 Services. Currently, F5 is recommending upgrades using the full ISO vs. separate OS and service.

NOTE: The intial v1.1.x F5OS-C versions did not support rolling upgrades for the system controllers. Any upgrade that is initiated will update both controllers in parallel which will result in an outage for the entire chassis. A proper outage window should be planned for any upgrades, and updating the standby chassis first is recommended if possible. Rolling upgrade support for the system controllers was added to the 1.2.x release of F5OS-C. Once the system controllers are starting from a 1.2.x release, rolling upgrade is supported.

_images/image28.png

System Settings -> System Inventory

The System Settings > System Inventory page provides status, part numbers and serial numbers for the different physical components including controllers, blades, fan trays, power supply controller units, power supplies, and LCD.

_images/image29.png

System Settings -> Log Settings

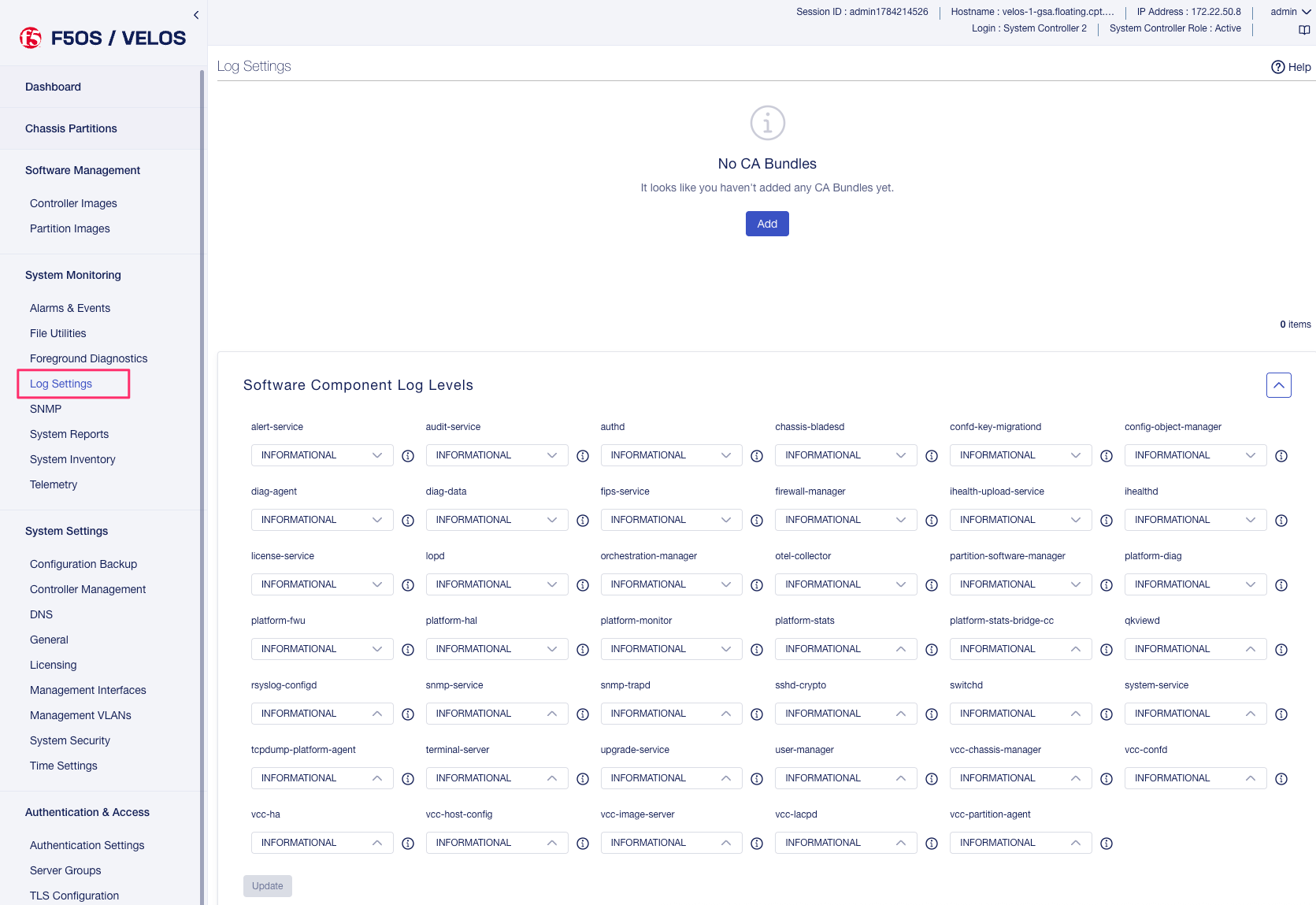

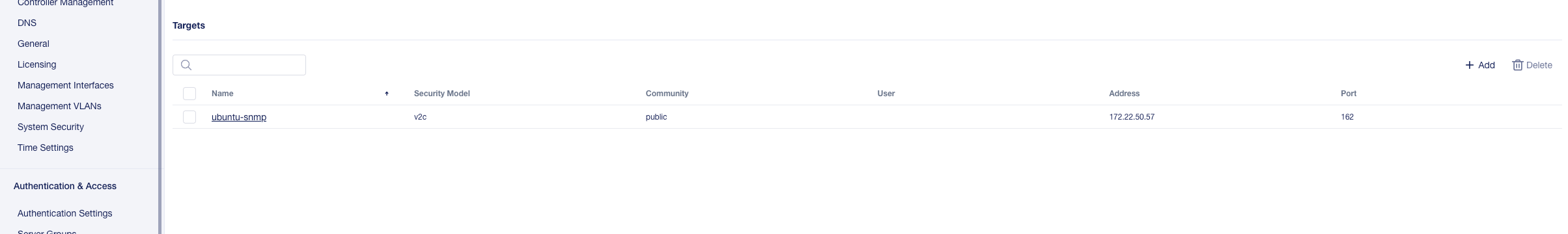

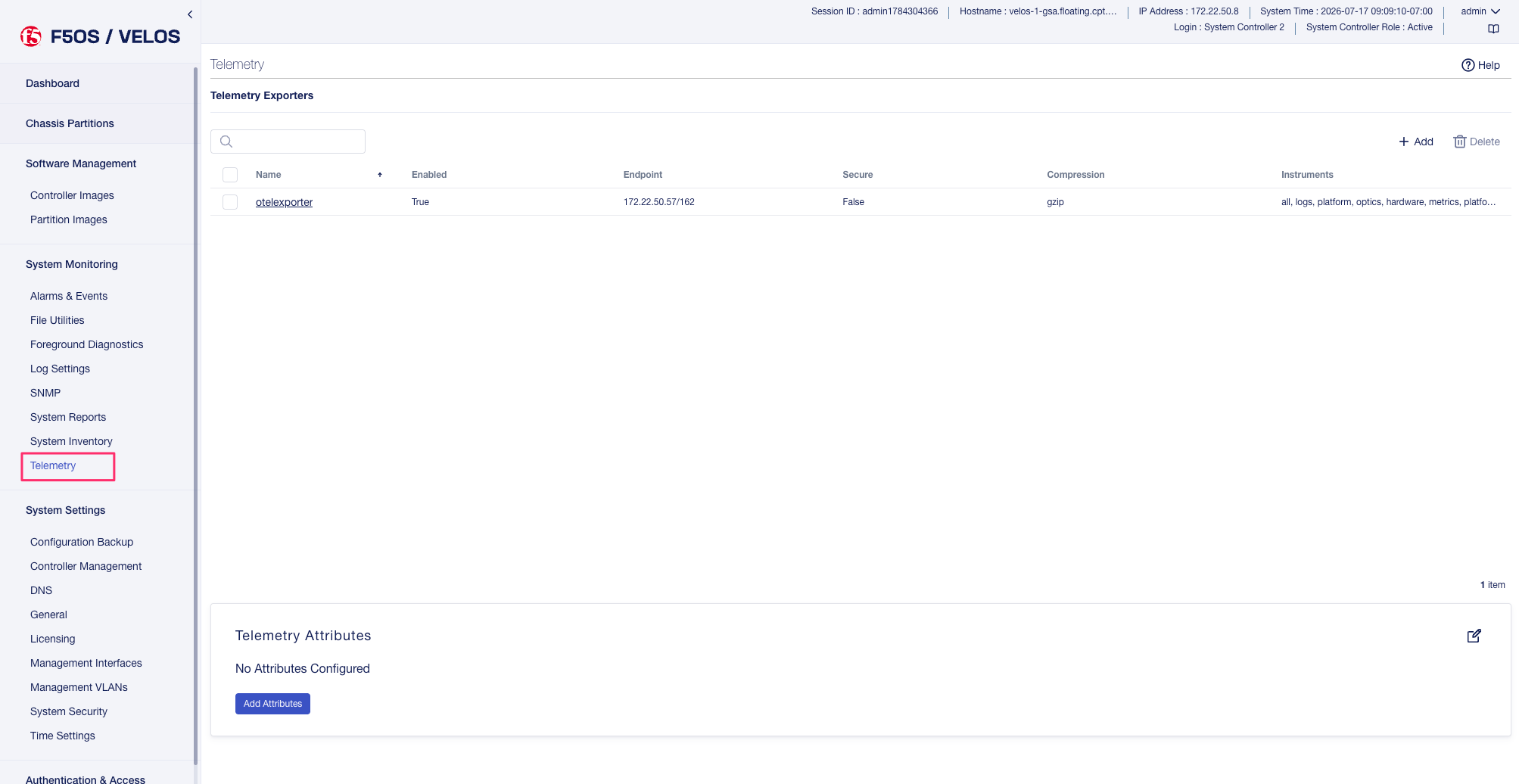

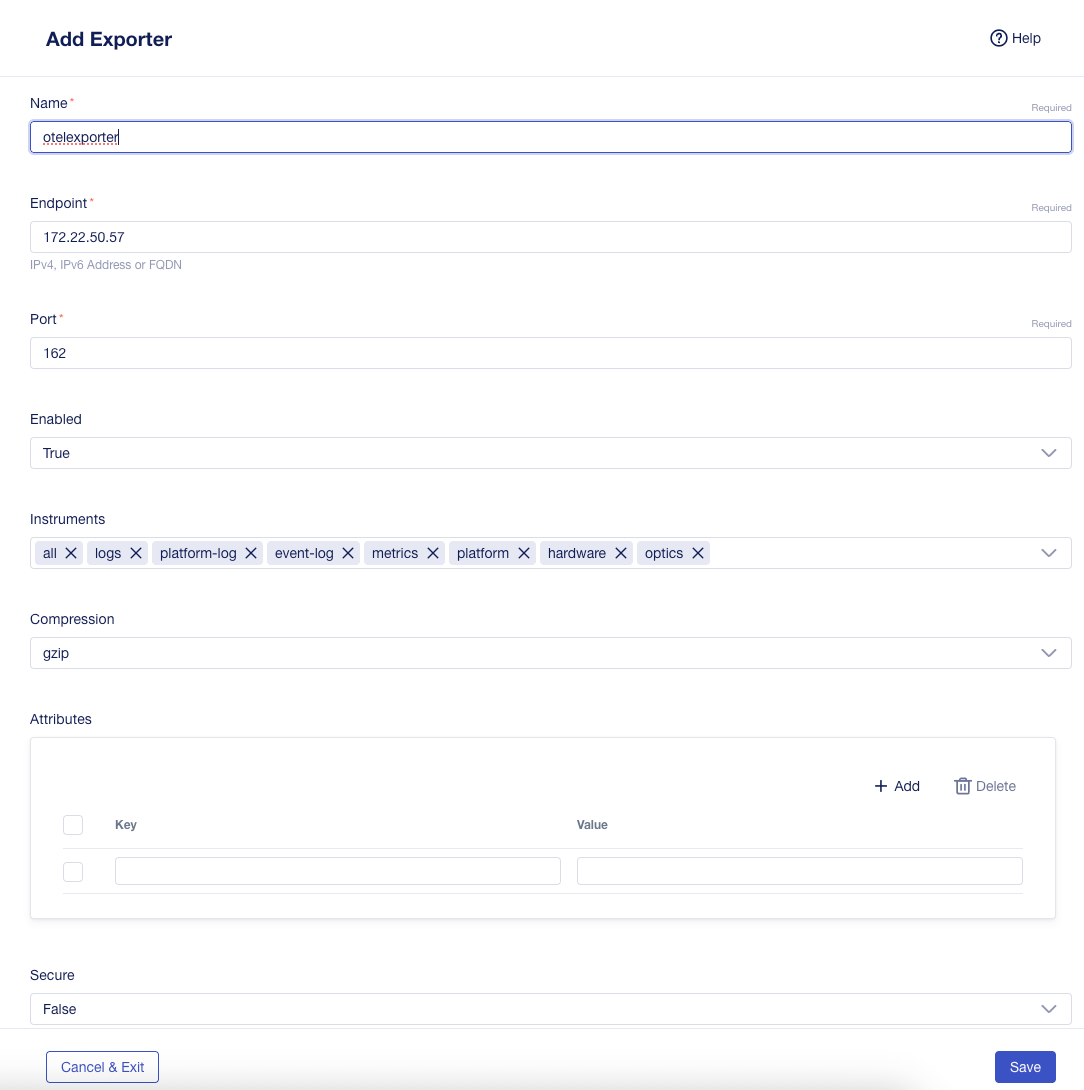

Under System Settings > Log Settings you may add remote log servers for the F5OS system controllers. You can also specify the Software Component Log Levels which may be useful when troubleshooting specific issues.

_images/image30.png

System Settings -> File Utilities

The System Settings > File Utilities page allows for importing or exporting specific types of files to and from the system controllers. Logs from the various log directories log can be exported, cores and qkviews can be imported/exported from diags/shared and system controller and chassis partition software images can be imported into import/staging.

_images/image311.png

The Import/Export utility requires an external HTTPS server to copy to/from. A pop-up will be displayed asking for remote HTTPS server information. There are also options to upload/download directly through a browser to or from your desktop.

_images/image32.png

System Settings -> Time Settings

Under the System Settings > Time Settings page Network Time Protocol servers can be added so that the system controller time sources are sync’d to a reliable time source. The Time Zone may also be set.

_images/image33.png

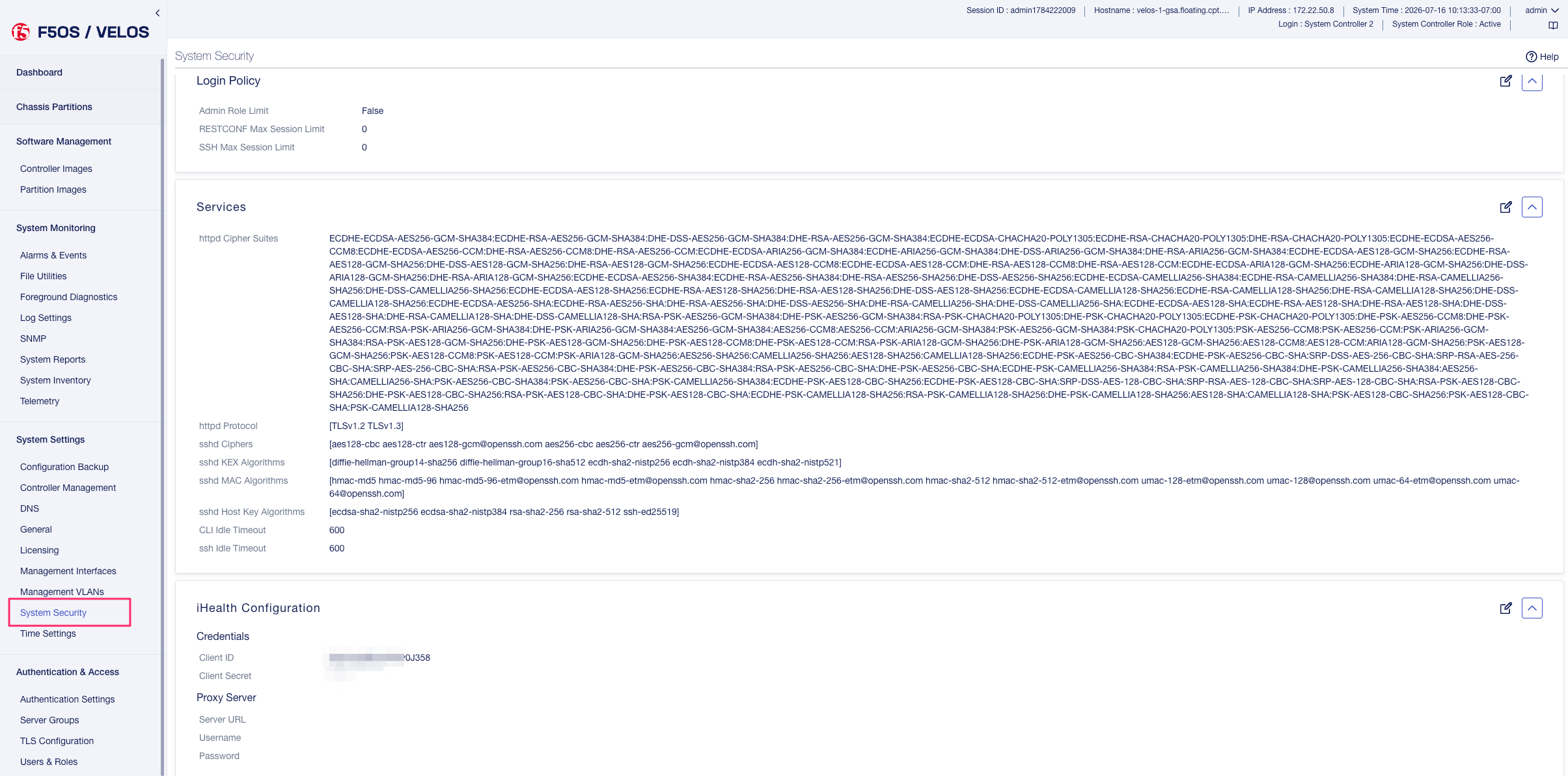

System Settings -> Device Certificate

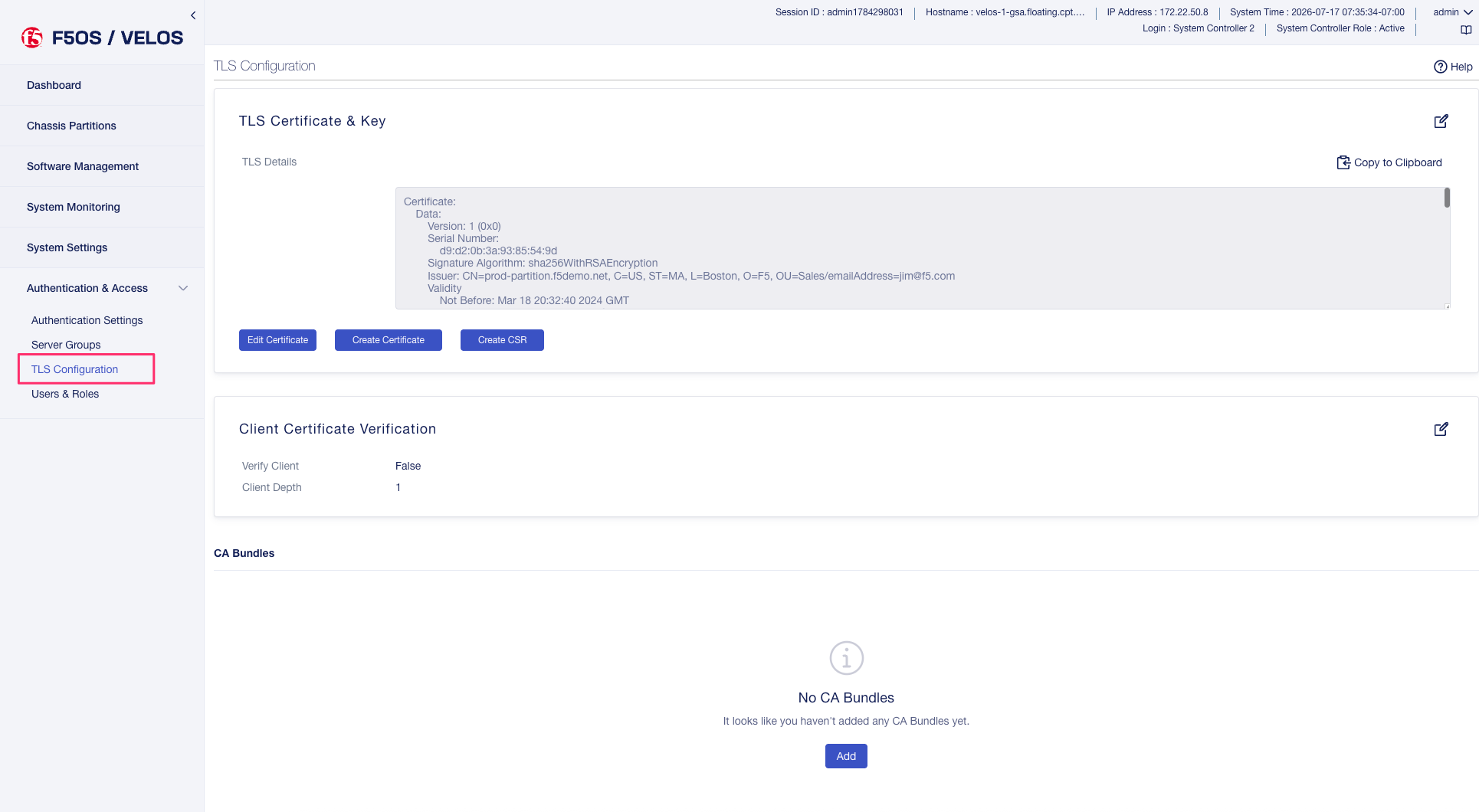

Device certificates and keys can be uploaded via the Systems Settings > Device Certificates page.

_images/image34.png

System Settings -> System Reports

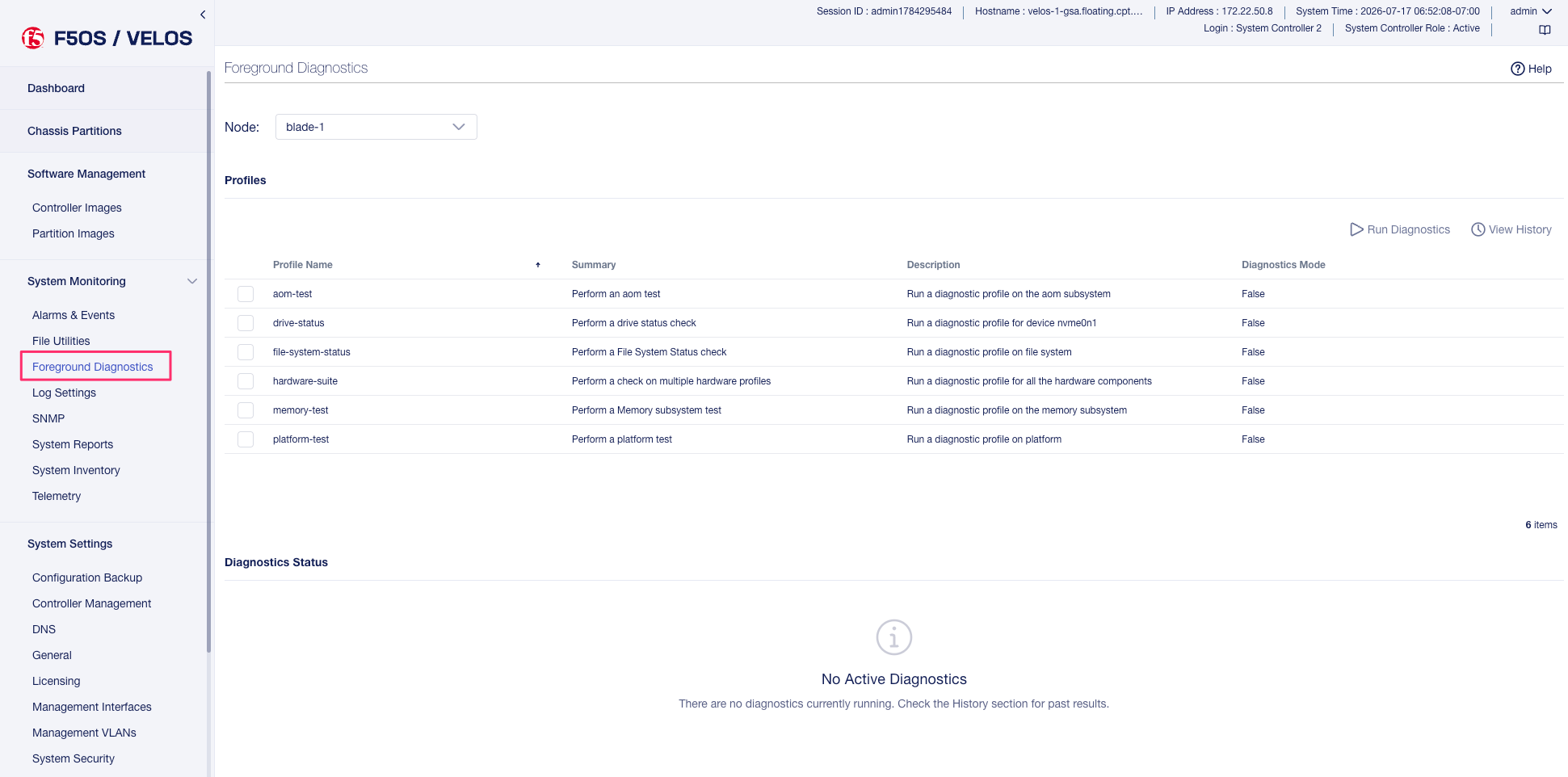

The System Settings > System Reports page allows an admin to generate QKViews and optionally upload them to iHealth.

_images/image35.png

To generate a QKView click on the button in the upper right-hand corner. It will take some time for the QKview to be generated.

_images/image36.png _images/image37.png

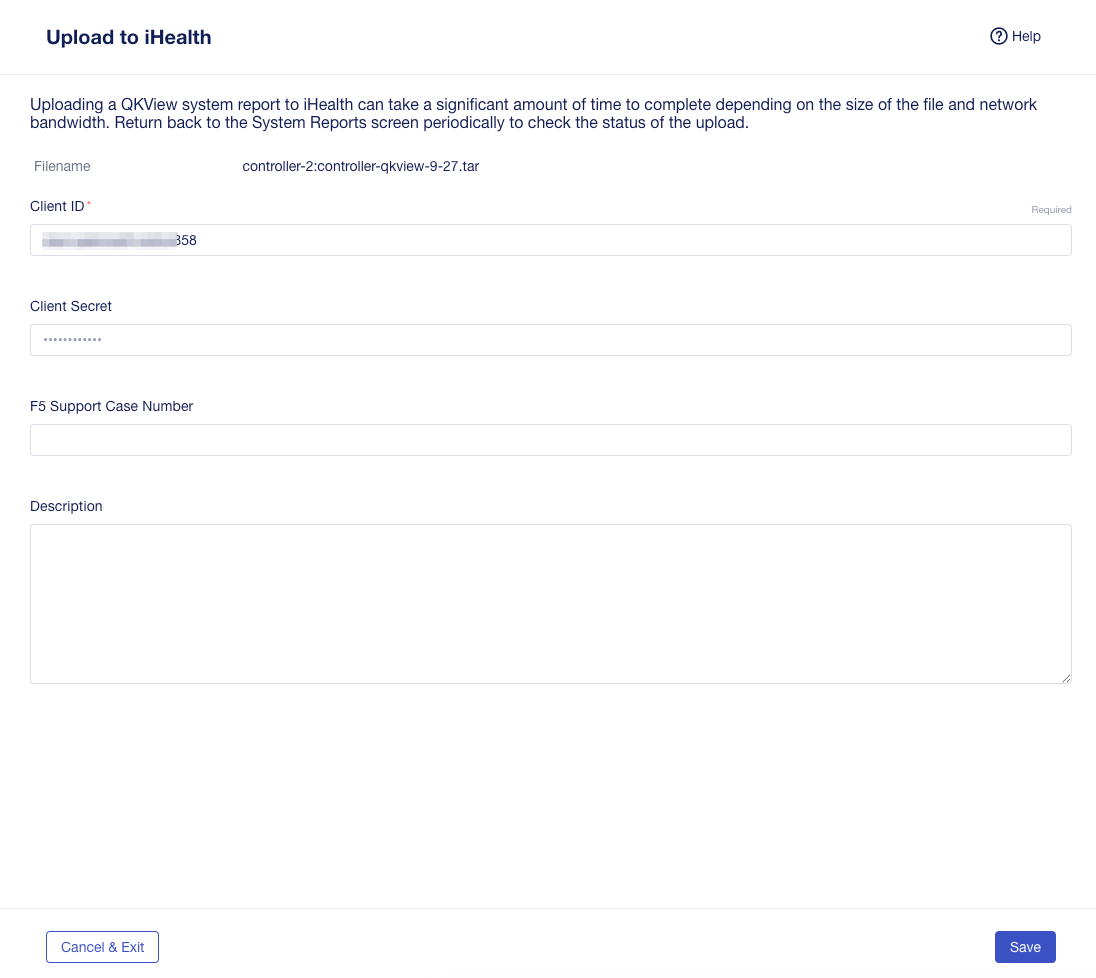

Once the QKView is generated, you can click the checkbox next to it, and then select Upload to iHealth. Your iHealth credentials will automatically fill in if entered them previously and be cleared if you want to use another account, you can optionally add an F5 Support Case Number and Description.

_images/image38.png

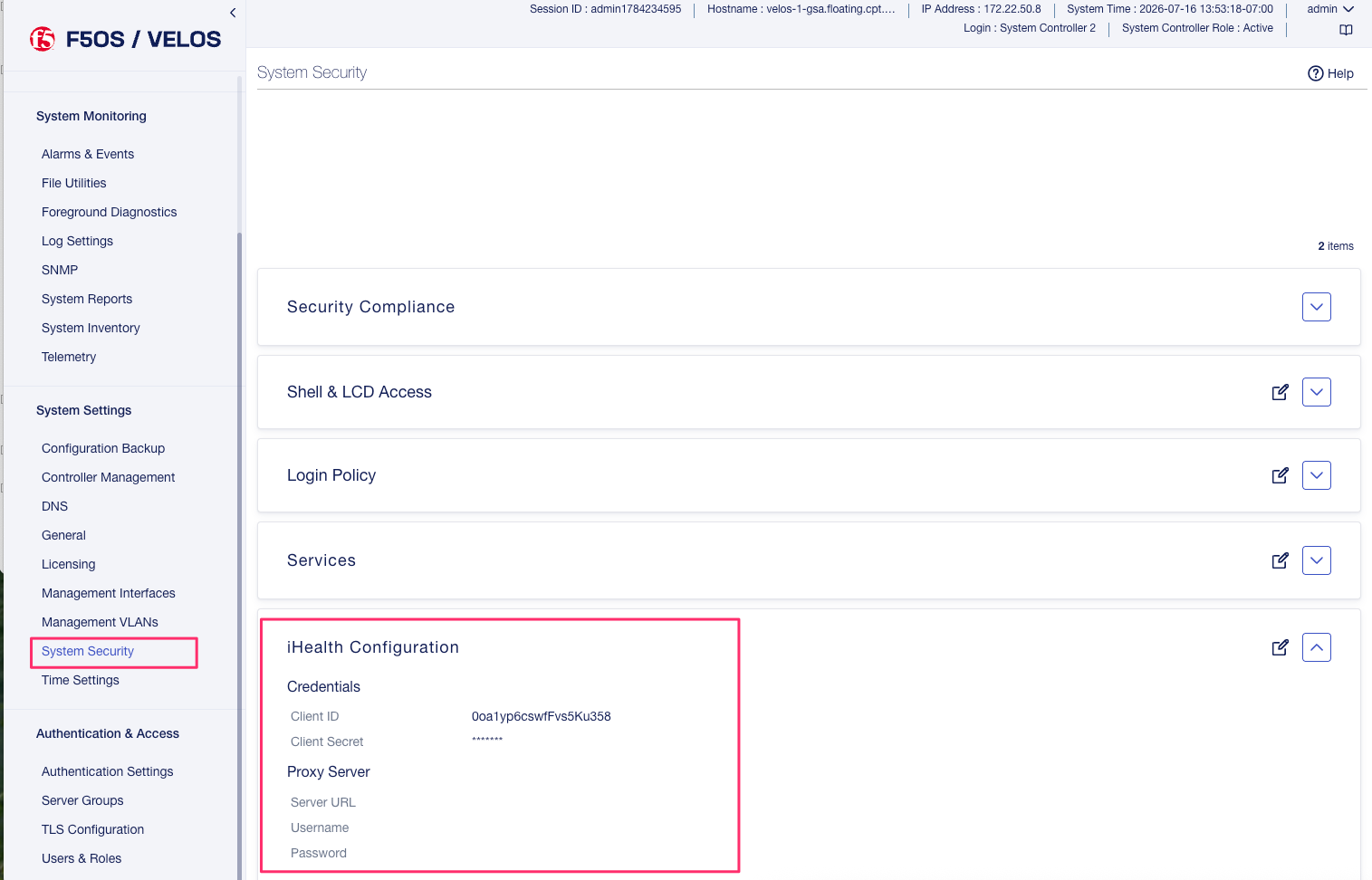

If you would like to store iHealth credentials within the configuration you may do so via the system controller CLI. Enter config mode, and then use the system diagnostics ihealth config command to configure a username and password.

syscon-1-active(config)# system diagnostics ihealth config ?
Possible completions:
  authserver   Server for Authentication server of iHealth ex:- https://api.f5.com/auth/pub/sso/login/ihealth-api
  password     password to login to iHealth
  server       Server for iHealth ex:- https://ihealth-api.f5.com/qkview-analyzer/api/qkviews?visible_in_webUI=True
  username     username to login to iHealth
syscon-1-active(config)# system diagnostics ihealth config

System Settings -> Configuration Backup

You may backup the confd configuration databases for the system controller via the webUI. The backups can then be copied off-box using the file utilities webUI option. Currently the webUI does not support the restoration of confd backups, this must be done via the CLI or API.

_images/image39.png _images/image40.png

System Settings -> Licensing

Licensing for the VELOS system is handled at the chassis level. This is similar to how VIPRION licensing is handled, where the system is licensed once, and all subsystems inherit their licensing from the chassis. With VELOS licensing is applied at the system controller and all chassis partitions and tenants will inherit their licenses from the base system. There is no need to add-on license for MAX SSL/Compression or for tenancy. This is different than VIPRION where there was an extra charge for virtualization/vCMP and in some cases for MAX SSL/Compression. For VELOS these are included in the base license at no extra cost.

Licenses can be applied via CLI, webUI, or API. A base registration key and optional add-on keys are needed, and it follows the same manual or automatic licensing capabilities of other BIG-IP systems.

_images/image411.png

System Settings -> Software Install Status

The System Settings -> Software Install Status is used to verify and observe software updates of the system controllers and the chassis partitions. You can view the various stages of the install process.

_images/image42.png

System Settings -> General

The System Settings > General page allows you to configure Appliance mode for the system controllers. Appliance mode is a security feature where all root and bash shell access are disabled. A user will only be able to utilize the F5OS CLI when Appliance mode is enabled. The page also displays the Systems Operation and Status which includes the Base OS and Service Versions currently running on the system controllers as well as the chassis partitions. You can also configure the system hostname, and as of F5OS-C 1.4.0 and later a Login Banner and Message of the Day MOTD Banner are supported.

_images/image43.png

User Management -> Auth Settings

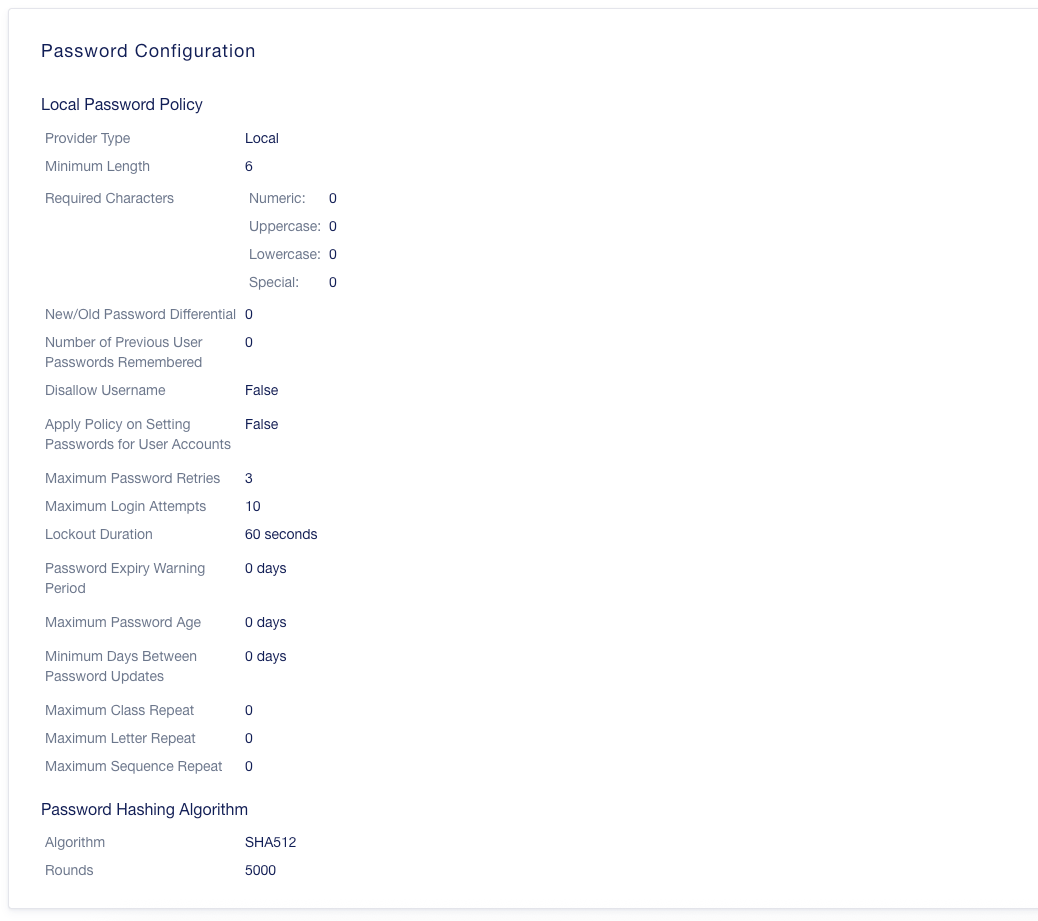

Each layer of F5OS has its own user and authentication management. This allows for a separate set of users that have access to the system controllers, and each chassis partition. You may define local users and/or remote authentication via LDAP, RADIUS, or TACACS+.

_images/image44.png

User Management -> Server Groups

You may define Server Groups which are collections of remote auth servers that the VELOS platform layer will use to authenticate against. LDAP, RADIUS, and TACACS+ are supported. For LDAP you may choose to authenticate of TCP or SSL. You can configure the remote host’s IP address and port.

_images/image46.png _images/image47.png _images/image48.png _images/image48a.png

User Management -> Users

Local Users may be defined, passwords set or changed, and then assigned to specific roles (Admin or Operator). An account may also be locked, and that may be changed here.

_images/image49.png _images/image50.png _images/image511.png
