Monitoring VELOS¶
With the introduction of a new platform layer, anyone deploying VELOS will need to know the important things for them to monitor to ensure proper health and performance of the system. In addition to getting F5’s recommendation on what to monitor, administrators will require details on how to get access to that information.
Some admins may want CLI commands to monitor, or API calls to query the system, and others may prefer the webUI. Many customers also use SNMP to monitor and be alerted of system issues and events. For SNMP integrations F5 will provide specific SNMP OID’s that an admin can monitor, and what traps are available for altering. The following sections will outline what sort of monitoring and alerting is available with the new VELOS platform.
Accessing the F5OS API¶
The VELOS platform APIs for the system controllers and chassis partitions can be reached on port 8888. In this document we will use the Postman tool to access VELOS platform layer APIs. You can download the Postman tool at:
https://www.postman.com/downloads/
You may also use Curl to get API status. The following curl command is pointed at the system controller floating IP address on port 8888. The example below is using basic authentication. You can request output in JSON by using the following Accept header:
$ curl -k https://<System-Controller-IP>:8888/restconf/yang-library-version --header 'Accept: application/yang-data+json' -u admin:<password>
Or you can alter the Accept header to receive output in XML format:
$ curl -k https://<System-Controller-IP>:8888/restconf/yang-library-version --header 'Accept: application/yang-data+xml' -u admin:<password>
The same format is used when pointing directly to the IP address of a Chassis Partition
$ curl -k https://<Chassis-Partition-IP>:8888/restconf/yang-library-version --header 'Accept: application/yang-data+json' -u admin:<password>
Hardware and System Component Monitoring¶
Hardware and System Component Monitoring from the CLI¶
Show Components from the CLI¶
High level appliance status can be obtained by using the show components command within the system controller layer, this will include all the subsystems:
syscon-2-active# show components
components component blade-1
state description "VELOS BX110"
state serial-no bld424551s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
components component blade-2
state description "VELOS BX110"
state serial-no bld422435s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
components component blade-3
state description "VELOS BX110"
state serial-no bld422573s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
components component blade-4
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-5
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-6
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-7
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-8
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component chassis
psu state redundancy-mode no-redundancy
psu state severity warning
state description "VELOS CX410"
state serial-no chs600032s
state part-no "400-0087-02 REV 6"
state empty false
state nebs capable false
state nebs disabled
components component controller-1
state description "VELOS SX410"
state serial-no bld422584s
state part-no "SUB-0881-00 REV B"
state empty false
state tpm-integrity-status Valid
state nebs capable true
state nebs disabled
state memory total 33397862400
state memory available 25323266048
state memory free 350519296
state memory used-percent 24
state memory platform-total 33397862400
state memory platform-used 13531021312
state memory platform-used-percent 40
state temperature current 26.1
state temperature average 26.0
state temperature minimum 25.4
state temperature maximum 26.8
USED
AREA CATEGORY TOTAL FREE USED PERCENT
---------------------------------------------------------------------------------------------
platform/sysroot F5OS System 353835896832 233888256000 101946527744 30
platform/images F5OS Images 270494859264 182400954368 74326732800 28
partition2/config F5OS System 10726932480 10488057856 238874624 2
partition2/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition2/shared F5OS Partition 10726932480 10682204160 44728320 0
partition3/config F5OS System 10726932480 10492542976 234389504 2
partition3/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition3/shared F5OS Partition 10726932480 10682204160 44728320 0
DISK DATA DISK DATA
NAME VALUE
-------------------------
available 233888489472
capacity 353835896832
used 101946294272
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
-------------------------------------------------------------------------------
fw-version-bios - 2.03.175.1 - none
fw-version-bios-me - 4.0.4.705 - none
fw-version-cpld - 01.03.0A - none
fw-version-drive - EDA7602Q - none
fw-version-lcd-app - 3.00.144.00.1 - none
fw-version-lcd-bootloader - 2.01.109.00.1 - none
fw-version-lop-app - 2.01.1283.0.1 - none
fw-version-lop-bootloader - 1.02.1019.0.1 - none
fw-version-sirr - 1.1.99 - none
fw-version-vfc-app-fanCtrl1 - 2.00.1008.0.1 - none
fw-version-vfc-bootloader-fanCtrl1 - 1.02.798.0.1 - none
fw-version-vpc-app-psuCtrl1 - 2.00.875.0.1 - none
fw-version-vpc-app-psuCtrl2 - 2.00.875.0.1 - none
fw-version-vpc-bootloader-psuCtrl1 - 1.02.669.0.1 - none
fw-version-vpc-bootloader-psuCtrl2 - 1.02.669.0.1 - none
storage state disks disk nvme0n1
state model "SAMSUNG MZ1LB960HAJQ-00007"
state vendor Samsung
state version EDA7602Q
state serial-no S435NE0MA00234
state size 683.00GB
state type nvme
state disk-io total-iops 0
state disk-io read-iops 1568593
state disk-io read-merged 676230
state disk-io read-bytes 16736022528
state disk-io read-latency-ms 556414
state disk-io write-iops 647798528
state disk-io write-merged 493710808
state disk-io write-bytes 5791047771136
state disk-io write-latency-ms 24729715
state disk-io read-iops-per-sec 0
state disk-io read-bytes-per-sec 0
state disk-io write-iops-per-sec 607
state disk-io write-bytes-per-sec 5971174
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 30
cpu state cpu-utilization five-second-avg 29
cpu state cpu-utilization one-minute-avg 26
cpu state cpu-utilization five-minute-avg 27
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
------------------------------------------------------------------------------------------------
1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG
-------------------------------------------------
0 cpu0 25 28 26 26
1 cpu1 29 22 27 28
2 cpu2 23 21 25 28
3 cpu3 36 30 25 25
4 cpu4 24 31 27 26
5 cpu5 25 31 23 27
6 cpu6 25 25 25 25
7 cpu7 54 39 28 26
components component controller-2
state description "VELOS SX410"
state serial-no bld424548s
state part-no "SUB-0881-00 REV B"
state empty false
state tpm-integrity-status Valid
state nebs capable true
state nebs disabled
state memory total 33397866496
state memory available 24884887552
state memory free 617697280
state memory used-percent 25
state memory platform-total 33397866496
state memory platform-used 12755918848
state memory platform-used-percent 38
state temperature current 26.3
state temperature average 26.3
state temperature minimum 25.8
state temperature maximum 27.1
USED
AREA CATEGORY TOTAL FREE USED PERCENT
----------------------------------------------------------------------------------------------------
platform/sysroot F5OS System 353835896832 232491298816 103343484928 30
platform/images F5OS Images 270494859264 173605605376 83122081792 32
/var/roothome/etcd3mount F5OS System 5196181504 4515459072 395522048 8
partition2/config F5OS System 10726932480 10516099072 210833408 1
partition2/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition2/shared F5OS Partition 10726932480 10682204160 44728320 0
partition3/config F5OS System 10726932480 10523664384 203268096 1
partition3/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition3/shared F5OS Partition 10726932480 10682204160 44728320 0
DISK DATA DISK DATA
NAME VALUE
-------------------------
available 232491298816
capacity 353835896832
used 103343484928
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
-------------------------------------------------------------------------------
fw-version-bios - 2.03.175.1 - none
fw-version-bios-me - 4.0.4.705 - none
fw-version-cpld - 01.03.0A - none
fw-version-drive - EDA7602Q - none
fw-version-lcd-app - 3.00.144.00.1 - none
fw-version-lcd-bootloader - 2.01.109.00.1 - none
fw-version-lop-app - 2.01.1283.0.1 - none
fw-version-lop-bootloader - 1.02.1019.0.1 - none
fw-version-sirr - 1.1.99 - none
fw-version-vfc-app-fanCtrl1 - 2.00.1008.0.1 - none
fw-version-vfc-bootloader-fanCtrl1 - 1.02.798.0.1 - none
fw-version-vpc-app-psuCtrl1 - 2.00.875.0.1 - none
fw-version-vpc-app-psuCtrl2 - 2.00.875.0.1 - none
fw-version-vpc-bootloader-psuCtrl1 - 1.02.669.0.1 - none
fw-version-vpc-bootloader-psuCtrl2 - 1.02.669.0.1 - none
storage state disks disk nvme0n1
state model "SAMSUNG MZ1LB960HAJQ-00007"
state vendor Samsung
state version EDA7602Q
state serial-no S435NE0MA00209
state size 683.00GB
state type nvme
state disk-io total-iops 0
state disk-io read-iops 1701730
state disk-io read-merged 1138403
state disk-io read-bytes 22318736384
state disk-io read-latency-ms 469065
state disk-io write-iops 813156586
state disk-io write-merged 610730877
state disk-io write-bytes 7674623405568
state disk-io write-latency-ms 33913847
state disk-io read-iops-per-sec 0
state disk-io read-bytes-per-sec 819
state disk-io write-iops-per-sec 298
state disk-io write-bytes-per-sec 2761801
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 44
cpu state cpu-utilization five-second-avg 33
cpu state cpu-utilization one-minute-avg 41
cpu state cpu-utilization five-minute-avg 42
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
------------------------------------------------------------------------------------------------
1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG
-------------------------------------------------
0 cpu0 43 27 39 42
1 cpu1 67 35 41 42
2 cpu2 39 29 41 42
3 cpu3 54 38 43 42
4 cpu4 32 33 41 42
5 cpu5 37 40 43 43
6 cpu6 39 34 42 41
7 cpu7 37 32 40 42
components component fantray-1
state firmware-version 1.02.798.0.1
state software-version 2.00.1008.0.1
state serial-no sub0772g006w
state part-no "SUB-0772-05 REV B"
state empty false
properties fantray-state fantray-temperature 33.0
properties fantray-state inlet-fan-1-speed 6773
properties fantray-state inlet-fan-2-speed 6737
properties fantray-state inlet-fan-3-speed 6723
properties fantray-state exhaust-fan-1-speed 6732
properties fantray-state exhaust-fan-2-speed 6721
properties fantray-state exhaust-fan-3-speed 6795
components component lcd
state serial-no sub0811g002h
state part-no "SUB-0811-02 REV B"
state empty false
state mode secure
components component psu-1
state serial-no 19331BPJ0075
state part-no PWR-0366-00
state empty false
properties psu-state psu-current-in 3.117
properties psu-state psu-current-out 48.687
properties psu-state psu-power-in 631.0
properties psu-state psu-power-out 600.0
properties psu-state psu-voltage-in 204.0
properties psu-state psu-voltage-out 12.325
properties psu-state psu-temperature-1 24.2
properties psu-state psu-temperature-2 39.5
properties psu-state psu-temperature-3 36.5
properties psu-state psu-fan-1-speed 7456
properties psu-state psu-fan-2-speed 7008
components component psu-2
state serial-no 19332BPJ0129
state part-no PWR-0366-00
state empty false
properties psu-state psu-current-in 3.226
properties psu-state psu-current-out 50.5
properties psu-state psu-power-in 651.0
properties psu-state psu-power-out 622.0
properties psu-state psu-voltage-in 204.0
properties psu-state psu-voltage-out 12.3219
properties psu-state psu-temperature-1 24.0
properties psu-state psu-temperature-2 39.7
properties psu-state psu-temperature-3 35.5
properties psu-state psu-fan-1-speed 7360
properties psu-state psu-fan-2-speed 7008
components component psu-3
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-4
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-controller-1
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003u
state part-no "SUB-0759-04 REV A"
state empty false
components component psu-controller-2
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003z
state part-no "SUB-0759-04 REV A"
state empty false
syscon-2-active#
Show Component State Only from the CLI¶
If you just want the state and not all the details you can run the command show components component state:
syscon-2-active# show components component state
components component blade-1
state description "VELOS BX110"
state serial-no bld424551s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
components component blade-2
state description "VELOS BX110"
state serial-no bld422435s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
components component blade-3
state description "VELOS BX110"
state serial-no bld422573s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs disabled
components component blade-4
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-5
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-6
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-7
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component blade-8
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component chassis
state description "VELOS CX410"
state serial-no chs600032s
state part-no "400-0087-02 REV 6"
state empty false
state nebs capable false
state nebs disabled
components component controller-1
state description "VELOS SX410"
state serial-no bld422584s
state part-no "SUB-0881-00 REV B"
state empty false
state tpm-integrity-status Valid
state nebs capable true
state nebs disabled
state memory total 33397862400
state memory available 25295560704
state memory free 319311872
state memory used-percent 24
state memory platform-total 33397862400
state memory platform-used 13559164928
state memory platform-used-percent 40
state temperature current 26.2
state temperature average 26.0
state temperature minimum 25.4
state temperature maximum 26.8
USED
AREA CATEGORY TOTAL FREE USED PERCENT
---------------------------------------------------------------------------------------------
platform/sysroot F5OS System 353835896832 233887080448 101947703296 30
platform/images F5OS Images 270494859264 182400954368 74326732800 28
partition2/config F5OS System 10726932480 10487996416 238936064 2
partition2/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition2/shared F5OS Partition 10726932480 10682204160 44728320 0
partition3/config F5OS System 10726932480 10492538880 234393600 2
partition3/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition3/shared F5OS Partition 10726932480 10682204160 44728320 0
DISK DATA DISK DATA
NAME VALUE
-------------------------
available 233887293440
capacity 353835896832
used 101947490304
components component controller-2
state description "VELOS SX410"
state serial-no bld424548s
state part-no "SUB-0881-00 REV B"
state empty false
state tpm-integrity-status Valid
state nebs capable true
state nebs disabled
state memory total 33397866496
state memory available 24858370048
state memory free 582602752
state memory used-percent 25
state memory platform-total 33397866496
state memory platform-used 12782718976
state memory platform-used-percent 38
state temperature current 26.3
state temperature average 26.3
state temperature minimum 25.8
state temperature maximum 27.0
USED
AREA CATEGORY TOTAL FREE USED PERCENT
----------------------------------------------------------------------------------------------------
platform/sysroot F5OS System 353835896832 232488927232 103345856512 30
platform/images F5OS Images 270494859264 173605605376 83122081792 32
/var/roothome/etcd3mount F5OS System 5196181504 4515459072 395522048 8
partition2/config F5OS System 10726932480 10516013056 210919424 1
partition2/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition2/shared F5OS Partition 10726932480 10682204160 44728320 0
partition3/config F5OS System 10726932480 10523660288 203272192 1
partition3/images F5OS Partition Images 16095641600 12324638720 3771002880 23
partition3/shared F5OS Partition 10726932480 10682204160 44728320 0
DISK DATA DISK DATA
NAME VALUE
-------------------------
available 232488927232
capacity 353835896832
used 103345856512
components component fantray-1
state firmware-version 1.02.798.0.1
state software-version 2.00.1008.0.1
state serial-no sub0772g006w
state part-no "SUB-0772-05 REV B"
state empty false
components component lcd
state serial-no sub0811g002h
state part-no "SUB-0811-02 REV B"
state empty false
state mode secure
components component psu-1
state serial-no 19331BPJ0075
state part-no PWR-0366-00
state empty false
components component psu-2
state serial-no 19332BPJ0129
state part-no PWR-0366-00
state empty false
components component psu-3
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-4
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-controller-1
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003u
state part-no "SUB-0759-04 REV A"
state empty false
components component psu-controller-2
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003z
state part-no "SUB-0759-04 REV A"
state empty false
syscon-2-active#
Show Component Properties from the CLI¶
This command shows the firmware version of the various subsystems, along with the fan tray and power supply info:
syscon-2-active# show components component properties
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
----------------------------------------------------------------------
fw-version-bios - 3.00.230.1 false none
fw-version-bios-me - 4.0.4.800 false none
fw-version-cpld - 05.04.00 false none
fw-version-drive-nvme0n1 - EDA7602Q false none
fw-version-lop-app - 2.00.1100.0.1 false none
fw-version-lop-bootloader - 1.02.868.0.1 false none
fw-version-sirr - 1.1.99 false none
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
-------------------------------------------------------------------------------
fw-version-bios - 2.03.175.1 - none
fw-version-bios-me - 4.0.4.705 - none
fw-version-cpld - 01.03.0A - none
fw-version-drive - EDA7602Q - none
fw-version-lcd-app - 3.00.144.00.1 - none
fw-version-lcd-bootloader - 2.01.109.00.1 - none
fw-version-lop-app - 2.01.1283.0.1 - none
fw-version-lop-bootloader - 1.02.1019.0.1 - none
fw-version-sirr - 1.1.99 - none
fw-version-vfc-app-fanCtrl1 - 2.00.1008.0.1 - none
fw-version-vfc-bootloader-fanCtrl1 - 1.02.798.0.1 - none
fw-version-vpc-app-psuCtrl1 - 2.00.875.0.1 - none
fw-version-vpc-app-psuCtrl2 - 2.00.875.0.1 - none
fw-version-vpc-bootloader-psuCtrl1 - 1.02.669.0.1 - none
fw-version-vpc-bootloader-psuCtrl2 - 1.02.669.0.1 - none
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
-------------------------------------------------------------------------------
fw-version-bios - 2.03.175.1 - none
fw-version-bios-me - 4.0.4.705 - none
fw-version-cpld - 01.03.0A - none
fw-version-drive - EDA7602Q - none
fw-version-lcd-app - 3.00.144.00.1 - none
fw-version-lcd-bootloader - 2.01.109.00.1 - none
fw-version-lop-app - 2.01.1283.0.1 - none
fw-version-lop-bootloader - 1.02.1019.0.1 - none
fw-version-sirr - 1.1.99 - none
fw-version-vfc-app-fanCtrl1 - 2.00.1008.0.1 - none
fw-version-vfc-bootloader-fanCtrl1 - 1.02.798.0.1 - none
fw-version-vpc-app-psuCtrl1 - 2.00.875.0.1 - none
fw-version-vpc-app-psuCtrl2 - 2.00.875.0.1 - none
fw-version-vpc-bootloader-psuCtrl1 - 1.02.669.0.1 - none
fw-version-vpc-bootloader-psuCtrl2 - 1.02.669.0.1 - none
components component fantray-1
properties fantray-state fantray-temperature 33.0
properties fantray-state inlet-fan-1-speed 6773
properties fantray-state inlet-fan-2-speed 6746
properties fantray-state inlet-fan-3-speed 6718
properties fantray-state exhaust-fan-1-speed 6730
properties fantray-state exhaust-fan-2-speed 6758
properties fantray-state exhaust-fan-3-speed 6785
components component psu-1
properties psu-state psu-current-in 3.152
properties psu-state psu-current-out 49.125
properties psu-state psu-power-in 645.0
properties psu-state psu-power-out 605.0
properties psu-state psu-voltage-in 204.0
properties psu-state psu-voltage-out 12.324
properties psu-state psu-temperature-1 24.0
properties psu-state psu-temperature-2 39.5
properties psu-state psu-temperature-3 36.2
properties psu-state psu-fan-1-speed 7488
properties psu-state psu-fan-2-speed 6912
components component psu-2
properties psu-state psu-current-in 3.238
properties psu-state psu-current-out 51.0
properties psu-state psu-power-in 658.0
properties psu-state psu-power-out 628.0
properties psu-state psu-voltage-in 204.25
properties psu-state psu-voltage-out 12.321
properties psu-state psu-temperature-1 24.0
properties psu-state psu-temperature-2 39.7
properties psu-state psu-temperature-3 35.5
properties psu-state psu-fan-1-speed 7392
properties psu-state psu-fan-2-speed 6976
syscon-2-active#
Show Power Supply Status from the CLI¶
Or you can view individual subsystems. High level power supply status can be obtained by using the show components component <psu-#> command:
syscon-2-active# show components component psu-1
components component psu-1
state serial-no 19331BPJ0075
state part-no PWR-0366-00
state empty false
properties psu-state psu-current-in 3.14
properties psu-state psu-current-out 49.125
properties psu-state psu-power-in 643.0
properties psu-state psu-power-out 605.0
properties psu-state psu-voltage-in 204.0
properties psu-state psu-voltage-out 12.324
properties psu-state psu-temperature-1 24.2
properties psu-state psu-temperature-2 39.5
properties psu-state psu-temperature-3 36.5
properties psu-state psu-fan-1-speed 7488
properties psu-state psu-fan-2-speed 6944
syscon-2-active#
You could also use an asterisk to display all psu’s and psu controllers. Use the command show components component psu-*.
syscon-2-active# show components component psu-*
components component psu-1
state serial-no 19331BPJ0075
state part-no PWR-0366-00
state empty false
properties psu-state psu-current-in 3.125
properties psu-state psu-current-out 48.937
properties psu-state psu-power-in 635.0
properties psu-state psu-power-out 604.0
properties psu-state psu-voltage-in 204.0
properties psu-state psu-voltage-out 12.325
properties psu-state psu-temperature-1 24.5
properties psu-state psu-temperature-2 39.5
properties psu-state psu-temperature-3 36.5
properties psu-state psu-fan-1-speed 7520
properties psu-state psu-fan-2-speed 6976
components component psu-2
state serial-no 19332BPJ0129
state part-no PWR-0366-00
state empty false
properties psu-state psu-current-in 3.234
properties psu-state psu-current-out 50.75
properties psu-state psu-power-in 673.0
properties psu-state psu-power-out 625.0
properties psu-state psu-voltage-in 204.25
properties psu-state psu-voltage-out 12.321
properties psu-state psu-temperature-1 24.2
properties psu-state psu-temperature-2 39.7
properties psu-state psu-temperature-3 35.5
properties psu-state psu-fan-1-speed 7392
properties psu-state psu-fan-2-speed 6944
components component psu-3
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-4
state serial-no "Not Available"
state part-no "Not Available"
state empty true
components component psu-controller-1
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003u
state part-no "SUB-0759-04 REV A"
state empty false
components component psu-controller-2
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003z
state part-no "SUB-0759-04 REV A"
state empty false
syscon-2-active#
High level power supply stats can be obtained by using the show components component psu-* properties command:
syscon-2-active# show components component psu-* properties
components component psu-1
properties psu-state psu-current-in 3.097
properties psu-state psu-current-out 48.5
properties psu-state psu-power-in 635.0
properties psu-state psu-power-out 598.0
properties psu-state psu-voltage-in 203.75
properties psu-state psu-voltage-out 12.325
properties psu-state psu-temperature-1 24.2
properties psu-state psu-temperature-2 39.5
properties psu-state psu-temperature-3 36.5
properties psu-state psu-fan-1-speed 7392
properties psu-state psu-fan-2-speed 6944
components component psu-2
properties psu-state psu-current-in 3.253
properties psu-state psu-current-out 50.5
properties psu-state psu-power-in 657.0
properties psu-state psu-power-out 622.0
properties psu-state psu-voltage-in 204.25
properties psu-state psu-voltage-out 12.321
properties psu-state psu-temperature-1 23.7
properties psu-state psu-temperature-2 39.7
properties psu-state psu-temperature-3 35.5
properties psu-state psu-fan-1-speed 7392
properties psu-state psu-fan-2-speed 7008
syscon-2-active#
Show Power Supply Controller Status from the CLI¶
High level power supply controller status can be obtained by using the show components component <psu-controller-#> command. There are two Power Supply Controllers within each CX410 chassis, and four Power Supply Controllers within each CX1610 chassis
syscon-1-active# show components component psu-controller-1
components component psu-controller-1
state firmware-version 1.02.669.0.1
state software-version 1.00.694.0.1
state serial-no sub0759g003u
state part-no "SUB-0759-04 REV A"
state empty false
If you’d like to view all psu controllers in the chassis, leverage the asterisk in place of the psu-controller number as seen below. In the example below a CX410 chassis has 2 psu-controllers.
syscon-2-active# show components component psu-controller-*
components component psu-controller-1
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003u
state part-no "SUB-0759-04 REV A"
state empty false
components component psu-controller-2
state firmware-version 1.02.669.0.1
state software-version 2.00.875.0.1
state serial-no sub0759g003z
state part-no "SUB-0759-04 REV A"
state empty false
syscon-2-active#
Show Fan Tray Status from the CLI¶
Below is an example of the show components component fantray-1 command. In the CX410 chassis there is only one fan tray. In the CX1610 chassis there are four fan trays. You can substitute the fan tray number you are interested in monitoring.
syscon-2-active# show components component fantray-1
components component fantray-1
state firmware-version 1.02.798.0.1
state software-version 2.00.1008.0.1
state serial-no sub0772g006w
state part-no "SUB-0772-05 REV B"
state empty false
properties fantray-state fantray-temperature 33.0
properties fantray-state inlet-fan-1-speed 6773
properties fantray-state inlet-fan-2-speed 6737
properties fantray-state inlet-fan-3-speed 6717
properties fantray-state exhaust-fan-1-speed 6764
properties fantray-state exhaust-fan-2-speed 6721
properties fantray-state exhaust-fan-3-speed 6788
syscon-2-active#
Show LCD Status from the CLI¶
High level chassis LCD status can be obtained by using the show components component lcd command:
syscon-2-active# show components component lcd
components component lcd
state serial-no sub0811g002h
state part-no "SUB-0811-02 REV B"
state empty false
state mode secure
syscon-2-active#
Show CPU Status from the CLI¶
You can view stats on the system controller CPU and basic utilization with the command show components component cpu:
syscon-2-active# show components component cpu
components component controller-1
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 18
cpu state cpu-utilization five-second-avg 22
cpu state cpu-utilization one-minute-avg 29
cpu state cpu-utilization five-minute-avg 27
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
------------------------------------------------------------------------------------------------
1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG
-------------------------------------------------
0 cpu0 19 22 28 27
1 cpu1 13 20 31 27
2 cpu2 11 18 28 27
3 cpu3 15 27 29 26
4 cpu4 16 25 28 26
5 cpu5 15 23 29 27
6 cpu6 13 19 28 26
7 cpu7 39 25 30 26
components component controller-2
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 44
cpu state cpu-utilization five-second-avg 47
cpu state cpu-utilization one-minute-avg 42
cpu state cpu-utilization five-minute-avg 42
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
------------------------------------------------------------------------------------------------
1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG
-------------------------------------------------
0 cpu0 33 44 45 44
1 cpu1 52 50 42 41
2 cpu2 47 46 44 42
3 cpu3 40 40 42 41
4 cpu4 41 45 42 43
5 cpu5 45 49 41 42
6 cpu6 41 48 41 41
7 cpu7 56 56 42 42
syscon-2-active#
You may also run this within a partition to see the CPU’s running on the blades within the chassis partition. In the example below, there are 2 BX110 blades within the production chassis partition.
production-1# show components component cpu
components component blade-1
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 6
cpu state cpu-utilization five-second-avg 6
cpu state cpu-utilization one-minute-avg 6
cpu state cpu-utilization five-minute-avg 6
cpu state cpu-utilization used-by ""
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
--------------------------------------------------------------------------------------------------
0 19712(KB) 14 2448.979(MHz) 4 28 Intel(R) Xeon(R) D-2177NT CPU @ 1.90GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG USED BY
------------------------------------------------------------------
0 cpu0 5 2 2 3 F5OS
1 cpu1 14 12 12 12 tenant2
2 cpu2 6 4 3 3 F5OS
3 cpu3 3 3 2 3 F5OS
4 cpu4 23 31 35 36 tenant1
5 cpu5 4 2 3 3 F5OS
6 cpu6 2 4 3 3 F5OS
7 cpu7 6 2 2 2 F5OS
8 cpu8 8 14 18 20 tenant2
9 cpu9 7 4 3 2 F5OS
10 cpu10 4 3 2 2 F5OS
11 cpu11 2 2 2 2 F5OS Data Mover
12 cpu12 3 2 2 2 F5OS Data Mover
13 cpu13 1 1 2 2 F5OS Data Mover
14 cpu14 6 3 2 2 F5OS
15 cpu15 15 22 20 21 tenant2
16 cpu16 4 3 2 2 F5OS
17 cpu17 10 5 2 3 F5OS
18 cpu18 9 10 12 12 tenant1
19 cpu19 13 4 3 3 F5OS
20 cpu20 3 4 3 3 F5OS
21 cpu21 5 3 3 3 F5OS
22 cpu22 10 10 10 10 tenant2
23 cpu23 2 3 3 3 F5OS
24 cpu24 8 3 3 2 F5OS
25 cpu25 0 0 1 1 F5OS Dedicated
26 cpu26 0 0 1 1 F5OS Dedicated
27 cpu27 1 1 1 1 F5OS Dedicated
components component blade-2
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 6
cpu state cpu-utilization five-second-avg 5
cpu state cpu-utilization one-minute-avg 6
cpu state cpu-utilization five-minute-avg 6
cpu state cpu-utilization used-by ""
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
--------------------------------------------------------------------------------------------------
0 19712(KB) 14 1900.000(MHz) 4 28 Intel(R) Xeon(R) D-2177NT CPU @ 1.90GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG USED BY
------------------------------------------------------------------
0 cpu0 0 1 2 2 F5OS
1 cpu1 1 1 3 2 F5OS
2 cpu2 16 13 10 10 tenant2
3 cpu3 34 29 39 40 tenant1
4 cpu4 0 1 3 3 F5OS
5 cpu5 2 2 3 2 F5OS
6 cpu6 4 1 2 3 F5OS
7 cpu7 1 1 2 2 F5OS
8 cpu8 2 2 2 2 F5OS
9 cpu9 6 1 2 2 F5OS
10 cpu10 16 13 10 10 tenant2
11 cpu11 2 3 2 2 F5OS Data Mover
12 cpu12 3 2 2 2 F5OS Data Mover
13 cpu13 3 3 2 2 F5OS Data Mover
14 cpu14 1 1 2 2 F5OS
15 cpu15 1 1 2 2 F5OS
16 cpu16 29 17 22 21 tenant2
17 cpu17 10 11 12 14 tenant1
18 cpu18 4 1 2 2 F5OS
19 cpu19 2 3 2 2 F5OS
20 cpu20 0 1 2 2 F5OS
21 cpu21 1 2 3 2 F5OS
22 cpu22 1 1 2 2 F5OS
23 cpu23 1 1 2 2 F5OS
24 cpu24 39 24 23 21 tenant2
25 cpu25 0 0 0 1 F5OS Dedicated
26 cpu26 0 0 1 1 F5OS Dedicated
27 cpu27 0 1 1 1 F5OS Dedicated
production-1#
Show Storage Status from the CLI¶
You can view stats on the storage subsystems within the VELOS chassis. Below is an example of the disks within the system controllers.
syscon-2-active# show components component storage | tab
READ READ WRITE
READ WRITE IOPS BYTES IOPS WRITE
DISK TOTAL READ READ LATENCY WRITE WRITE LATENCY PER PER PER BYTES
NAME NAME MODEL VENDOR VERSION SERIAL NO SIZE TYPE IOPS IOPS MERGED READ BYTES MS IOPS MERGED WRITE BYTES MS SEC SEC SEC PER SEC
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
controller-1 nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00234 683.00GB nvme 0 1568600 676230 16736055296 556415 648294513 494080748 5795456132608 24748093 0 0 326 2487071
controller-2 nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00209 683.00GB nvme 0 1702424 1139159 22324675584 469211 813718692 611136304 7679875763712 33936279 0 0 522 4922562
syscon-2-active#
You may also run the same command within a chassis partition to see the disks installed on each blade within the partition.
production-1# show components component storage | tab
READ READ WRITE
READ WRITE IOPS BYTES IOPS WRITE
DISK TOTAL READ READ LATENCY WRITE WRITE LATENCY PER PER PER BYTES
NAME NAME MODEL VENDOR VERSION SERIAL NO SIZE TYPE IOPS IOPS MERGED READ BYTES MS IOPS MERGED WRITE BYTES MS SEC SEC SEC PER SEC
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
blade-1 nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00227 683.00GB nvme 0 2257741 422 90820914688 589992 163436302 163013684 2180921189376 16295645 2 60769 88 1046244
blade-2 nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA02828 683.00GB nvme 0 1386266 267 54210973696 341221 163243958 147017285 1781346844672 15535372 5 109109 105 986232
production-1#
Show Blade Status from the CLI¶
High level blade status can be obtained by using the show components component <blade-#> command:
syscon-1-active# show components component blade-1
components component blade-1
state description "VELOS BX110"
state serial-no bld422435s
state part-no "400-0086-02 REV 2"
state empty false
state nebs capable true
state nebs enabled
syscon-1-active#

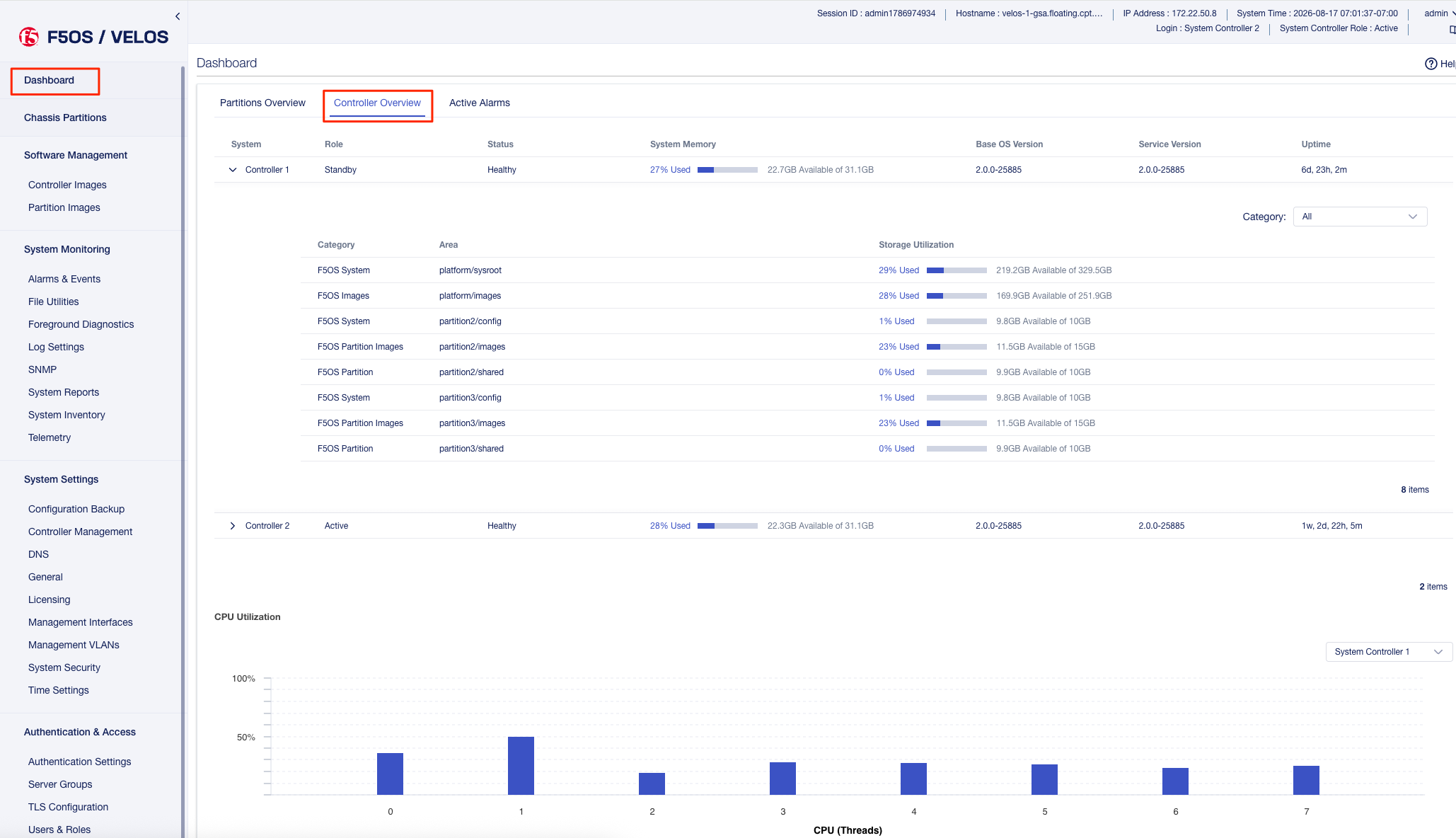

Hardware and System Component Monitoring from the webUI¶
In the system controller webUI there is a System Inventory page under the System Monitoring section that shows all the physical components (system controllers, blades, power supplies, PSU controller, fan-tray, disk, and LCD) within the chassis and their high-level status, part number, and serial number:
Hardware and System Component Monitoring from the API¶
This section will cover monitoring VELOS components.
Monitoring VELOS Component Platform Status via API¶
You can get the status of the VELOS chassis components using the following API call. This will combine that status of all of the components into a single API call. These can also be broken out into more targeted API calls for specific components which are also covered later in this section.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components
For each blade, controller installed in the system, you’ll see description, serial number, part number, and NEBS state. You’ll also see detailed blade filesystem information, CPU, memory, and storage stats and temperature information. You can also monitor the various firmware update status and versions.
{
"openconfig-platform:components": {
"component": [
{
"name": "blade-1",
"config": {
"name": "blade-1"
},
"state": {
"description": "VELOS BX110",
"serial-no": "bld424551s",
"part-no": "400-0086-02 REV 2",
"empty": false,
"f5-platform:nebs": {
"capable": true,
"enabled": false
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "3.00.230.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.800",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "05.04.00",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-nvme0n1",
"config": {
"name": "fw-version-drive-nvme0n1"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.00.1100.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.868.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
}
},
{
"name": "blade-2",
"config": {
"name": "blade-2"
},
"state": {
"description": "VELOS BX110",
"serial-no": "bld422435s",
"part-no": "400-0086-02 REV 2",
"empty": false,
"f5-platform:nebs": {
"capable": true,
"enabled": false
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "3.00.230.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.800",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "05.04.00",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-nvme0n1",
"config": {
"name": "fw-version-drive-nvme0n1"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.00.1100.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.868.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
}
},
{
"name": "blade-3",
"config": {
"name": "blade-3"
},
"state": {
"description": "VELOS BX110",
"serial-no": "bld422573s",
"part-no": "400-0086-02 REV 2",
"empty": false,
"f5-platform:nebs": {
"capable": true,
"enabled": false
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "3.00.230.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.800",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "05.04.00",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-nvme0n1",
"config": {
"name": "fw-version-drive-nvme0n1"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.00.1100.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.868.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
}
},
{
"name": "blade-4",
"config": {
"name": "blade-4"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "blade-5",
"config": {
"name": "blade-5"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "blade-6",
"config": {
"name": "blade-6"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "blade-7",
"config": {
"name": "blade-7"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "blade-8",
"config": {
"name": "blade-8"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "chassis",
"config": {
"name": "chassis"
},
"state": {
"description": "VELOS CX410",
"serial-no": "chs600032s",
"part-no": "400-0087-02 REV 6",
"empty": false,
"f5-platform:nebs": {
"capable": false,
"enabled": false
}
},
"f5-platform:psu": {
"state": {
"redundancy-mode": "no-redundancy",
"severity": "warning"
},
"config": {
"redundancy-mode": "no-redundancy",
"severity": "warning"
}
}
},
{
"name": "controller-1",
"config": {
"name": "controller-1"
},
"state": {
"description": "VELOS SX410",
"serial-no": "bld422584s",
"part-no": "SUB-0881-00 REV B",
"empty": false,
"f5-platform:tpm-integrity-status": "Valid",
"f5-platform:nebs": {
"capable": true,
"enabled": false
},
"f5-platform:file-systems": {
"file-system": [
{
"area": "platform/sysroot",
"category": "F5OS System",
"total": "353835896832",
"free": "233831534592",
"used": "102003249152",
"used-percent": 30
},
{
"area": "platform/images",
"category": "F5OS Images",
"total": "270494859264",
"free": "182400954368",
"used": "74326732800",
"used-percent": 28
},
{
"area": "partition2/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10492096512",
"used": "234835968",
"used-percent": 2
},
{
"area": "partition2/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition2/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
},
{
"area": "partition3/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10499620864",
"used": "227311616",
"used-percent": 2
},
{
"area": "partition3/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition3/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
}
]
},
"f5-platform:memory": {
"total": "33397862400",
"available": "25474383872",
"free": "737255424",
"used-percent": 23,
"platform-total": "33397862400",
"platform-used": "12094328832",
"platform-used-percent": 36
},
"f5-platform:temperature": {
"current": "27.1",
"average": "27.1",
"minimum": "25.7",
"maximum": "29.0"
},
"f5-platform:disk-data": {
"stats": [
{
"disk-data-name": "available",
"disk-data-value": "233831534592"
},
{
"disk-data-name": "capacity",
"disk-data-value": "353835896832"
},
{
"disk-data-name": "used",
"disk-data-value": "102003249152"
}
]
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "2.03.175.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.705",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "01.03.0A",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive",
"config": {
"name": "fw-version-drive"
},
"state": {
"value": "EDA7602Q",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-app",
"config": {
"name": "fw-version-lcd-app"
},
"state": {
"value": "3.00.144.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-bootloader",
"config": {
"name": "fw-version-lcd-bootloader"
},
"state": {
"value": "2.01.109.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.01.1283.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.1019.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-app-fanCtrl1",
"config": {
"name": "fw-version-vfc-app-fanCtrl1"
},
"state": {
"value": "2.00.1008.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-bootloader-fanCtrl1",
"config": {
"name": "fw-version-vfc-bootloader-fanCtrl1"
},
"state": {
"value": "1.02.798.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl1",
"config": {
"name": "fw-version-vpc-app-psuCtrl1"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl2",
"config": {
"name": "fw-version-vpc-app-psuCtrl2"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl1",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl1"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl2",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl2"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
}
]
},
"storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7602Q",
"serial-no": "S435NE0MA00234",
"size": "683.00GB",
"type": "nvme",
"disk-io": {
"total-iops": "0",
"read-iops": "1565157",
"read-merged": "664508",
"read-bytes": "16619667456",
"read-latency-ms": "555713",
"write-iops": "502666553",
"write-merged": "383907046",
"write-bytes": "4484356748800",
"write-latency-ms": "19299100",
"read-iops-per-sec": "0",
"read-bytes-per-sec": "0",
"write-iops-per-sec": "360",
"write-bytes-per-sec": "2629548"
}
}
}
]
}
}
},
"cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 1,
"state": {
"cachesize": "2048(KB)",
"core-cnt": "8",
"freq": "2200.000(MHz)",
"stepping": "1",
"thread-cnt": "8",
"modelname": "Intel(R) Atom(TM) CPU C3758 @ 2.20GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"thread": "cpu",
"current": 28,
"five-second-avg": 26,
"one-minute-avg": 24,
"five-minute-avg": 26
},
"f5-platform:cpu-threads": {
"cpu-thread": [
{
"thread-index": 0,
"thread": "cpu0",
"current": 19,
"five-second-avg": 27,
"one-minute-avg": 24,
"five-minute-avg": 26
},
{
"thread-index": 1,
"thread": "cpu1",
"current": 32,
"five-second-avg": 26,
"one-minute-avg": 26,
"five-minute-avg": 27
},
{
"thread-index": 2,
"thread": "cpu2",
"current": 38,
"five-second-avg": 27,
"one-minute-avg": 23,
"five-minute-avg": 26
},
{
"thread-index": 3,
"thread": "cpu3",
"current": 16,
"five-second-avg": 23,
"one-minute-avg": 23,
"five-minute-avg": 26
},
{
"thread-index": 4,
"thread": "cpu4",
"current": 24,
"five-second-avg": 27,
"one-minute-avg": 23,
"five-minute-avg": 26
},
{
"thread-index": 5,
"thread": "cpu5",
"current": 43,
"five-second-avg": 26,
"one-minute-avg": 26,
"five-minute-avg": 27
},
{
"thread-index": 6,
"thread": "cpu6",
"current": 22,
"five-second-avg": 25,
"one-minute-avg": 22,
"five-minute-avg": 25
},
{
"thread-index": 7,
"thread": "cpu7",
"current": 29,
"five-second-avg": 25,
"one-minute-avg": 24,
"five-minute-avg": 27
}
]
}
}
}
},
{
"name": "controller-2",
"config": {
"name": "controller-2"
},
"state": {
"description": "VELOS SX410",
"serial-no": "bld424548s",
"part-no": "SUB-0881-00 REV B",
"empty": false,
"f5-platform:tpm-integrity-status": "Valid",
"f5-platform:nebs": {
"capable": true,
"enabled": false
},
"f5-platform:file-systems": {
"file-system": [
{
"area": "platform/sysroot",
"category": "F5OS System",
"total": "353835896832",
"free": "232129888256",
"used": "103704895488",
"used-percent": 30
},
{
"area": "platform/images",
"category": "F5OS Images",
"total": "270494859264",
"free": "173605605376",
"used": "83122081792",
"used-percent": 32
},
{
"area": "/var/roothome/etcd3mount",
"category": "F5OS System",
"total": "5196181504",
"free": "4514873344",
"used": "396107776",
"used-percent": 8
},
{
"area": "partition2/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10520436736",
"used": "206495744",
"used-percent": 1
},
{
"area": "partition2/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition2/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
},
{
"area": "partition3/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10527416320",
"used": "199516160",
"used-percent": 1
},
{
"area": "partition3/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition3/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
}
]
},
"f5-platform:memory": {
"total": "33397866496",
"available": "25015001088",
"free": "490733568",
"used-percent": 25,
"platform-total": "33397866496",
"platform-used": "11680473088",
"platform-used-percent": 35
},
"f5-platform:temperature": {
"current": "27.6",
"average": "27.4",
"minimum": "25.9",
"maximum": "28.8"
},
"f5-platform:disk-data": {
"stats": [
{
"disk-data-name": "available",
"disk-data-value": "232130322432"
},
{
"disk-data-name": "capacity",
"disk-data-value": "353835896832"
},
{
"disk-data-name": "used",
"disk-data-value": "103704461312"
}
]
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "2.03.175.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.705",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "01.03.0A",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive",
"config": {
"name": "fw-version-drive"
},
"state": {
"value": "EDA7602Q",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-app",
"config": {
"name": "fw-version-lcd-app"
},
"state": {
"value": "3.00.144.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-bootloader",
"config": {
"name": "fw-version-lcd-bootloader"
},
"state": {
"value": "2.01.109.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.01.1283.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.1019.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-app-fanCtrl1",
"config": {
"name": "fw-version-vfc-app-fanCtrl1"
},
"state": {
"value": "2.00.1008.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-bootloader-fanCtrl1",
"config": {
"name": "fw-version-vfc-bootloader-fanCtrl1"
},
"state": {
"value": "1.02.798.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl1",
"config": {
"name": "fw-version-vpc-app-psuCtrl1"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl2",
"config": {
"name": "fw-version-vpc-app-psuCtrl2"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl1",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl1"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl2",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl2"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
}
]
},
"storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7602Q",
"serial-no": "S435NE0MA00209",
"size": "683.00GB",
"type": "nvme",
"disk-io": {
"total-iops": "0",
"read-iops": "1680343",
"read-merged": "1138227",
"read-bytes": "22058972160",
"read-latency-ms": "466285",
"write-iops": "646894011",
"write-merged": "488592072",
"write-bytes": "6097242719232",
"write-latency-ms": "27061976",
"read-iops-per-sec": "0",
"read-bytes-per-sec": "0",
"write-iops-per-sec": "352",
"write-bytes-per-sec": "2974605"
}
}
}
]
}
}
},
"cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 1,
"state": {
"cachesize": "2048(KB)",
"core-cnt": "8",
"freq": "2200.000(MHz)",
"stepping": "1",
"thread-cnt": "8",
"modelname": "Intel(R) Atom(TM) CPU C3758 @ 2.20GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"thread": "cpu",
"current": 45,
"five-second-avg": 40,
"one-minute-avg": 43,
"five-minute-avg": 43
},
"f5-platform:cpu-threads": {
"cpu-thread": [
{
"thread-index": 0,
"thread": "cpu0",
"current": 48,
"five-second-avg": 41,
"one-minute-avg": 44,
"five-minute-avg": 42
},
{
"thread-index": 1,
"thread": "cpu1",
"current": 48,
"five-second-avg": 40,
"one-minute-avg": 43,
"five-minute-avg": 42
},
{
"thread-index": 2,
"thread": "cpu2",
"current": 54,
"five-second-avg": 40,
"one-minute-avg": 42,
"five-minute-avg": 42
},
{
"thread-index": 3,
"thread": "cpu3",
"current": 39,
"five-second-avg": 39,
"one-minute-avg": 43,
"five-minute-avg": 43
},
{
"thread-index": 4,
"thread": "cpu4",
"current": 42,
"five-second-avg": 39,
"one-minute-avg": 43,
"five-minute-avg": 43
},
{
"thread-index": 5,
"thread": "cpu5",
"current": 51,
"five-second-avg": 43,
"one-minute-avg": 43,
"five-minute-avg": 44
},
{
"thread-index": 6,
"thread": "cpu6",
"current": 34,
"five-second-avg": 42,
"one-minute-avg": 43,
"five-minute-avg": 43
},
{
"thread-index": 7,
"thread": "cpu7",
"current": 44,
"five-second-avg": 32,
"one-minute-avg": 42,
"five-minute-avg": 42
}
]
}
}
}
},
{
"name": "fantray-1",
"config": {
"name": "fantray-1"
},
"state": {
"firmware-version": "1.02.798.0.1",
"software-version": "2.00.1008.0.1",
"serial-no": "sub0772g006w",
"part-no": "SUB-0772-05 REV B",
"empty": false
},
"properties": {
"f5-platform:fantray-state": {
"fantray-temperature": "34.0",
"inlet-fan-1-speed": 6775,
"inlet-fan-2-speed": 6714,
"inlet-fan-3-speed": 6729,
"exhaust-fan-1-speed": 6740,
"exhaust-fan-2-speed": 6726,
"exhaust-fan-3-speed": 6759
}
}
},
{
"name": "lcd",
"config": {
"name": "lcd",
"f5-platform-lcd:mode": "secure"
},
"state": {
"serial-no": "sub0811g002h",
"part-no": "SUB-0811-02 REV B",
"empty": false,
"f5-platform-lcd:mode": "secure"
}
},
{
"name": "psu-1",
"config": {
"name": "psu-1"
},
"state": {
"serial-no": "19331BPJ0075",
"part-no": "PWR-0366-00",
"empty": false
},
"properties": {
"f5-platform:psu-state": {
"psu-current-in": "3.156",
"psu-current-out": "48.687",
"psu-power-in": "640.0",
"psu-power-out": "600.0",
"psu-voltage-in": "203.75",
"psu-voltage-out": "12.327",
"psu-temperature-1": "25.0",
"psu-temperature-2": "40.5",
"psu-temperature-3": "37.2",
"psu-fan-1-speed": 7552,
"psu-fan-2-speed": 7136
}
}
},
{
"name": "psu-2",
"config": {
"name": "psu-2"
},
"state": {
"serial-no": "19332BPJ0129",
"part-no": "PWR-0366-00",
"empty": false
},
"properties": {
"f5-platform:psu-state": {
"psu-current-in": "3.281",
"psu-current-out": "50.875",
"psu-power-in": "670.0",
"psu-power-out": "627.0",
"psu-voltage-in": "204.0",
"psu-voltage-out": "12.321",
"psu-temperature-1": "24.7",
"psu-temperature-2": "41.0",
"psu-temperature-3": "36.2",
"psu-fan-1-speed": 7392,
"psu-fan-2-speed": 7040
}
}
},
{
"name": "psu-3",
"config": {
"name": "psu-3"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "psu-4",
"config": {
"name": "psu-4"
},
"state": {
"serial-no": "Not Available",
"part-no": "Not Available",
"empty": true
}
},
{
"name": "psu-controller-1",
"config": {
"name": "psu-controller-1"
},
"state": {
"firmware-version": "1.02.669.0.1",
"software-version": "2.00.875.0.1",
"serial-no": "sub0759g003u",
"part-no": "SUB-0759-04 REV A",
"empty": false
}
},
{
"name": "psu-controller-2",
"config": {
"name": "psu-controller-2"
},
"state": {
"firmware-version": "1.02.669.0.1",
"software-version": "2.00.875.0.1",
"serial-no": "sub0759g003z",
"part-no": "SUB-0759-04 REV A",
"empty": false
}
}
]
}
}
Monitoring VELOS Chassis Status via API¶
You can get the status of the VELOS chassis via API by using the following API call.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=chassis
In the output, you’ll see the chassis description, serial number, part number, and NEBS status. You’ll also see the current PSU state.
{
"openconfig-platform:component": [
{
"name": "chassis",
"config": {
"name": "chassis"
},
"state": {
"description": "VELOS CX410",
"serial-no": "chs600032s",
"part-no": "400-0087-02 REV 6",
"empty": false,
"f5-platform:nebs": {
"capable": false,
"enabled": false
}
},
"f5-platform:psu": {
"state": {
"redundancy-mode": "no-redundancy",
"severity": "warning"
},
"config": {
"redundancy-mode": "no-redundancy",
"severity": "warning"
}
}
}
]
}
Monitoring VELOS Controller Status via API¶
The API call below will query a specific system controller. You can replace component=controller-1 at the end of the API call with component=controller-2 to see the second controller status.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=controller-1
In the output, you’ll see the controller description, serial number, part number, NEBS and TPM status. You’ll also see detailed controller filesystem information, CPU, memory, and storage stats and temperature information. You can also monitor the various firmware update status and versions.
{
"openconfig-platform:component": [
{
"name": "controller-1",
"config": {
"name": "controller-1"
},
"state": {
"description": "VELOS SX410",
"serial-no": "bld422584s",
"part-no": "SUB-0881-00 REV B",
"empty": false,
"f5-platform:tpm-integrity-status": "Valid",
"f5-platform:nebs": {
"capable": true,
"enabled": false
},
"f5-platform:file-systems": {
"file-system": [
{
"area": "platform/sysroot",
"category": "F5OS System",
"total": "353835896832",
"free": "233832402944",
"used": "102002380800",
"used-percent": 30
},
{
"area": "platform/images",
"category": "F5OS Images",
"total": "270494859264",
"free": "182400954368",
"used": "74326732800",
"used-percent": 28
},
{
"area": "partition2/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10492076032",
"used": "234856448",
"used-percent": 2
},
{
"area": "partition2/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition2/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
},
{
"area": "partition3/config",
"category": "F5OS System",
"total": "10726932480",
"free": "10499624960",
"used": "227307520",
"used-percent": 2
},
{
"area": "partition3/images",
"category": "F5OS Partition Images",
"total": "16095641600",
"free": "12324638720",
"used": "3771002880",
"used-percent": 23
},
{
"area": "partition3/shared",
"category": "F5OS Partition",
"total": "10726932480",
"free": "10682204160",
"used": "44728320",
"used-percent": 0
}
]
},
"f5-platform:memory": {
"total": "33397862400",
"available": "25480728576",
"free": "745287680",
"used-percent": 23,
"platform-total": "33397862400",
"platform-used": "12087713792",
"platform-used-percent": 36
},
"f5-platform:temperature": {
"current": "27.2",
"average": "27.1",
"minimum": "25.7",
"maximum": "29.0"
},
"f5-platform:disk-data": {
"stats": [
{
"disk-data-name": "available",
"disk-data-value": "233832509440"
},
{
"disk-data-name": "capacity",
"disk-data-value": "353835896832"
},
{
"disk-data-name": "used",
"disk-data-value": "102002274304"
}
]
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "2.03.175.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.705",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "01.03.0A",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive",
"config": {
"name": "fw-version-drive"
},
"state": {
"value": "EDA7602Q",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-app",
"config": {
"name": "fw-version-lcd-app"
},
"state": {
"value": "3.00.144.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-bootloader",
"config": {
"name": "fw-version-lcd-bootloader"
},
"state": {
"value": "2.01.109.00.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.01.1283.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.1019.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-app-fanCtrl1",
"config": {
"name": "fw-version-vfc-app-fanCtrl1"
},
"state": {
"value": "2.00.1008.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-bootloader-fanCtrl1",
"config": {
"name": "fw-version-vfc-bootloader-fanCtrl1"
},
"state": {
"value": "1.02.798.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl1",
"config": {
"name": "fw-version-vpc-app-psuCtrl1"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl2",
"config": {
"name": "fw-version-vpc-app-psuCtrl2"
},
"state": {
"value": "2.00.875.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl1",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl1"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl2",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl2"
},
"state": {
"value": "1.02.669.0.1",
"f5-platform:update-status": "none"
}
}
]
},
"storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7602Q",
"serial-no": "S435NE0MA00234",
"size": "683.00GB",
"type": "nvme",
"disk-io": {
"total-iops": "0",
"read-iops": "1565157",
"read-merged": "664508",
"read-bytes": "16619667456",
"read-latency-ms": "555713",
"write-iops": "502634370",
"write-merged": "383883211",
"write-bytes": "4484072824320",
"write-latency-ms": "19297968",
"read-iops-per-sec": "0",
"read-bytes-per-sec": "0",
"write-iops-per-sec": "240",
"write-bytes-per-sec": "2046857"
}
}
}
]
}
}
},
"cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 1,
"state": {
"cachesize": "2048(KB)",
"core-cnt": "8",
"freq": "2200.000(MHz)",
"stepping": "1",
"thread-cnt": "8",
"modelname": "Intel(R) Atom(TM) CPU C3758 @ 2.20GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"thread": "cpu",
"current": 38,
"five-second-avg": 36,
"one-minute-avg": 25,
"five-minute-avg": 27
},
"f5-platform:cpu-threads": {
"cpu-thread": [
{
"thread-index": 0,
"thread": "cpu0",
"current": 40,
"five-second-avg": 36,
"one-minute-avg": 24,
"five-minute-avg": 26
},
{
"thread-index": 1,
"thread": "cpu1",
"current": 31,
"five-second-avg": 36,
"one-minute-avg": 25,
"five-minute-avg": 27
},
{
"thread-index": 2,
"thread": "cpu2",
"current": 33,
"five-second-avg": 35,
"one-minute-avg": 25,
"five-minute-avg": 27
},
{
"thread-index": 3,
"thread": "cpu3",
"current": 42,
"five-second-avg": 39,
"one-minute-avg": 25,
"five-minute-avg": 26
},
{
"thread-index": 4,
"thread": "cpu4",
"current": 46,
"five-second-avg": 39,
"one-minute-avg": 24,
"five-minute-avg": 26
},
{
"thread-index": 5,
"thread": "cpu5",
"current": 36,
"five-second-avg": 36,
"one-minute-avg": 25,
"five-minute-avg": 27
},
{
"thread-index": 6,
"thread": "cpu6",
"current": 33,
"five-second-avg": 30,
"one-minute-avg": 23,
"five-minute-avg": 26
},
{
"thread-index": 7,
"thread": "cpu7",
"current": 45,
"five-second-avg": 35,
"one-minute-avg": 26,
"five-minute-avg": 27
}
]
}
}
}
}
]
}
Monitoring VELOS Power Supply Status via API¶
You can monitor any power supply within the VELOS chassis. You can replace component=psu-1 at the end of the API call with component=psu-2 or any other psu number to monitor any specific PSU status.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=psu-1
In the output you’ll see the PSU serial number, part number, and state. The state will include current, power, voltage, temperature and fan speed of each power supply.
{
"openconfig-platform:component": [
{
"name": "psu-1",
"config": {
"name": "psu-1"
},
"state": {
"serial-no": "19331BPJ0075",
"part-no": "PWR-0366-00",
"empty": false
},
"properties": {
"f5-platform:psu-state": {
"psu-current-in": "3.113",
"psu-current-out": "48.187",
"psu-power-in": "627.0",
"psu-power-out": "594.0",
"psu-voltage-in": "204.0",
"psu-voltage-out": "12.324",
"psu-temperature-1": "25.0",
"psu-temperature-2": "39.7",
"psu-temperature-3": "36.5",
"psu-fan-1-speed": 7552,
"psu-fan-2-speed": 6976
}
}
}
]
}
Monitoring VELOS Power Supply Controller Status via API¶
Each VELOS chassis has multiple power supply controllers that are fully redundant. In the CX410 chassis there are two psu-controllers, and in the CX1610 chassis there are 4 psu controllers. You can monitor their status with the following API call. You can replace component=psu-controller-1 at the end of the API call with component=psu-controller-2 or replace it with whichever psu-controller number you wish to monitor.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=psu-controller-1
In the output you’ll see the firmware and software versions, serial number, part number and empty state which indicates if the psu-controller is installed.
{
"openconfig-platform:component": [
{
"name": "psu-controller-1",
"config": {
"name": "psu-controller-1"
},
"state": {
"firmware-version": "1.02.669.0.1",
"software-version": "2.00.875.0.1",
"serial-no": "sub0759g003u",
"part-no": "SUB-0759-04 REV A",
"empty": false
}
}
]
}
Monitoring VELOS Fan Tray Status via API¶
Each VELOS chassis has one or more fan trays for cooling. The CX410 chassis has a single fan tray, and the CX1610 chassis four fan trays. You can monitor each fan tray with the API call below. You can replace component=fantray-1 at the end of the API call with component=fantray-2 to see the second controller status.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=fantray-1
In the output you’ll see the firmware and software versions, serial number, part number and empty state which indicates if the fan tray is installed. It will also display the fan tray temperature, inlet fan speeds, and exhaust fan speeds.
{
"openconfig-platform:component": [
{
"name": "fantray-1",
"config": {
"name": "fantray-1"
},
"state": {
"firmware-version": "1.02.798.0.1",
"software-version": "2.00.1008.0.1",
"serial-no": "sub0772g006w",
"part-no": "SUB-0772-05 REV B",
"empty": false
},
"properties": {
"f5-platform:fantray-state": {
"fantray-temperature": "34.0",
"inlet-fan-1-speed": 6775,
"inlet-fan-2-speed": 6746,
"inlet-fan-3-speed": 6750,
"exhaust-fan-1-speed": 6730,
"exhaust-fan-2-speed": 6732,
"exhaust-fan-3-speed": 6795
}
}
}
]
}
Monitoring VELOS LCD Status via API¶
Each VELOS chassis has an LCD for initial configuration, alarms, and basic monitoring. You can check the health of the LCD with the following API call.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=lcd
In the output you’ll see the serial number, part number, lcd mode, and empty status.
{
"openconfig-platform:component": [
{
"name": "lcd",
"config": {
"name": "lcd",
"f5-platform-lcd:mode": "secure"
},
"state": {
"serial-no": "sub0811g002h",
"part-no": "SUB-0811-02 REV B",
"empty": false,
"f5-platform-lcd:mode": "secure"
}
}
]
}
Monitoring VELOS Blade Status via API¶
Each VELOS chassis can have multiple data plane blades installed. The CX410 chassis supports up to eight BX110 blades, or four BX520 blades. The CX1610 chassis can support up to sixteen BX520 blades. You can monitor each blade with the API call below. You can replace component=blade-1 at the end of the API call with component=blade-2 or whichever number blade you wish to monitor.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-platform:components/component=blade-1
In the output you’ll see the blade description, serial number, part numbers, NEBS stats, and empty status. You’ll also see the blades firmware status.
{
"openconfig-platform:component": [
{
"name": "blade-1",
"config": {
"name": "blade-1"
},
"state": {
"description": "VELOS BX110",
"serial-no": "bld424551s",
"part-no": "400-0086-02 REV 2",
"empty": false,
"f5-platform:nebs": {
"capable": true,
"enabled": false
}
},
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "3.00.230.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.800",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "05.04.00",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-nvme0n1",
"config": {
"name": "fw-version-drive-nvme0n1"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "2.00.1100.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.868.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.99",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
}
}
]
}
Monitoring VELOS Chassis and Blade Power Levels via API¶
You can monitor the power levels of each blade in the VELOS chassis using the following API call.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-blade-power:blade-power
In the output you can see the total power available, requested, and allocated for all the blades, and then you can see per blade stats showing requested and allocated power as well as the power state.
{
"f5-system-blade-power:blade-power": {
"total": {
"available": 4555,
"requested": 1170,
"allocated": 1170
},
"allocation": [
{
"slot-num": 1,
"requested-power": 390,
"allocated-power": 390,
"power-state": "on"
},
{
"slot-num": 2,
"requested-power": 390,
"allocated-power": 390,
"power-state": "on"
},
{
"slot-num": 3,
"requested-power": 390,
"allocated-power": 390,
"power-state": "on"
},
{
"slot-num": 4,
"requested-power": 0,
"allocated-power": 0
},
{
"slot-num": 5,
"requested-power": 0,
"allocated-power": 0
},
{
"slot-num": 6,
"requested-power": 0,
"allocated-power": 0
},
{
"slot-num": 7,
"requested-power": 0,
"allocated-power": 0
},
{
"slot-num": 8,
"requested-power": 0,
"allocated-power": 0
}
]
}
}
Monitoring VELOS Chassis Base MAC Addresses via API¶
You can monitor the base MAC addresses and their assignment using the following API call.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-chassis-macs:chassis-macs
In the output you’ll see the base MAC address and how MAC addresses get allocated to the partitions.
{
"f5-system-chassis-macs:chassis-macs": {
"base": "0094a18ed000",
"partitions": {
"partition": [
{
"identifier": 2,
"uuid": "91262b92-7496-43c9-a98e-7813b75a6c61",
"macs": {
"mac": [
{
"offset": 8,
"mac-address": "00:94:a1:8e:d0:08"
},
{
"offset": 9,
"mac-address": "00:94:a1:8e:d0:09"
},
{
"offset": 10,
"mac-address": "00:94:a1:8e:d0:0a"
},
{
"offset": 11,
"mac-address": "00:94:a1:8e:d0:0b"
},
{
"offset": 12,
"mac-address": "00:94:a1:8e:d0:0c"
},
{
"offset": 13,
"mac-address": "00:94:a1:8e:d0:0d"
},
{
"offset": 14,
"mac-address": "00:94:a1:8e:d0:0e"
},
{
"offset": 15,
"mac-address": "00:94:a1:8e:d0:0f"
},
{
"offset": 16,
"mac-address": "00:94:a1:8e:d0:10"
},
{
"offset": 17,
"mac-address": "00:94:a1:8e:d0:11"
},
{
"offset": 18,
"mac-address": "00:94:a1:8e:d0:12"
},
{
"offset": 19,
"mac-address": "00:94:a1:8e:d0:13"
},
{
"offset": 20,
"mac-address": "00:94:a1:8e:d0:14"
},
{
"offset": 21,
"mac-address": "00:94:a1:8e:d0:15"
},
{
"offset": 22,
"mac-address": "00:94:a1:8e:d0:16"
},
{
"offset": 23,
"mac-address": "00:94:a1:8e:d0:17"
}
]
}
},
{
"identifier": 3,
"uuid": "05114867-6370-426c-99e6-2e0b29125c64",
"macs": {
"mac": [
{
"offset": 24,
"mac-address": "00:94:a1:8e:d0:18"
},
{
"offset": 25,
"mac-address": "00:94:a1:8e:d0:19"
},
{
"offset": 26,
"mac-address": "00:94:a1:8e:d0:1a"
},
{
"offset": 27,
"mac-address": "00:94:a1:8e:d0:1b"
},
{
"offset": 136,
"mac-address": "00:94:a1:8e:d0:88"
},
{
"offset": 137,
"mac-address": "00:94:a1:8e:d0:89"
},
{
"offset": 138,
"mac-address": "00:94:a1:8e:d0:8a"
},
{
"offset": 139,
"mac-address": "00:94:a1:8e:d0:8b"
},
{
"offset": 140,
"mac-address": "00:94:a1:8e:d0:8c"
},
{
"offset": 141,
"mac-address": "00:94:a1:8e:d0:8d"
},
{
"offset": 142,
"mac-address": "00:94:a1:8e:d0:8e"
},
{
"offset": 143,
"mac-address": "00:94:a1:8e:d0:8f"
},
{
"offset": 144,
"mac-address": "00:94:a1:8e:d0:90"
},
{
"offset": 145,
"mac-address": "00:94:a1:8e:d0:91"
},
{
"offset": 146,
"mac-address": "00:94:a1:8e:d0:92"
},
{
"offset": 147,
"mac-address": "00:94:a1:8e:d0:93"
},
{
"offset": 148,
"mac-address": "00:94:a1:8e:d0:94"
},
{
"offset": 149,
"mac-address": "00:94:a1:8e:d0:95"
},
{
"offset": 150,
"mac-address": "00:94:a1:8e:d0:96"
},
{
"offset": 151,
"mac-address": "00:94:a1:8e:d0:97"
},
{
"offset": 152,
"mac-address": "00:94:a1:8e:d0:98"
},
{
"offset": 153,
"mac-address": "00:94:a1:8e:d0:99"
},
{
"offset": 154,
"mac-address": "00:94:a1:8e:d0:9a"
},
{
"offset": 155,
"mac-address": "00:94:a1:8e:d0:9b"
},
{
"offset": 264,
"mac-address": "00:94:a1:8e:d1:08"
},
{
"offset": 265,
"mac-address": "00:94:a1:8e:d1:09"
},
{
"offset": 266,
"mac-address": "00:94:a1:8e:d1:0a"
},
{
"offset": 267,
"mac-address": "00:94:a1:8e:d1:0b"
},
{
"offset": 268,
"mac-address": "00:94:a1:8e:d1:0c"
},
{
"offset": 269,
"mac-address": "00:94:a1:8e:d1:0d"
},
{
"offset": 270,
"mac-address": "00:94:a1:8e:d1:0e"
},
{
"offset": 271,
"mac-address": "00:94:a1:8e:d1:0f"
}
]
}
}
]
}
}
}
Chassis Inventory from the API¶
The overall chassis status can be queried via the following API command:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=chassis
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "chassis",
"config": {
"name": "chassis"
},
"state": {
"description": "VELOS CX410",
"serial-no": "chs600148s",
"part-no": "400-0087-01 REV 1",
"empty": false,
"f5-platform:nebs": {
"capable": false,
"enabled": false
}
}
}
]
}
LCD Inventory from the API¶
The chassis LCD panel status can be queried via the following API command:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=lcd
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "lcd",
"config": {
"name": "lcd"
},
"state": {
"serial-no": "sub0811g002h",
"part-no": "SUB-0811-02 REV B",
"empty": false
}
}
]
}
Fan Tray Inventory from the API¶
The chassis fan tray status can be queried via the following API command:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=fantray-1
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "fantray-1",
"config": {
"name": "fantray-1"
},
"state": {
"firmware-version": "1.02.798.0.1",
"software-version": "1.00.824.0.1",
"serial-no": "sub0772g002f",
"part-no": "SUB-0772-04 REV A",
"empty": false
}
}
]
}
Power Supply Controller Inventory from the API¶
There are two power supply controllers in the CX410 chassis. They can each be queried via the following API call. Substitute psu-controller-2 for the second controller status:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=psu-controller-1
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "psu-controller-1",
"config": {
"name": "psu-controller-1"
},
"state": {
"firmware-version": "1.02.669.0.1",
"software-version": "1.00.694.0.1",
"serial-no": "sub0759g003u",
"part-no": "SUB-0759-04 REV A",
"empty": false
}
}
]
}
Power Supply Status Inventory the API¶
The CX410 chassis can have up to 4 individual power supplies installed. Each can be queried via the following API command. Substitute psu-1, psu-2, psu-3, or psu-4 at the end of the API call:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=psu-1
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "psu-1",
"config": {
"name": "psu-1"
},
"state": {
"serial-no": "19331BPJ0075",
"part-no": "SPAFFIV-07",
"empty": false
}
}
]
}
Blade Inventory from the API¶
There can be up to 8 blades installed in the CX410 chassis. Each one can be queried by changing the blade number at the end:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=blade-1
The body of the response will look similar to the output below.
{
"openconfig-platform:component": [
{
"name": "blade-1",
"config": {
"name": "blade-1"
},
"state": {
"description": "VELOS BX110",
"serial-no": "bld422435s",
"part-no": "400-0086-02 REV 2",
"empty": false,
"f5-platform:nebs": {
"capable": true,
"enabled": true
}
}
}
]
}
System Controller 1 & 2 Status from the API¶
There are 2 redundant system controllers in the CX410 chassis. Each one can be queried using the following API call. Substitute controller=2 to query the second system controller:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=controller-1
Or:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-platform:components/component=controller-2
The output of the API call above will be broken out into the following detail:
The beginning of the output highlights any equipment failures or mismatches and whether the chassis is NEBS enabled. Next is the current status of the platform memory for this system controller showing available, used, and used-precent. Next, are the thermal readings for temperature showing current, average, minimum, & maximum readings.
{
"openconfig-platform:component": [
{
"name": "controller-1",
"config": {
"name": "controller-1"
},
"state": {
"description": "VELOS SX410",
"serial-no": "bld422584s",
"part-no": "SUB-0881-00 REV B",
"empty": false,
"f5-platform:tpm-integrity-status": "Valid",
"f5-platform:nebs": {
"capable": true,
"enabled": false
},
"f5-platform:memory": {
"available": "25571659776",
"free": "13131718656",
"used-percent": 24
},
"f5-platform:temperature": {
"current": "24.1",
"average": "24.6",
"minimum": "22.9",
"maximum": "28.0"
}
},
Next, in the output is properties which tracks the various software and BIOS versions:
"properties": {
"property": [
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "1.03.006.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.0.4.211",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "01.03.0A",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-app",
"config": {
"name": "fw-version-lcd-app"
},
"state": {
"value": "2.02.113.00.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-bootloader",
"config": {
"name": "fw-version-lcd-bootloader"
},
"state": {
"value": "2.01.109.00.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "1.00.1067.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.1019.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-app-fanCtrl1",
"config": {
"name": "fw-version-vfc-app-fanCtrl1"
},
"state": {
"value": "1.00.824.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vfc-bootloader-fanCtrl1",
"config": {
"name": "fw-version-vfc-bootloader-fanCtrl1"
},
"state": {
"value": "1.02.798.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl1",
"config": {
"name": "fw-version-vpc-app-psuCtrl1"
},
"state": {
"value": "1.00.694.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-app-psuCtrl2",
"config": {
"name": "fw-version-vpc-app-psuCtrl2"
},
"state": {
"value": "1.00.694.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl1",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl1"
},
"state": {
"value": "1.02.669.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-vpc-bootloader-psuCtrl2",
"config": {
"name": "fw-version-vpc-bootloader-psuCtrl2"
},
"state": {
"value": "1.02.669.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
},
The next section covers the storage details of the system:
"storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7502Q",
"serial-no": "S435NE0MA00234",
"size": "683.00GB",
"type": "nvme"
}
},
{
"disk-name": "sda",
"state": {
"model": "USB 3.0",
"vendor": "PNY",
"version": "FD",
"serial-no": "",
"size": "57.00GB",
"type": "usb"
}
}
]
}
}
},
The last section of this output shows CPU state and stats. There are 8 CPU cores on each system controller, the output below is truncated as the stats are the same for each CPU (0-7). The output shows overall platform CPU utilization including current, five-second-avg, one-minute-avg, and five-minute-avg.
"cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 1,
"state": {
"cachesize": "2048(KB)",
"core-cnt": "8",
"freq": "2200.000(MHz)",
"stepping": "1",
"thread-cnt": "8",
"modelname": "Intel(R) Atom(TM) CPU C3758 @ 2.20GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"core": "cpu",
"current": 44,
"five-second-avg": 31,
"one-minute-avg": 47,
"five-minute-avg": 43
},
"f5-platform:cpu-cores": {
"cpu-core": [
{
"core-index": 0,
"core": "cpu0",
"current": 34,
"five-second-avg": 24,
"one-minute-avg": 49,
"five-minute-avg": 44
},
{
"core-index": 1,
"core": "cpu1",
"current": 49,
"five-second-avg": 33,
"one-minute-avg": 44,
"five-minute-avg": 42
},
{
"core-index": 2,
"core": "cpu2",
"current": 55,
"five-second-avg": 33,
"one-minute-avg": 49,
"five-minute-avg": 44
},
{
"core-index": 3,
"core": "cpu3",
"current": 36,
"five-second-avg": 34,
"one-minute-avg": 48,
"five-minute-avg": 43
},
{
"core-index": 4,
"core": "cpu4",
"current": 56,
"five-second-avg": 26,
"one-minute-avg": 46,
"five-minute-avg": 43
},
{
"core-index": 5,
"core": "cpu5",
"current": 43,
"five-second-avg": 38,
"one-minute-avg": 48,
"five-minute-avg": 43
},
{
"core-index": 6,
"core": "cpu6",
"current": 44,
"five-second-avg": 33,
"one-minute-avg": 46,
"five-minute-avg": 44
},
{
"core-index": 7,
"core": "cpu7",
"current": 38,
"five-second-avg": 27,
"one-minute-avg": 46,
"five-minute-avg": 44
}
]
}
}
}
}
]
}
Monitoring VELOS Services¶
Monitoring System Controller Health¶
Monitoring System Controller Health via CLI¶
To see if the Openshift cluster is up and running use the show cluster command. You should see status for each installed blade and controller in the Ready state. Each section under Stage Name should show a Status of Done. During the bootup process you can monitor the status of the individual stages. The most recent Openshift logs are displayed, and you can determine if the chassis is healthy or having issues.
syscon-2-active# show cluster
NAME STATUS TIME CREATED ROLES CPU PODS MEMORY HUGEPAGES
--------------------------------------------------------------------------------------------
blade-1 Ready 2021-01-30T21:50:32Z compute 28 250 26112340Ki 102890Mi
blade-2 Ready 2021-01-16T08:20:08Z compute 28 250 26112340Ki 102890Mi
blade-3 Ready 2021-01-30T21:50:31Z compute 28 250 26112340Ki 102890Mi
controller-1 Ready 2020-12-08T21:09:45Z infra,master - - - -
controller-2 Ready 2020-12-08T21:09:45Z infra,master - - - -
STAGE NAME STATUS
---------------------------------
AddingBlade Done
HealthCheck Done
HostedInstall Done
MasterAdditionalInstall Done
MasterInstall Done
NodeBootstrap Done
NodeJoin Done
Prerequisites Done
ServiceCatalogInstall Done
etcdInstall Done
cluster cluster-status summary-status "Openshift cluster is healthy, and all controllers and blades are ready."
INDEX STATUS
---------------------------------------------------------------------------------------------------
0 2021-02-06 18:19:59.445387 - Orchestration manager startup.
1 2021-02-06 18:20:15.219686 - Orchestration manager transitioning to active.
2 2021-02-06 18:20:16.476607 - Can now ping controller-1.chassis.local (10.1.3.51).
3 2021-02-06 18:20:26.863054 - Can now ping controller-2.chassis.local (10.1.3.52).
4 2021-02-06 18:20:27.727600 - Successfully ssh'd to CC controller-1.chassis.local.
5 2021-02-06 18:20:28.311630 - Successfully ssh'd to CC controller-2.chassis.local.
6 2021-02-06 18:20:43.329803 - Found valid DNS configuration on controller-2.chassis.local.
7 2021-02-06 18:21:23.039277 - Can now ping blade blade-1.chassis.local (10.1.3.1).
8 2021-02-06 18:21:23.274312 - Can now ping blade blade-2.chassis.local (10.1.3.2).
9 2021-02-06 18:21:23.520862 - Can now ping blade blade-3.chassis.local (10.1.3.3).
10 2021-02-06 18:21:56.539448 - Controller 1 is ready in openshift cluster.
11 2021-02-06 18:21:56.539547 - Controller 2 is ready in openshift cluster.
12 2021-02-06 18:21:56.539583 - Blade 1 is ready in openshift cluster.
13 2021-02-06 18:21:56.539618 - Blade 2 is ready in openshift cluster.
14 2021-02-06 18:21:56.539652 - Blade 3 is ready in openshift cluster.
15 2021-02-06 18:21:56.539687 - Openshift cluster is ready.
16 2021-02-06 18:21:56.541546 - Successfully SSH'd to blade blade-1.chassis.local.
17 2021-02-06 18:21:56.970645 - Successfully SSH'd to blade blade-2.chassis.local.
18 2021-02-06 18:21:57.492814 - Successfully SSH'd to blade blade-3.chassis.local.
19 2021-02-06 18:21:58.312127 - Openshift cluster is NOT ready.
20 2021-02-06 18:22:19.060573 - Openshift cluster is ready.
Monitoring System Controller Health via webUI¶
In the webUI a high-level status of the system controller HA state, and the ability to force a failover can be done from the System Settings -> Controller Management screen. Here you can see system controller 1 & 2 status, and role. You can optionally configure the type of failover with either auto (recommended) or Preferred node. You can also force a failover from one system controller to the other and perform controller software upgrades.
The dashboard in the system controller webUI also provides high level status of each controller and its current role.
The Controller View section of the dashboard provides storage, memory, and CPU utilization for each system controller.
Active alarms & events can be viewed form the system controllers System Settings > Alarms & Events page:
Monitoring System Controller Health via API¶
To see if the Openshift/K3s cluster is up and running use the API request below.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-chassis-cluster:cluster
You should see status for each installed blade and controller in the Ready state. Each section under Stage Name should show a Status of Done. During the bootup process you can monitor the status of the individual stages. The most recent Openshift/K3s logs are displayed, and you can determine if the chassis is healthy or having issues.
{
"f5-chassis-cluster:cluster": {
"nodes": {
"node": [
{
"name": "blade-1",
"status": "Ready",
"time-created": "2026-06-08T17:10:03Z",
"roles": "compute",
"info": {
"cpu": 22,
"pods": 500,
"memory": "26215232Ki",
"hugepages": "102460Mi",
"memory-usage": "9%",
"cpu-usage": ""
}
},
{
"name": "blade-2",
"status": "Ready",
"time-created": "2026-06-08T18:00:12Z",
"roles": "compute",
"info": {
"cpu": 22,
"pods": 500,
"memory": "26215232Ki",
"hugepages": "102460Mi",
"memory-usage": "9%",
"cpu-usage": ""
}
},
{
"name": "blade-3",
"status": "Ready",
"time-created": "2026-06-08T18:00:12Z",
"roles": "compute",
"info": {
"cpu": 22,
"pods": 500,
"memory": "26215240Ki",
"hugepages": "102460Mi",
"memory-usage": "10%",
"cpu-usage": ""
}
},
{
"name": "controller-1",
"status": "Ready",
"time-created": "2026-06-08T16:40:37Z",
"roles": "control-plane,etcd"
},
{
"name": "controller-2",
"status": "Ready",
"time-created": "2026-06-08T16:01:27Z",
"roles": "control-plane,etcd"
}
]
},
"install-progress": {
"install-progress": [
{
"stage-name": "ClusterDeployment",
"status": "done",
"timestamp": "2026-08-07 16:01:27+00:00",
"version": "Not Available",
"description": "Cluster deployment is successful."
},
{
"stage-name": "EtcdInstall",
"status": "done",
"timestamp": "2026-08-10 14:58:10+00:00",
"version": "Not Applicable",
"description": "Third etcd container launched on active CC."
},
{
"stage-name": "K3SClusterInstall",
"status": "done",
"timestamp": "2026-08-07 16:02:31+00:00",
"version": "1.34.3_50",
"description": "K3s installation/verification is successful on both active and stand-by CC."
},
{
"stage-name": "KubevirtInstall",
"status": "done",
"timestamp": "2026-08-07 16:02:54+00:00",
"version": "1.6.3_120",
"description": "Kubevirt pods are installed successfully."
},
{
"stage-name": "MultusInstall",
"status": "done",
"timestamp": "2026-06-08 10:48:38-07:00",
"version": "4.2.3_11",
"description": "Multus installation/verification is successful in cluster."
}
]
},
"orchestration-manager": {
"cluster-initialized": true,
"cluster-ready": true,
"active-node": "controller-2.chassis.local",
"etcd-ha-initialized": true,
"etcd-ha-running": true,
"multus-status": "healthy",
"kubevirt-status": "healthy",
"controller-status": [
{
"index": 1,
"name": "controller-1.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster"
},
{
"index": 2,
"name": "controller-2.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster"
}
],
"blade-status": [
{
"index": 1,
"name": "blade-1.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-2"
},
{
"index": 2,
"name": "blade-2.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-2"
},
{
"index": 3,
"name": "blade-3.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-3"
}
]
},
"cluster-status": {
"summary-status": "K3S cluster is healthy, and all controllers and blades are ready.",
"cluster-status": [
{
"status": "2026-08-14 06:48:03.709975-07:00 - Can now ping blade blade-3.chassis.local (100.65.3.3)."
},
{
"status": "2026-08-14 06:48:30.936760-07:00 - Successfully SSH'd to blade blade-3.chassis.local."
},
{
"status": "2026-08-14 06:48:36.757164-07:00 - Blade 1 is ready in K3S cluster."
},
{
"status": "2026-08-14 06:48:53.764758-07:00 - Blade 2 is ready in K3S cluster."
},
{
"status": "2026-08-14 06:49:26.154104-07:00 - Blade 3 is ready in K3S cluster."
},
{
"status": "2026-08-14 06:57:10.127456-07:00 - Blade 1 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 06:57:10.127542-07:00 - Blade 2 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 06:57:40.222660-07:00 - Blade 3 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 07:00:26.257292-07:00 - Blade 1 is ready in K3S cluster."
},
{
"status": "2026-08-14 07:00:26.257488-07:00 - Blade 2 is ready in K3S cluster."
},
{
"status": "2026-08-14 07:00:41.623693-07:00 - Blade 3 is ready in K3S cluster."
},
{
"status": "2026-08-14 07:25:52.865689-07:00 - Blade 3 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 07:29:04.251305-07:00 - Blade 3 is ready in K3S cluster."
},
{
"status": "2026-08-14 07:31:42.105910-07:00 - Failed to SSH to blade blade-1.chassis.local."
},
{
"status": "2026-08-14 07:31:49.006265-07:00 - Failed to SSH to blade blade-2.chassis.local."
},
{
"status": "2026-08-14 07:31:56.323011-07:00 - Blade 1 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 07:31:56.323164-07:00 - Blade 2 is NOT ready in K3S cluster."
},
{
"status": "2026-08-14 07:33:46.887525-07:00 - Cannot ping blade blade-1.chassis.local (100.65.3.1) [1]."
},
{
"status": "2026-08-14 07:33:48.926633-07:00 - Cannot ping blade blade-2.chassis.local (100.65.3.2) [1]."
},
{
"status": "2026-08-14 07:34:09.006289-07:00 - Can now ping blade blade-1.chassis.local (100.65.3.1)."
},
{
"status": "2026-08-14 07:34:10.655722-07:00 - Can now ping blade blade-2.chassis.local (100.65.3.2)."
},
{
"status": "2026-08-14 07:34:56.990739-07:00 - Successfully SSH'd to blade blade-1.chassis.local."
},
{
"status": "2026-08-14 07:34:57.400998-07:00 - Successfully SSH'd to blade blade-2.chassis.local."
},
{
"status": "2026-08-14 07:35:04.763672-07:00 - Blade 1 is ready in K3S cluster."
},
{
"status": "2026-08-14 07:35:04.763751-07:00 - Blade 2 is ready in K3S cluster."
}
]
}
}
}
Monitoring the Layer2 Switch Fabric on the System Controllers¶
This section will outline what status should and can be monitored for the Layer2 switch fabric function on the system controllers. Administrators will want to monitor the internal and external interfaces and LAGs for both status and to view stats to understand current utilization. They will be looking to understand what the utilization of each port is and how is traffic balanced between the two switch fabrics on the system controllers. This section will detail what sort of monitoring is currently supported via CLI, webUI, API, and SNMP, and will also detail any altering, logging, or SNMP traps that are available.
Before getting into what monitoring is supported, it is important to understand how things connect and their labeling. The diagram below provides the internal interface numbering on the system controllers so that an admin can monitor the status and statistics of each interface. This will give them visibility into the traffic distribution across the backplane and dual switch fabrics. Link Aggregation is configured on the blade side of the connection, but not on the system controller side. Note that the blade in slot 1 will have two data plane connections, one to system controller 1 interface 1/3.1 and one to system controller 2 interface 2/3.1, the numbering follows the same logic for other slots.
The first digit represents which controller the interface is attached to (controller-1 or controller-2). The second digit will always be 3 for data plane connections, and finally the last digit is the actual interface number on the controller specified in the first digit.

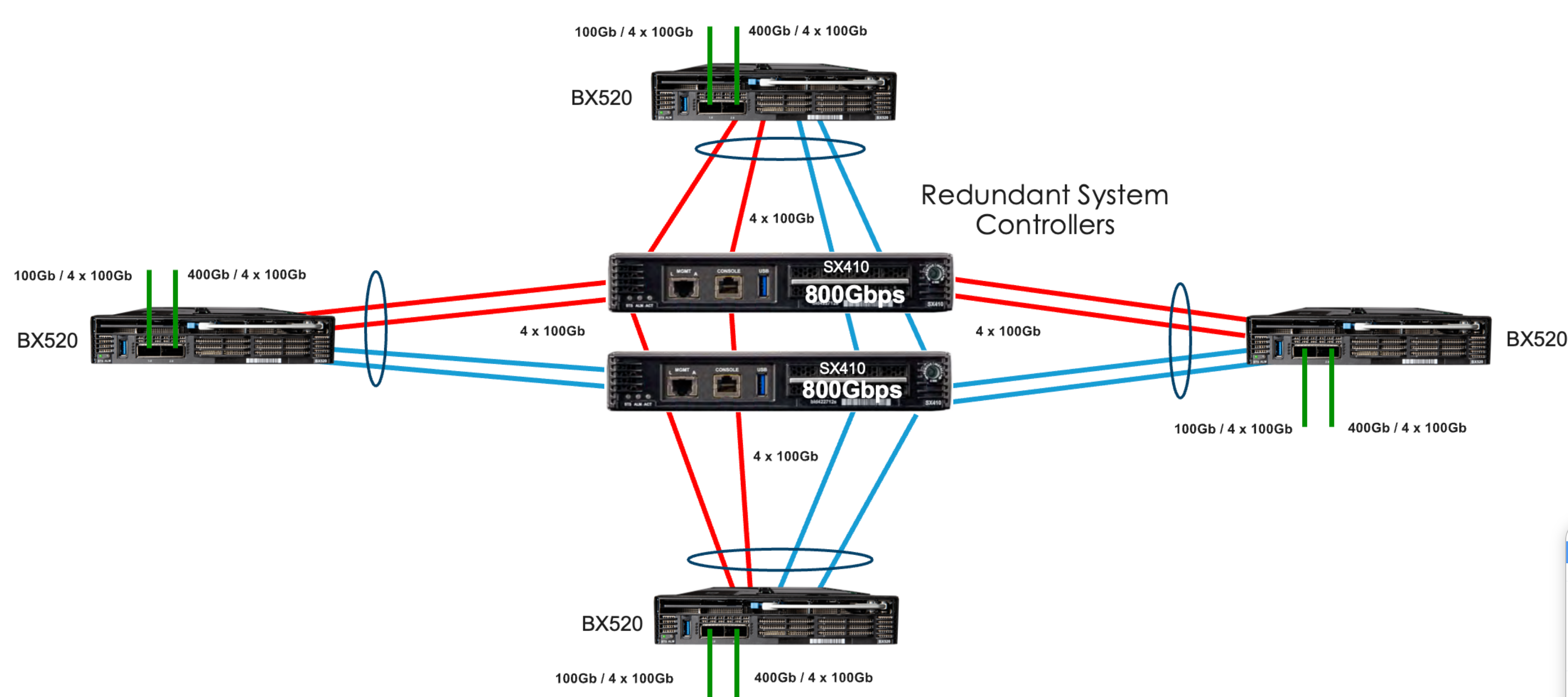

The same chassis and system controllers can also interconnect BX520 blades as seen as the diagram below.

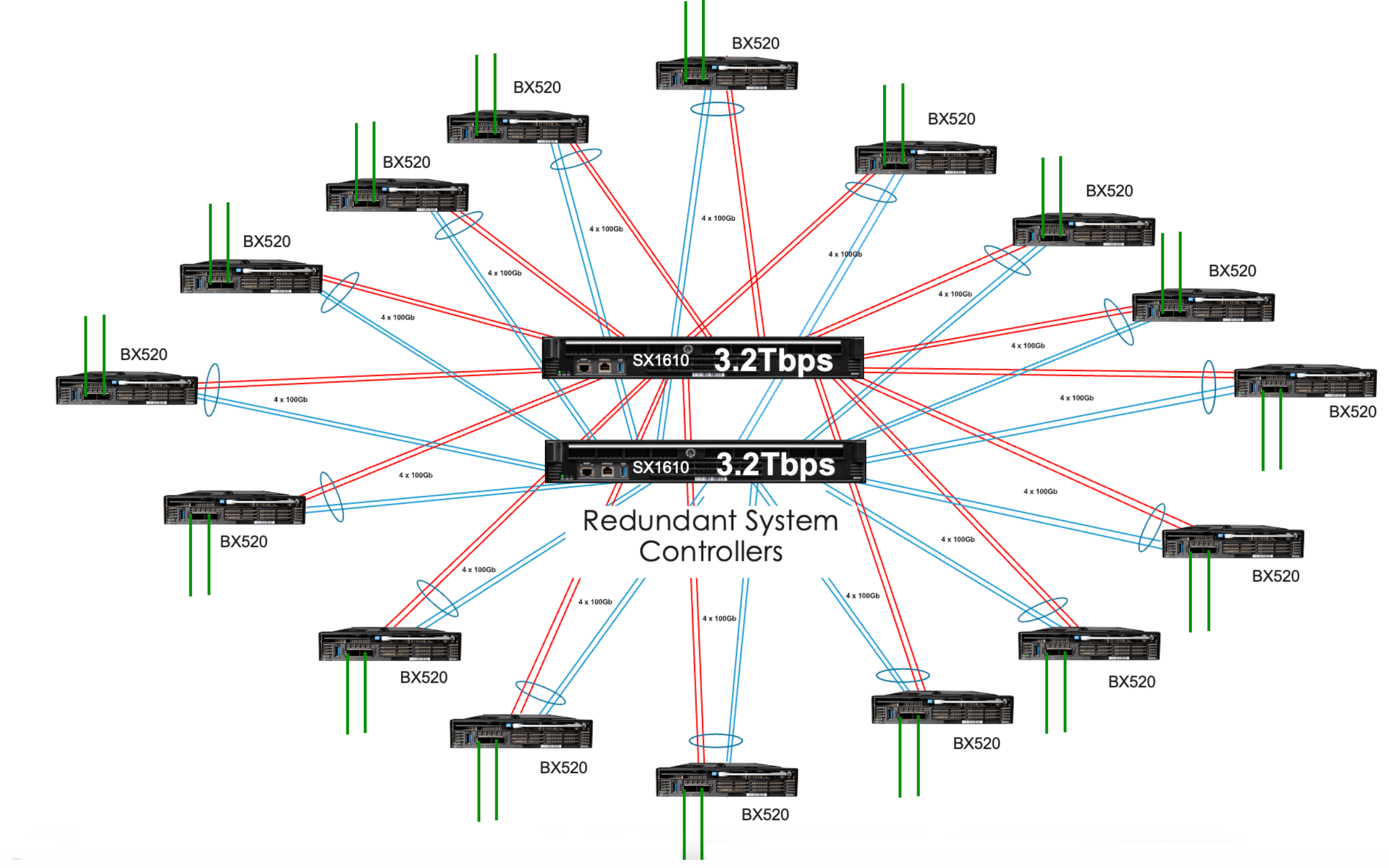

For the CX1610 chassis the dual system controllers are larger and connect more slots and have more bandwidth per slot compared to the CX410 chassis. The CX1610 chassis only supports the BX520 blades, the BX110 blades are not supported in this chassis. Below is a depiction of the dual system controllers acting as a central redundant switch fabric with BX520 blades installed in the CX1610 chassis.

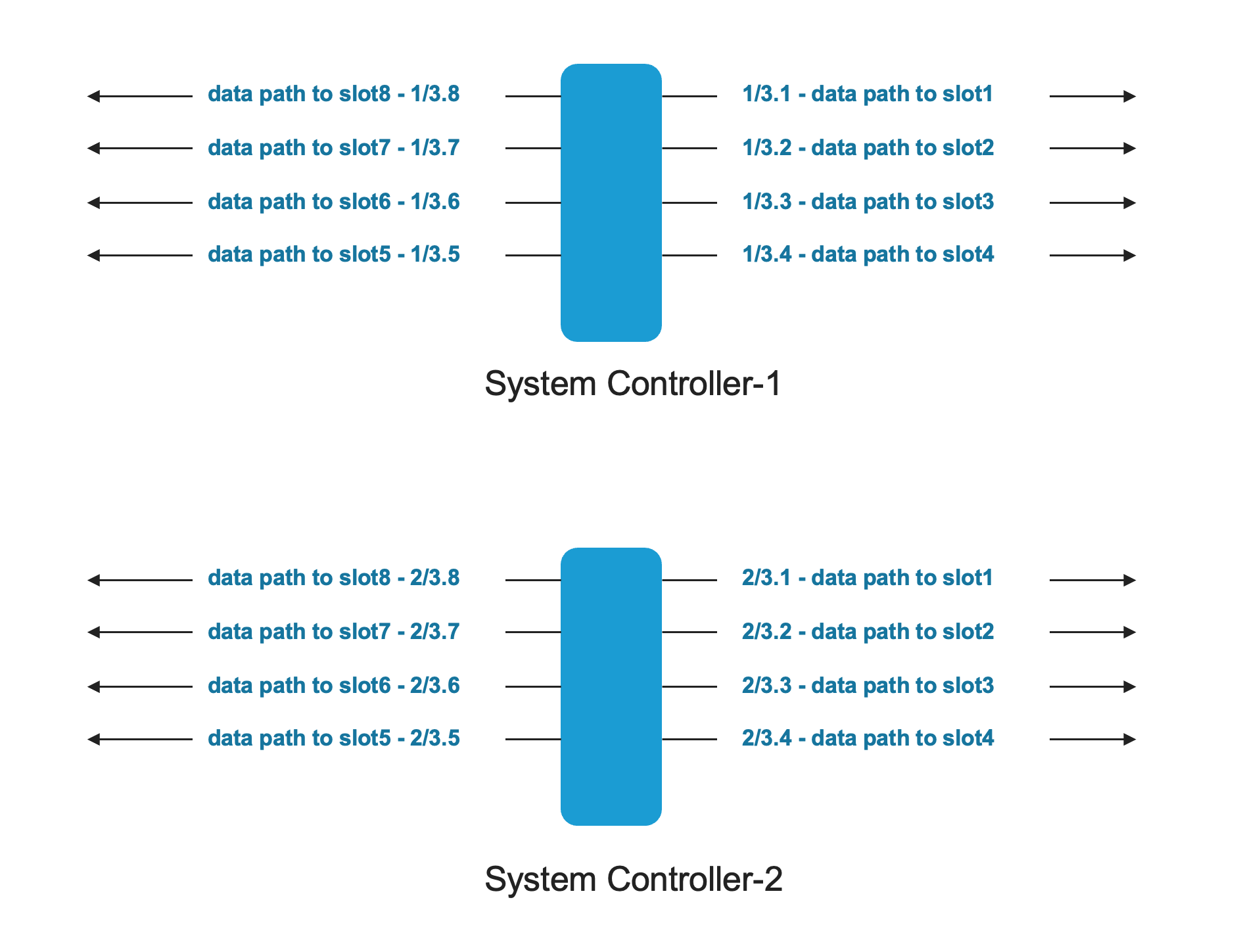

The diagram below shows the internal data plane interface numbering on the two system controllers within the CX410 chassis.

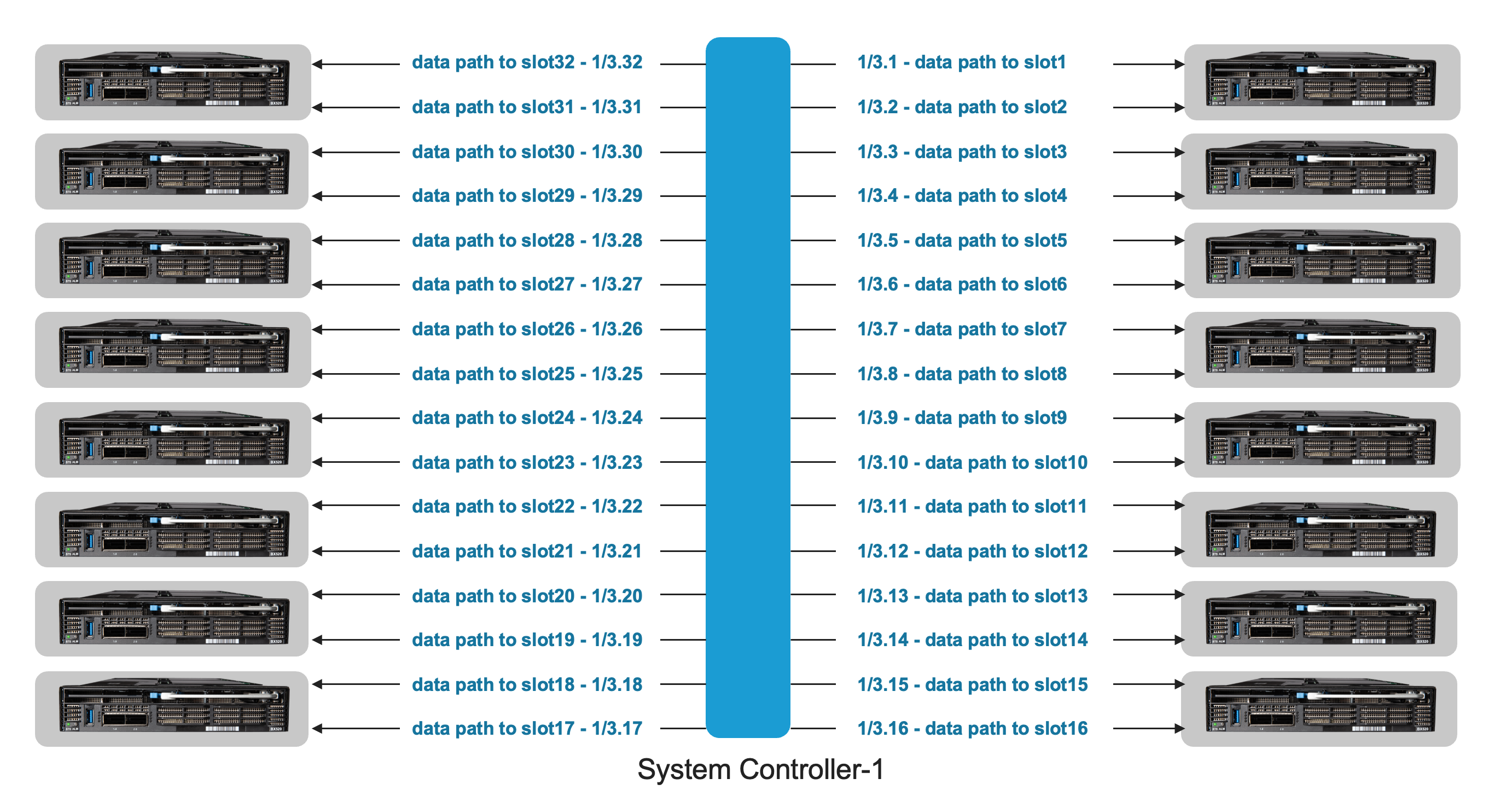

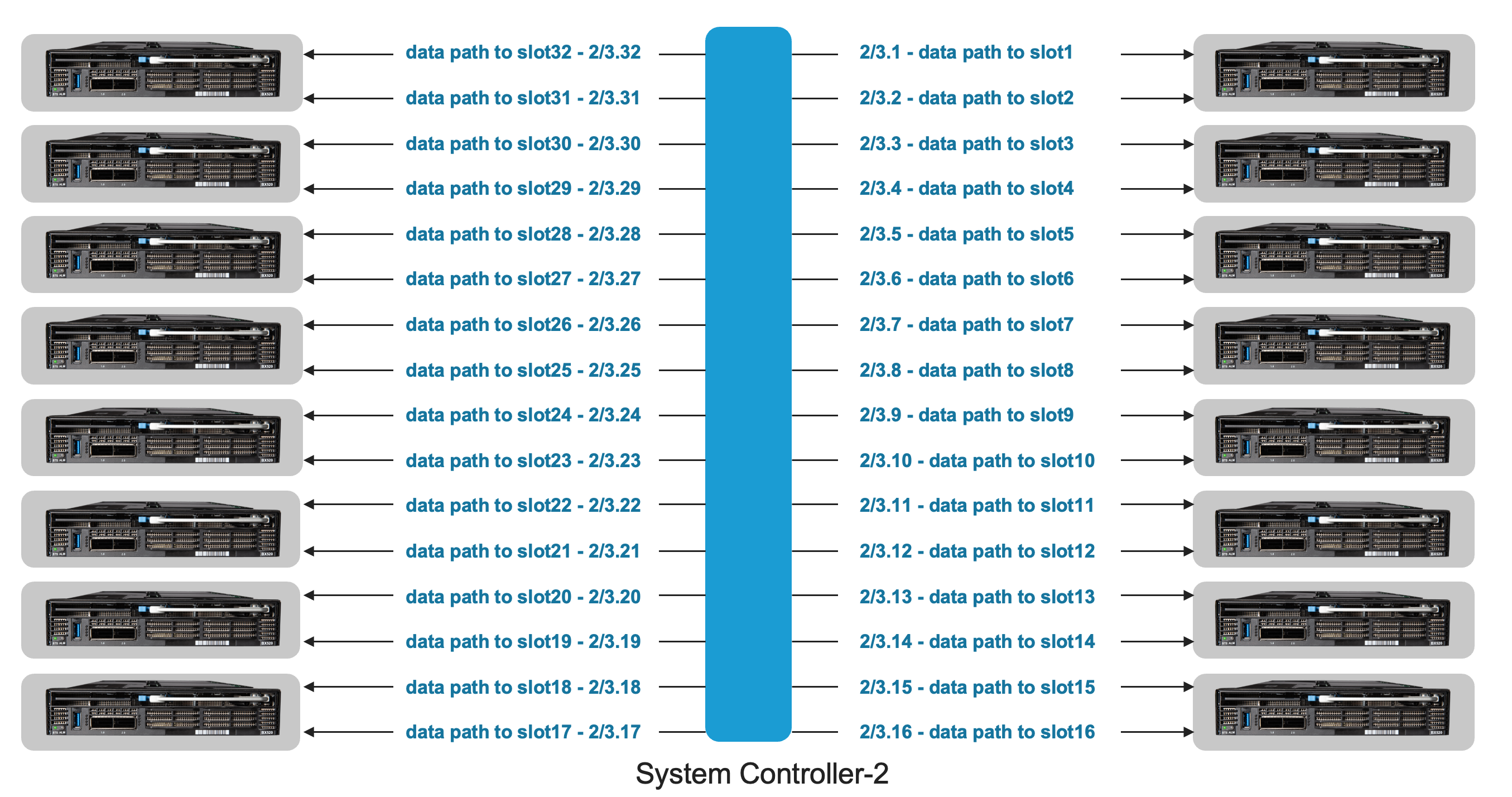

For the larger CX1610 chassis, the diagrams below show the data plane port numbering on the dual system controllers.
There are also separate control plane connections from each controller to each slot, which are also put into Link Aggregation Group. Note that the blade in slot 1 will have two connections, one to system controller 1 interface 1/1.1 and one to system controller 2 interface 2/1.1, the numbering follows the same logic for other slots. The first digit represents which controller the interface is attached to (controller-1 or controller-2). The second digit will always be 1 for control plane connections, and finally the last digit is the actual interface number on the controller specified in the first digit.
Those ports will be joined together in a LAG (Link Aggregation) bundle on the system controller side. Note the LAG connecting to slot 1 is labeled cplagg_1.1, slot2 is labeled cplagg_1.2 etc.

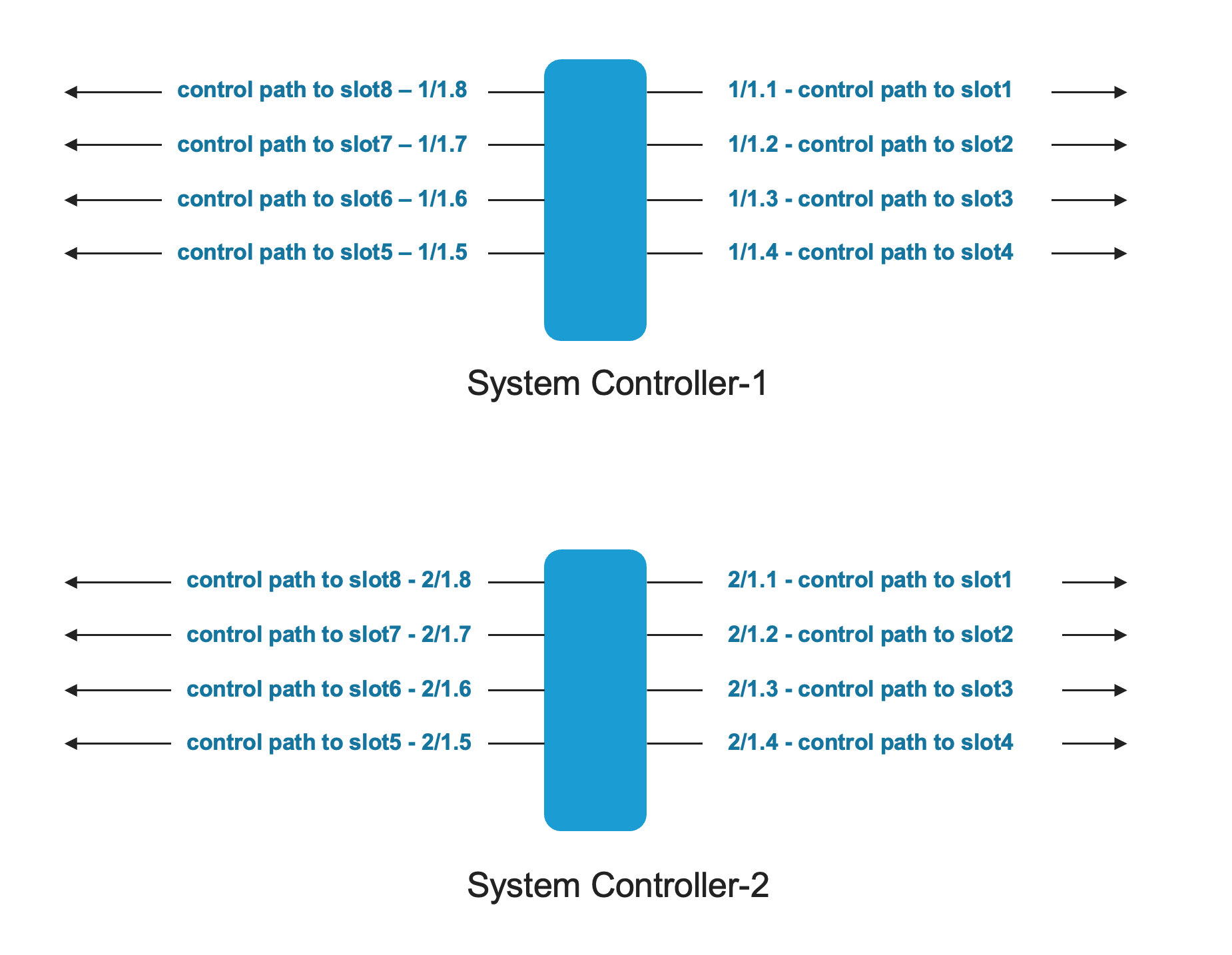

The diagram below shows the internal control plane interface numbering on the two system controllers within the CX410 chassis.

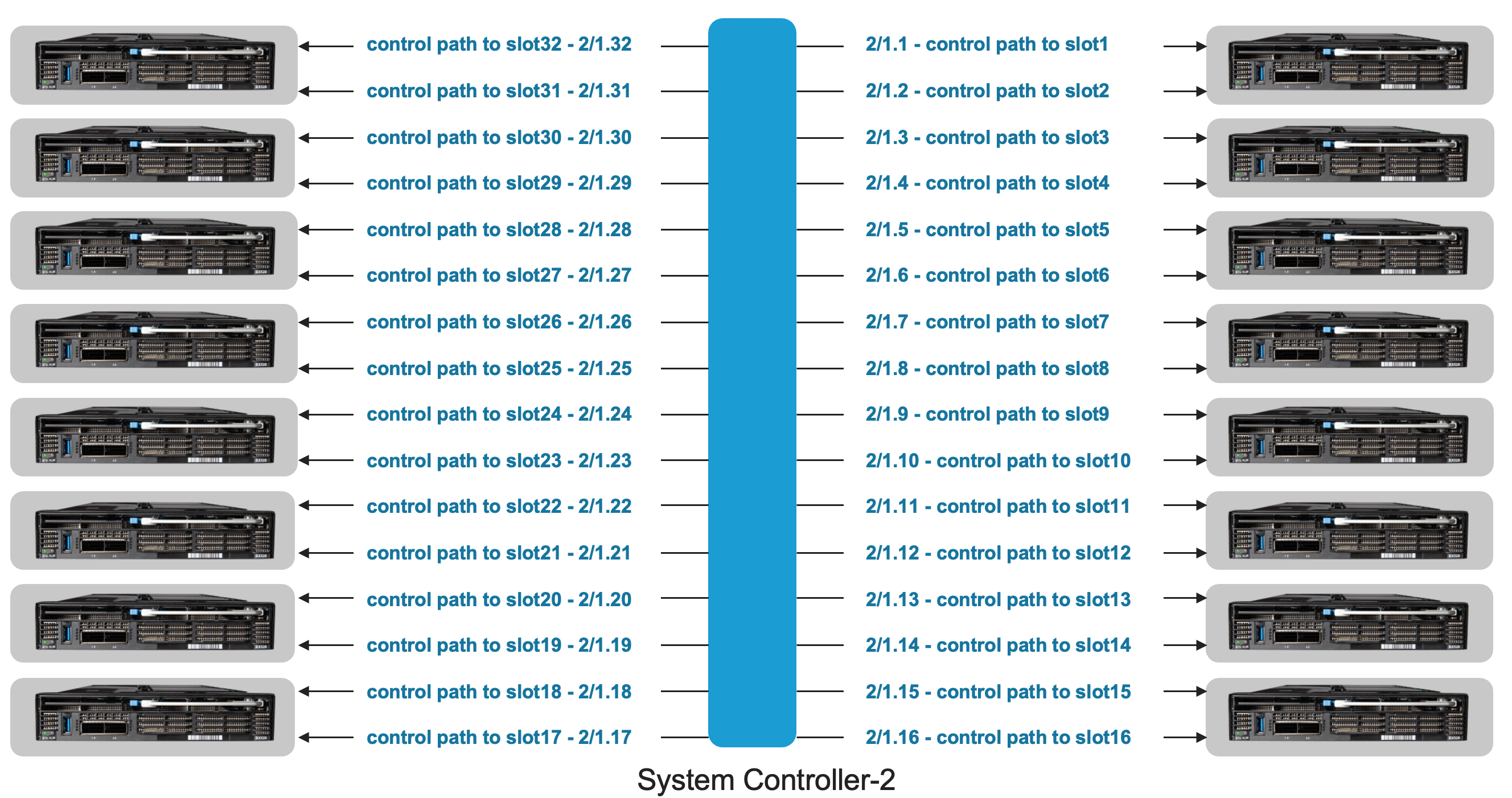

For the larger CX1610 chassis, the diagrams below show the control plane port numbering on the dual system controllers.
Monitoring of the Layer2 Switch Fabric on the System Controllers via CLI¶
There is a CLI command to monitor all the internal and external ports and LAGs on the dual system controllers as well as the out-of-band management ports.
There are two system controllers, and each controller has a single 100Gb connection to each slot. The 100Gb data plane backplane connections always start with: <controller number>/ 3.<slot number>. As an example, 1/3.1 is controller one’s connection to slot1, while 2/3.1 is controller two’s connection to slot 1. To view just the internal data plane connection status, issue the following command: show interfaces interface */3.* state oper-status.
syscon-2-active# show interfaces interface */3.* state oper-status
OPER
NAME STATUS
---------------
1/3.1 UP
1/3.2 UP
1/3.3 UP
1/3.4 DOWN
1/3.5 DOWN
1/3.6 DOWN
1/3.7 DOWN
1/3.8 DOWN
2/3.1 UP
2/3.2 UP
2/3.3 UP
2/3.4 DOWN
2/3.5 DOWN
2/3.6 DOWN
2/3.7 DOWN
2/3.8 DOWN
syscon-2-active#

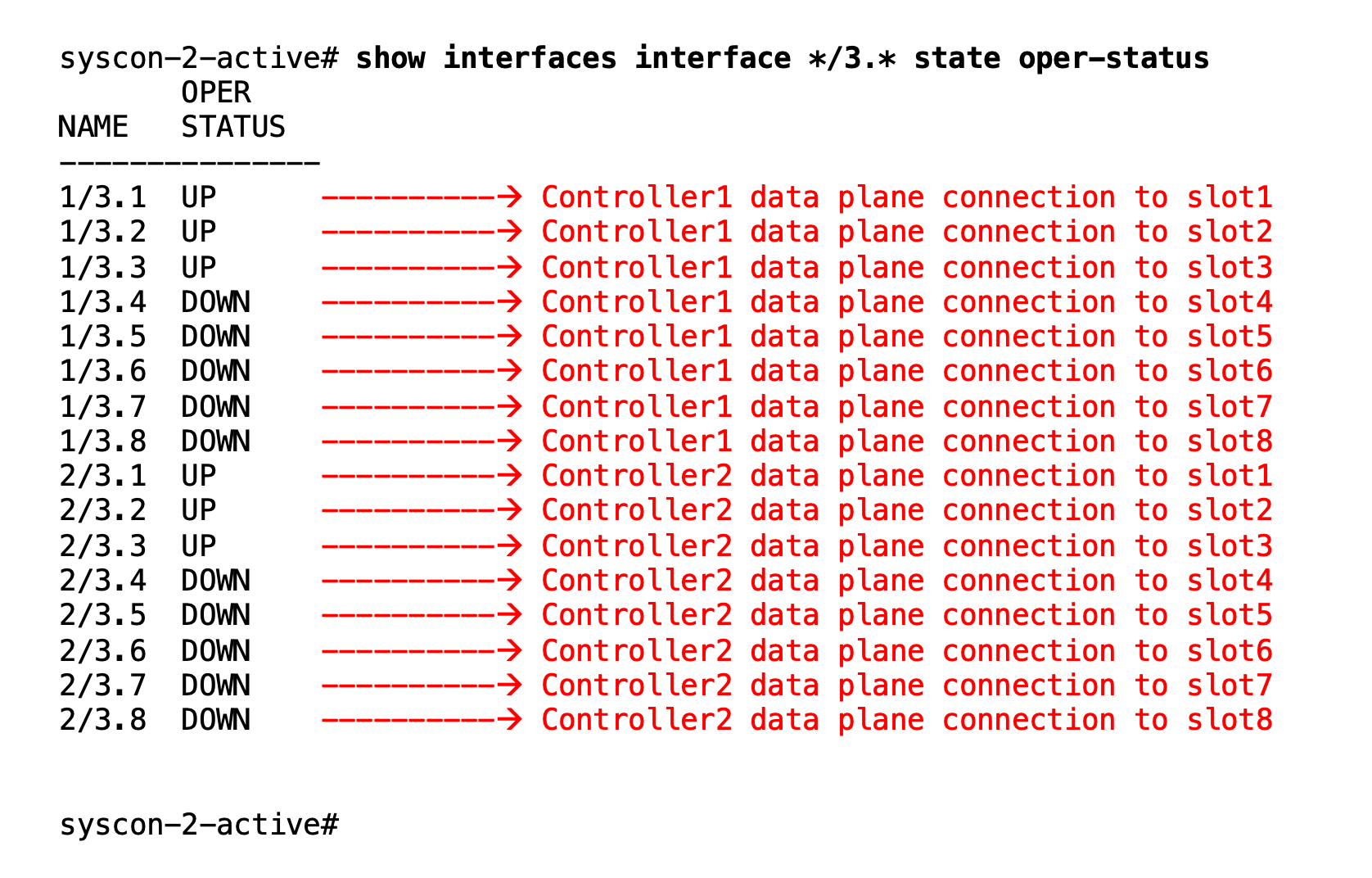

The output is explained in more detail with the following graphic. In this case, there are three BX110 blades installed in slots 1-3 and the rest of the slots are empty. Each controller has a connection to each slot, and only the slots with a blade installed will show an UP status.
Each slot also has a separate backplane connection to each system controller for control plane traffic. The 10Gb control plane backplane connections always start with: <controller number>/ 1.<slot number>. As an example, 1/1.1 is controller one’s control plane connection to slot1, while 2/1.1 is controller two’s control plane connection to slot 1. To view just the internal control plane connection status, issue the following command: show interfaces interface */1.* state oper-status.
syscon-2-active# show interfaces interface */1.* state oper-status
OPER
NAME STATUS
---------------
1/1.1 UP
1/1.2 UP
1/1.3 UP
1/1.4 DOWN
1/1.5 DOWN
1/1.6 DOWN
1/1.7 DOWN
1/1.8 DOWN
2/1.1 UP
2/1.2 UP
2/1.3 UP
2/1.4 DOWN
2/1.5 DOWN
2/1.6 DOWN
2/1.7 DOWN
2/1.8 DOWN
syscon-2-active#
The output is explained in more detail with the following graphic. In this case, there are three BX110 blades installed in slots 1-3 and the rest of the slots are empty. Each controller has a control plane data plane connection to each slot, and only the slots with a blade installed will show an UP status.
Below is a command to view the complete stats for one of the backplane ports of the system controller:
syscon-2-active# show interfaces interface 1/1.1
interfaces interface 1/1.1
state name 1/1.1
state type ethernetCsmacd
state loopback-mode false
state enabled
state ifindex 10
state admin-status UP
state oper-status UP
state last-change 61612666625
state counters in-octets 14937303301
state counters in-pkts 64279377
state counters in-unicast-pkts 46181461
state counters in-broadcast-pkts 3495683
state counters in-multicast-pkts 14602233
state counters in-discards 553
state counters in-errors 0
state counters in-unknown-protos 0
state counters in-fcs-errors 0
state counters out-octets 13859445595
state counters out-pkts 69051486
state counters out-unicast-pkts 51154295
state counters out-broadcast-pkts 13115083
state counters out-multicast-pkts 4782108
state counters out-discards 0
state counters out-errors 0
hold-time state up 0
hold-time state down 0
ethernet state mac-address 5a:a5:5a:01:01:01
ethernet state auto-negotiate true
ethernet state duplex-mode FULL
ethernet state port-speed SPEED_10GB
ethernet state enable-flow-control false
ethernet state hw-mac-address 5a:a5:5a:01:01:01
ethernet state counters in-mac-pause-frames 0
ethernet state counters in-oversize-frames 3398952
ethernet state counters in-jabber-frames 0
ethernet state counters in-fragment-frames 0
ethernet state counters in-8021q-frames 0
ethernet state counters in-crc-errors 0
ethernet state counters out-mac-pause-frames 0
ethernet state counters out-8021q-frames 0
Or you can view all ports in a table format with the following command:
syscon-2-active# show interfaces | tab
OUT
IN IN OUT OUT ENABLE NEGOTIATED IN MAC IN MAC IN IN IN IN IN IN OUT MAC MAC OUT IN IN IN IN OUT OUT OUT
LOOPBACK ADMIN OPER IN UNICAST BROADCAST IN MULTICAST IN IN UNKNOWN IN FCS OUT UNICAST BROADCAST MULTICAST OUT OUT CARRIER LAST LACP LAG MIN LAG MAC AUTO DUPLEX FLOW DUPLEX NEGOTIATED CONTROL PAUSE OVERSIZE UNDERSIZE JABBER FRAGMENT 8021Q IN CRC BLOCK CONTROL PAUSE 8021Q AGGREGATE ADMIN OPER LAST IN IN UNICAST BROADCAST MULTICAST IN IN UNKNOWN IN FCS OUT OUT UNICAST BROADCAST MULTICAST OUT OUT CARRIER LAST
NAME DISABLED NAME TYPE MTU MODE DESCRIPTION ENABLED IFINDEX STATUS STATUS LAST CHANGE LOGICAL IN OCTETS IN PKTS PKTS PKTS PKTS DISCARDS ERRORS PROTOS ERRORS OUT OCTETS OUT PKTS PKTS PKTS PKTS DISCARDS ERRORS TRANSITIONS CLEAR STATE UP DOWN TYPE LINKS SPEED MEMBER ADDRESS LAGID MAC ADDRESS NEGOTIATE MODE PORT SPEED CONTROL HW MAC ADDRESS MODE PORT SPEED FRAMES FRAMES FRAMES FRAMES FRAMES FRAMES FRAMES ERRORS ERRORS FRAMES FRAMES FRAMES ID INDEX DISABLED INDEX DESCRIPTION ENABLED NAME IFINDEX STATUS STATUS CHANGE LOGICAL OCTETS PKTS PKTS PKTS PKTS DISCARDS ERRORS PROTOS ERRORS OCTETS PKTS PKTS PKTS PKTS DISCARDS ERRORS TRANSITIONS CLEAR
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1/1.1 - 1/1.1 ethernetCsmacd - false - true 10 UP UP 211792573593 - 86941940509 233256034 228396810 2968645 1890579 154 0 0 0 14343745327 79423191 39713895 12921423 26787873 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:01 true FULL SPEED_10GB false 5a:a5:5a:01:01:01 - - - 0 10974256 - 0 0 0 0 - - 0 0 -
1/1.2 - 1/1.2 ethernetCsmacd - false - true 11 UP UP 211798708671 - 395685963451 163452533 135520523 2967935 24964075 135 0 0 0 69464832706 158312281 95784686 13291858 49235737 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:02 true FULL SPEED_10GB false 5a:a5:5a:01:01:02 - - - 0 88587626 - 0 0 0 0 - - 0 0 -
1/1.3 - 1/1.3 ethernetCsmacd - false - true 2 UP UP 211787146857 - 29503264735 31919084 27066164 2964815 1888105 80 0 0 0 12555584956 99222069 86091818 9418719 3711532 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:03 true FULL SPEED_10GB false 5a:a5:5a:01:01:03 - - - 0 5082178 - 0 0 0 0 - - 0 0 -
1/1.4 - 1/1.4 ethernetCsmacd - false - true 3 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:04 true FULL - false 5a:a5:5a:01:01:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.5 - 1/1.5 ethernetCsmacd - false - true 12 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:05 true FULL - false 5a:a5:5a:01:01:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.6 - 1/1.6 ethernetCsmacd - false - true 13 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:06 true FULL - false 5a:a5:5a:01:01:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.7 - 1/1.7 ethernetCsmacd - false - true 4 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:07 true FULL - false 5a:a5:5a:01:01:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.8 - 1/1.8 ethernetCsmacd - false - true 5 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:08 true FULL - false 5a:a5:5a:01:01:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/2.2 - 1/2.2 ethernetCsmacd - false - true 16 UP UP 211804025223 - 67300620774 253265187 249956313 3307446 1428 22 0 0 0 168058052337 438977912 301569162 23837377 113571373 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:02 true FULL SPEED_10GB false 5a:a5:5a:01:02:02 - - - 0 14980469 - 0 0 0 0 - - 0 0 -
1/2.3 - 1/2.3 ethernetCsmacd - false - true 17 UP UP 211810804805 - 67317446268 253261024 249954725 3304815 1484 28 0 0 0 518265516277 366702028 366701999 11 18 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:03 true FULL SPEED_10GB false 5a:a5:5a:01:02:03 - - - 0 98990729 - 0 0 0 0 - - 0 0 -
1/2.4 - 1/2.4 ethernetCsmacd - false - true 18 UP UP 211815889385 - 67246294422 253256158 249946612 3308124 1422 24 0 0 0 134071623253 269061289 269061258 11 20 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:04 true FULL SPEED_10GB false 5a:a5:5a:01:02:04 - - - 0 10520970 - 0 0 0 0 - - 0 0 -
1/2.5 - 1/2.5 ethernetCsmacd - false - true 20 UP UP 211820271034 - 817607312785 1033418002 931619657 11343687 90454658 37 0 0 0 652438268477 966348853 926266734 16968421 23113698 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:05 false FULL SPEED_25GB false 5a:a5:5a:01:02:05 - - - 0 398477209 - 0 0 0 0 - - 0 0 -
1/2.6 - 1/2.6 ethernetCsmacd - false - true 21 UP UP 211824833060 - 305071541 3266764 533369 2729264 4131 27 0 0 0 376146022 3484728 765117 2716429 3182 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:06 false FULL SPEED_25GB false 5a:a5:5a:01:02:06 - - - 0 120 - 0 0 0 0 - - 0 0 -
1/3.1 - 1/3.1 ethernetCsmacd - false - true 1 UP UP 344143540237900 - 25203995153591 296501288160 296501188535 175 99450 0 0 0 0 25203830155540 296500513477 296500463395 30 50052 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:01 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:01 - - - 0 168 - 0 0 0 0 - - 0 0 -
1/3.2 - 1/3.2 ethernetCsmacd - false - true 105 UP UP 344145057773294 - 25203880252766 296501102815 296501052733 30 50052 588458 0 0 0 25203995232046 296501289254 296501189629 175 99450 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:02 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:02 - - - 0 168 - 0 0 0 0 - - 0 0 -
1/3.3 - 1/3.3 ethernetCsmacd - false - true 85 UP UP 343785764588858 - 130608 1389 0 125 1264 1389 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:03 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:03 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.4 - 1/3.4 ethernetCsmacd - false - true 53 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:04 false FULL - false 5a:a5:5a:01:03:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.5 - 1/3.5 ethernetCsmacd - false - true 9 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:05 false FULL - false 5a:a5:5a:01:03:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.6 - 1/3.6 ethernetCsmacd - false - true 102 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:06 false FULL - false 5a:a5:5a:01:03:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.7 - 1/3.7 ethernetCsmacd - false - true 69 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:07 false FULL - false 5a:a5:5a:01:03:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.8 - 1/3.8 ethernetCsmacd - false - true 41 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:08 false FULL - false 5a:a5:5a:01:03:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/4.1 - 1/4.1 ethernetCsmacd - false - true 34 UP UP 211916613298 - 342 3 0 0 3 3 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:04:01 true FULL SPEED_10GB false 5a:a5:5a:01:04:01 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/mgmt0 - 1/mgmt0 ethernetCsmacd - false - true 15 UP UP 237409541637 - 4391428464 6501678 4241352 863089 1397237 188 0 0 0 497631273 3630029 2312259 1256561 61209 0 0 - - - 0 0 - - - - - - 00:94:a1:8e:d0:7d true FULL SPEED_1GB false 00:94:a1:8e:d0:7d - - - 0 4 - 0 0 0 0 - - 0 0 -
2/1.1 - 2/1.1 ethernetCsmacd - false - true 10 UP UP 210816650163 - 434525098398 195073095 146494484 904052 47674559 295 0 0 0 314825258244 338291044 334761346 1448843 2080855 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:01 true FULL SPEED_10GB false 5a:a5:5a:02:01:01 - - - 0 131439513 - 0 0 0 0 - - 0 0 -
2/1.2 - 2/1.2 ethernetCsmacd - false - true 11 UP UP 210822581696 - 231814953370 233065865 230378471 534351 2153043 315 0 0 0 78549974865 213629823 210100100 1448823 2080900 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:02 true FULL SPEED_10GB false 5a:a5:5a:02:01:02 - - - 0 37313027 - 0 0 0 0 - - 0 0 -
2/1.3 - 2/1.3 ethernetCsmacd - false - true 2 UP UP 210811061114 - 412497846595 200768039 152757405 963189 47047445 392 0 0 0 34433295277 60123833 56593960 1448913 2080960 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:03 true FULL SPEED_10GB false 5a:a5:5a:02:01:03 - - - 0 96079364 - 0 0 0 0 - - 0 0 -
2/1.4 - 2/1.4 ethernetCsmacd - false - true 3 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:04 true FULL - false 5a:a5:5a:02:01:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.5 - 2/1.5 ethernetCsmacd - false - true 12 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:05 true FULL - false 5a:a5:5a:02:01:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.6 - 2/1.6 ethernetCsmacd - false - true 13 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:06 true FULL - false 5a:a5:5a:02:01:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.7 - 2/1.7 ethernetCsmacd - false - true 4 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:07 true FULL - false 5a:a5:5a:02:01:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.8 - 2/1.8 ethernetCsmacd - false - true 5 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:08 true FULL - false 5a:a5:5a:02:01:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/2.2 - 2/2.2 ethernetCsmacd - false - true 16 UP UP 210829179837 - 144816060002 308544263 304644162 3898375 1726 139687 0 0 0 215950812892 399011696 261712713 23725985 113572998 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:02 true FULL SPEED_10GB false 5a:a5:5a:02:02:02 - - - 0 36510572 - 0 0 0 0 - - 0 0 -
2/2.3 - 2/2.3 ethernetCsmacd - false - true 17 UP UP 211093508049 - 146518517421 309322542 305429250 3891582 1710 139556 0 0 0 588502412055 346072211 346072191 2 18 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:03 true FULL SPEED_10GB false 5a:a5:5a:02:02:03 - - - 0 124271378 - 0 0 0 0 - - 0 0 -
2/2.4 - 2/2.4 ethernetCsmacd - false - true 18 UP UP 211098979263 - 141709095850 306281208 302394510 3884969 1729 139045 0 0 0 177013348109 250758459 250758442 3 14 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:04 true FULL SPEED_10GB false 5a:a5:5a:02:02:04 - - - 0 30867933 - 0 0 0 0 - - 0 0 -
2/2.5 - 2/2.5 ethernetCsmacd - false - true 20 UP UP 255974438486120 - 699217208802 1049137532 1008795307 17227932 23114293 6 0 0 0 834005721167 1106314220 1004140938 11717890 90455392 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:05 false FULL SPEED_25GB false 5a:a5:5a:02:02:05 - - - 0 423195112 - 0 0 0 0 - - 0 0 -
2/2.6 - 2/2.6 ethernetCsmacd - false - true 21 UP UP 255974442618502 - 425810321 3944775 822247 3118682 3846 12 0 0 0 330169732 3497826 575824 2917523 4479 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:06 false FULL SPEED_25GB false 5a:a5:5a:02:02:06 - - - 0 120 - 0 0 0 0 - - 0 0 -
2/3.1 - 2/3.1 ethernetCsmacd - false - true 1 UP UP 599906770045804 - 29029262710187 326068765959 3498576 0 326065267383 0 0 0 0 29022800137815 326047197783 4180729 283121 326042733933 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:01 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:01 - - - 0 48 - 0 0 0 0 - - 0 0 -
2/3.2 - 2/3.2 ethernetCsmacd - false - true 105 UP UP 599908042185684 - 29022852750432 326047816696 4180729 283121 326043352846 617660 0 0 0 29029262822060 326068767217 3498576 0 326065268641 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:02 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:02 - - - 0 48 - 0 0 0 0 - - 0 0 -
2/3.3 - 2/3.3 ethernetCsmacd - false - true 85 UP UP 599548574726781 - 13050107822 45206196 0 283121 44923075 45206196 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:03 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:03 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.4 - 2/3.4 ethernetCsmacd - false - true 53 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:04 false FULL - false 5a:a5:5a:02:03:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.5 - 2/3.5 ethernetCsmacd - false - true 9 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:05 false FULL - false 5a:a5:5a:02:03:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.6 - 2/3.6 ethernetCsmacd - false - true 102 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:06 false FULL - false 5a:a5:5a:02:03:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.7 - 2/3.7 ethernetCsmacd - false - true 69 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:07 false FULL - false 5a:a5:5a:02:03:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.8 - 2/3.8 ethernetCsmacd - false - true 41 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:08 false FULL - false 5a:a5:5a:02:03:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/4.1 - 2/4.1 ethernetCsmacd - false - true 34 UP UP 210893719718 - 432 4 0 0 4 4 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:04:01 true FULL SPEED_10GB false 5a:a5:5a:02:04:01 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/mgmt0 - 2/mgmt0 ethernetCsmacd - false - true 15 UP UP 254713934290873 - 4353692505 6379395 4650623 978127 750645 522 0 0 0 1937672815 2047253 1977331 8921 61001 613 0 - - - 0 0 - - - - - - 00:94:a1:8e:d0:7e true FULL SPEED_1GB false 00:94:a1:8e:d0:7e - - - 0 0 - 0 0 0 0 - - 0 0 -
cplagg_1.1 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 9 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.2 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 0 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.3 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 1 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.4 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 2 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.5 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 3 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.6 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 4 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.7 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 5 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.8 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 6 - - - - - - - - - - - - - - - - - - - - -
mgmt-aggr - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 0 20000 - - 7 - - - - - - - - - - - - - - - - - - - - -
syscon-2-active#
The show lacp CLI command will show both external LAG interfaces if the management ports are bonded together, and internal LAG’s to each slot. In the output below there are 3 blades installed in slots 1-3. They will be labeled cplagg_1.<slot#>. The name mgmt_aggr was provided by the admin when the LAG for the external management ports were configured. This name will be different depending on what the admin chooses for a name.
syscon-1-active# show lacp
PARTNER LACP LACP LACP LACP LACP
LACP SYSTEM OPER PARTNER PORT PORT IN OUT RX TX UNKNOWN LACP
NAME NAME INTERVAL MODE SYSTEM ID MAC PRIORITY INTERFACE INTERFACE ACTIVITY TIMEOUT SYNCHRONIZATION AGGREGATABLE COLLECTING DISTRIBUTING SYSTEM ID KEY PARTNER ID KEY NUM NUM PKTS PKTS ERRORS ERRORS ERRORS ERRORS
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
cplagg_1.1 cplagg_1.1 FAST ACTIVE 0:a:49:ff:96:2 53248 1/1.1 1/1.1 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:96:2 2 0:a:49:ff:96:2 0 4225 2 261162 259897 0 - - -
2/1.1 2/1.1 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:96:2 2 0:a:49:ff:96:2 0 8321 4 260829 259557 0 - - -
cplagg_1.2 cplagg_1.2 FAST ACTIVE 0:a:49:ff:95:22 53248 1/1.2 1/1.2 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:95:22 3 0:a:49:ff:95:22 0 4226 2 261162 259897 0 - - -
2/1.2 2/1.2 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:95:22 3 0:a:49:ff:95:22 0 8322 4 260829 259557 0 - - -
cplagg_1.3 cplagg_1.3 FAST ACTIVE 0:a:49:ff:92:62 53248 1/1.3 1/1.3 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:92:62 4 0:a:49:ff:92:62 0 4227 2 261162 259897 0 - - -
2/1.3 2/1.3 ACTIVE SHORT IN_SYNC true true true 0:a:49:ff:92:62 4 0:a:49:ff:92:62 0 8323 4 260829 259558 0 - - -
cplagg_1.4 cplagg_1.4 FAST ACTIVE - -
cplagg_1.5 cplagg_1.5 FAST ACTIVE - -
cplagg_1.6 cplagg_1.6 FAST ACTIVE - -
cplagg_1.7 cplagg_1.7 FAST ACTIVE - -
cplagg_1.8 cplagg_1.8 FAST ACTIVE - -
mgmt-aggr mgmt-aggr SLOW ACTIVE 0:94:a1:8e:d0:0 53248 1/mgmt0 1/mgmt0 ACTIVE LONG IN_SYNC true true true 0:94:a1:8e:d0:0 10 44:4c:a8:bc:ca:77 10 4608 12 8708 259835 0 - - -
2/mgmt0 2/mgmt0 ACTIVE LONG IN_SYNC true true true 0:94:a1:8e:d0:0 10 44:4c:a8:bc:ca:77 10 8704 11 8700 259506 0 - - -
syscon-1-active#
Monitoring of the Layer2 Switch Fabric on the System Controllers via webUI¶
In the current release there is no backplane interface or LAG monitoring in the system controller webUI. You’ll need to use the CLI or API to get stats/status of the backplane ports or external management ports.
Monitoring of the Layer2 Switch Fabric on the System Controllers via API¶
The following API command will show all system controller Ethernet interfaces and link aggregation (both internal and external) as well as out-of-band management Interfaces.
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-interfaces:interfaces
The body of the response will look similar to the output below.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/1.1",
"config": {
"name": "1/1.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 10,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92280482278",
"counters": {
"in-octets": "25930763576",
"in-pkts": "81611721",
"in-unicast-pkts": "80283080",
"in-broadcast-pkts": "1044199",
"in-multicast-pkts": "284442",
"in-discards": "234",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "4756887206",
"out-pkts": "14131402",
"out-unicast-pkts": "3522019",
"out-broadcast-pkts": "4997025",
"out-multicast-pkts": "5612358",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.1"
},
"state": {
"mac-address": "5a:a5:5a:01:01:01",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "3768462",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.2",
"config": {
"name": "1/1.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 11,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92285255781",
"counters": {
"in-octets": "56277978006",
"in-pkts": "88976020",
"in-unicast-pkts": "88696511",
"in-broadcast-pkts": "2220",
"in-multicast-pkts": "277289",
"in-discards": "161",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "13206772277",
"out-pkts": "32586877",
"out-unicast-pkts": "16699631",
"out-broadcast-pkts": "5189699",
"out-multicast-pkts": "10697547",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.2"
},
"state": {
"mac-address": "5a:a5:5a:01:01:02",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "12417630",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.3",
"config": {
"name": "1/1.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 2,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92275142893",
"counters": {
"in-octets": "354634359",
"in-pkts": "2641151",
"in-unicast-pkts": "2368952",
"in-broadcast-pkts": "2095",
"in-multicast-pkts": "270104",
"in-discards": "108",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "2988733076",
"out-pkts": "10658051",
"out-unicast-pkts": "6410863",
"out-broadcast-pkts": "3858086",
"out-multicast-pkts": "389102",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.3"
},
"state": {
"mac-address": "5a:a5:5a:01:01:03",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.4",
"config": {
"name": "1/1.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 3,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.4"
},
"state": {
"mac-address": "5a:a5:5a:01:01:04",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.5",
"config": {
"name": "1/1.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 12,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.5"
},
"state": {
"mac-address": "5a:a5:5a:01:01:05",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.6",
"config": {
"name": "1/1.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 13,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.6"
},
"state": {
"mac-address": "5a:a5:5a:01:01:06",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.7",
"config": {
"name": "1/1.7",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.7",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 4,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.7"
},
"state": {
"mac-address": "5a:a5:5a:01:01:07",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:07",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/1.8",
"config": {
"name": "1/1.8",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/1.8",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 5,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.8"
},
"state": {
"mac-address": "5a:a5:5a:01:01:08",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:01:08",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/2.2",
"config": {
"name": "1/2.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/2.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 16,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92290207170",
"counters": {
"in-octets": "35926728797",
"in-pkts": "62373338",
"in-unicast-pkts": "61424422",
"in-broadcast-pkts": "948836",
"in-multicast-pkts": "80",
"in-discards": "1420",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "18308927413",
"out-pkts": "75484207",
"out-unicast-pkts": "52192600",
"out-broadcast-pkts": "7630195",
"out-multicast-pkts": "15661412",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:02:02",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:02:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "777070",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/2.3",
"config": {
"name": "1/2.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/2.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 17,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92294856723",
"counters": {
"in-octets": "35903131962",
"in-pkts": "62358618",
"in-unicast-pkts": "61409038",
"in-broadcast-pkts": "949512",
"in-multicast-pkts": "68",
"in-discards": "1408",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "10144687997",
"out-pkts": "48994975",
"out-unicast-pkts": "48994866",
"out-broadcast-pkts": "53",
"out-multicast-pkts": "56",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:02:03",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:02:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/2.4",
"config": {
"name": "1/2.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/2.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 18,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92299535013",
"counters": {
"in-octets": "35887746555",
"in-pkts": "62347891",
"in-unicast-pkts": "61400563",
"in-broadcast-pkts": "947247",
"in-multicast-pkts": "81",
"in-discards": "1412",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "9947112430",
"out-pkts": "47524506",
"out-unicast-pkts": "47524403",
"out-broadcast-pkts": "53",
"out-multicast-pkts": "50",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:02:04",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:02:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/2.5",
"config": {
"name": "1/2.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/2.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 20,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "525159521784",
"counters": {
"in-octets": "39187630636",
"in-pkts": "156665808",
"in-unicast-pkts": "146241632",
"in-broadcast-pkts": "5146811",
"in-multicast-pkts": "5277365",
"in-discards": "357",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "131905256742",
"out-pkts": "191440059",
"out-unicast-pkts": "187741861",
"out-broadcast-pkts": "3664321",
"out-multicast-pkts": "33877",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:02:05",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:02:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "67713732",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/2.6",
"config": {
"name": "1/2.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/2.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 21,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "525170483866",
"counters": {
"in-octets": "3506406963",
"in-pkts": "11491114",
"in-unicast-pkts": "284319",
"in-broadcast-pkts": "896187",
"in-multicast-pkts": "10310608",
"in-discards": "278",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "56632515503",
"out-pkts": "73518479",
"out-unicast-pkts": "72742834",
"out-broadcast-pkts": "755683",
"out-multicast-pkts": "19962",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:02:06",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:02:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "12398399",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.1",
"config": {
"name": "1/3.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 1,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "95362054354",
"counters": {
"in-octets": "4439535522366",
"in-pkts": "52226052570",
"in-unicast-pkts": "52147390412",
"in-broadcast-pkts": "363",
"in-multicast-pkts": "78661795",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "4439666219327",
"out-pkts": "52227806487",
"out-unicast-pkts": "52149161038",
"out-broadcast-pkts": "1542",
"out-multicast-pkts": "78643907",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:01",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "32",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.2",
"config": {
"name": "1/3.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 105,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "95371605787",
"counters": {
"in-octets": "4439666243467",
"in-pkts": "52227806760",
"in-unicast-pkts": "52149161311",
"in-broadcast-pkts": "1542",
"in-multicast-pkts": "78643907",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "4439535546761",
"out-pkts": "52226052867",
"out-unicast-pkts": "52147390709",
"out-broadcast-pkts": "363",
"out-multicast-pkts": "78661795",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:02",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "32",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.3",
"config": {
"name": "1/3.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 85,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "95367435112",
"counters": {
"in-octets": "2403516",
"in-pkts": "11032",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "1905",
"in-multicast-pkts": "9127",
"in-discards": "11032",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:03",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.4",
"config": {
"name": "1/3.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 53,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:04",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.5",
"config": {
"name": "1/3.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 9,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:05",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.6",
"config": {
"name": "1/3.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 102,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:06",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.7",
"config": {
"name": "1/3.7",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.7",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 69,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:07",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:07",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/3.8",
"config": {
"name": "1/3.8",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/3.8",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 41,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:03:08",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:03:08",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/4.1",
"config": {
"name": "1/4.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/4.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 34,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "92294733496",
"counters": {
"in-octets": "228",
"in-pkts": "2",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "2",
"in-discards": "2",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:01:04:01",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:01:04:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "1/mgmt0",
"config": {
"name": "1/mgmt0",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "1/mgmt0",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 15,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "94788507060",
"counters": {
"in-octets": "124504572",
"in-pkts": "903148",
"in-unicast-pkts": "293862",
"in-broadcast-pkts": "538983",
"in-multicast-pkts": "70303",
"in-discards": "92",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "159838430",
"out-pkts": "993469",
"out-unicast-pkts": "553394",
"out-broadcast-pkts": "180102",
"out-multicast-pkts": "259973",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "mgmt-aggr"
},
"state": {
"mac-address": "00:94:a1:8e:d0:7d",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_1GB",
"enable-flow-control": false,
"hw-mac-address": "00:94:a1:8e:d0:7d",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.1",
"config": {
"name": "2/1.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 10,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91721269332",
"counters": {
"in-octets": "4372564708",
"in-pkts": "17107339",
"in-unicast-pkts": "6258191",
"in-broadcast-pkts": "287493",
"in-multicast-pkts": "10561655",
"in-discards": "300",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "60252233307",
"out-pkts": "85000926",
"out-unicast-pkts": "84350738",
"out-broadcast-pkts": "129631",
"out-multicast-pkts": "520557",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.1"
},
"state": {
"mac-address": "5a:a5:5a:02:01:01",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "12394712",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.2",
"config": {
"name": "2/1.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 11,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91727028538",
"counters": {
"in-octets": "3456428138",
"in-pkts": "19902188",
"in-unicast-pkts": "13280905",
"in-broadcast-pkts": "1136594",
"in-multicast-pkts": "5484689",
"in-discards": "166",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "25052369345",
"out-pkts": "74559178",
"out-unicast-pkts": "73908994",
"out-broadcast-pkts": "129627",
"out-multicast-pkts": "520557",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.2"
},
"state": {
"mac-address": "5a:a5:5a:02:01:02",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "3747325",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.3",
"config": {
"name": "2/1.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 2,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91713346120",
"counters": {
"in-octets": "822985336",
"in-pkts": "7420328",
"in-unicast-pkts": "6108978",
"in-broadcast-pkts": "1041683",
"in-multicast-pkts": "269667",
"in-discards": "103",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "2467739747",
"out-pkts": "4752812",
"out-unicast-pkts": "4102624",
"out-broadcast-pkts": "129631",
"out-multicast-pkts": "520557",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.3"
},
"state": {
"mac-address": "5a:a5:5a:02:01:03",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.4",
"config": {
"name": "2/1.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 3,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.4"
},
"state": {
"mac-address": "5a:a5:5a:02:01:04",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.5",
"config": {
"name": "2/1.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 12,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.5"
},
"state": {
"mac-address": "5a:a5:5a:02:01:05",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.6",
"config": {
"name": "2/1.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 13,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.6"
},
"state": {
"mac-address": "5a:a5:5a:02:01:06",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.7",
"config": {
"name": "2/1.7",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.7",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 4,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.7"
},
"state": {
"mac-address": "5a:a5:5a:02:01:07",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:07",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/1.8",
"config": {
"name": "2/1.8",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/1.8",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 5,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "cplagg_1.8"
},
"state": {
"mac-address": "5a:a5:5a:02:01:08",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:01:08",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/2.2",
"config": {
"name": "2/2.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/2.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 16,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91731943025",
"counters": {
"in-octets": "10498555489",
"in-pkts": "43643415",
"in-unicast-pkts": "42715957",
"in-broadcast-pkts": "927390",
"in-multicast-pkts": "68",
"in-discards": "24",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "40025701457",
"out-pkts": "78104847",
"out-unicast-pkts": "54792115",
"out-broadcast-pkts": "7677447",
"out-multicast-pkts": "15635285",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:02:02",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:02:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "775779",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/2.3",
"config": {
"name": "2/2.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/2.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 17,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91736600968",
"counters": {
"in-octets": "10496541001",
"in-pkts": "43643033",
"in-unicast-pkts": "42715235",
"in-broadcast-pkts": "927735",
"in-multicast-pkts": "63",
"in-discards": "23",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "32274013723",
"out-pkts": "53814882",
"out-unicast-pkts": "53814779",
"out-broadcast-pkts": "59",
"out-multicast-pkts": "44",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:02:03",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:02:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/2.4",
"config": {
"name": "2/2.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/2.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 18,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91745418204",
"counters": {
"in-octets": "10495853111",
"in-pkts": "43642401",
"in-unicast-pkts": "42715561",
"in-broadcast-pkts": "926784",
"in-multicast-pkts": "56",
"in-discards": "27",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "32111449258",
"out-pkts": "53850019",
"out-unicast-pkts": "53849911",
"out-broadcast-pkts": "62",
"out-multicast-pkts": "46",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:02:04",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:02:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/2.5",
"config": {
"name": "2/2.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/2.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 20,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91749376611",
"counters": {
"in-octets": "130408111774",
"in-pkts": "248849392",
"in-unicast-pkts": "245152416",
"in-broadcast-pkts": "3663488",
"in-multicast-pkts": "33488",
"in-discards": "93",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "39155071852",
"out-pkts": "147371690",
"out-unicast-pkts": "136951024",
"out-broadcast-pkts": "5144992",
"out-multicast-pkts": "5275674",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:02:05",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:02:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "66746774",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/2.6",
"config": {
"name": "2/2.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/2.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 21,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91753495222",
"counters": {
"in-octets": "56621094489",
"in-pkts": "85388246",
"in-unicast-pkts": "84613492",
"in-broadcast-pkts": "755358",
"in-multicast-pkts": "19396",
"in-discards": "58",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "3504829058",
"out-pkts": "11485860",
"out-unicast-pkts": "282611",
"out-broadcast-pkts": "895811",
"out-multicast-pkts": "10307438",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:02:06",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:02:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "12395527",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.1",
"config": {
"name": "2/3.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 1,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "94942086460",
"counters": {
"in-octets": "5101782656244",
"in-pkts": "57305206157",
"in-unicast-pkts": "28824166",
"in-broadcast-pkts": "363",
"in-multicast-pkts": "57276381628",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "5100404767374",
"out-pkts": "57297833348",
"out-unicast-pkts": "26860585",
"out-broadcast-pkts": "1533",
"out-multicast-pkts": "57270971230",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:01",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "24",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.2",
"config": {
"name": "2/3.2",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.2",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 105,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "94950666557",
"counters": {
"in-octets": "5100404793807",
"in-pkts": "57297833644",
"in-unicast-pkts": "26860585",
"in-broadcast-pkts": "1533",
"in-multicast-pkts": "57270971526",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "5101782683033",
"out-pkts": "57305206458",
"out-unicast-pkts": "28824166",
"out-broadcast-pkts": "363",
"out-multicast-pkts": "57276381929",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:02",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:02",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "24",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.3",
"config": {
"name": "2/3.3",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.3",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 85,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "94946614936",
"counters": {
"in-octets": "2355615",
"in-pkts": "10806",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "1896",
"in-multicast-pkts": "8910",
"in-discards": "10806",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:03",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_UNKNOWN",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:03",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.4",
"config": {
"name": "2/3.4",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.4",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 53,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:04",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:04",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.5",
"config": {
"name": "2/3.5",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.5",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 9,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:05",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:05",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.6",
"config": {
"name": "2/3.6",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.6",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 102,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:06",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:06",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.7",
"config": {
"name": "2/3.7",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.7",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 69,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:07",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:07",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/3.8",
"config": {
"name": "2/3.8",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/3.8",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 41,
"admin-status": "UP",
"oper-status": "DOWN",
"counters": {
"in-octets": "0",
"in-pkts": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:03:08",
"auto-negotiate": false,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_25GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:03:08",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/4.1",
"config": {
"name": "2/4.1",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/4.1",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 34,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "91755988351",
"counters": {
"in-octets": "228",
"in-pkts": "2",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "2",
"in-discards": "2",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "0",
"out-pkts": "0",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "0",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL"
},
"state": {
"mac-address": "5a:a5:5a:02:04:01",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_10GB",
"enable-flow-control": false,
"hw-mac-address": "5a:a5:5a:02:04:01",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "2/mgmt0",
"config": {
"name": "2/mgmt0",
"type": "iana-if-type:ethernetCsmacd"
},
"state": {
"name": "2/mgmt0",
"type": "iana-if-type:ethernetCsmacd",
"loopback-mode": false,
"enabled": true,
"ifindex": 15,
"admin-status": "UP",
"oper-status": "UP",
"last-change": "94362333415",
"counters": {
"in-octets": "2257420268",
"in-pkts": "2699262",
"in-unicast-pkts": "1682315",
"in-broadcast-pkts": "793147",
"in-multicast-pkts": "223800",
"in-discards": "182",
"in-errors": "0",
"in-unknown-protos": "0",
"in-fcs-errors": "0",
"out-octets": "60492741",
"out-pkts": "493007",
"out-unicast-pkts": "233377",
"out-broadcast-pkts": "27",
"out-multicast-pkts": "259603",
"out-discards": "0",
"out-errors": "0"
}
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-ethernet:ethernet": {
"config": {
"auto-negotiate": true,
"duplex-mode": "FULL",
"openconfig-if-aggregate:aggregate-id": "mgmt-aggr"
},
"state": {
"mac-address": "00:94:a1:8e:d0:7e",
"auto-negotiate": true,
"duplex-mode": "FULL",
"port-speed": "openconfig-if-ethernet:SPEED_1GB",
"enable-flow-control": false,
"hw-mac-address": "00:94:a1:8e:d0:7e",
"counters": {
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
}
}
}
},
{
"name": "cplagg_1.1",
"config": {
"name": "cplagg_1.1",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
},
"state": {
"lag-speed": 1240240968
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.2",
"config": {
"name": "cplagg_1.2",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
},
"state": {
"lag-speed": 1240240968
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.3",
"config": {
"name": "cplagg_1.3",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
},
"state": {
"lag-speed": 1240240968
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.4",
"config": {
"name": "cplagg_1.4",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.5",
"config": {
"name": "cplagg_1.5",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.6",
"config": {
"name": "cplagg_1.6",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.7",
"config": {
"name": "cplagg_1.7",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "cplagg_1.8",
"config": {
"name": "cplagg_1.8",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"min-links": 1
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
},
{
"name": "mgmt-aggr",
"config": {
"name": "mgmt-aggr",
"type": "iana-if-type:ieee8023adLag"
},
"state": {
"loopback-mode": false,
"enabled": true
},
"hold-time": {
"state": {
"up": 0,
"down": 0
}
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP"
},
"state": {
"lag-speed": 1240240968
}
},
"openconfig-if-ethernet:ethernet": {
"state": {
"auto-negotiate": true,
"enable-flow-control": false
}
}
}
]
}
}
Monitoring Link Aggregation Status of System Controllers¶
Link Aggregation Status of System Controllers from the CLI¶
syscon-2-active# show interfaces | tab
OUT
IN IN OUT OUT ENABLE NEGOTIATED IN MAC IN MAC IN IN IN IN IN IN OUT MAC MAC OUT IN IN IN IN OUT OUT OUT
LOOPBACK ADMIN OPER IN UNICAST BROADCAST IN MULTICAST IN IN UNKNOWN IN FCS OUT UNICAST BROADCAST MULTICAST OUT OUT CARRIER LAST LACP LAG MIN LAG MAC AUTO DUPLEX FLOW DUPLEX NEGOTIATED CONTROL PAUSE OVERSIZE UNDERSIZE JABBER FRAGMENT 8021Q IN CRC BLOCK CONTROL PAUSE 8021Q AGGREGATE ADMIN OPER LAST IN IN UNICAST BROADCAST MULTICAST IN IN UNKNOWN IN FCS OUT OUT UNICAST BROADCAST MULTICAST OUT OUT CARRIER LAST
NAME DISABLED NAME TYPE MTU MODE DESCRIPTION ENABLED IFINDEX STATUS STATUS LAST CHANGE LOGICAL IN OCTETS IN PKTS PKTS PKTS PKTS DISCARDS ERRORS PROTOS ERRORS OUT OCTETS OUT PKTS PKTS PKTS PKTS DISCARDS ERRORS TRANSITIONS CLEAR STATE UP DOWN TYPE LINKS SPEED MEMBER ADDRESS LAGID MAC ADDRESS NEGOTIATE MODE PORT SPEED CONTROL HW MAC ADDRESS MODE PORT SPEED FRAMES FRAMES FRAMES FRAMES FRAMES FRAMES FRAMES ERRORS ERRORS FRAMES FRAMES FRAMES ID INDEX DISABLED INDEX DESCRIPTION ENABLED NAME IFINDEX STATUS STATUS CHANGE LOGICAL OCTETS PKTS PKTS PKTS PKTS DISCARDS ERRORS PROTOS ERRORS OCTETS PKTS PKTS PKTS PKTS DISCARDS ERRORS TRANSITIONS CLEAR
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1/1.1 - 1/1.1 ethernetCsmacd - false - true 10 UP UP 211792573593 - 86941940509 233256034 228396810 2968645 1890579 154 0 0 0 14343745327 79423191 39713895 12921423 26787873 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:01 true FULL SPEED_10GB false 5a:a5:5a:01:01:01 - - - 0 10974256 - 0 0 0 0 - - 0 0 -
1/1.2 - 1/1.2 ethernetCsmacd - false - true 11 UP UP 211798708671 - 395685963451 163452533 135520523 2967935 24964075 135 0 0 0 69464832706 158312281 95784686 13291858 49235737 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:02 true FULL SPEED_10GB false 5a:a5:5a:01:01:02 - - - 0 88587626 - 0 0 0 0 - - 0 0 -
1/1.3 - 1/1.3 ethernetCsmacd - false - true 2 UP UP 211787146857 - 29503264735 31919084 27066164 2964815 1888105 80 0 0 0 12555584956 99222069 86091818 9418719 3711532 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:03 true FULL SPEED_10GB false 5a:a5:5a:01:01:03 - - - 0 5082178 - 0 0 0 0 - - 0 0 -
1/1.4 - 1/1.4 ethernetCsmacd - false - true 3 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:04 true FULL - false 5a:a5:5a:01:01:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.5 - 1/1.5 ethernetCsmacd - false - true 12 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:05 true FULL - false 5a:a5:5a:01:01:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.6 - 1/1.6 ethernetCsmacd - false - true 13 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:06 true FULL - false 5a:a5:5a:01:01:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.7 - 1/1.7 ethernetCsmacd - false - true 4 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:07 true FULL - false 5a:a5:5a:01:01:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/1.8 - 1/1.8 ethernetCsmacd - false - true 5 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:01:08 true FULL - false 5a:a5:5a:01:01:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/2.2 - 1/2.2 ethernetCsmacd - false - true 16 UP UP 211804025223 - 67300620774 253265187 249956313 3307446 1428 22 0 0 0 168058052337 438977912 301569162 23837377 113571373 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:02 true FULL SPEED_10GB false 5a:a5:5a:01:02:02 - - - 0 14980469 - 0 0 0 0 - - 0 0 -
1/2.3 - 1/2.3 ethernetCsmacd - false - true 17 UP UP 211810804805 - 67317446268 253261024 249954725 3304815 1484 28 0 0 0 518265516277 366702028 366701999 11 18 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:03 true FULL SPEED_10GB false 5a:a5:5a:01:02:03 - - - 0 98990729 - 0 0 0 0 - - 0 0 -
1/2.4 - 1/2.4 ethernetCsmacd - false - true 18 UP UP 211815889385 - 67246294422 253256158 249946612 3308124 1422 24 0 0 0 134071623253 269061289 269061258 11 20 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:04 true FULL SPEED_10GB false 5a:a5:5a:01:02:04 - - - 0 10520970 - 0 0 0 0 - - 0 0 -
1/2.5 - 1/2.5 ethernetCsmacd - false - true 20 UP UP 211820271034 - 817607312785 1033418002 931619657 11343687 90454658 37 0 0 0 652438268477 966348853 926266734 16968421 23113698 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:05 false FULL SPEED_25GB false 5a:a5:5a:01:02:05 - - - 0 398477209 - 0 0 0 0 - - 0 0 -
1/2.6 - 1/2.6 ethernetCsmacd - false - true 21 UP UP 211824833060 - 305071541 3266764 533369 2729264 4131 27 0 0 0 376146022 3484728 765117 2716429 3182 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:02:06 false FULL SPEED_25GB false 5a:a5:5a:01:02:06 - - - 0 120 - 0 0 0 0 - - 0 0 -
1/3.1 - 1/3.1 ethernetCsmacd - false - true 1 UP UP 344143540237900 - 25203995153591 296501288160 296501188535 175 99450 0 0 0 0 25203830155540 296500513477 296500463395 30 50052 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:01 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:01 - - - 0 168 - 0 0 0 0 - - 0 0 -
1/3.2 - 1/3.2 ethernetCsmacd - false - true 105 UP UP 344145057773294 - 25203880252766 296501102815 296501052733 30 50052 588458 0 0 0 25203995232046 296501289254 296501189629 175 99450 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:02 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:02 - - - 0 168 - 0 0 0 0 - - 0 0 -
1/3.3 - 1/3.3 ethernetCsmacd - false - true 85 UP UP 343785764588858 - 130608 1389 0 125 1264 1389 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:03 false FULL SPEED_UNKNOWN false 5a:a5:5a:01:03:03 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.4 - 1/3.4 ethernetCsmacd - false - true 53 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:04 false FULL - false 5a:a5:5a:01:03:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.5 - 1/3.5 ethernetCsmacd - false - true 9 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:05 false FULL - false 5a:a5:5a:01:03:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.6 - 1/3.6 ethernetCsmacd - false - true 102 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:06 false FULL - false 5a:a5:5a:01:03:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.7 - 1/3.7 ethernetCsmacd - false - true 69 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:07 false FULL - false 5a:a5:5a:01:03:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/3.8 - 1/3.8 ethernetCsmacd - false - true 41 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:03:08 false FULL - false 5a:a5:5a:01:03:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/4.1 - 1/4.1 ethernetCsmacd - false - true 34 UP UP 211916613298 - 342 3 0 0 3 3 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:01:04:01 true FULL SPEED_10GB false 5a:a5:5a:01:04:01 - - - 0 0 - 0 0 0 0 - - 0 0 -
1/mgmt0 - 1/mgmt0 ethernetCsmacd - false - true 15 UP UP 237409541637 - 4391428464 6501678 4241352 863089 1397237 188 0 0 0 497631273 3630029 2312259 1256561 61209 0 0 - - - 0 0 - - - - - - 00:94:a1:8e:d0:7d true FULL SPEED_1GB false 00:94:a1:8e:d0:7d - - - 0 4 - 0 0 0 0 - - 0 0 -
2/1.1 - 2/1.1 ethernetCsmacd - false - true 10 UP UP 210816650163 - 434525098398 195073095 146494484 904052 47674559 295 0 0 0 314825258244 338291044 334761346 1448843 2080855 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:01 true FULL SPEED_10GB false 5a:a5:5a:02:01:01 - - - 0 131439513 - 0 0 0 0 - - 0 0 -
2/1.2 - 2/1.2 ethernetCsmacd - false - true 11 UP UP 210822581696 - 231814953370 233065865 230378471 534351 2153043 315 0 0 0 78549974865 213629823 210100100 1448823 2080900 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:02 true FULL SPEED_10GB false 5a:a5:5a:02:01:02 - - - 0 37313027 - 0 0 0 0 - - 0 0 -
2/1.3 - 2/1.3 ethernetCsmacd - false - true 2 UP UP 210811061114 - 412497846595 200768039 152757405 963189 47047445 392 0 0 0 34433295277 60123833 56593960 1448913 2080960 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:03 true FULL SPEED_10GB false 5a:a5:5a:02:01:03 - - - 0 96079364 - 0 0 0 0 - - 0 0 -
2/1.4 - 2/1.4 ethernetCsmacd - false - true 3 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:04 true FULL - false 5a:a5:5a:02:01:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.5 - 2/1.5 ethernetCsmacd - false - true 12 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:05 true FULL - false 5a:a5:5a:02:01:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.6 - 2/1.6 ethernetCsmacd - false - true 13 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:06 true FULL - false 5a:a5:5a:02:01:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.7 - 2/1.7 ethernetCsmacd - false - true 4 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:07 true FULL - false 5a:a5:5a:02:01:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/1.8 - 2/1.8 ethernetCsmacd - false - true 5 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:01:08 true FULL - false 5a:a5:5a:02:01:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/2.2 - 2/2.2 ethernetCsmacd - false - true 16 UP UP 210829179837 - 144816060002 308544263 304644162 3898375 1726 139687 0 0 0 215950812892 399011696 261712713 23725985 113572998 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:02 true FULL SPEED_10GB false 5a:a5:5a:02:02:02 - - - 0 36510572 - 0 0 0 0 - - 0 0 -
2/2.3 - 2/2.3 ethernetCsmacd - false - true 17 UP UP 211093508049 - 146518517421 309322542 305429250 3891582 1710 139556 0 0 0 588502412055 346072211 346072191 2 18 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:03 true FULL SPEED_10GB false 5a:a5:5a:02:02:03 - - - 0 124271378 - 0 0 0 0 - - 0 0 -
2/2.4 - 2/2.4 ethernetCsmacd - false - true 18 UP UP 211098979263 - 141709095850 306281208 302394510 3884969 1729 139045 0 0 0 177013348109 250758459 250758442 3 14 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:04 true FULL SPEED_10GB false 5a:a5:5a:02:02:04 - - - 0 30867933 - 0 0 0 0 - - 0 0 -
2/2.5 - 2/2.5 ethernetCsmacd - false - true 20 UP UP 255974438486120 - 699217208802 1049137532 1008795307 17227932 23114293 6 0 0 0 834005721167 1106314220 1004140938 11717890 90455392 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:05 false FULL SPEED_25GB false 5a:a5:5a:02:02:05 - - - 0 423195112 - 0 0 0 0 - - 0 0 -
2/2.6 - 2/2.6 ethernetCsmacd - false - true 21 UP UP 255974442618502 - 425810321 3944775 822247 3118682 3846 12 0 0 0 330169732 3497826 575824 2917523 4479 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:02:06 false FULL SPEED_25GB false 5a:a5:5a:02:02:06 - - - 0 120 - 0 0 0 0 - - 0 0 -
2/3.1 - 2/3.1 ethernetCsmacd - false - true 1 UP UP 599906770045804 - 29029262710187 326068765959 3498576 0 326065267383 0 0 0 0 29022800137815 326047197783 4180729 283121 326042733933 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:01 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:01 - - - 0 48 - 0 0 0 0 - - 0 0 -
2/3.2 - 2/3.2 ethernetCsmacd - false - true 105 UP UP 599908042185684 - 29022852750432 326047816696 4180729 283121 326043352846 617660 0 0 0 29029262822060 326068767217 3498576 0 326065268641 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:02 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:02 - - - 0 48 - 0 0 0 0 - - 0 0 -
2/3.3 - 2/3.3 ethernetCsmacd - false - true 85 UP UP 599548574726781 - 13050107822 45206196 0 283121 44923075 45206196 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:03 false FULL SPEED_UNKNOWN false 5a:a5:5a:02:03:03 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.4 - 2/3.4 ethernetCsmacd - false - true 53 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:04 false FULL - false 5a:a5:5a:02:03:04 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.5 - 2/3.5 ethernetCsmacd - false - true 9 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:05 false FULL - false 5a:a5:5a:02:03:05 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.6 - 2/3.6 ethernetCsmacd - false - true 102 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:06 false FULL - false 5a:a5:5a:02:03:06 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.7 - 2/3.7 ethernetCsmacd - false - true 69 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:07 false FULL - false 5a:a5:5a:02:03:07 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/3.8 - 2/3.8 ethernetCsmacd - false - true 41 UP DOWN - - 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:03:08 false FULL - false 5a:a5:5a:02:03:08 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/4.1 - 2/4.1 ethernetCsmacd - false - true 34 UP UP 210893719718 - 432 4 0 0 4 4 0 0 0 0 0 0 0 0 0 0 - - - 0 0 - - - - - - 5a:a5:5a:02:04:01 true FULL SPEED_10GB false 5a:a5:5a:02:04:01 - - - 0 0 - 0 0 0 0 - - 0 0 -
2/mgmt0 - 2/mgmt0 ethernetCsmacd - false - true 15 UP UP 254713934290873 - 4353692505 6379395 4650623 978127 750645 522 0 0 0 1937672815 2047253 1977331 8921 61001 613 0 - - - 0 0 - - - - - - 00:94:a1:8e:d0:7e true FULL SPEED_1GB false 00:94:a1:8e:d0:7e - - - 0 0 - 0 0 0 0 - - 0 0 -
cplagg_1.1 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 9 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.2 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 0 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.3 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 20000 - - 1 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.4 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 2 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.5 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 3 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.6 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 4 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.7 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 5 - - - - - - - - - - - - - - - - - - - - -
cplagg_1.8 - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 1 - - - 6 - - - - - - - - - - - - - - - - - - - - -
mgmt-aggr - - - - false - - - - - - - - - - - - - - - - - - - - - - - - - - 0 0 LACP 0 20000 - - 7 - - - - - - - - - - - - - - - - - - - - -
syscon-2-active#
Link Aggregation Status of System Controllers from the webUI¶
Link Aggregation Status of System Controllers from the API¶
The following API call will list the status of all backplane LACP interfaces, as well as front panel management port lacp interfaces:
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-lacp:lacp
The body of the response will look similar to the output below.
{
"openconfig-lacp:lacp": {
"interfaces": {
"interface": [
{
"name": "cplagg_1.1",
"config": {
"name": "cplagg_1.1",
"interval": "FAST"
},
"state": {
"name": "cplagg_1.1",
"interval": "FAST",
"lacp-mode": "ACTIVE",
"system-id-mac": "0:94:a1:8e:d0:0",
"system-priority": 53248
},
"members": {
"member": [
{
"interface": "1/1.1",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:d0:0",
"oper-key": 2,
"partner-id": "0:a:49:ff:96:2",
"partner-key": 0,
"port-num": 4225,
"partner-port-num": 2,
"counters": {
"lacp-in-pkts": "1173835",
"lacp-out-pkts": "1170433",
"lacp-rx-errors": "0"
}
}
},
{
"interface": "2/1.1",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:d0:0",
"oper-key": 2,
"partner-id": "0:a:49:ff:96:2",
"partner-key": 0,
"port-num": 8321,
"partner-port-num": 4,
"counters": {
"lacp-in-pkts": "1174757",
"lacp-out-pkts": "1170443",
"lacp-rx-errors": "0"
}
}
}
]
}
},
Monitoring of Chassis Cluster Status from the System Controller¶
Monitoring of Chassis Cluster Status from the System Controller via API¶
GET https://{{System-Controller-IP}}:8888/restconf/data/f5-chassis-cluster:cluster
The body of the response will look similar to the output below.
{
"f5-chassis-cluster:cluster": {
"nodes": {
"node": [
{
"name": "blade-1",
"status": "Ready",
"time-created": "2021-08-31T00:16:13Z",
"roles": "compute",
"info": {
"cpu": 28,
"pods": 250,
"memory": "26112340Ki",
"hugepages": "102890Mi"
}
},
{
"name": "blade-2",
"status": "Ready",
"time-created": "2021-08-31T00:16:12Z",
"roles": "compute",
"info": {
"cpu": 28,
"pods": 250,
"memory": "26112340Ki",
"hugepages": "102890Mi"
}
},
{
"name": "blade-3",
"status": "Ready",
"time-created": "2021-08-31T00:16:11Z",
"roles": "compute",
"info": {
"cpu": 28,
"pods": 250,
"memory": "26112340Ki",
"hugepages": "102890Mi"
}
},
{
"name": "controller-1",
"status": "Ready",
"time-created": "2021-08-30T23:30:41Z",
"roles": "infra,master"
},
{
"name": "controller-2",
"status": "Ready",
"time-created": "2021-09-15T20:16:48Z",
"roles": "infra,master"
}
]
},
"install-progress": {
"install-progress": [
{
"stage-name": "AddingBlade",
"status": "Done"
},
{
"stage-name": "AddingController",
"status": "Done"
},
{
"stage-name": "AddingEtcd",
"status": "Done"
},
{
"stage-name": "HealthCheck",
"status": "Done"
},
{
"stage-name": "HostedInstall",
"status": "Done"
},
{
"stage-name": "MasterAdditionalInstall",
"status": "Done"
},
{
"stage-name": "MasterInstall",
"status": "Done"
},
{
"stage-name": "NodeBootstrap",
"status": "Done"
},
{
"stage-name": "NodeJoin",
"status": "Done"
},
{
"stage-name": "Prerequisites",
"status": "Done"
},
{
"stage-name": "ServiceCatalogInstall",
"status": "Done"
},
{
"stage-name": "etcdInstall",
"status": "Done"
}
]
},
"orchestration-manager": {
"cluster-initialized": true,
"cluster-ready": true,
"active-node": "controller-1.chassis.local",
"etcd-ha-initialized": true,
"etcd-ha-running": true,
"controller-status": [
{
"index": 1,
"name": "controller-1.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster"
},
{
"index": 2,
"name": "controller-2.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster"
}
],
"blade-status": [
{
"index": 1,
"name": "blade-1.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-2"
},
{
"index": 2,
"name": "blade-2.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-2"
},
{
"index": 3,
"name": "blade-3.chassis.local",
"inserted": true,
"in-cluster": true,
"ready-cluster": true,
"able-to-ping": true,
"able-to-ssh": true,
"state": "In Cluster",
"partition-label": "partition-3"
}
]
},
"cluster-status": {
"summary-status": "Check DNS server configuration. Openshift cluster is healthy, and all controllers and blades are ready.",
"cluster-status": [
{
"status": "2021-09-17 02:37:43.730946 - Orchestration manager startup."
},
{
"status": "2021-09-17 02:38:03.741536 - Can now ping controller-1.chassis.local (100.65.3.51)."
},
{
"status": "2021-09-17 02:38:03.749433 - Can now ping controller-2.chassis.local (100.65.3.52)."
},
{
"status": "2021-09-17 02:38:03.800254 - Successfully ssh'd to CC controller-1.chassis.local."
},
{
"status": "2021-09-17 02:38:04.030608 - Successfully ssh'd to CC controller-2.chassis.local."
},
{
"status": "2021-09-17 02:38:04.037921 - Can now ping blade blade-1.chassis.local (100.65.3.1)."
},
{
"status": "2021-09-17 02:38:04.266296 - Successfully SSH'd to blade blade-1.chassis.local."
},
{
"status": "2021-09-17 02:38:04.274272 - Can now ping blade blade-2.chassis.local (100.65.3.2)."
},
{
"status": "2021-09-17 02:38:04.477978 - Successfully SSH'd to blade blade-2.chassis.local."
},
{
"status": "2021-09-17 02:38:04.484810 - Can now ping blade blade-3.chassis.local (100.65.3.3)."
},
{
"status": "2021-09-17 02:38:04.683856 - Successfully SSH'd to blade blade-3.chassis.local."
},
{
"status": "2021-09-17 02:39:05.398483 - Invalid DNS server configured on controller-1.chassis.local."
},
{
"status": "2021-09-17 02:39:05.424236 - Orchestration manager transitioning to active."
},
{
"status": "2021-09-17 02:39:55.229251 - Can NOT ping controller-2.chassis.local (100.65.3.52)."
},
{
"status": "2021-09-17 02:45:11.056259 - Can now ping controller-2.chassis.local (100.65.3.52)."
},
{
"status": "2021-09-17 02:45:11.297634 - Successfully ssh'd to CC controller-2.chassis.local."
},
{
"status": "2021-09-17 02:46:13.207504 - Controller 1 is ready in openshift cluster."
},
{
"status": "2021-09-17 02:46:13.207610 - Controller 2 is ready in openshift cluster."
},
{
"status": "2021-09-17 02:46:13.207654 - Blade 1 is ready in openshift cluster."
},
{
"status": "2021-09-17 02:46:13.207697 - Blade 2 is ready in openshift cluster."
},
{
"status": "2021-09-17 02:46:13.207739 - Blade 3 is ready in openshift cluster."
},
{
"status": "2021-09-17 02:46:13.207782 - Openshift cluster is ready."
},
{
"status": "2021-09-17 02:47:02.228486 - Openshift cluster is NOT ready."
},
{
"status": "2021-09-17 02:47:21.461242 - Openshift cluster is ready."
}
]
}
}
}
Monitoring of Chassis Partitions from the System Controller¶
Monitoring of Chassis Partitions from the System Controller via API¶
GET https://{{System-Controller-IP}}:8888/restconf/data/f5-system-slot:slots
The body of the response will look similar to the output below.
{
"f5-system-slot:slots": {
"slot": [
{
"slot-num": 1,
"enabled": true,
"partition": "Production"
},
{
"slot-num": 2,
"enabled": true,
"partition": "Production"
},
{
"slot-num": 3,
"enabled": true,
"partition": "smallpartition"
},
{
"slot-num": 4,
"enabled": true,
"partition": "default"
},
{
"slot-num": 5,
"enabled": true,
"partition": "default"
},
{
"slot-num": 6,
"enabled": true,
"partition": "default"
},
{
"slot-num": 7,
"enabled": true,
"partition": "default"
},
{
"slot-num": 8,
"enabled": true,
"partition": "default"
}
]
}
}
Monitoring of Chassis Partitions from the System Controller via webUI¶
Within the Dahsboard section of thw webUI is a Partition Overview which shows how blades are assgined to chassis partitions, their management IP addresses, and their operational state.
The are some basic visuals in the System Controller webUI for Chassis Partitions with an Operational State, views of the partitions, and the ability to do some basic configuration from the System Controller. You can connect directly to one of the Chassis Partitions to get more specific details.
The webUI screen below shows Chassis Partition visualization/configuration. An admin can see which blades belong to which chassis partitions as well as the chassis partition operational status:
Monitoring of Chassis Partitions from the System Controller via CLI¶
The CLI command show partitions will show the current chassis partitions ID’s and their status on each system controller:
syscon-2-active# show partitions
PARTITION PARTITION
NAME CONTROLLER ID STATUS
----------------------------------------------
bigpart 1 2 running
2 2 running
blade3part 1 3 running
2 3 running
default 1 1 running
2 1 running
none 1 0 disabled
2 0 disabled
The CLI command show running-config slots will show the which slots are configured to participate in specific chassis partitions:
syscon-2-active# show running-config slots
slots slot 1
enabled
partition bigpart
!
slots slot 2
enabled
partition bigpart
!
slots slot 3
enabled
partition blade3part
!
slots slot 4
enabled
partition default
!
slots slot 5
enabled
partition default
!
slots slot 6
enabled
partition default
!
slots slot 7
enabled
partition default
!
slots slot 8
enabled
partition default
!
Alerting and Logging of Chassis Partitions Events from the System Controller¶
From the System Controller CLI you may also view the System Controller and individual Blade Status using the show cluster or the shortened show cluster nodes command:
controller-1# show cluster nodes
NAME STATUS TIME CREATED ROLES CPU PODS MEMORY HUGEPAGES
--------------------------------------------------------------------------------------------
blade-1 Ready 2020-08-06T06:18:08Z compute 28 250 26112340Ki 102890Mi
blade-2 Ready 2020-08-06T06:18:09Z compute 28 250 26112340Ki 102890Mi
controller-1 Ready 2020-08-06T05:52:45Z infra,master - - - -
controller-2 Ready 2020-08-06T05:52:51Z infra,master - - - -
controller-1# show cluster
NAME STATUS TIME CREATED ROLES CPU PODS MEMORY HUGEPAGES
--------------------------------------------------------------------------------------------
blade-1 Ready 2020-08-06T06:18:08Z compute 28 250 26112340Ki 102890Mi
blade-2 Ready 2020-08-06T06:18:09Z compute 28 250 26112340Ki 102890Mi
controller-1 Ready 2020-08-06T05:52:45Z infra,master - - - -
controller-2 Ready 2020-08-06T05:52:51Z infra,master - - - -
STAGE NAME STATUS
---------------------------------
AddingBlade Done
HealthCheck Done
HostedInstall Done
MasterAdditionalInstall Done
MasterInstall Done
NodeBootstrap Done
NodeJoin Done
Prerequisites Done
ServiceCatalogInstall Done
etcdInstall Done
System Alerting and Logging¶
From the system controller webUI there is a high-level status and alerting of any faults for the chassis level components.
System Alerts via API¶
Recent system level alerts can be accessed via the API.
GET https://{{System-Controller-IP}}:8888/restconf/data/openconfig-system:system/f5-event-log:events
The body of the response will look similar to the output below.
{
"f5-event-log:events": {
"event": [
{
"log": "65543 controller-2 aom-fault EVENT NA \"LOP Runtime fault detected: LOP is not receiving health reports from all installed VFC cards\" \"2021-03-05 04:48:14.485125925 UTC\""
},
{
"log": "65543 controller-2 aom-fault CLEAR ERROR \"Fault detected in the AOM\" \"2021-03-05 04:48:14.605547335 UTC\""
},
{
"log": "65543 controller-2 aom-fault EVENT NA \"No LOP Runtime fault detected: LOP is not receiving health reports from all installed VFC cards\" \"2021-03-05 04:48:14.605590242 UTC\""
},
