F5 AI Guardrails insertion

In order to insert F5 AI Guardrails into the protection process of our application, we will use the Out-of-Band architecture.

This architecture requires modifying the Orchestrator code. We will simplify it by using a middleware that will demonstrate the concept.

It’s important to note this middleware is community-created and not supported by F5. It can be used for demos, POCs for quick testing, or adopted by the customer.

The repository can be found here https://github.com/sorinboia/f5_ai_guardrails_connector_nginx.

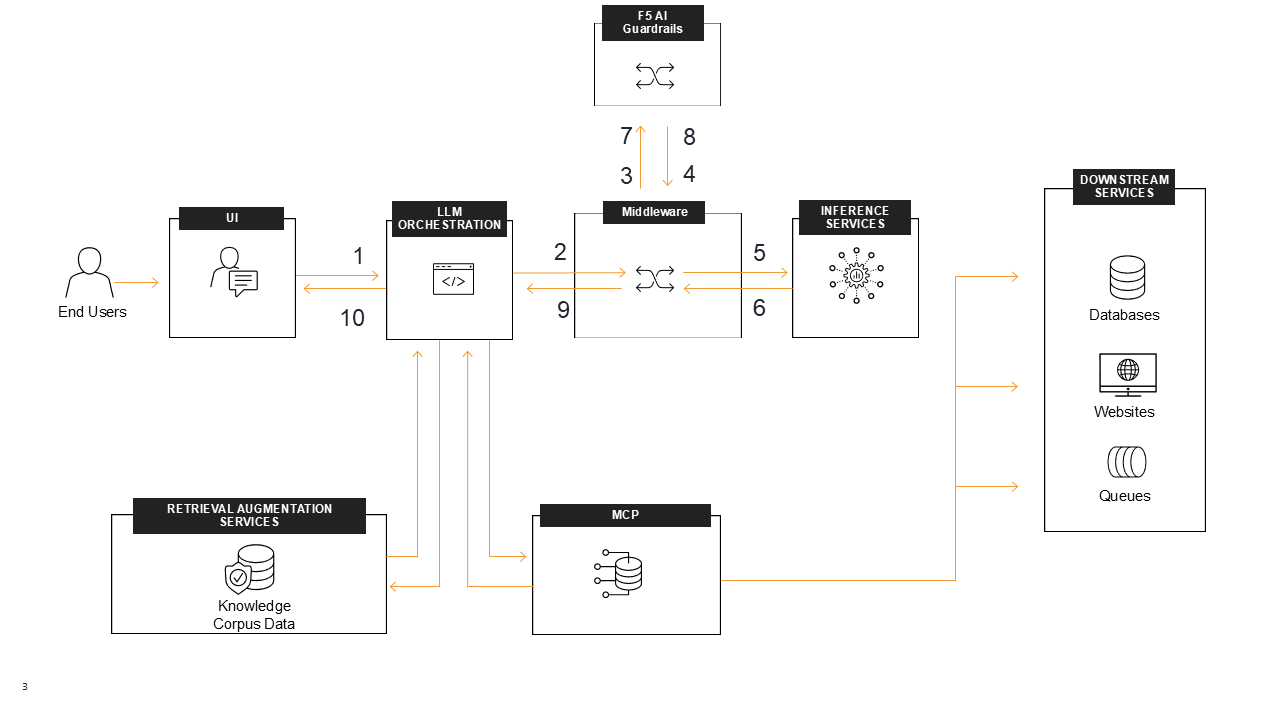

Traffic Flow

1. The user sends a prompt to the orchestrator.
2. The orchestrator sends the full context to the Middleware.
3. The Middleware will extract relevant data from the full context and send it to F5 AI Guardrails for scanning.
4. F5 AI Guardrails responds to the Middleware after scanning the data with a verdict of allow/block/redact.
5. The Middleware will block or redact if needed; otherwise, the request with the full context will be forwarded to the LLM.
6. The LLM sends back the response to the orchestrator through the Middleware.
7. The Middleware will extract relevant response data and send it to F5 AI Guardrails for scanning.
8. F5 AI Guardrails responds to the orchestrator after scanning the LLM response with a verdict of allow/block/redact.
9. The Middleware will block or redact if needed; otherwise, the response will be forwarded to the Orchestrator.
10. The orchestrator sends the LLM response to the client.
