F5 BIG-IP SSL Orchestrator Training Lab > All SSL Orchestrator Lab Guides > SSLO 101: Introduction to SSL Visibility with SSL Orchestrator (AppWorld 2026 | 2 hours) > 3. Lab 1: Deploy an Outbound Transparent Forward Proxy Source | Edit on
3.1. Lab OverviewΒΆ
You will use the SSL Orchestrator Guided Configuration wizard to deploy an L3 Outbound topology. At this initial stage, you will not create any inspection Services or Service Chains. The Security Policy will be configured to decrypt by default. You will then verify that it is able proxy outbound Internet traffic.

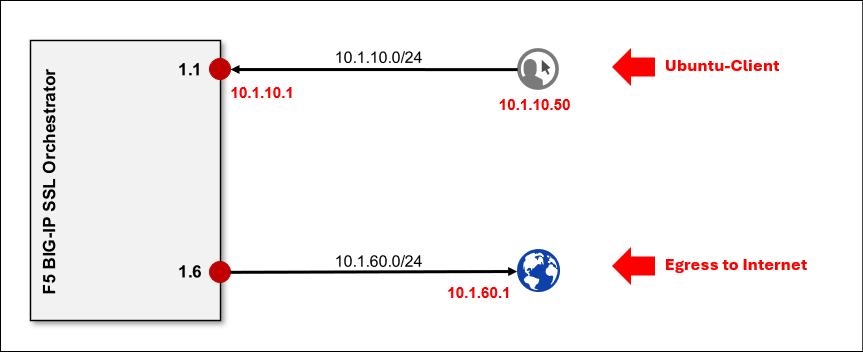

These are the lab resources that are relevant to this module:

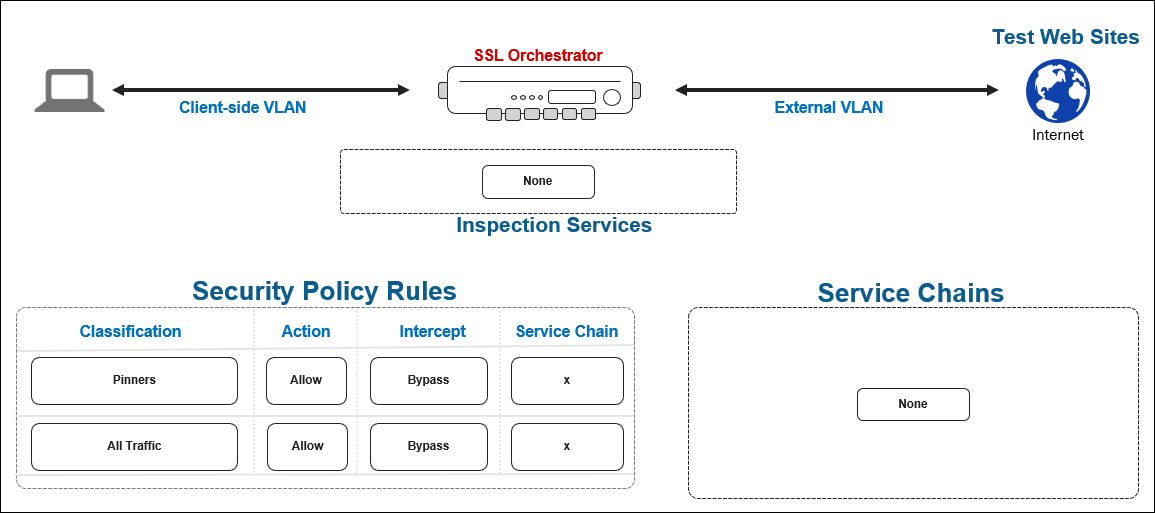

The target deployment state is as follows:
Note
The SSL Orchestrator solution runs on an F5 BIG-IP Application Delivery Controller (ADC) platform, so "BIG-IP" and "SSL Orchestrator" may be used interchangeably in this lab guide.
