1.2. Lab Environment Details

Note

This lab guide and corresponding UDF lab blueprint are prepared for BIG-IP SSL Orchestrator using a consolidated services lab architecture. All security services are consolidated into a single Ubuntu server instance using a Docker Compose environment.

1.2.1. Network Diagram

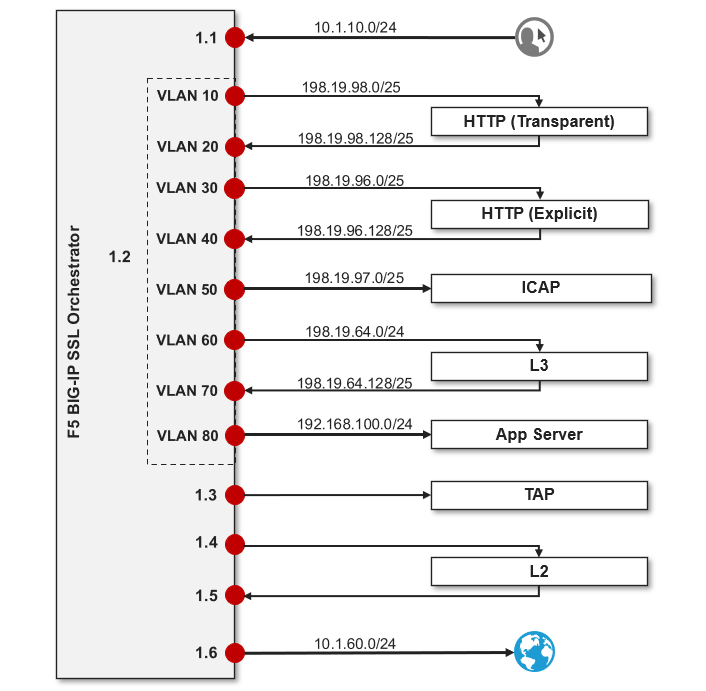

Here is a visual representation of the virtual lab environment. The numbers inside the right edge of the SSL Orchestrator box indicate the port numbers and VLAN tags (if applicable). The colored boxes to the right of the services represent some product examples for each respective service type.

The first interface is connected to the client-facing VLAN. The last interface is connected to the Internet-facing VLAN. One of the tagged interfaces connects to the application server VLAN. The remaining interfaces are connected to various types of security services: L2, L3, HTTP, ICAP, and passive Tap. The SSL Orchestrator management interface is not shown.

1.2.2. Virtual Lab Infrastructure Details (and Credentials)

The lab environment for this guide includes some prerequisite configuration settings that you should be aware of. These are provided to simplify this course. If you wish to use this lab guide with your own environment, please ensure that you create these objects in advance.

• Client side VLAN and subnet are pre-defined - This is the VLAN that a client connects to for traffic flows. SSL Orchestrator does not define the client-side VLAN(s) and self-IP(s).

• Server side VLAN and subnet are pre-defined - This is the VLAN that traffic egresses from the F5 BIG-IP to the web servers. SSL Orchestrator does not define the server-side VLAN(s) and self-IP(s). Consequently, the consolidated architecture will use the same interface on separate tagged VLANs to establish connectivity to the L3, HTTP, and ICAP inspection services.

• TAP service VLAN is pre-defined - This is the VLAN that traffic egresses from the F5 BIG-IP to the TAP inspection service.

• CA certificate and private key are installed - This is the CA certificate and private key that are used to re-issue (forge) remote server certificates to internal clients for outbound traffic flows.

• Server certificate and private key are installed - For the inbound (reverse proxy) traffic flow use case, SSL traffic is terminated at the F5, and re-encrypted on the way to the internal application environment. A wildcard server certificate is installed to facilitate using any name under the "f5labs.com" sub-domain.

  Individual server certificates are also included for the following applications: jsapp1.f5labs.com, jsapp2.f5labs.com, gwapp1.f5labs.com, gwapp2.f5labs.com, and gwapp3.f5labs.com.

Note

It is a security best practice to isolate security devices within the protected network enclaves provided by SSL Orchestrator. Administrators will often desire NOT to move or change existing security services. However, while possible, passing this decrypted traffic to points on an existing network architecture could create multiple points of data exposure. Usernames, passwords, credit card numbers and other personally identifiable information (PII) could be exposed to other devices on that network. It is thus recommended that security devices exist in a "private enclave" local to the BIG-IP instance(s). Please keep this in mind when defining the network settings for the inspection services.*

The following tables provide device/service network configuration details. Login credentials are also provided for use as directed in the lab exercises.

F5 BIG-IP SSL Orchestrator

Username	Password	Description
admin	admin	Admin account

Interface	IP	Description
Management	10.1.1.7/24	Management VLAN
1.1	10.1.10.7/24	Client-Side VLAN (Ubuntu-Client)
1.2 (Tag 30)	198.19.96.7/25	Inline HTTP service - Inbound
1.2 (Tag 40)	198.19.96.245/25	Inline HTTP service - Outbound
1.2 (Tag 50)	198.19.97.7/25	ICAP Service - Inbound/Outbound
1.2 (Tag 60)	198.19.64.7/25	Inline L3 service - Inbound
1.2 (Tag 70)	198.19.64.245/25	Inline L3 service - Outbound
1.2 (Tag 80)	192.168.100.7/24	Server-side (lab webservers)
1.3	198.19.97.7/25	TAP service - Inbound
1.4	N/A	Inline L2 service - Inbound
1.5	N/A	Inline L2 service - Outbound
1.6	10.1.60.7/24	Internet

Ubuntu-Client (inbound/outbound testing)

Interfaces	IP Address	VLAN
eth1	10.1.10.50	Client-Side VLAN

Access	Username	Password
WEB SHELL	N/A	N/A
RDP / SUDO	ubuntu	agility

Ubuntu-Server (consolidated services)

Interfaces	IP Address	VLAN
eth1	10.1.20.50	Inline L3 services
eth2	10.1.30.50	TAP service
eth3	10.1.40.50	Inline L2 service - Inbound
eth4	10.1.50.50	Inline L2 service - Outbound

Access	Username	Password
WEB SHELL	N/A	N/A
WEBRDP (Guacamole)	user	user

The WEBRDP service leverages an instance of Guacamole running on the Ubuntu-Server. This acts as a web-based RDP client that connects to the Ubuntu-Client desktop GUI.

Inline Layer 2 Service

Description	Ubuntu server host -- ens8 and ens9 br0 (bridge) tied to ens8 and ens9 interfaces on host
Services	Suricata

Traffic Flow	BIG-IP Interface
Inbound	1.4
Outbound	1.5

Inline Layer 3 Service

Description	Ubuntu server host -- ens6.60 and ens6.70
Services	Firewall
Access	$ docker exec -it layer3 /bin/bash

Traffic Flow	BIG-IP Interface	Service IP Address
Inbound	1.2 tag 60	198.19.64.30/25
Outbound	1.2 tag 70	198.19.64.130/25

HTTP Explicit Proxy Service

Description	Ubuntu server host -- ens6.30 and ens6.40
Services	Squid - Port 3128
Access	$ docker exec -it explicit-proxy /bin/bash

Traffic Flow	BIG-IP Interface	Service IP Address
Inbound	1.2 tag 30	198.19.96.30/25
Outbound	1.2 tag 40	198.19.96.130/25

TAP Service

Description	Ubuntu server host -- ens7 ens7 interface tied to tap service on host
Services	Passive TAP

Traffic Flow	BIG-IP Interface	MAC Address
Bi-directional	1.3	12:12:12:12:12:12 (arbitrary if directly connected)

ICAP Service

Description	Ubuntu server host -- ens6.50
Services	ICAP Clamav
Access	$ docker exec -it icap /bin/bash

Traffic Flow	BIG-IP Interface	Service IP Address
Bi-directional	1.2 (Tag 50)	198.19.97.50
Req/Resp URLs	/avscan	Port 1344

Generic Web Server (3 instances)

Description	Ubuntu server host -- ens6.80
Services	Apache web server *.f5labs.com
Access	$ docker exec -it apache /bin/bash

Traffic Flow	BIG-IP Interface	Service Access
Bi-directional	1.2 (Tag 80)	gwapp1.f5labs.com : 192.168.100.11 : Ports 80 & 443 gwapp2.f5labs.com : 192.168.100.12 : Ports 80 & 443 gwapp3.f5labs.com : 192.168.100.13 : Ports 80 & 443

Juice Shop Vulnerable Application (2 instances)

Description	Ubuntu server host -- ens6.80
Services	OWASP Juice Shop (running on NGINX): This is a modern insecure web application designed to demonstrate common security vulnerabilities that can easily be exploited.
Access	$ docker exec -it nginx /bin/sh

Traffic Flow	BIG-IP Interface	Service Access
Bi-directional	1.2 (Tag 80)	jsapp1.f5labs.com : 192.168.100.20 : Port 443 jsapp2.f5labs.com : 192.168.100.21 : Port 443

Warning

Simple passwords were used in this lab environment in order to make it easier for students to access the infrastructure. This does not follow recommended security practices of using strong passwords.

This lab environment is only accessible via an authenticated student login.
